1" Stainless Steel Handlebars / High & Mid Bend, Most Harley

The universal 1 inch Thrashin bar in polished stainless steel, offered in a 5-1/2 inch high bend or a 4 inch mid bend.

The same drilled and slotted 1 inch handlebar Thrashin has built its reputation on, now in stainless steel instead of chrome or black. It is knurled for clamp grip and carries the Throttle-By-Wire keyholes, so one bar covers early style TBW controls and cable throttle Harley-Davidson models alike. Made in the U.S.A.

Features

• Stainless steel construction
• Drilled and slotted for internal wiring
• Knurled for maximum clamp grip
• Throttle-By-Wire keyholes on every bar, so it works on early style TBW controls and on cable throttle bikes
• Laser etched Thrashin logo
• Made in the U.S.A.

Specifications

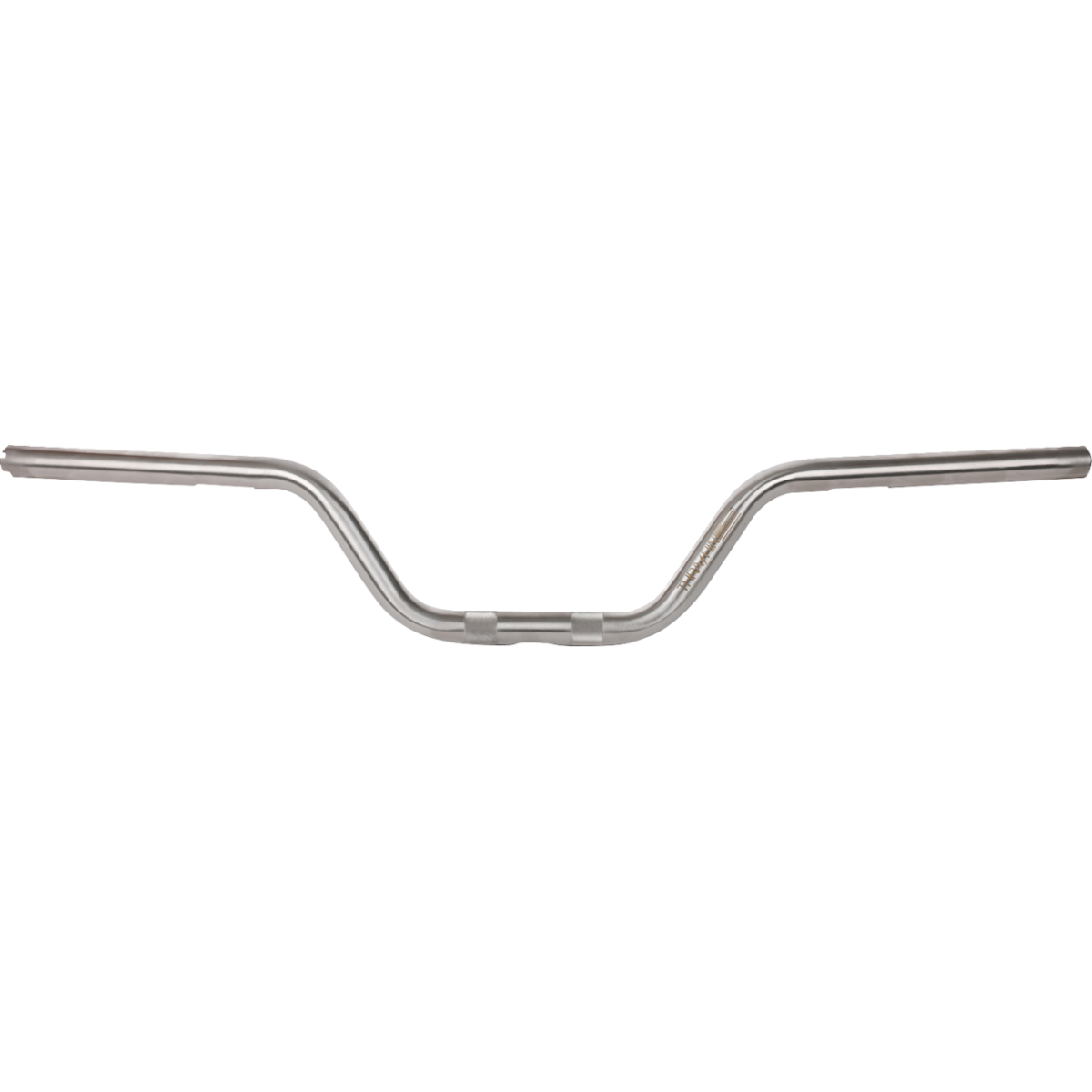

• High Bend: end rise 5-1/2", width 32", center width 5", pullback and sweep 20 degrees

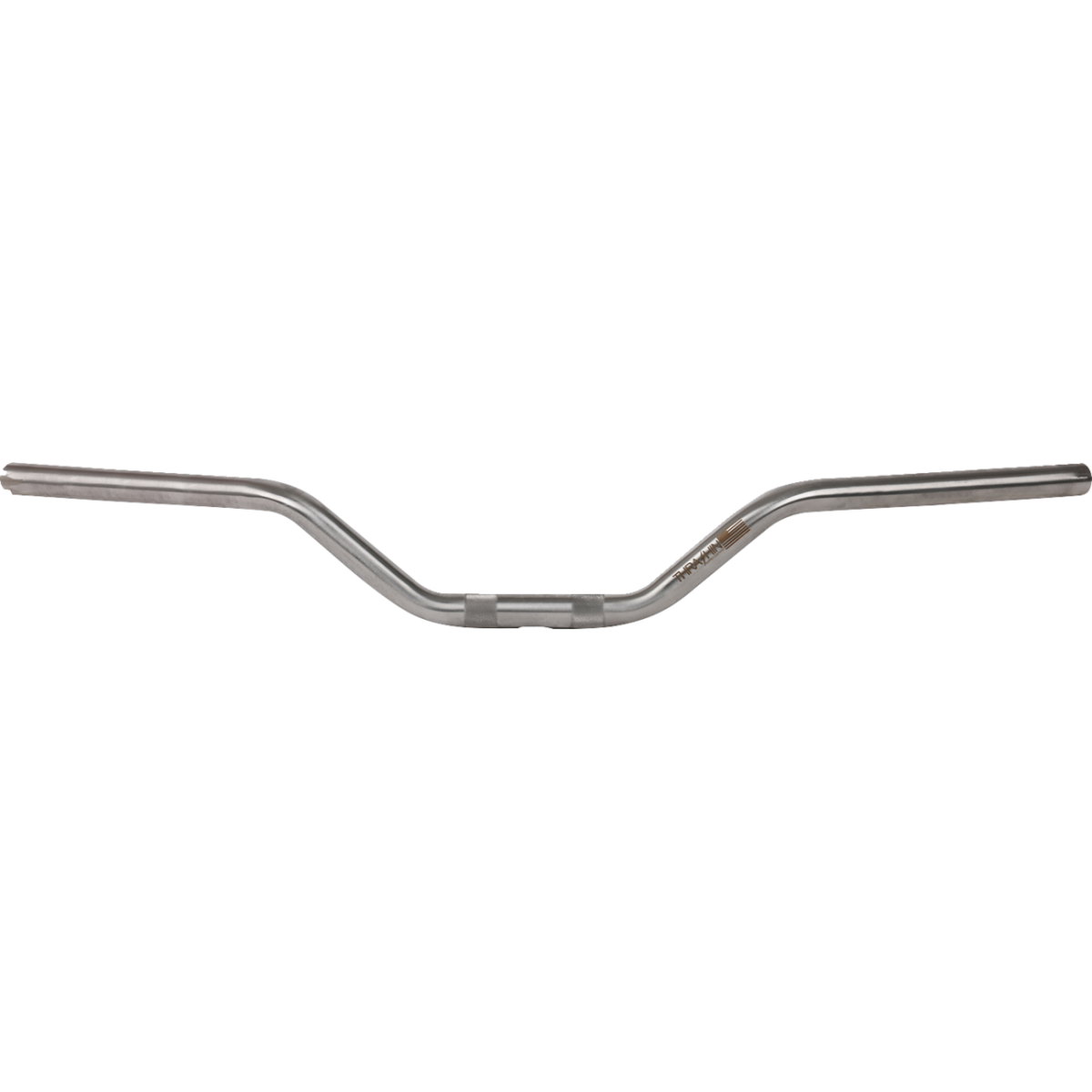

• Mid Bend: end rise 4", width 32", center width 4-4/5", pullback and sweep 25 degrees

Fitment

• Fits most Harley-Davidson models with early style Throttle-By-Wire or a cable throttle, except FLHT, FLHX, FLHTCUTG Tri Glide and Springer models
• Cable throttle models require a handlebar plug, sold separately
• Will NOT fit '23-'25 FLHXSE CVO Street Glide or FLTRXSE CVO Road Glide
• Will NOT fit '24-'25 FLHX Street Glide, FLHXU Street Glide Ultra, FLTRX Road Glide or FLTRXSTSE CVO Road Glide ST

Before You Order

• These bars do NOT accept Harley-Davidson OEM heated grips. If you need heated grips, the 1" Bagger Handlebars are the ones that take them.
• '15-'25 FLTR Road Glide applications need risers and a riser top clamp cut for 1 inch bars.
• On a cable throttle bike the Throttle-By-Wire keyholes sit open, so add the handlebar plug to fill them.

Common Questions

What is the difference between high bend and mid bend? Rise and reach. The high bend puts your hands 5-1/2 inches up with 20 degrees of sweep; the mid bend sits at 4 inches with 25 degrees, so it pulls back further toward you.

Is stainless steel different from chrome? Chrome is a plating over steel, so a chip or a scratch exposes what is underneath. Stainless is the material itself, which is why it holds up better to salt, weather and washing over the long run.

Will these work on my Throttle-By-Wire bike? Yes, on early style Throttle-By-Wire. The '24 and up Street Glide and Road Glide use a different bar end design entirely, which is why those bikes take their own part numbers.

Do I need the handlebar plug? Only on a cable throttle bike. The keyholes are cut for TBW controls, so on a cable setup they sit empty and the plug fills them.

About Thrashin Supply

Thrashin Supply Co. machines its billet parts from 6061 aircraft grade aluminum in the United States, much of it in Los Angeles. The line is built around controls, risers and foot hardware for riders who want the touch points on a Harley-Davidson to feel deliberate instead of stock.

Works With

The same bar in other finishes: 1" High Bend Bars and 1" Mid Bend Bars in chrome or black, plus the 1" Low Bend Bars and the 1" Aggressive Mid Bend Handlebars. On a '23-'25 CVO or a '24-'25 FLHX or FLTRX you need the 1" Bagger Handlebars instead. Mount these with Straight Handlebar Risers or Pull Back Handlebar Risers, the Straight or Pull Back M8 gauge cut out versions on a Softail with a riser mounted gauge, or the internally wired Hole Shot Risers. On a '15-'25 FLTR Road Glide add the Riser Top Clamps. On a cable throttle bike add the Handlebar Plug. Finish with Bolt Grips or Slim Moto Grips, and on throttle by wire the Throttle Tube.
