Hole Shot Risers / 8" & 10", Internal Wiring, 1" Bars

Billet risers drilled through for internal wiring, supplied with their own top clamp.

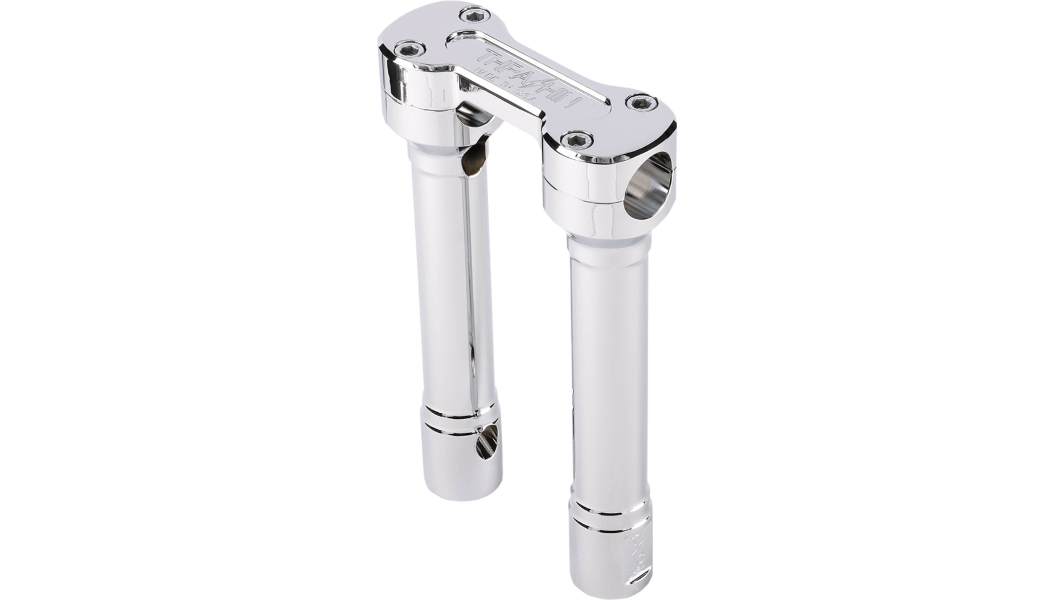

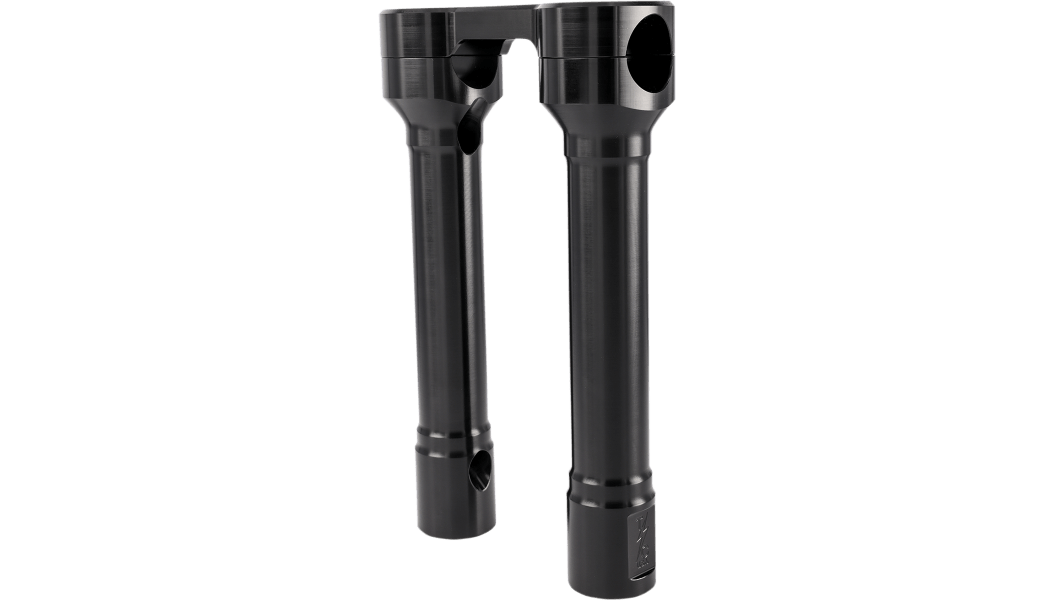

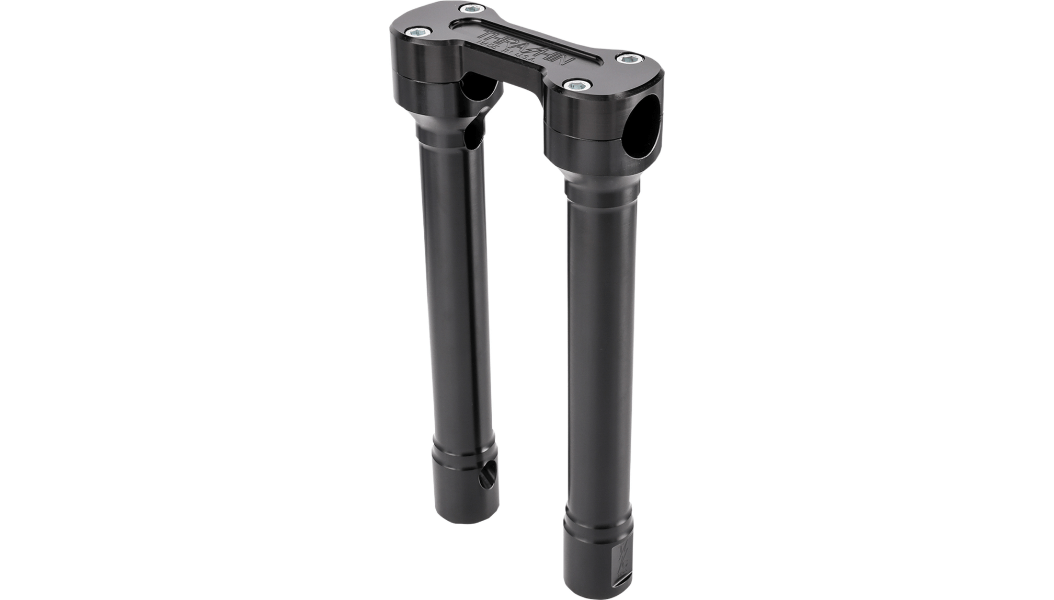

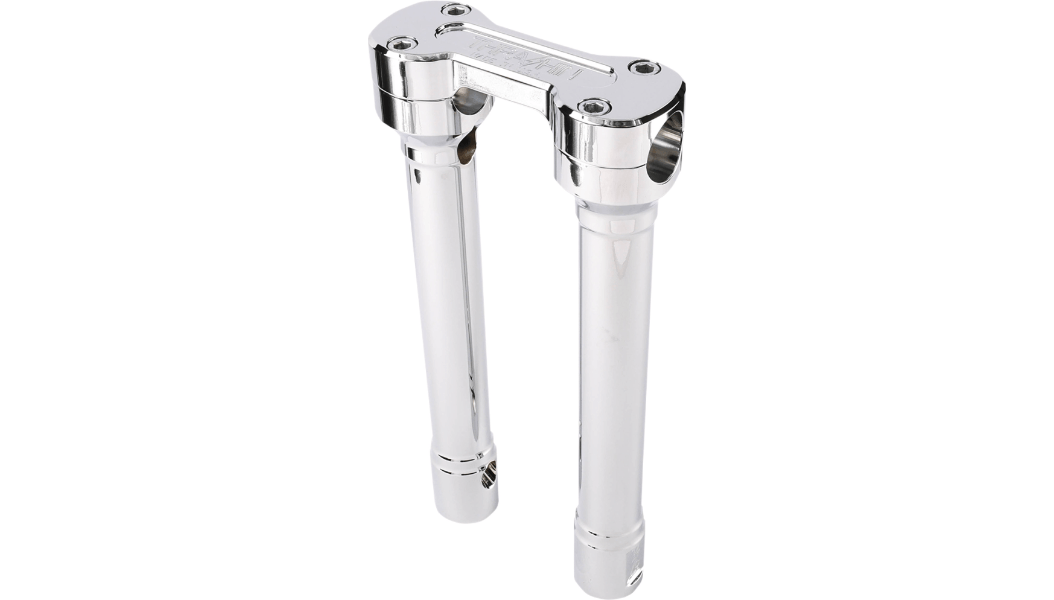

The Hole Shot is the clean version: a straight billet riser with a 1/2 inch hole bored through it so internal wiring disappears instead of looping outside the bar. It ships with its own top clamp, so the bar mount is a matched set rather than whatever the factory left on the tree.

Features

• Machined from 6061 billet aluminum
• Includes the Thrashin top clamp and hardware
• Top clamp bolts are 4-1/2 inch center to center
• Base holes tapped for standard 1/2 inch by 13 mounting bolts
• Made in the U.S.A.

Fitment

• Harley-Davidson models with 3-1/2 inch center to center riser mounting holes, which is most OE Harley-Davidsons
• Works with any standard 1 inch handlebar

Note: Sold with the Thrashin top clamp and hardware, not as a pair. The base holes are tapped for standard 1/2 inch by 13 mounting bolts, which are not included. Road Glide and Street Glide need the Thrashin Riser Adapter Plate. Older OG top clamps do not carry the 1/4-20 drilled and tapped holes the gauge relocation brackets mount to.

About Thrashin Supply

Thrashin Supply Co. machines its billet parts from 6061 aircraft grade aluminum in the United States, much of it in Los Angeles. The line is built around controls, risers and foot hardware for riders who want the touch points on a Harley-Davidson to feel deliberate instead of stock.

Works With

These carry the Thrashin 1 inch bar range: High Bend, Mid Bend, Low Bend and Aggressive Mid Bend. To add the 1/4-20 holes for a gauge bracket, the OG Riser Top Clamp. The brackets themselves: Gauge Relocation Brackets, or the Gauge Relocators on a '14-'23 bagger. For more height, Riser Extensions. On a Road Glide or Street Glide you also need the Road Glide Riser Adapter Kit or Street Glide Riser Adapter, and on a '14-'23 Road Glide the Road Glide Top Tree.
