Race Series Oil System Packs / '07-'17 Twin Cam, '06 Dyna

A complete Race Series oiling package for the late Twin Cam, in full-travel or short-travel lifter form.

This pack gathers the parts needed to finish a Twin Cam oiling system into one order. It fits '07-'17 Twin Cam engines and the '06 Dyna, running either gear or chain drive cams, which covers most Harley-Davidson Big Twins of that era including the FLHT Electra Glide, FLHR Road King, FLTR Road Glide, FLHX Street Glide, FXD Dyna and the Softail line.

The choice between the two variants is lifter travel. Full-travel lifters carry a full 0.200 inch of travel with a slower bleed-down rate, built to handle very heavy valve spring pressures and to give extra roller clearance for steep ramped camshafts. Short-travel lifters run 0.115 inch, which Feuling says raises usable rpm by reducing valve float and valvetrain harmonics, and cuts oil aeration inside the lifter on steep, fast action high lift lobes.

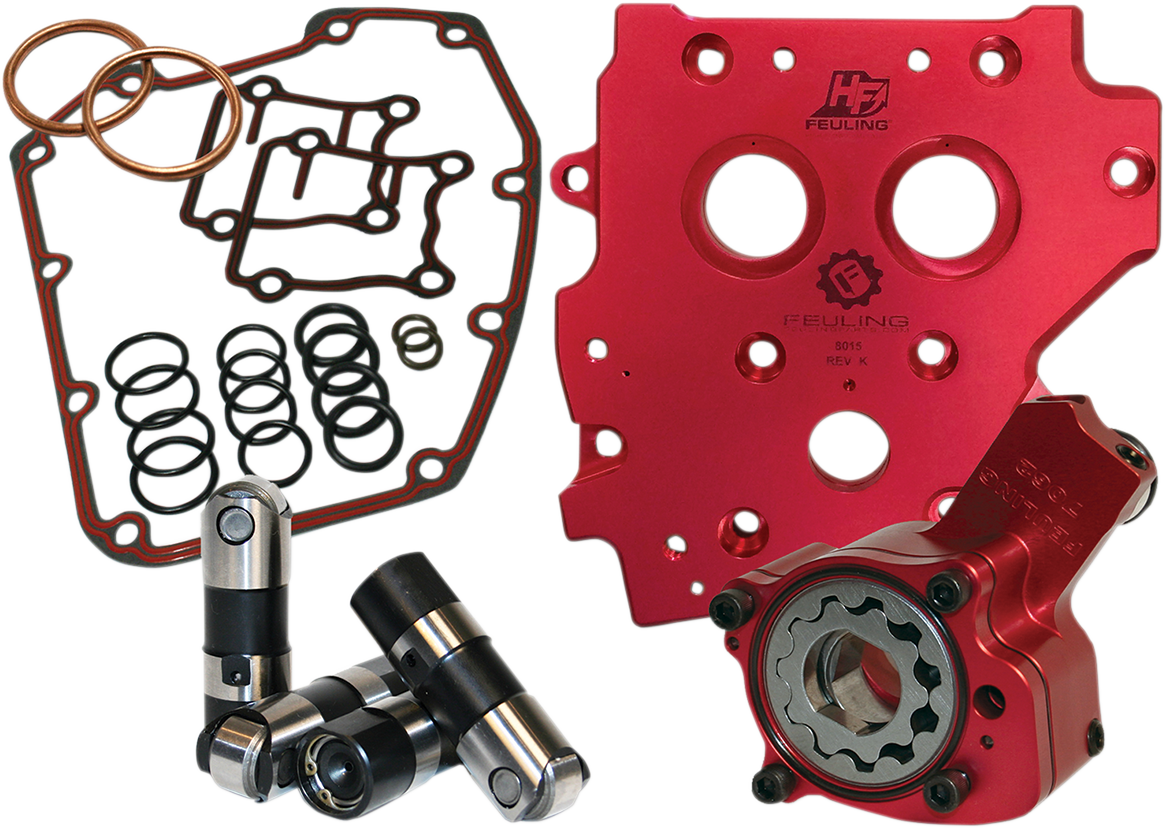

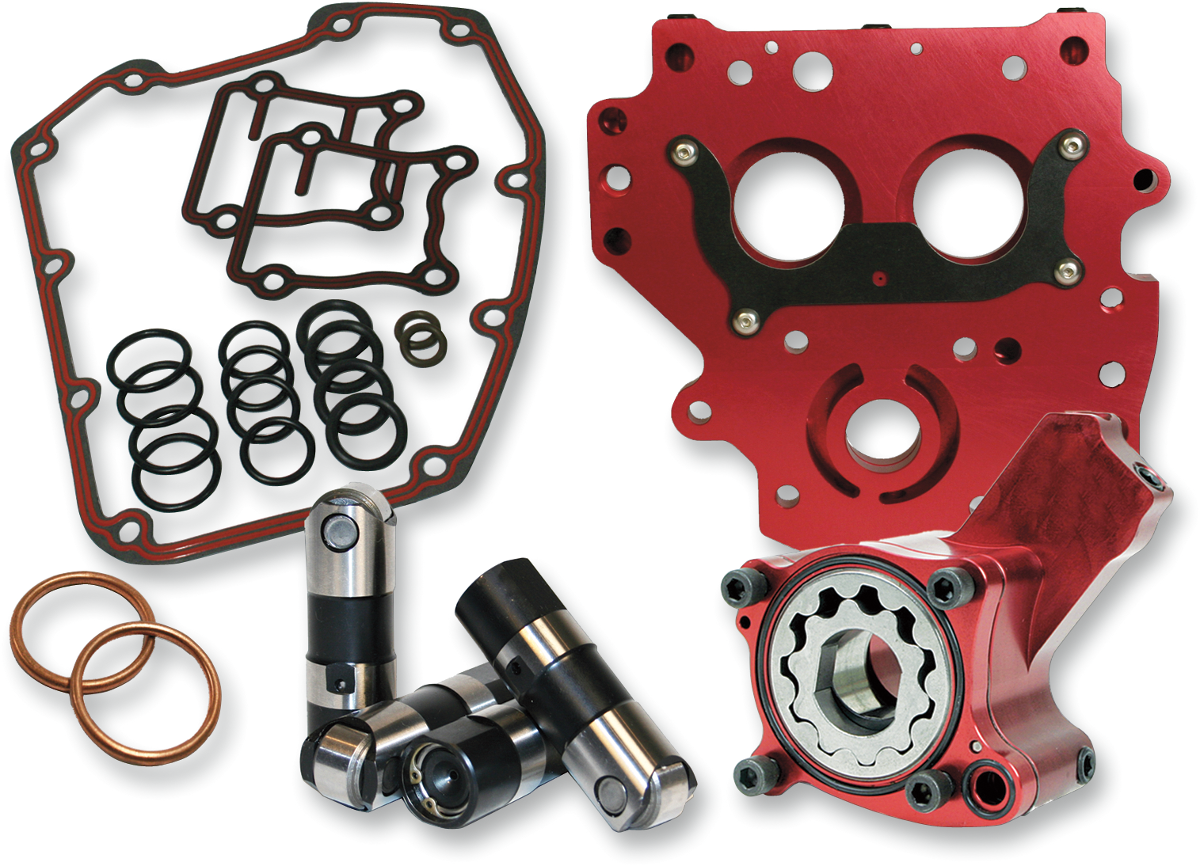

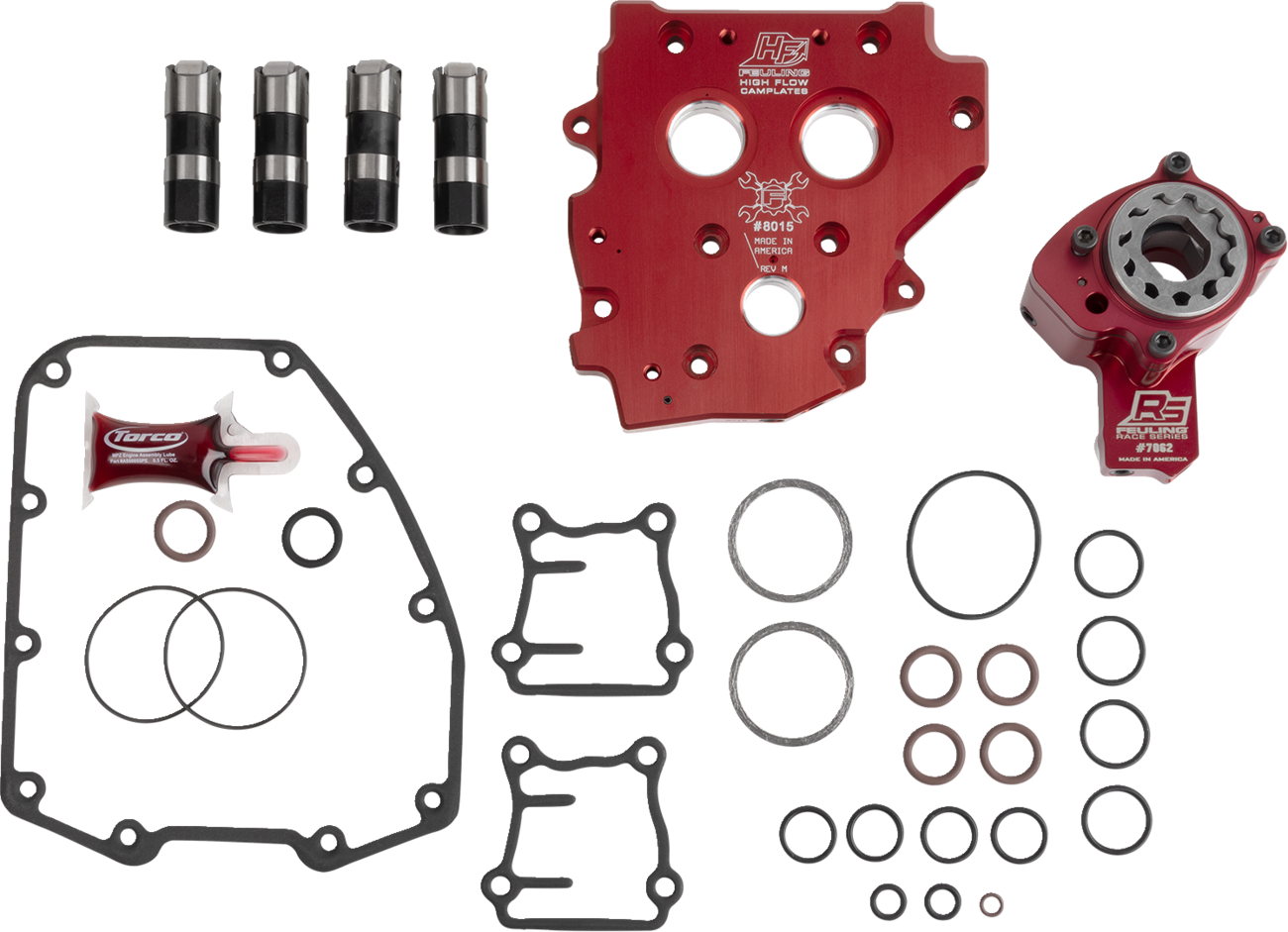

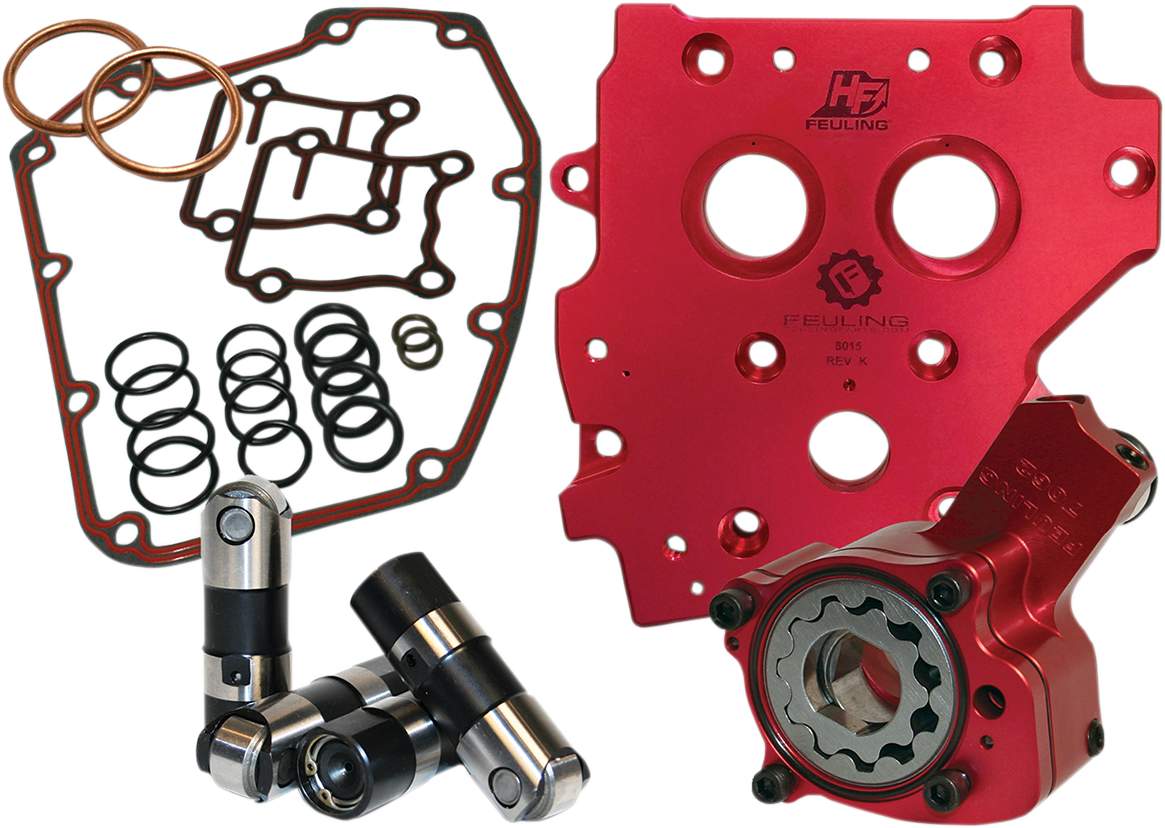

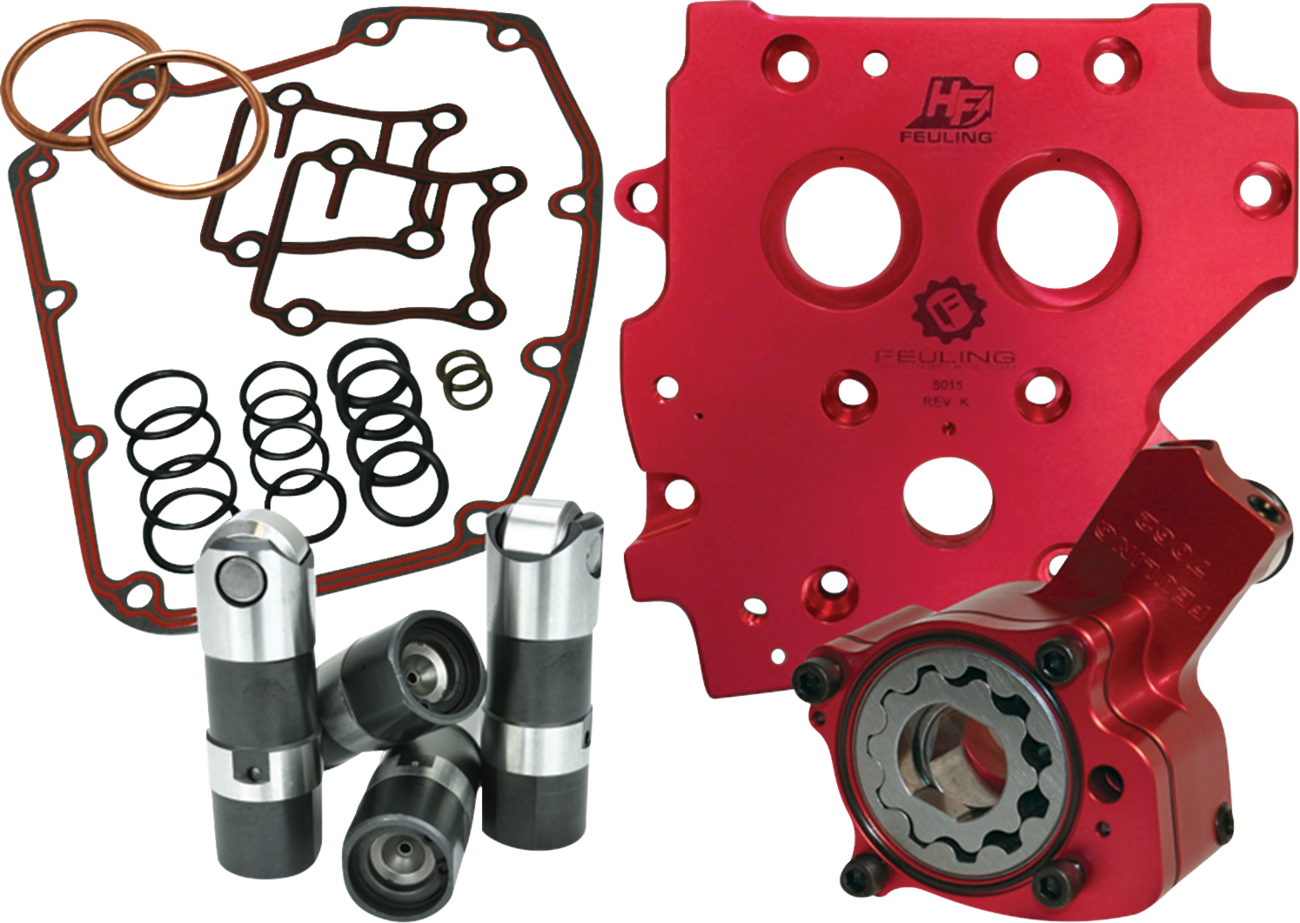

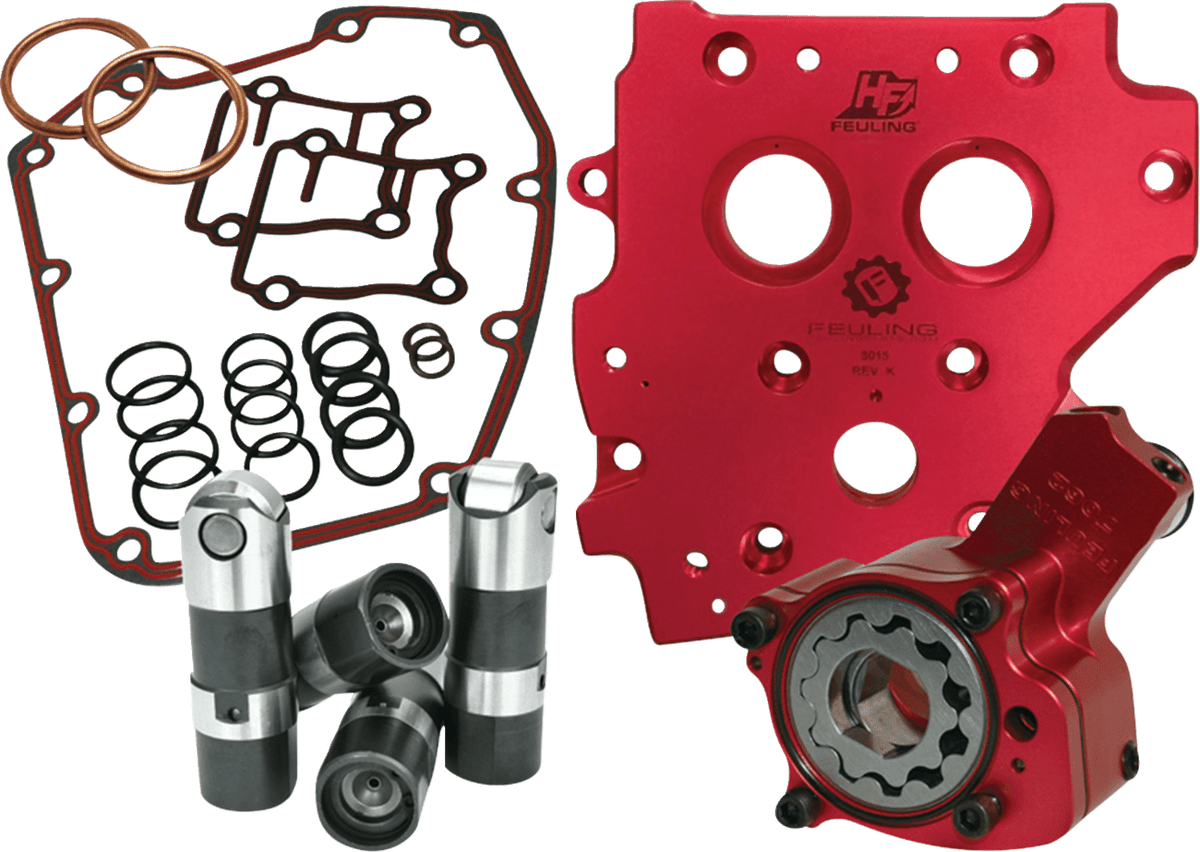

• Includes Race Series oil pump, hydraulic roller lifters, high flow camplate and cam installation kit
• Billet 7075 aluminum oil pump, which Feuling states is 50 percent harder and stronger than the factory pump and holds tighter tolerances under temperature
• Feuling reports 25 to 35 degrees cooler engine temperatures and 15 to 30 degrees cooler oil temperatures
• Feuling reports 15 to 30 psi more oil pressure
• Feuling test results show a 3 horsepower and 4 ft-lb gain at the rear wheel
• Eliminates wet sumping, blowby and oily air cleaners
• Quieter and smoother engine operation
• Made in the U.S.A.

Before you order

• Gear drive cam systems require block-off plate kit 09320036, sold separately
• The short-travel variant is used with short-travel pushrods 09280116 on stock base circle camshafts, covering the Feuling 525, 543 and 574 grinds, or 09280117 on small base circle camshafts, covering the 594 and 630 grinds
• An optional Feuling and ARP oil pump and camplate bolt kit is available as 24010993

Works With

Camplates for this engine are on the High Flow Cam Plate product. Short-travel pushrods are on the HP+ One Piece Pushrods product.
