Fully Adj. 13" STX36 Reservoir Shocks / '91-'13 Touring
Tax excluded. Shipping calculated at checkout
Fitment
Ships within 24 hrs. Arrives within 1 - 5 days depending on location

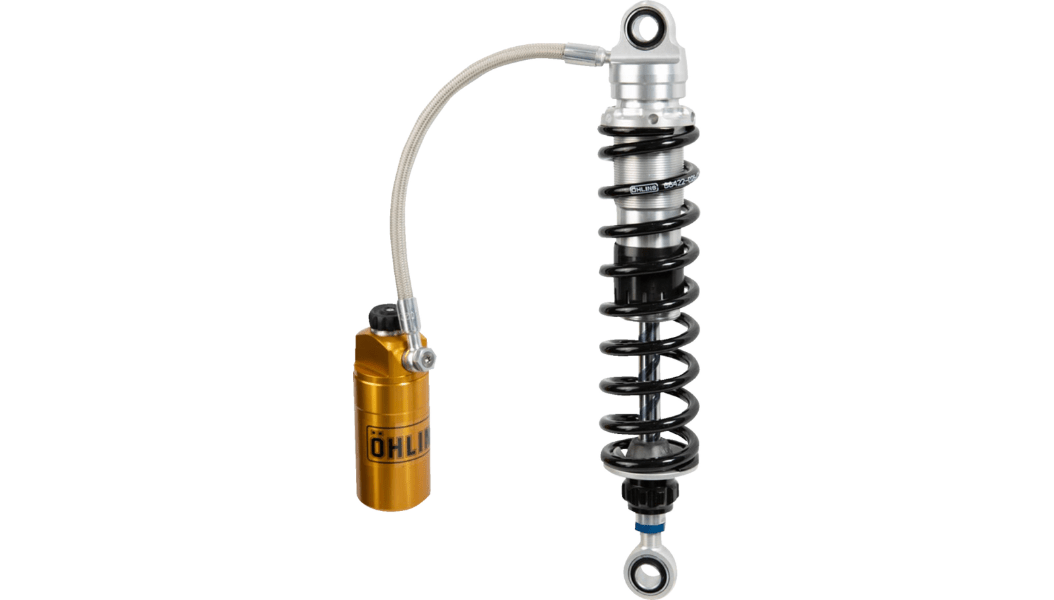

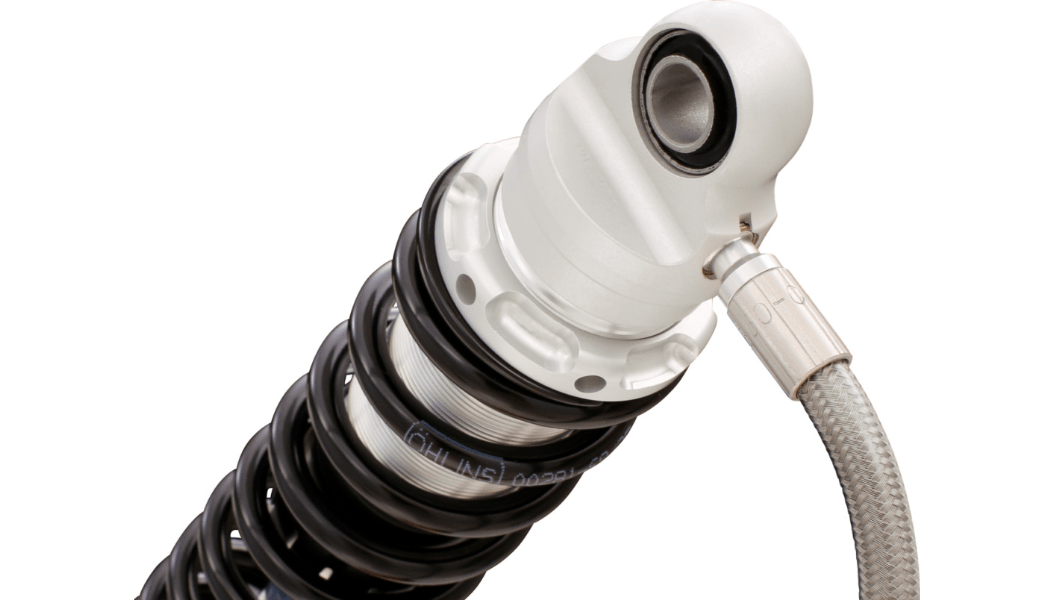

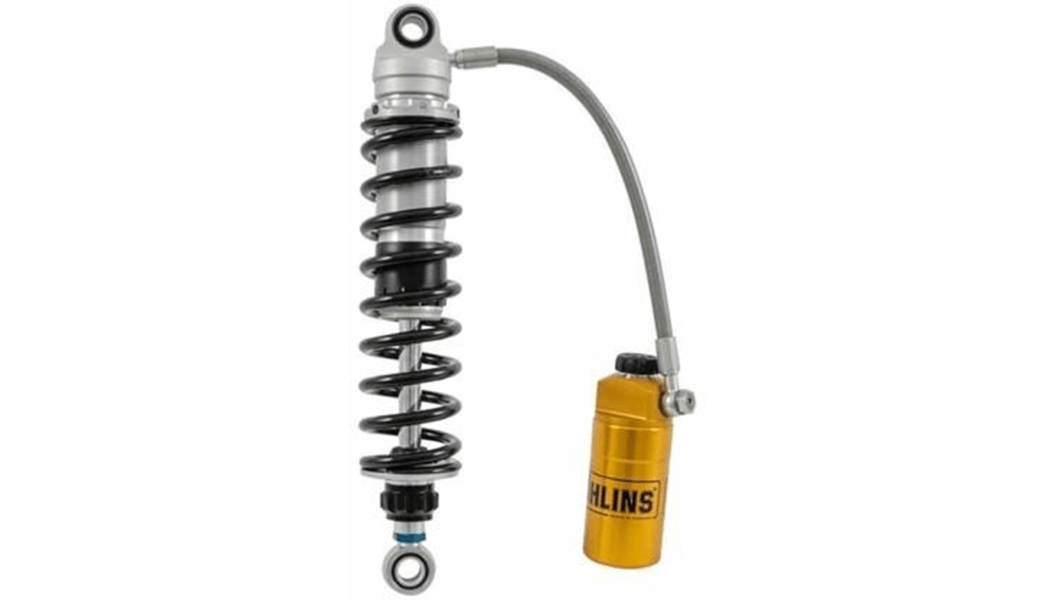

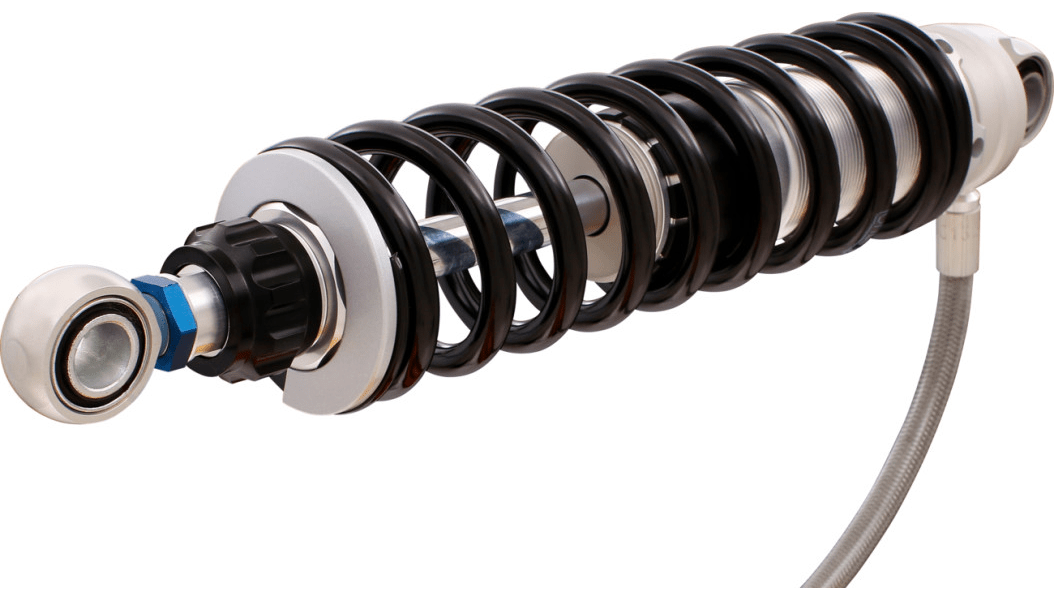

Fully adjustable 13" Ohlins STX36 reservoir shocks for '91-'13 Harley touring models.
Ohlins builds suspension for people who feel the difference, and these 13" STX36 shocks bring that pedigree to the touring chassis. The monotube design runs an external hose reservoir and high pressure nitrogen charge for consistent damping, with adjustable rebound and compression, length adjustable up to 1/2", and preload set with a billet tool. Hard anodized, precision CNC machined, and fully serviceable, they come in two spring rates to match rider weight. Choose the 150 lb rated HD 357 or the heavier 250 lb rated HD 357S2.
Features
- Adjustable rebound and compression damping
- Length adjustable up to 1/2" for custom fitment
- Adjustable preload using a billet tool

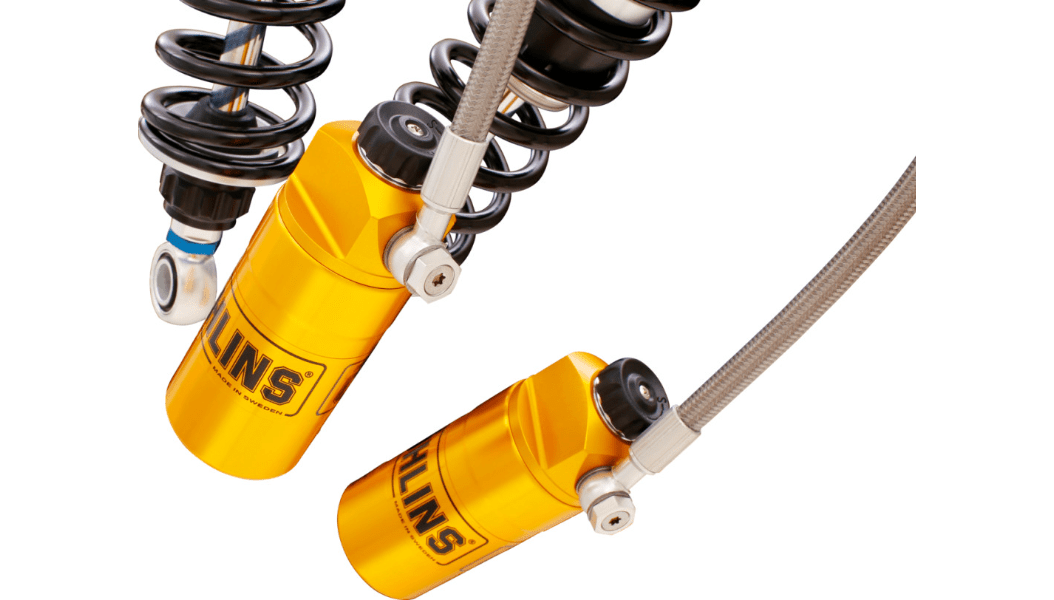

- Monotube shock with external hose reservoir
- High pressure nitrogen gas charged for consistent damping
- Hard anodized, precision CNC machined components
- Low friction shaft and seal head design
- Fully serviceable and repairable
Specifications
- STX single tube design with a 36 mm piston
- Adjustment range 0.393", stroke length 3.583"
- HD 357: 150 lbs, max 500 lbs; HD 357S2: min 250 lbs, max 575 lbs
Fitment
Fits '91-'13 touring models.
Frequently Asked Questions
Which spring rate should I choose?
The HD 357 suits lighter loads up to 500 lbs; the HD 357S2 handles heavier riders and loads up to 575 lbs. ⚠️ VERIFY the right rate for your combined rider, passenger, and cargo weight.
Can these be serviced?
Yes. They are fully serviceable and repairable, which sets them apart from sealed shocks.
Are they adjustable for the road?
Yes. Rebound, compression, length, and preload are all adjustable to tune the ride.
