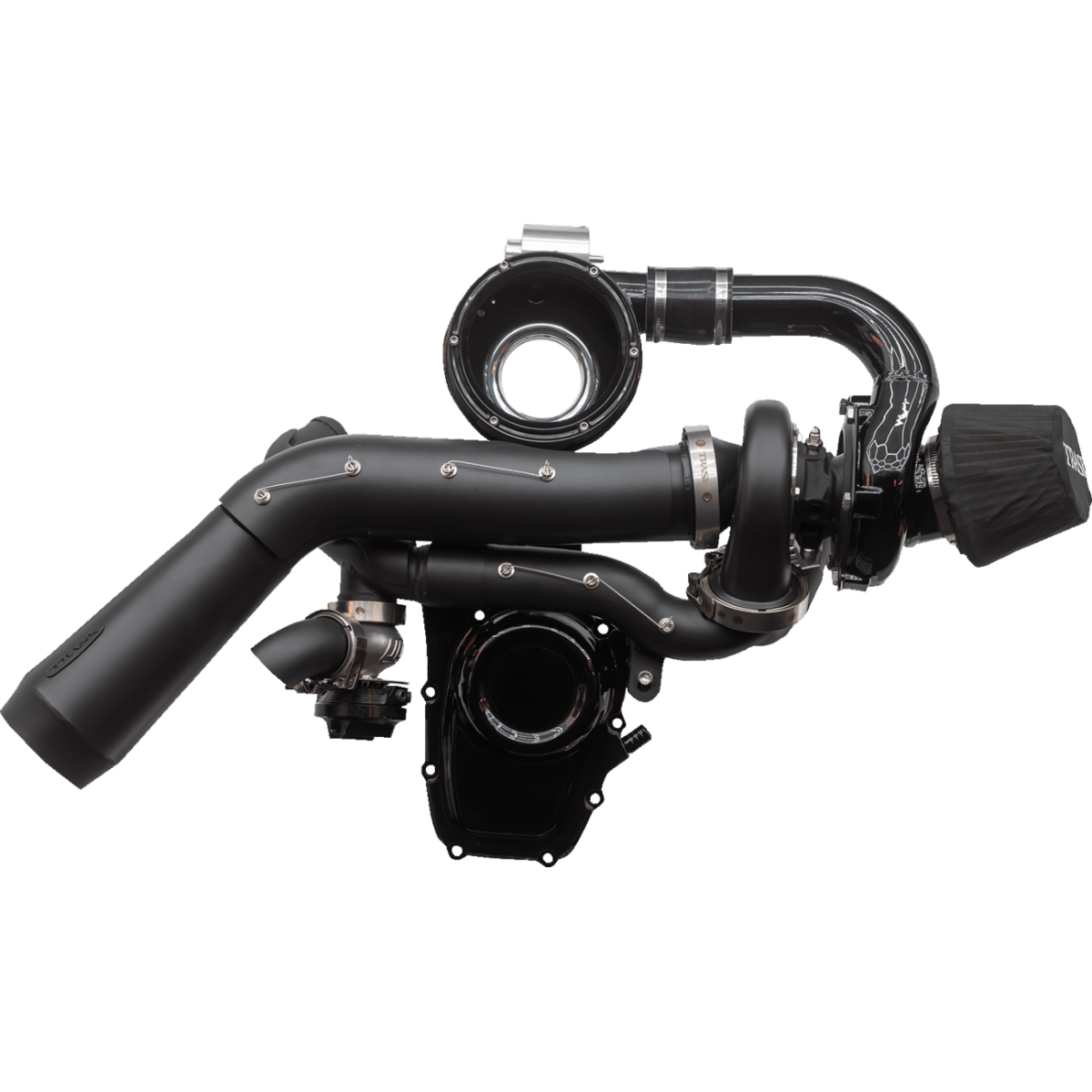

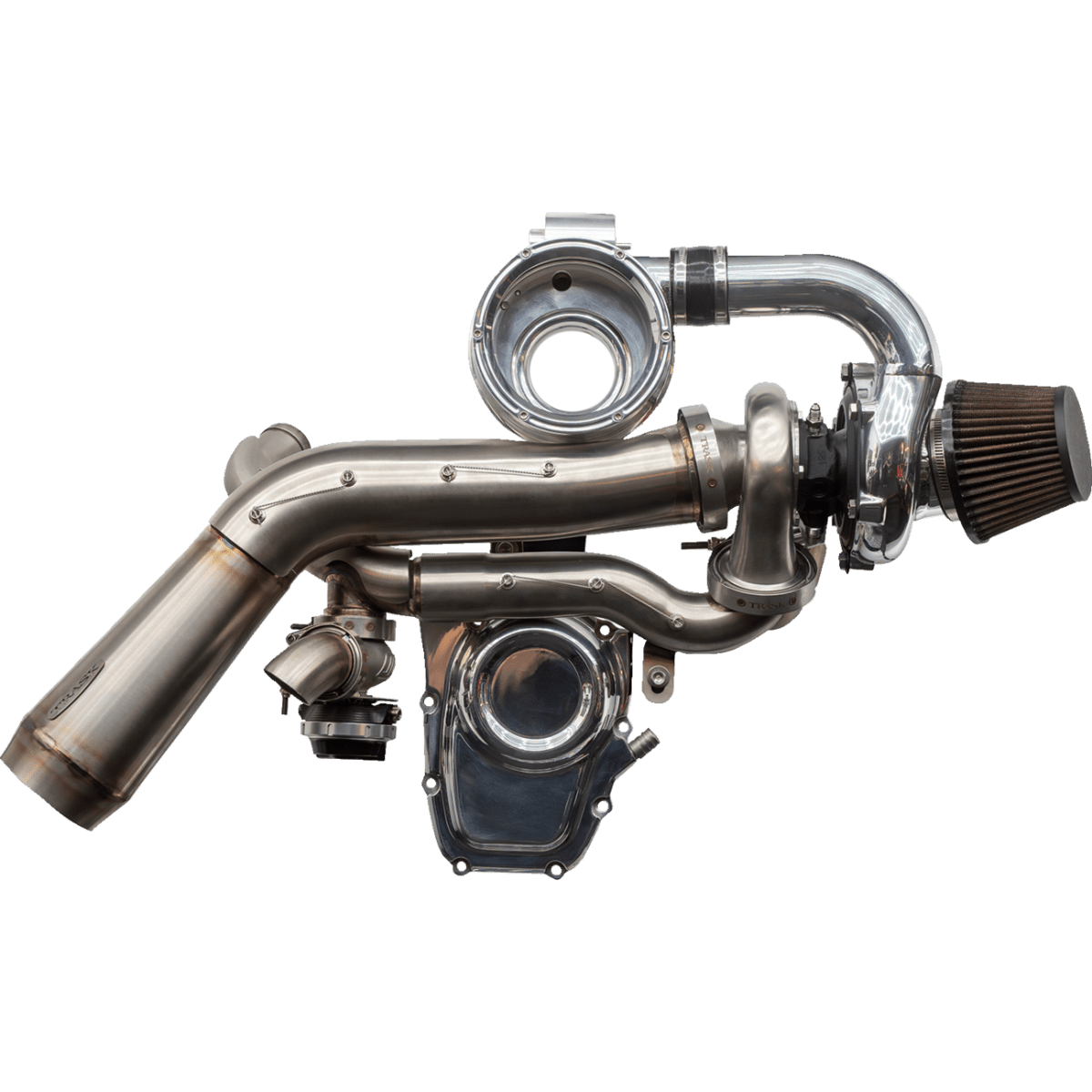

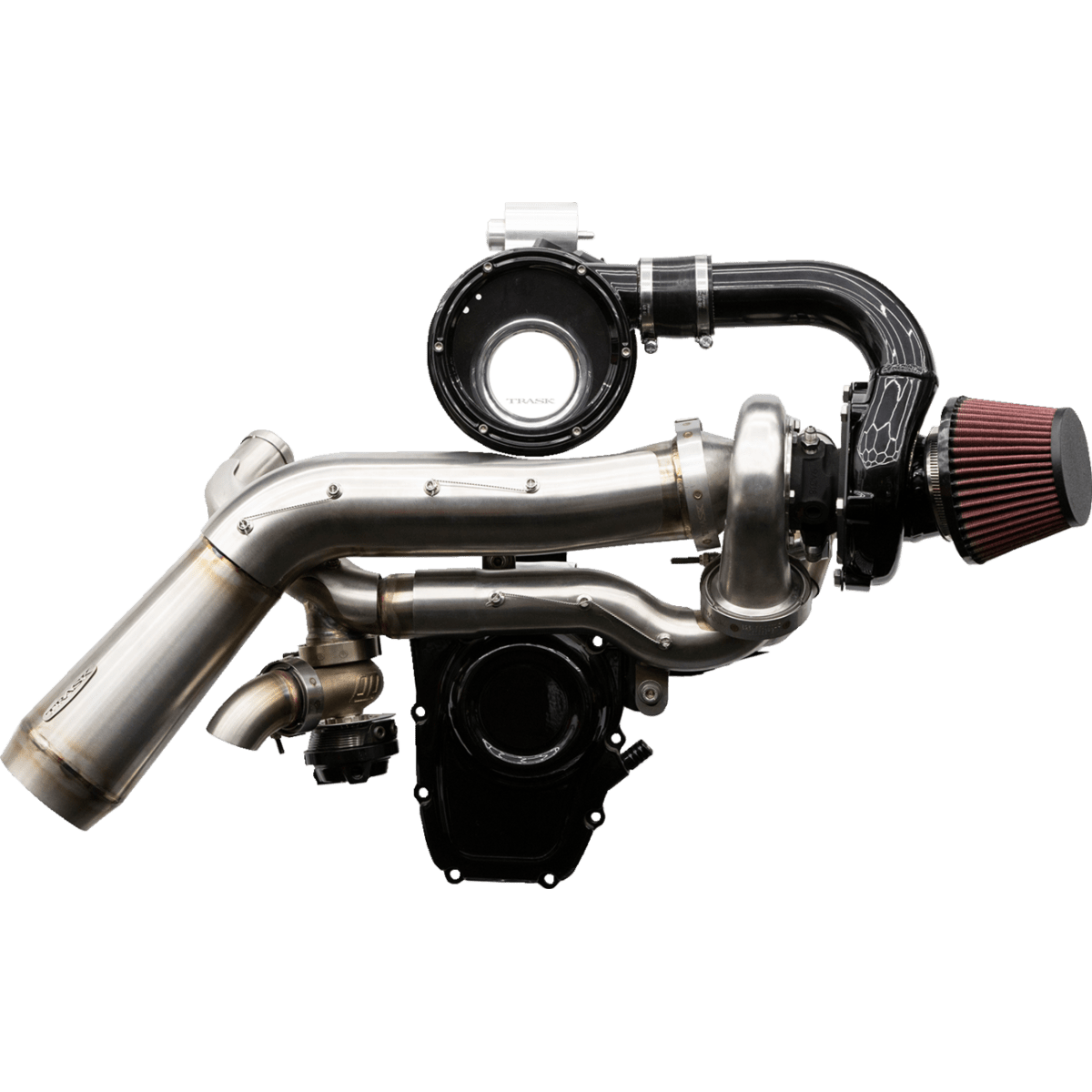

Trask Tornado Stage 2 Turbo Kit Gen 1 - '17-'25 M8 Models

A complete Stage 2 turbocharger system for 117 cubic inch and larger Milwaukee-Eight motors.

Trask built the Tornado Stage 2 to take a Milwaukee-Eight well past what any bolt on exhaust and intake can reach. A larger turbocharger, a matched tailpipe and a plenum with an integrated blow off valve turn a 117 cubic inch Harley-Davidson bagger or Softail into a genuine 200 horsepower motorcycle. Everything needed for the install ships in the box.

Features of the Tornado Stage 2 Turbo Kit Gen 1

• Designed for 117 cubic inch and larger Milwaukee-Eight motors seeking maximum performance
• Capable of 170 to 200+ horsepower at 8 lbs. of boost on pump gas with a proper engine build
• Larger Trask turbocharger paired with an upgraded larger diameter tailpipe
• Trask compressor and turbine housing with Garrett internals
• Trask plenum with an integrated blow off valve
• Kit includes larger injectors, spark plugs, boost gauge with mount, oil feed and drain lines, custom cam cover, ThunderMax tune files and all necessary hardware and gaskets
• Made in the U.S.A.

Tornado Stage 2 Turbo Kit Gen 1 Fitment

Fits 17-25 FLHR/ FLHRXS, 19-22 FLHT, 17-23 FLHTK/ FLHX/ FLHXS, 17-21 FLHTKSE, 17-19 FLHTKL/ FLTRU, 17-22 FLHXSE, 22 FLHXST/ FLTRKSE, 22-23 FLTRXST, 20-23 FLTRK, 18-22 FLTRXSE, 22-24 FXRST/ FXLRST, 20-24 FXLRS/ FXST, 18-24 FXBR/ FXBRS/ FXBB/ FXBBS/ FLHC/ FLHCS/ FLFB/ FLFBS/ FXFB/ FXFBS/ FXLR/ FXLRS, 19-20 FXDR, 18-21 FLSB

Important Notes

• Requires the use of a ThunderMax ECM, sold separately.
• Does not fit Twin Cooled models or models with fairing lowers that cannot be removed.
• Trask states this kit is intended for offroad use only and recommends it for experienced riders.
• Stage 1 Tornado Turbo customers can upgrade to Stage 2 by installing the larger turbocharger and matching larger tailpipe. Contact Trask for details.
• EMIS code 3. Drag Specialties lists this system as competition use only and not legal in any state for street use on pollution controlled vehicles. ⚠️ VERIFY before go-live.

Common Questions About the Tornado Stage 2 Turbo Kit Gen 1

Will this kit fit my Twin Cooled bagger?
No. Trask states the Tornado Stage 2 kit does not fit Twin Cooled models, or models with fairing lowers that cannot be removed.

Do I need a tuner?
Yes. The kit requires a ThunderMax ECM, sold separately. ThunderMax tune files are included with the kit.

How much power will it make?
Trask rates the Stage 2 kit at 170 to 200+ horsepower at 8 lbs. of boost on pump gas, on a 117 cubic inch or larger Milwaukee-Eight with a proper engine build.

Is it street legal?
Drag Specialties lists this system under EMIS code 3, competition use only, not legal in any state for street use on pollution controlled vehicles. Trask states it is intended for offroad use only. ⚠️ VERIFY

Works With

Pairs with the Trask Gen 2 Assault Engine Guard, which is shaped to clear this system. Requires a ThunderMax ECM, sold separately, from our ThunderMax collection. Already running a Stage 1 system? See the Trask Tornado Turbo Kit for '17-'23 M8 motors.
