Tracker High 1" Handlebars

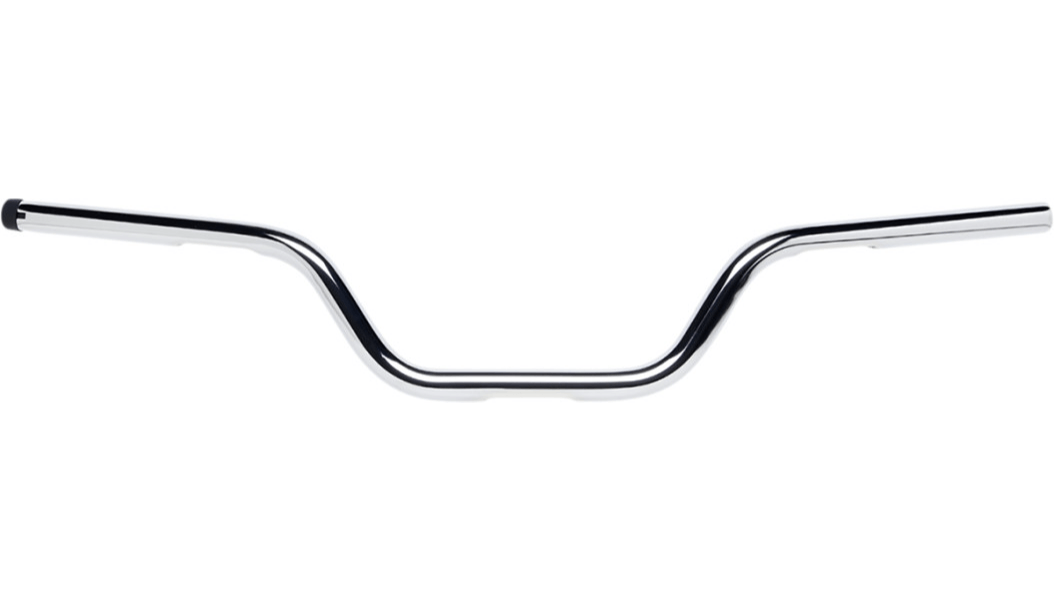

Biltwell's Tracker High bar in 1 inch chromoly, 30 inches wide with 4 1/2 inches of rise and enough pullback to sit you upright.

The Tracker shape comes off the flat track: wide, mostly flat across the centre, with the grips turned back toward the rider. The High version adds rise, so it opens the riding position up without the reach forward that a drag bar demands or the arm height of an ape. Biltwell builds it from seamless 4130 chromoly at a 0.120 inch wall, mandrel bent and TIG welded at mitered joints, which is a stronger tube than most 1 inch bars and is why the fit and strength are TüV verified for European road use.

Features of the Biltwell Tracker High Handlebars

• Seamless, thick walled 0.120 inch (3 mm) 4130 chromoly construction
• Precision mandrel bent tubing for accurate alignment and comfortable ergonomics
• Precision mitered, TIG welded tube joints
• Milled slots at the bar ends and clamping area for clean internal wire routing
• Notched and internally tapered right bar end accepts the Harley-Davidson Throttle-By-Wire control module

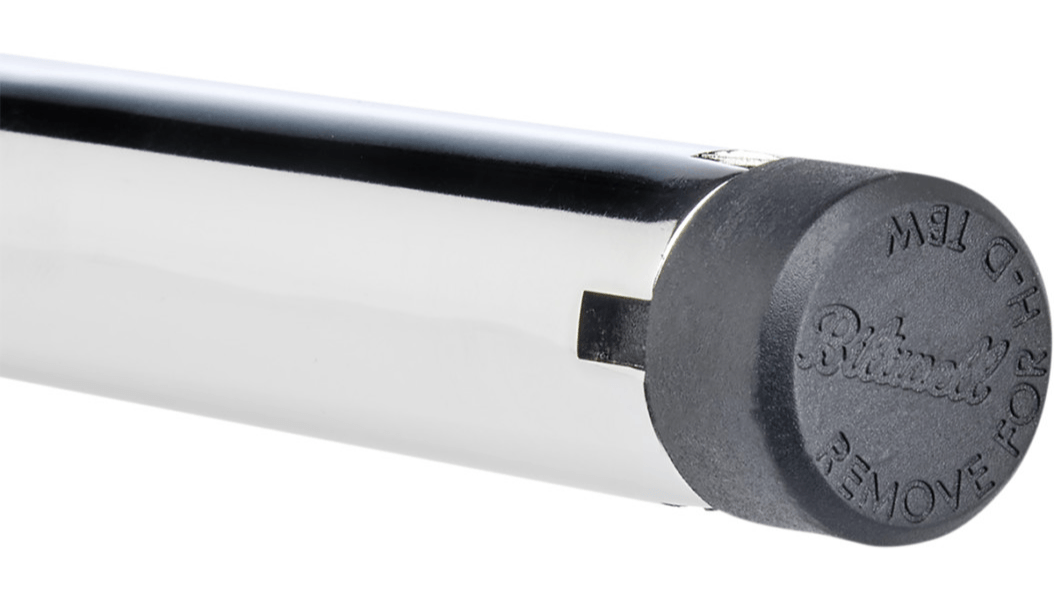

• Injection molded reinforced nylon plug in the throttle side bar end works with select stock and aftermarket single and dual cable throttles; remove it for throttle by wire
• Fitment and strength verified by TüV Germany for European motorcycle operation

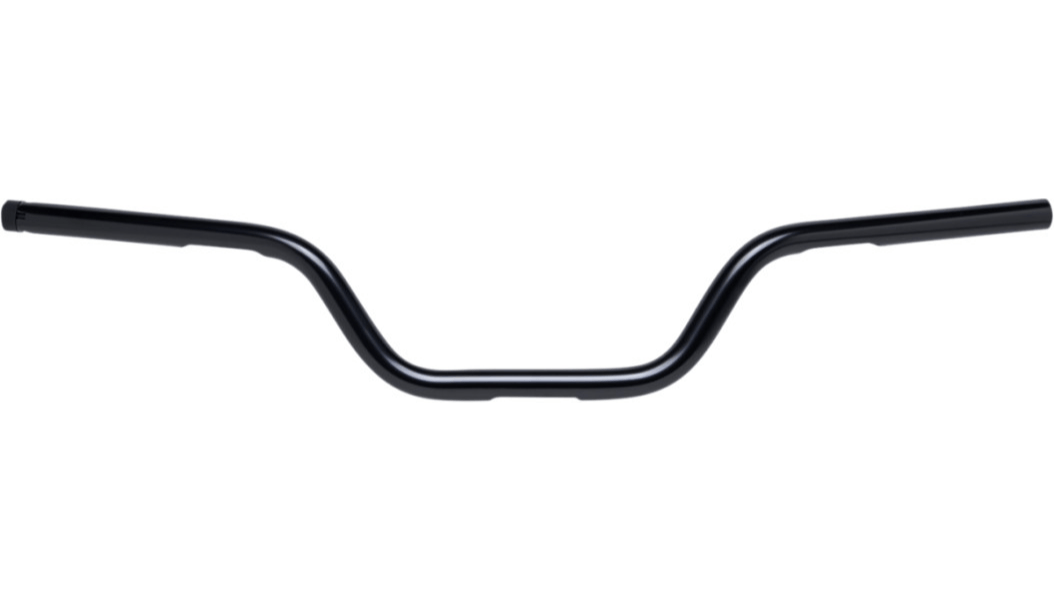

• Offered in black or chrome

Specifications

• Diameter: 1 inch
• Rise: 4 1/2 inches
• End rise: 4 inches
• Width: 30 inches
• Pullback: 2 3/4 inches

Fitment

• Fits Harley-Davidson models that use 1 inch handlebar clamps, including Sportster, Dyna, FXR, Softail and Milwaukee-Eight applications
• Works with either throttle style. Pull the nylon plug out for Throttle-By-Wire, leave it in for a cable throttle
• Drilled and slotted for internal wiring

Before You Order

Check your cable, brake line and wiring lengths before ordering. A change in rise, width and pullback usually means longer lines, and on a bagger with a fairing it can also mean rerouting. Measure against the bar currently on the bike.

Common Questions About the Tracker High Bars

Will these work with throttle by wire?
Yes. The right bar end is notched and internally tapered for the Harley-Davidson TBW module. Pull the nylon plug out for TBW, leave it in for a cable throttle.

Can I run internal wiring?
Yes. The bar ends and the clamping area are milled with slots so switch wiring can be routed inside and come out at the risers.

How much taller will I sit?
Rise is 4 1/2 inches at the clamp with 4 inches of end rise, and 2 3/4 inches of pullback brings the grips back toward you. Compare those three figures against your current bar rather than the rise alone.
