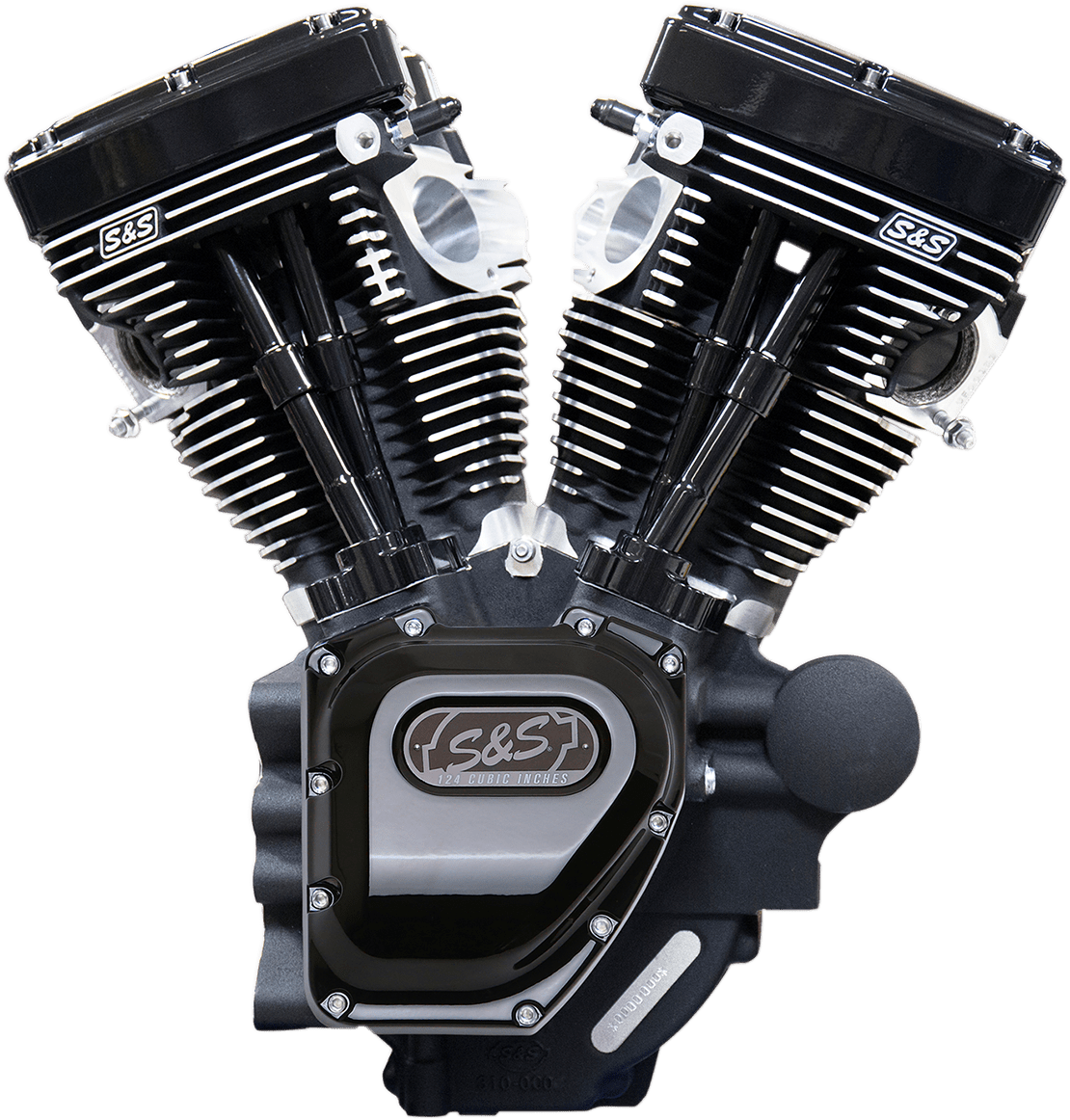

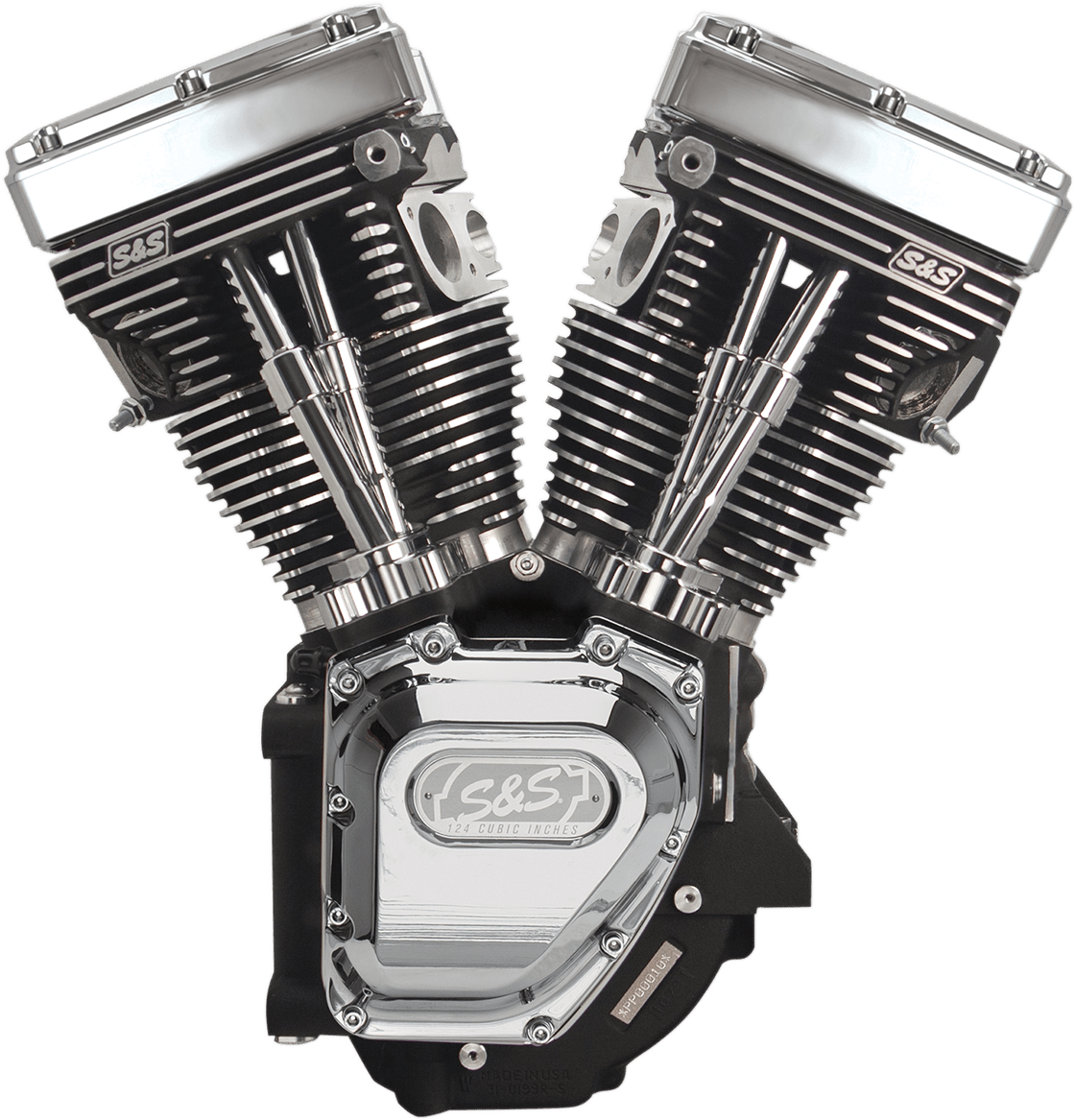

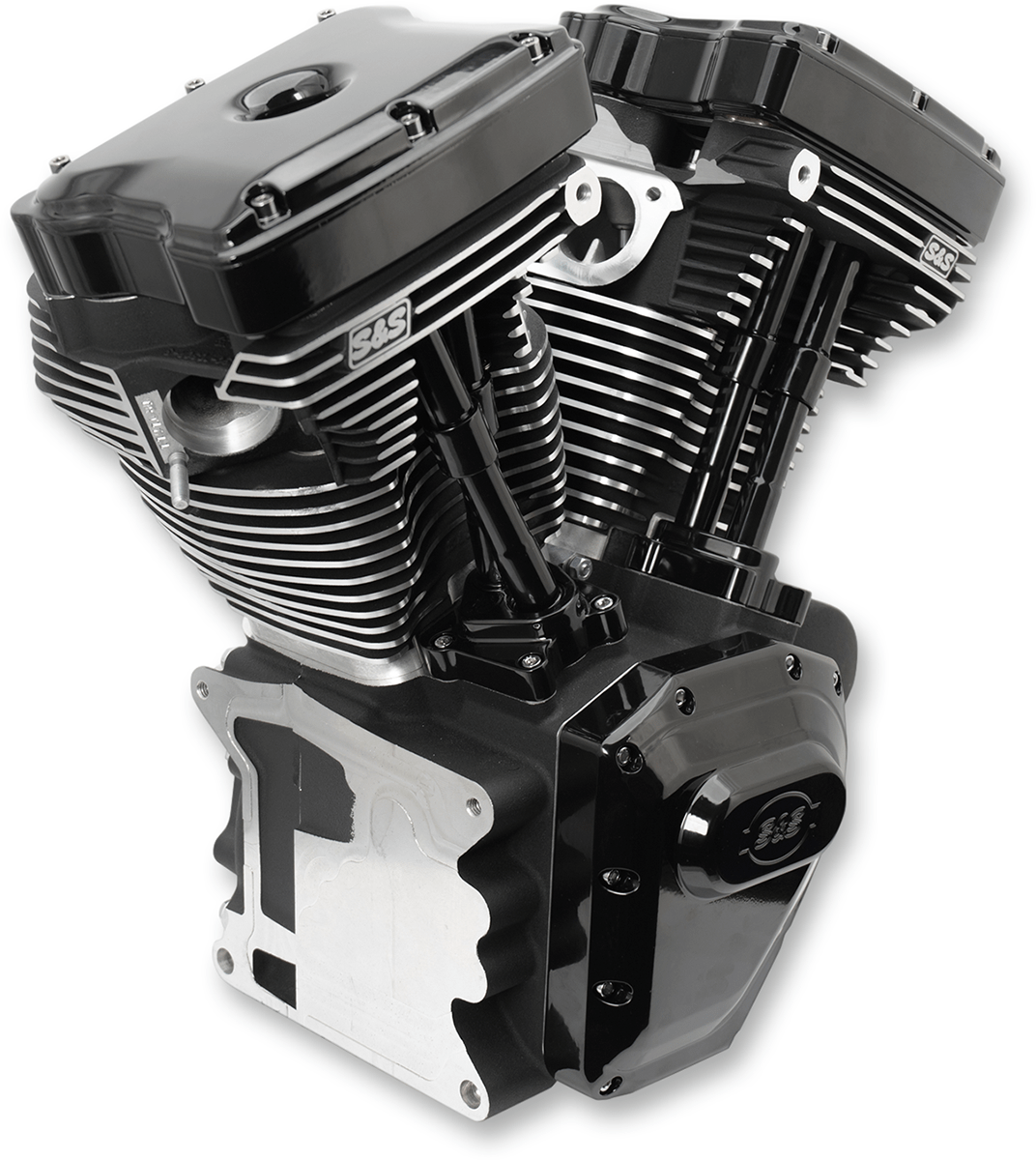

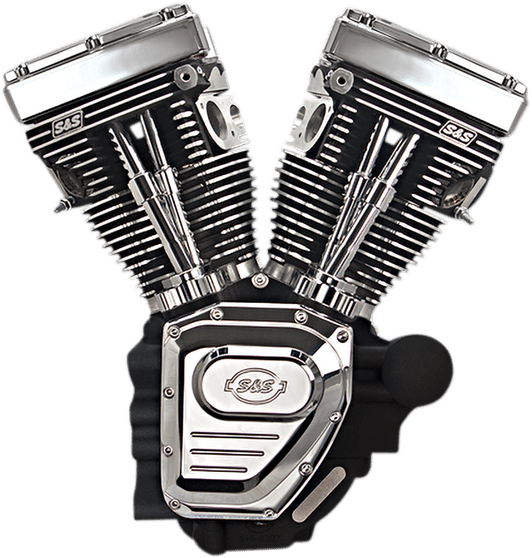

T124 Low Compression Long Block Twin Cam Engines / '99-'17 Big Twins

The S&S T124LC is a 124 cubic inch Twin Cam long block tuned at 10.2:1 for street torque rather than peak horsepower.

No Shipping to California. Engines do not ship for free. Please call or fill out a contact form for a shipping quote.

Compression is a trade, not a virtue. Dropping to 10.2:1 costs a little at the top of the tach and returns torque low and wide, where a street bike spends its whole life. The T124LC is the S&S long block for riders who care more about how the motor pulls out of a corner than what it reads on a dyno sheet, and it runs comfortably on fuel you can actually buy.

What Sets the T124LC Apart

Forged dish pistons displacing 11cc set the compression, running a 4 1/8" bore against a 4 5/8" stroke. Super Stock heads sit on a T2 crankcase, with a TC3 oil pump and cam plate managing lubrication and easy start 585 gear drive cams behind a redesigned cam cover. Head machining is specific to this motor so it accepts stock length intake manifolds using S&S manifold size 405, and the breathing system stays stock style, which keeps the motor compatible with stock and most performance air cleaners. Components are made in the USA.

T124LC Specifications

• 124 cubic inch displacement
• Bore x stroke: 4 1/8" x 4 5/8"
• Compression ratio 10.2:1 with forged 11cc dish pistons
• S&S Super Stock heads and T2 crankcase
• S&S TC3 oil pump and cam plate
• Easy start 585 gear drive cams with redesigned cam cover
• Machined for stock length intake manifolds, S&S manifold size 405
• Stock style breathing, works with stock and most performance air cleaners
• Finishes: Black Edition, or wrinkle black and chrome
• Fitments: '07-'16 Touring except Twin Cooled, '99-'06 Touring and '99-'05 Dyna

What Else You Need With the T124LC

An oil line installation kit is required for '07-'16 Twin Cam engines: oil line kit. The motor does not include a carburetor, intake or ignition system; those come from the Tuners and Fuel Systems section.

Cylinder heads on T series long blocks are '99-'05 style, so 2006 model owners need a set of '99-'05 style offset intake flanges. The '07-'16 engines are not recommended for Trike models. Professional installation and tuning are advised.
