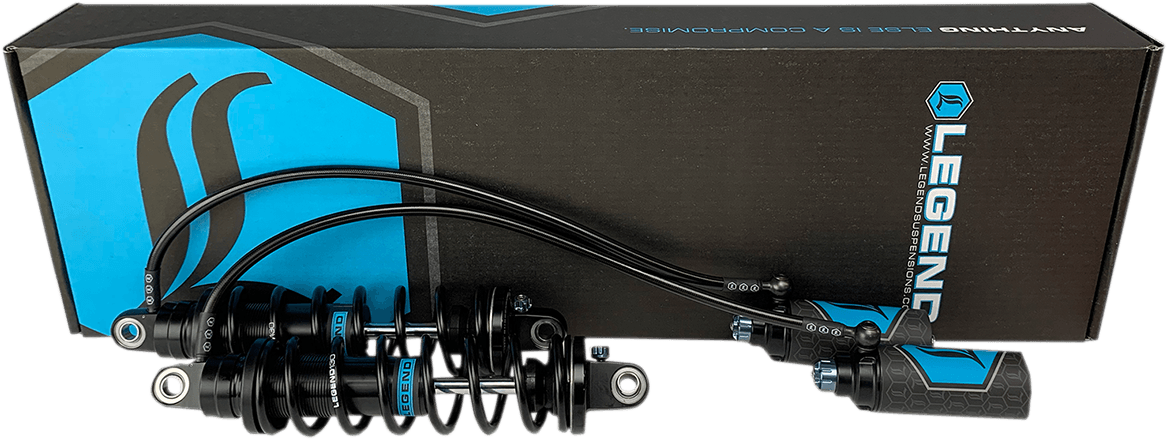

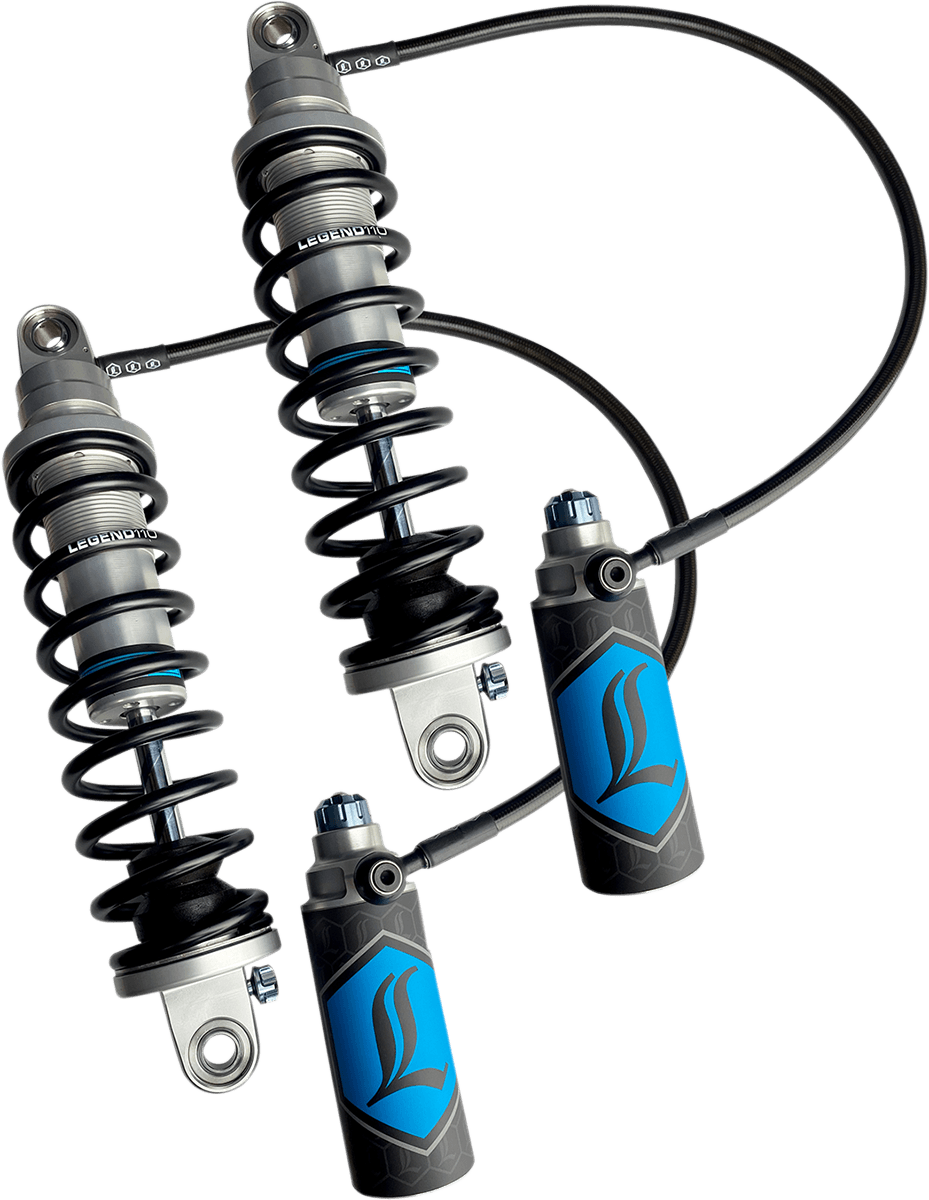

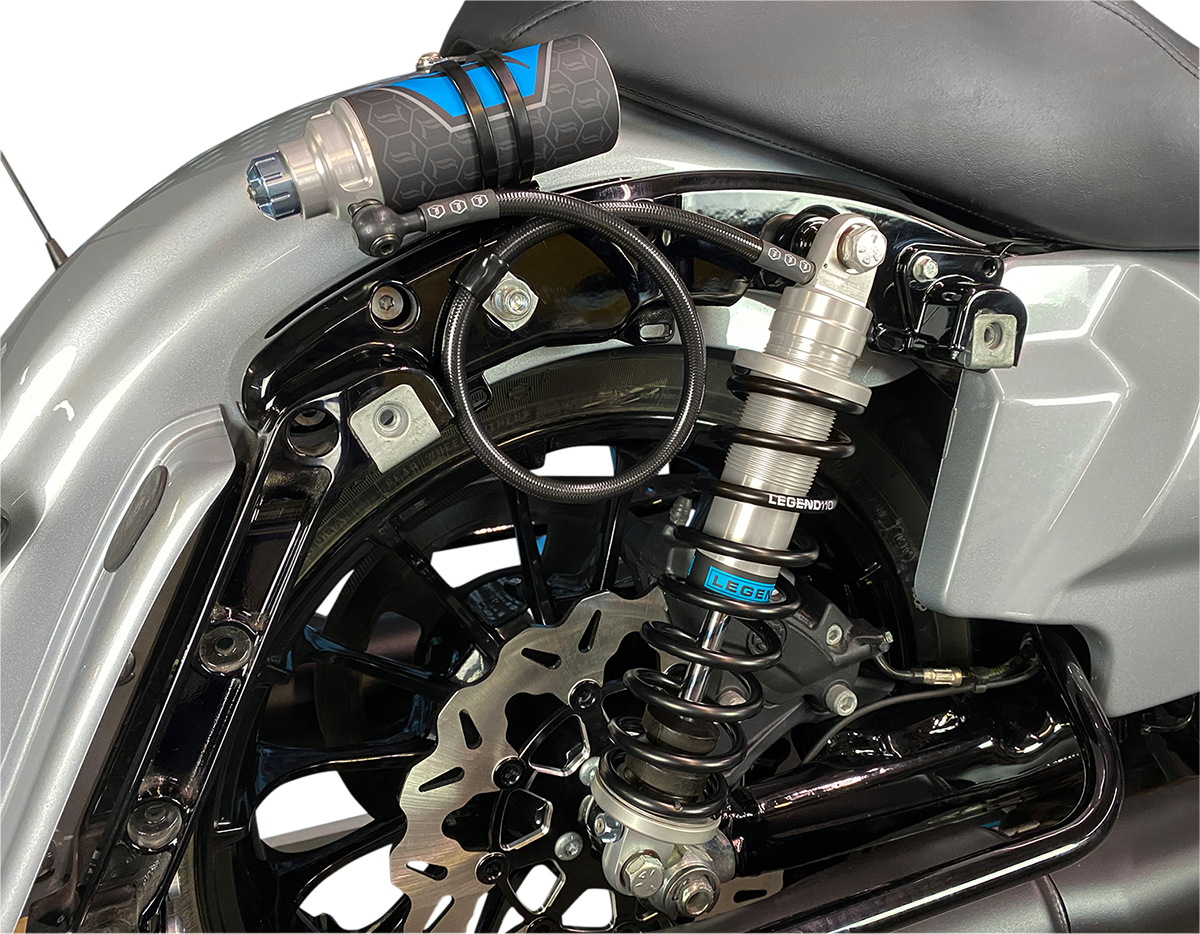

REVO ARC Remote Reservoir FL Coil Suspension / '99-'08 FL

Legend REVO ARC Remote Reservoir Coil Suspension for '99-'08 FL models uses 35 mm monotube shocks with independent compression and rebound adjusters.

Separating compression and rebound adjustment is what turns a shock from a fixed component into a tunable one. Most shocks give you preload and nothing else. The REVO ARC lets you change how the shock resists a bump and how it recovers from one independently, using adjusters designed for fast, precise, repeatable changes rather than guesswork.

How the REVO ARC Shocks Work

A 35 mm monotube body carries deflective disc valve stacks with a balanced and matched piston and base-valve design specific to these motorcycles. A nitrogen gas bladder gives ultra-fast response and stiction-free movement, and a low friction sealing system with PTFE based sliding bearings keeps that feel through the stroke. REVO's extended coil length creates a larger usable range without lengthening the shock, and preload adjusts by hand with no tools, so switching between a solo run and a loaded two-up trip takes minutes.

Legend's touring specific spring rates are the foundation. Light riders and heavy riders can both find their setting, and aggressive or casual styles can be dialed in separately. Spherical bearings top and bottom ease installation and alignment. Made by hand in Sturgis, South Dakota, with a lifetime warranty.

REVO ARC Specifications

• Fits '99-'08 Harley FL models
• 35 mm monotube construction
• Independent compression and rebound damping adjusters
• Deflective disc valve stacks, matched piston and base-valve design
• Nitrogen gas bladder design
• Low friction sealing with PTFE based sliding bearings
• Hand adjustable preload, no tools required
• Lengths: 13" or 14". Standard or heavy duty

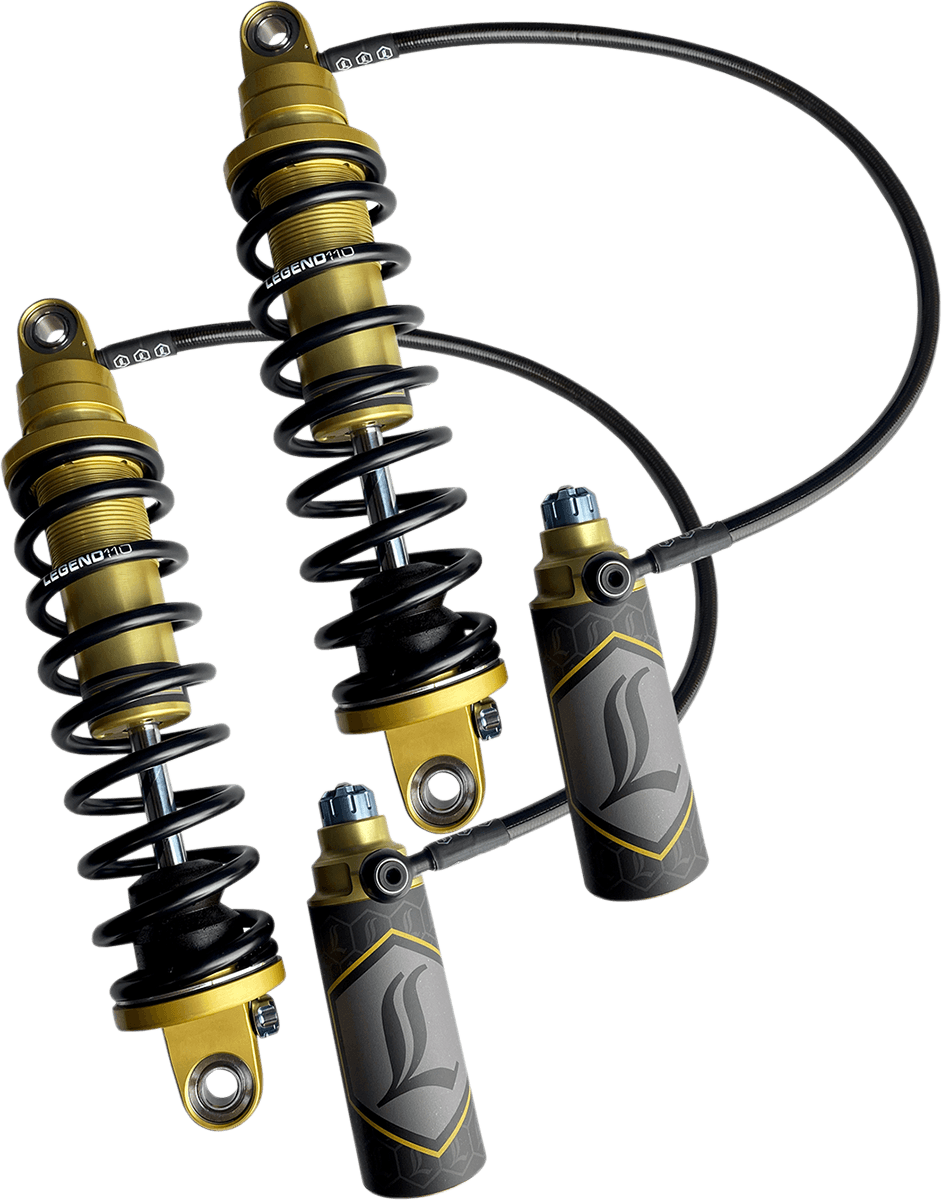

• Finishes: Black, Gold or Clear Type III hard-coat anodize
• Spherical bearings top and bottom
• Lifetime warranty, made by hand in Sturgis, SD

Choosing Standard or Heavy Duty

On FL models, heavy duty is recommended for 500 lbs and above of combined rider and passenger weight.

P65 WARNING: Cancer and Reproductive Harm.

⚠️ VERIFY your model year and required length before ordering.
