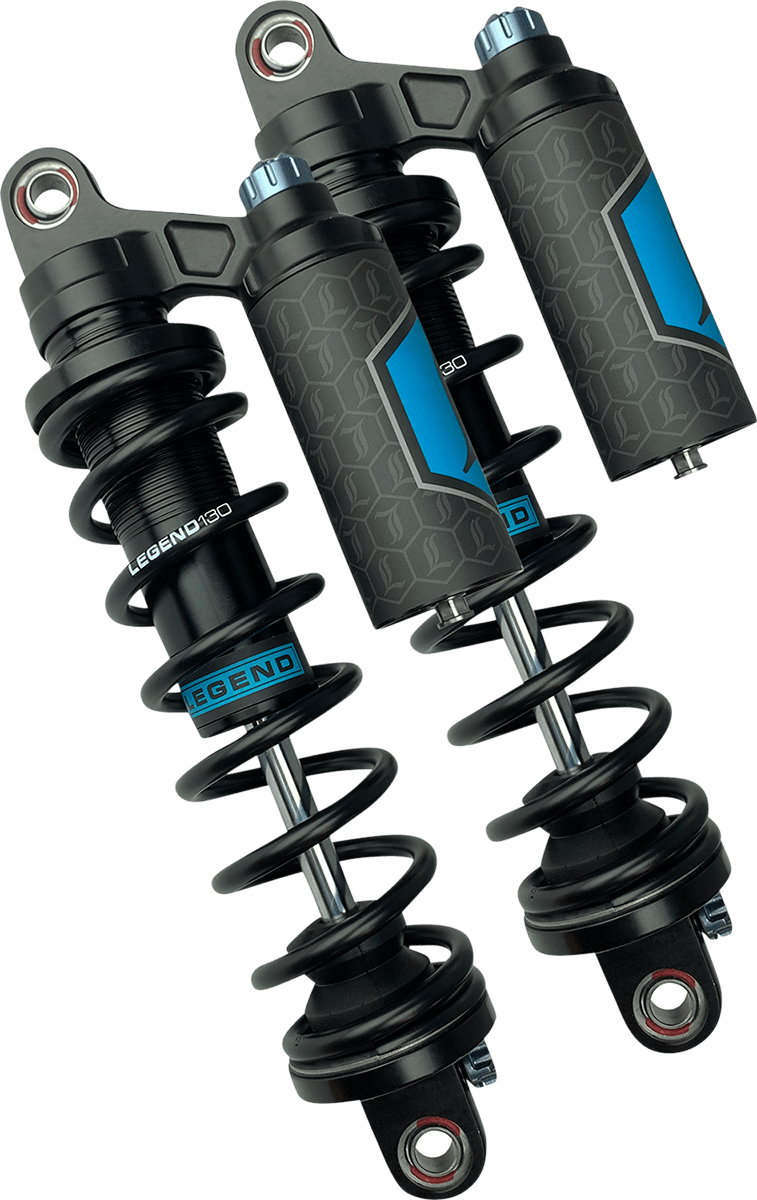

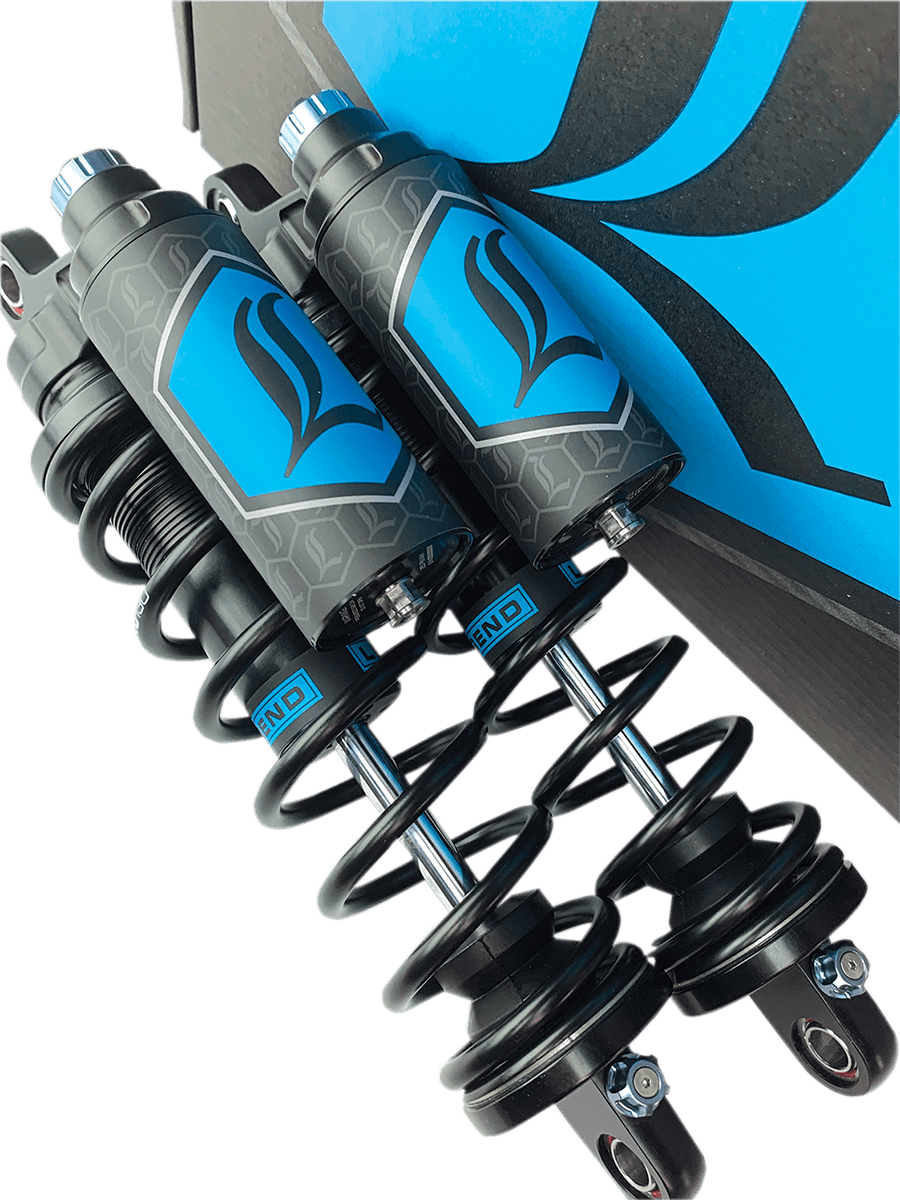

REVO ARC Piggyback Coil Suspension / '99-'17 Dyna
Tax excluded. Shipping calculated at checkout
Ships within 24 hrs. Arrives within 1 - 5 days depending on location
Legend REVO ARC Piggyback Coil Suspension covers '99-'17 Dyna models with 35 mm monotube shocks and separately adjustable compression and rebound.
The Dyna is the Harley people ride hard, and its rear suspension is the part that most often runs out of answers first. Stock shocks bottom on the sharp stuff and float over the long stuff, because one valving compromise has to cover both. The REVO ARC splits that into two adjustments, so how the shock absorbs a hit and how it recovers are set independently.
How the REVO ARC Piggyback Shocks Work

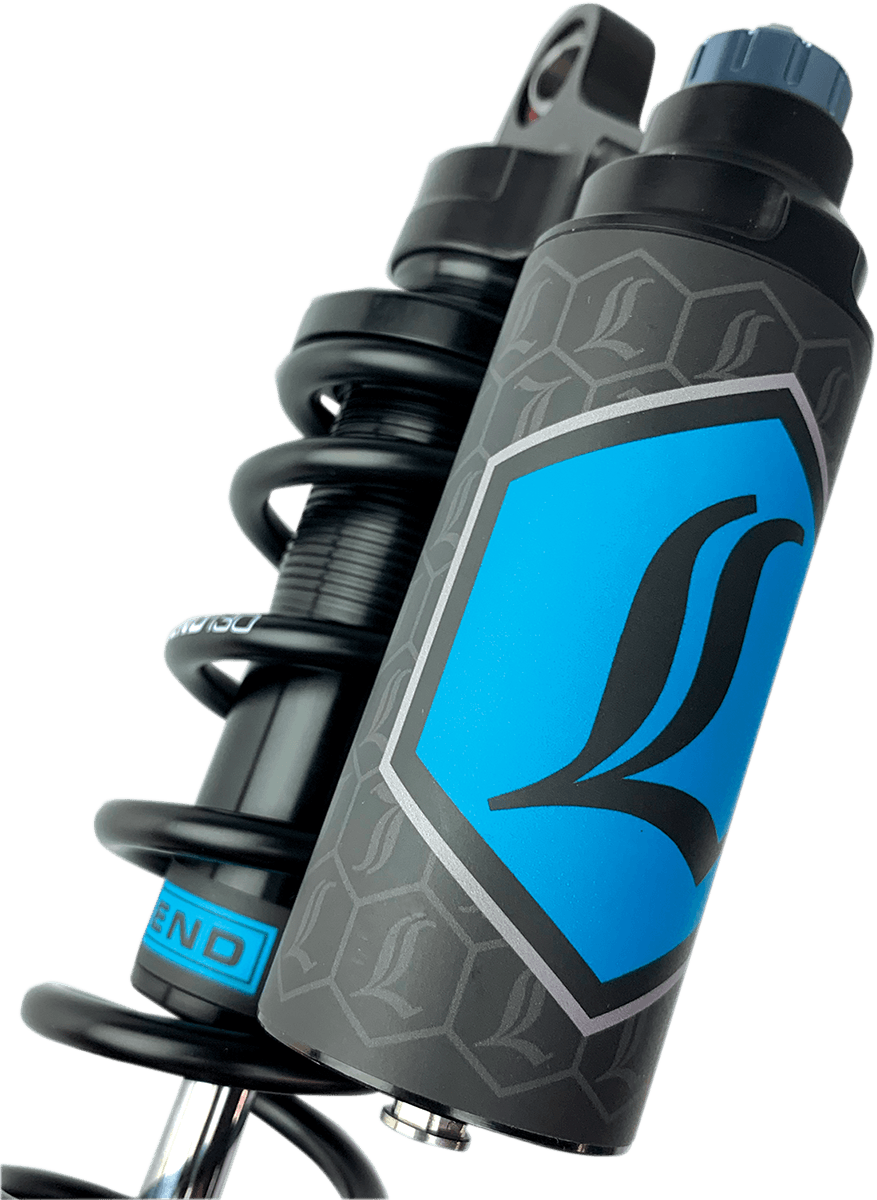

The reservoir mounts to the shock body rather than remotely, keeping damping oil separated from the nitrogen charge without hoses to route. Inside, deflective disc valve stacks work with a balanced and matched piston and base-valve design specific to these motorcycles. A nitrogen gas bladder gives ultra-fast response with no stiction. Legend's touring specific spring rates and REVO's extended coil length give a larger usable range without a longer shock, and preload changes by hand.
REVO ARC Piggyback Specifications
- Fits '99-'17 Harley Dyna models
- 35 mm monotube construction with piggyback reservoir
- Independent compression and rebound damping adjusters
- Deflective disc valve stacks, matched piston and base-valve design
- Nitrogen gas bladder for ultra-fast, stiction-free response
- Low friction sealing system with PTFE based sliding bearings
- REVO extended coil length for a larger usable range without added shock length
- Hand adjustable preload, no tools required
- Lengths: 13" or 14". Standard or heavy duty

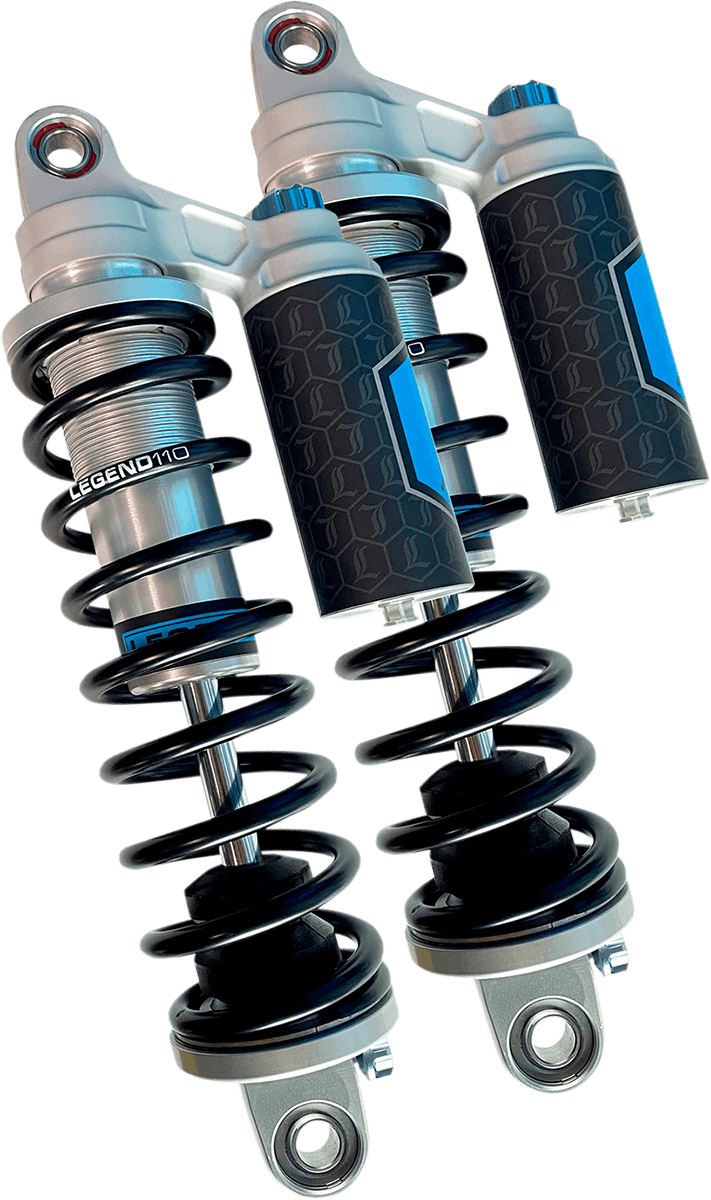

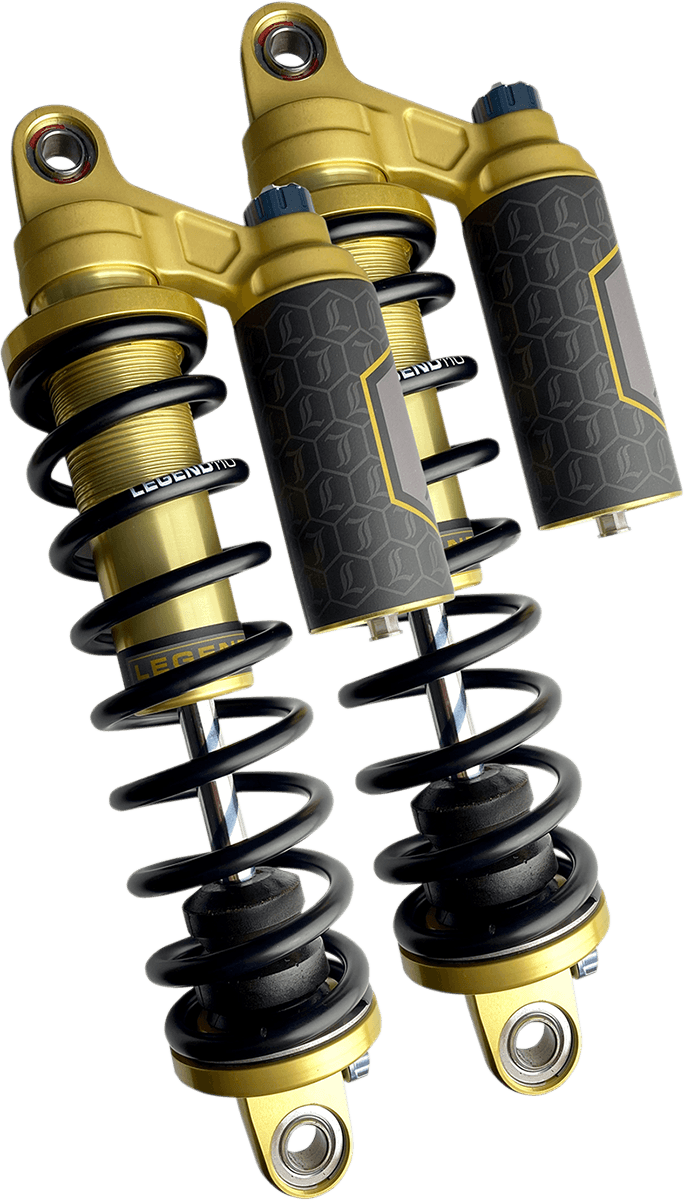

- Finishes: Black, Gold or Clear Type III hard-coat anodize

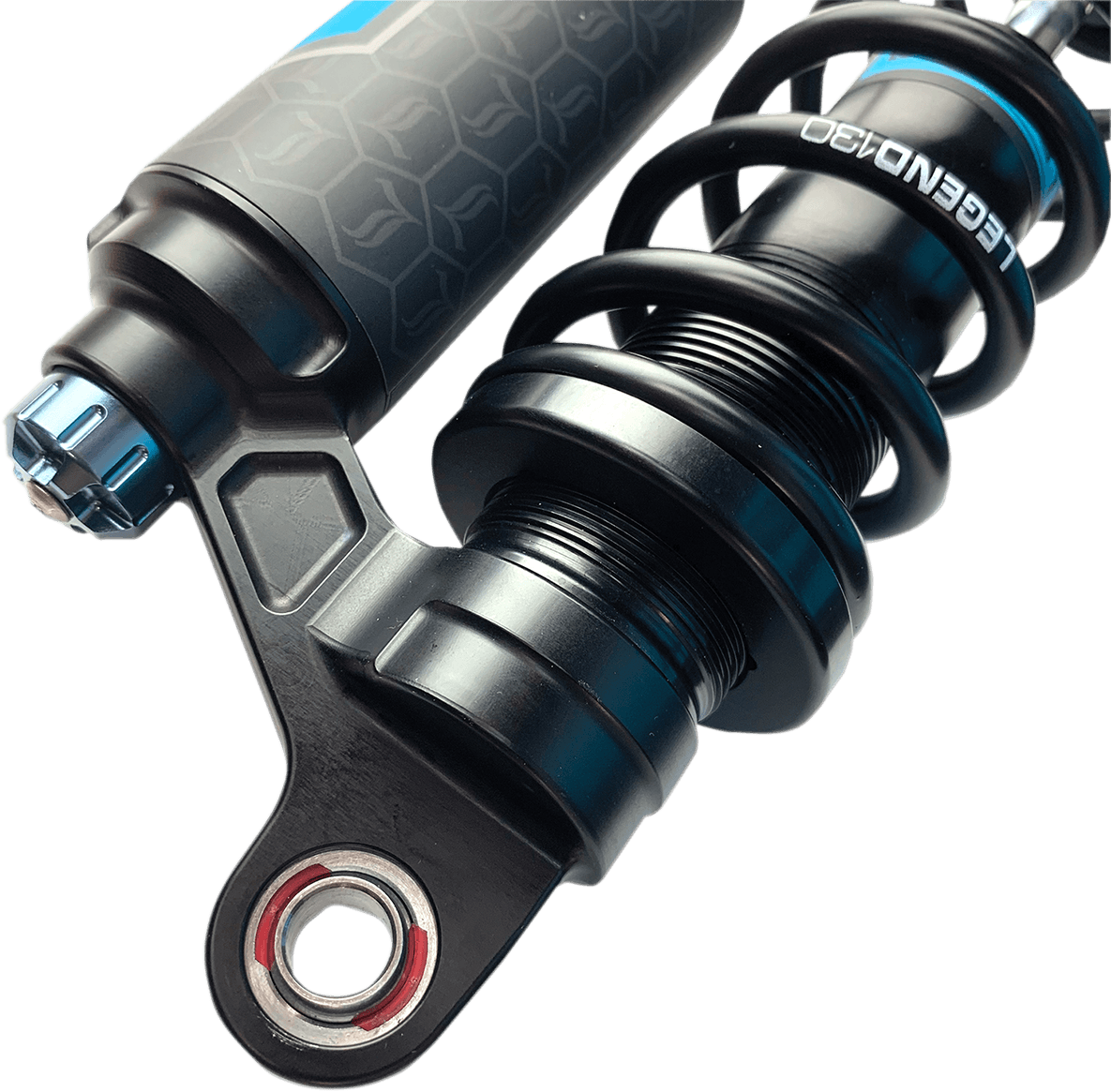

- Spherical bearings top and bottom for easy installation and alignment
- Made by hand in Sturgis, SD
Choosing Standard or Heavy Duty
On Dyna models, heavy duty is recommended for 250 lbs and above of combined rider and passenger weight, and worth considering if most of your riding is two up or loaded.
⚠️ VERIFY your model year and required length before ordering.
