Race Series "Twin Cooled Short Travel" Camchest Kits / M8 Motors

The Feuling Race Series Twin Cooled Short Travel Camchest Kit is a complete cam chest package for Twin Cooled M8 motors, built around a billet 7075 oil pump.

No Shipping to California. For Twin Cooled motors only.

Feuling's argument with this kit is about oil, not cams. A billet 7075 aluminum oil pump is 50 percent harder and stronger than the factory unit, which means it holds tighter tolerances as temperature climbs, exactly when a stock pump starts giving ground. Everything downstream of that pump benefits, and the temperature numbers Feuling reports are the reason engine builders specify these.

What the Race Series Kit Delivers

Feuling reports 30 percent more pressure gear volume and 53 percent more scavenge gear volume over stock on Twin Cooled M8 motors, plus 68 percent more oil volume reaching the crankshaft and connecting rod bearings. The result they document is 15 to 25 degrees cooler engine temperature, 15 to 30 degrees cooler oil temperature, and 10 to 30 more psi of oil pressure. Sump oil level drops by around half, which reduces wet sumping, blowby and oily air cleaners.

Race Series hydraulic lifters carry a full .200" of total travel with a slower bleed-down rate, designed to handle heavy valve spring pressure and raise the rpm the valvetrain will tolerate. Deeper scavenge kidney ports over the HP+ series move more volume, and magnets in the oil pump protect the gears and pressure relief valve. Feuling's testing shows 2 horsepower and 2 ft-lbs gained at the rear wheel.

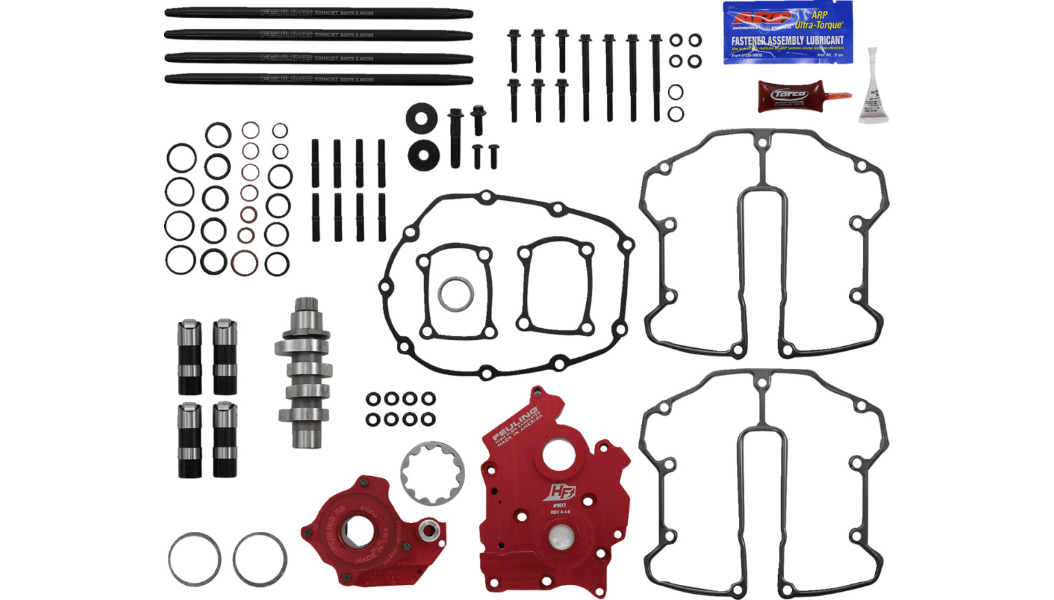

Race Series Camchest Kit Specifications

• For Twin Cooled M8 motors only
• Cam options: 508, 521, 538 or 592
• Race Series billet 7075 aluminum oil pump, 50% harder than stock
• High Flow billet 7075 aluminum camplate
• Race Series short travel hydraulic roller lifters, .200" total travel
• Fixed length pushrods, Timken and Koyo cam bearings
• Magnets in oil pump to protect gears and pressure relief valve
• Complete kit packaged under one part number
• Made in the USA

Required Companion Parts

508, 521 and 538 kits REQUIRE high lift valve springs, part 9262973 or 9262974. 592 kits REQUIRE high lift and load valve springs, part 9263138. These are not optional and are not included.

⚠️ VERIFY that your motor is Twin Cooled before ordering, and confirm which valve spring kit your chosen cam requires.
