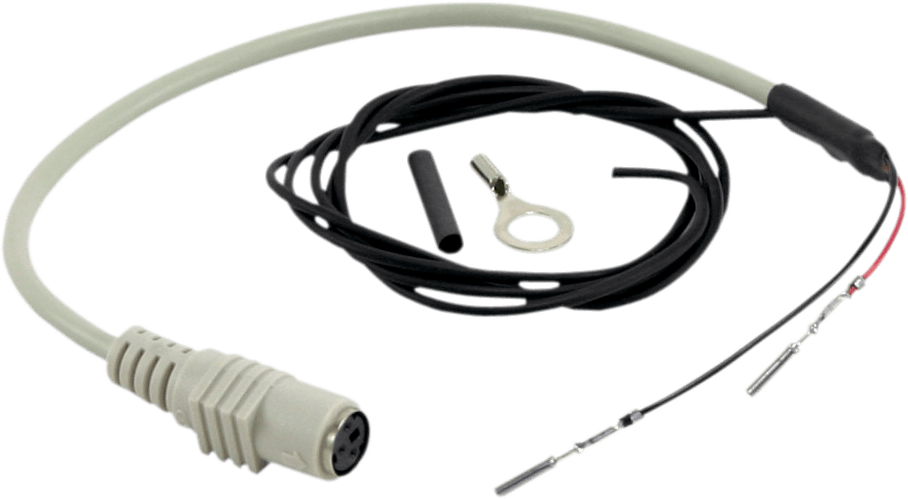

Pigtail Harness / '01-'12

Features of the Pigtail Harness

• ECM Harness
• It is installed to the bike's wiring harness at the 36-pin ECM connector (connection requires harness plug disassembly; two terminated wires are inserted into two unused ports in the 36-pin connector, and a ground wire added)
• Handy for motorcycle models with tight clearances around the ECM such as Dyna, Softail Rocker and 02-05 V-Rod models
• Requires ThunderMax ECM with serial number 114000 or higher (produced beginning August 2008)
• Allows a second port for the communication cable connection to the ThunderMax
• Made in the U.S.A.

Pigtail Harness Fitment

• See Fitment Guide Below
• 2012 Harley-Davidson Night Rod Special 10th Anniversary Edition VRSCDX
• 2010 Harley-Davidson Iron 883 XLN
• 2010 Harley-Davidson 1200 Nightster XLN
• 2009-2015 Harley-Davidson V-Rod Muscle VRSCF
• 2009-2010 Harley-Davidson Softail Rocker C FXCWC
• 2009 Harley-Davidson Softail Rocker FXCW
• 2008 Harley-Davidson Fat Bob FXDF
• 2007-2015 Harley-Davidson Night Rod Special VRSCDX
• 2007-2010 Harley-Davidson Street Bob FXDB
• 2007-2008 Harley-Davidson Softail Custom EFI FXSTC
• 2007-2008 Harley-Davidson Wide Glide EFI FXDWGI
• 2007-2008 Harley-Davidson Low Rider EFI FXDL
• 2007 Harley-Davidson V-Rod Screamin' Eagle Tribute VRSCX
• 2007 Harley-Davidson V-Rod VRSCAW
• 2007 Harley-Davidson Electra Glide Ultra Classic EFI FLHTCUI
• 2007 Harley-Davidson Road Glide EFI FLTR
• 2007 Harley-Davidson Road King EFI FLHR
• 2007 Harley-Davidson Street Glide EFI FLHX
• 2006-2008 Harley-Davidson Night Rod VRSCD
• 2006-2007 Harley-Davidson Street Rod VRSCR
• 2006 Harley-Davidson Softail Heritage EFI FLSTI
• 2005-2008 Harley-Davidson Softail Deluxe EFI FLSTNI
• 2005-2008 Harley-Davidson Super Glide Custom EFI FXDCI
• 2005-2007 Harley-Davidson Softail Springer Classic EFI FLSTSCI
• 2004-2008 Harley-Davidson Super Glide EFI FXDI
• 2004-2007 Harley-Davidson Road King Custom EFI FLHRS
• 2004-2005 Harley-Davidson V-Rod VRSCB
• 2004-2005 Harley-Davidson Super Glide Sport EFI FXDXI
• 2003-2007 Harley-Davidson Electra Glide Standard EFI FLHTI
• 2002-2006 Harley-Davidson V-Rod VRSCA
• 2001-2008 Harley-Davidson Softail Night Train EFI FXSTBI
• 2001-2007 Harley-Davidson Softail Deuce EFI FXSTDI
• 2001-2007 Harley-Davidson Electra Glide Classic EFI FLHTCI
• 2001-2007 Harley-Davidson Softail Standard EFI FXSTI
• 2001-2006 Harley-Davidson Road King Classic EFI FLHRC
• 2001-2006 Harley-Davidson Softail Springer EFI FXSTSI
