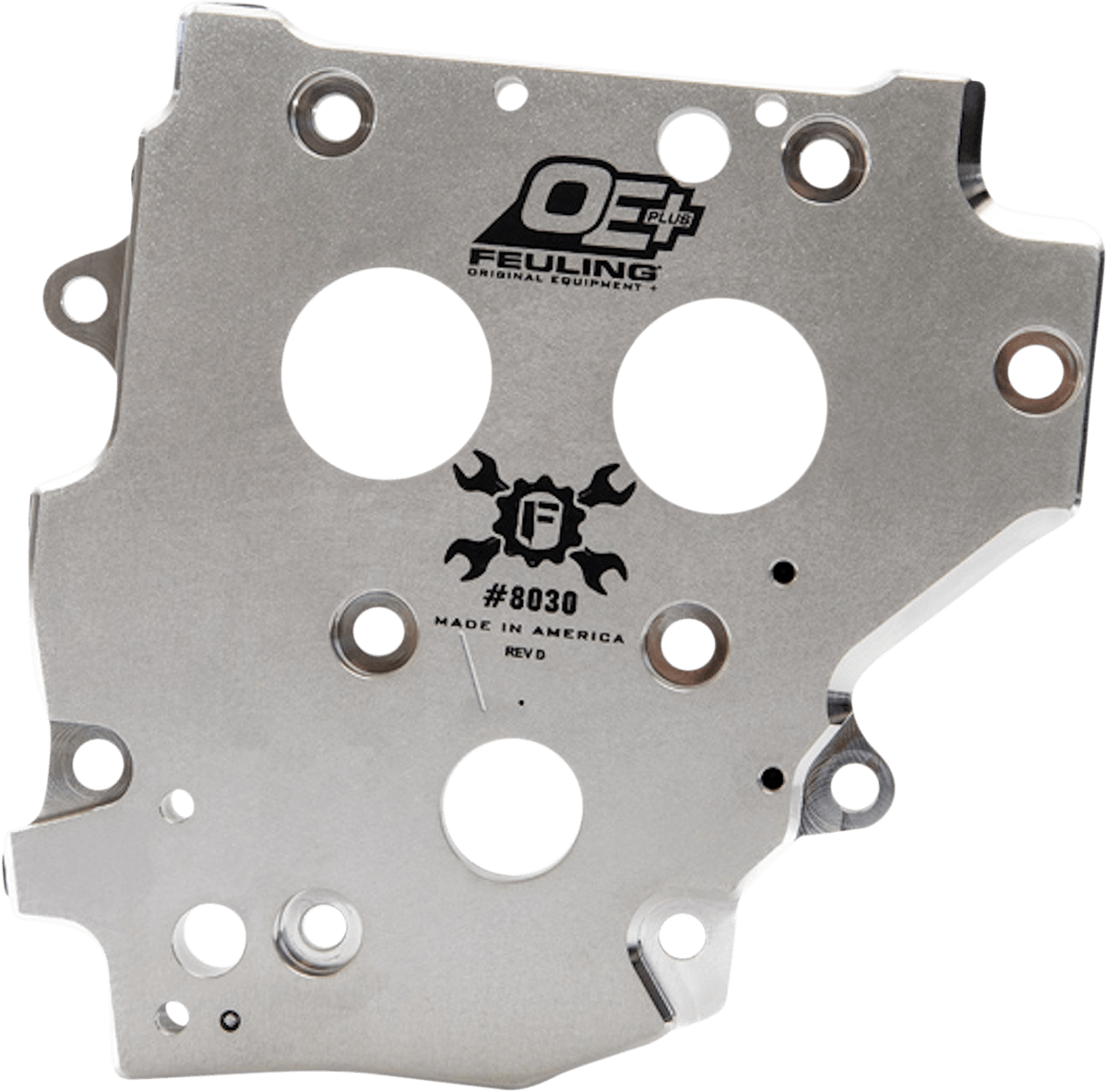

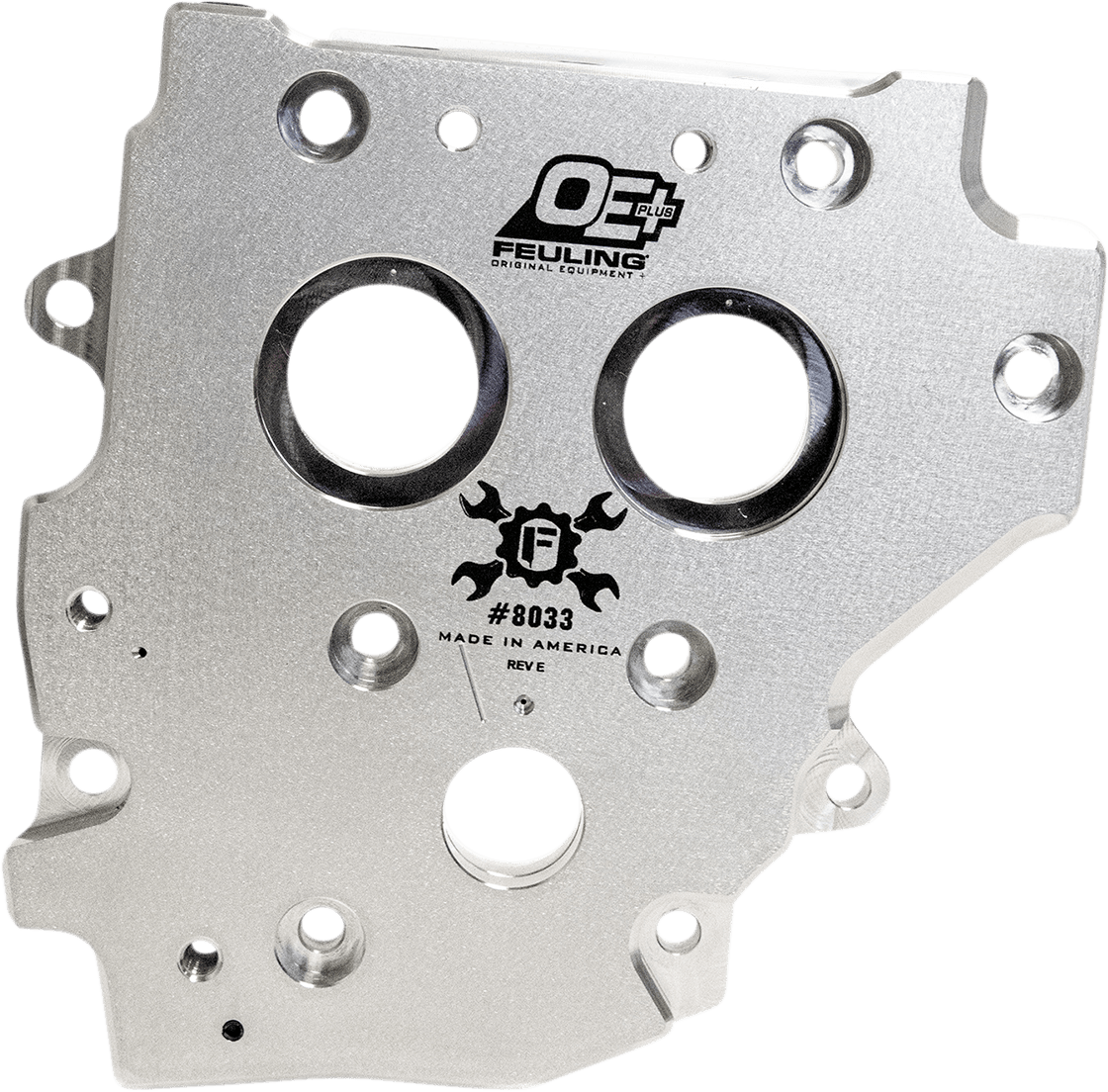

OE+ Cam Plate / '99-'17 Twin Cam

• Billet camplates are manufactured from 6061 aluminum providing increased rigidity and machined to Feuling® high tolerance standards
• Designed and manufactured to the highest standard of quality with proven Feuling® performance
• The pressure relief valve and spring are pre-set, matched and seated by Feuling® with a full pop off pressure of 50-60 psi
• Camplates for 99-06 Twin Cam (except 06 Dyna) have tighter cam bearing bore tolerance for improved press fit

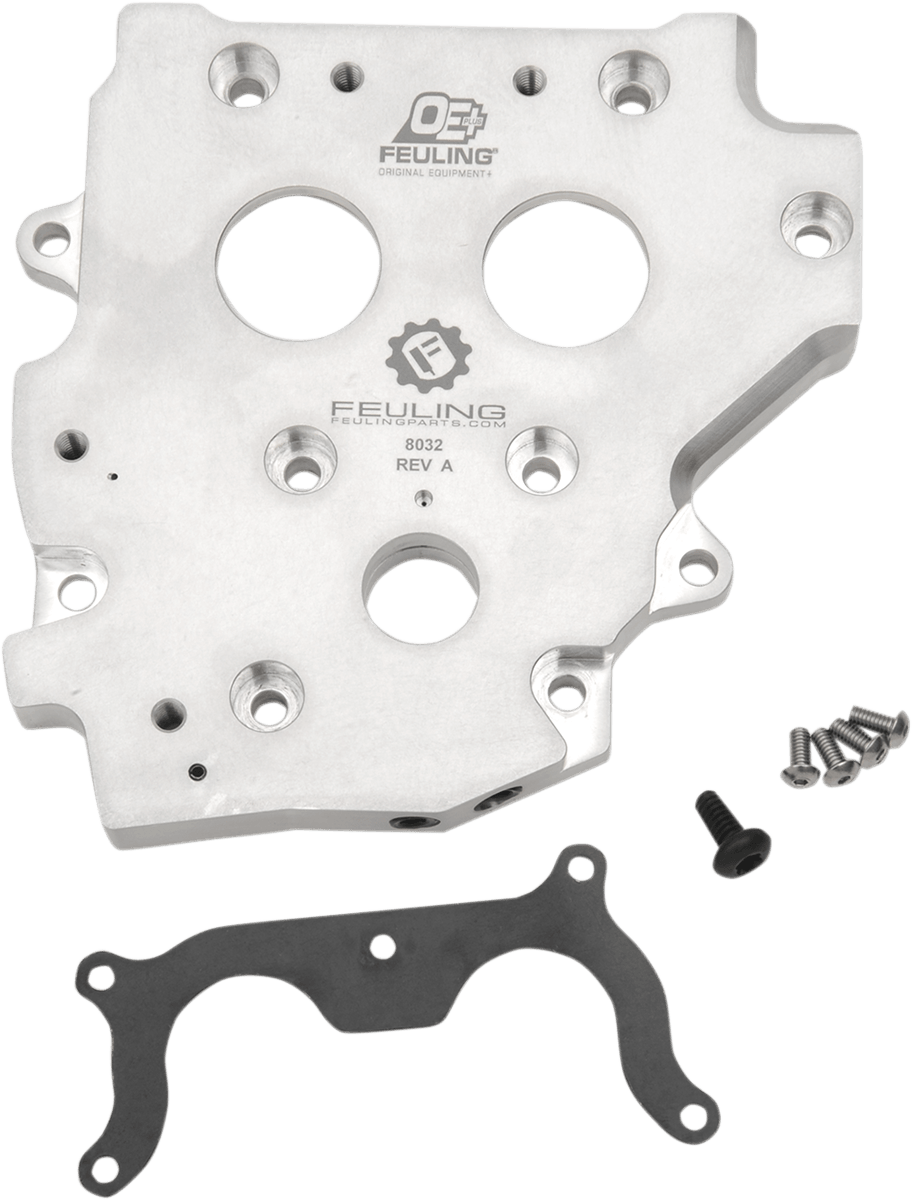

• Bearing retainer plate and hardware included
• Camplate for 99-17 Twin Cam (and 06 Dyna) have tighter cam journal bore tolerance for improved cam fitment
• Added cam journal oil groove for cold start up protection and increased cam journal lubrication
• Added oil pressure feed holes to front and back of cam journals to prevent excessive thrusting wear
• Made in the U.S.A.

NOTES -

1. Block-off plate PART # 932-0036 required when using gear drive cams.
2. For use with factory or any Twin Cam oil pump with the 99-06 bolt pattern. Compatible with Feuling oil pump PART # 9320018, 9320089, 9320020.
3. Includes tensioner pins and hardware guide.
4. Requires 07-17 style oil pump, hydraulic chain drive system (tensioners, chains, sprockets and hardware), see Feuling tensioner kits 9251069 or 09251070.
5. Compatible with Feuling oil pump PART #s 9320090, 9320023, 9320026.
6. 5 For use with factory and or any Twin Cam oil pump with '07-'17 bolt pattern; compatible with Feuling oil pump PART # 9320090, 9320023, 9320026.
