Next Gen Lower Front Legs / '14-'20 M8 - Bagger

Alloy Art Next Gen Lower Front Legs are billet aluminum lowers for 49mm M8 Bagger models with ABS, using adjustable fender mounts.

Adjustable fender mounts are the detail that separates these from most billet lowers. Fender placement on a custom front end is rarely exactly where the factory put it, and fixed mounts force you to accept whatever gap results. Alloy Art built adjustment into the mount so the fender sits where you want it rather than where the hardware dictates.

How the Next Gen Legs Are Built

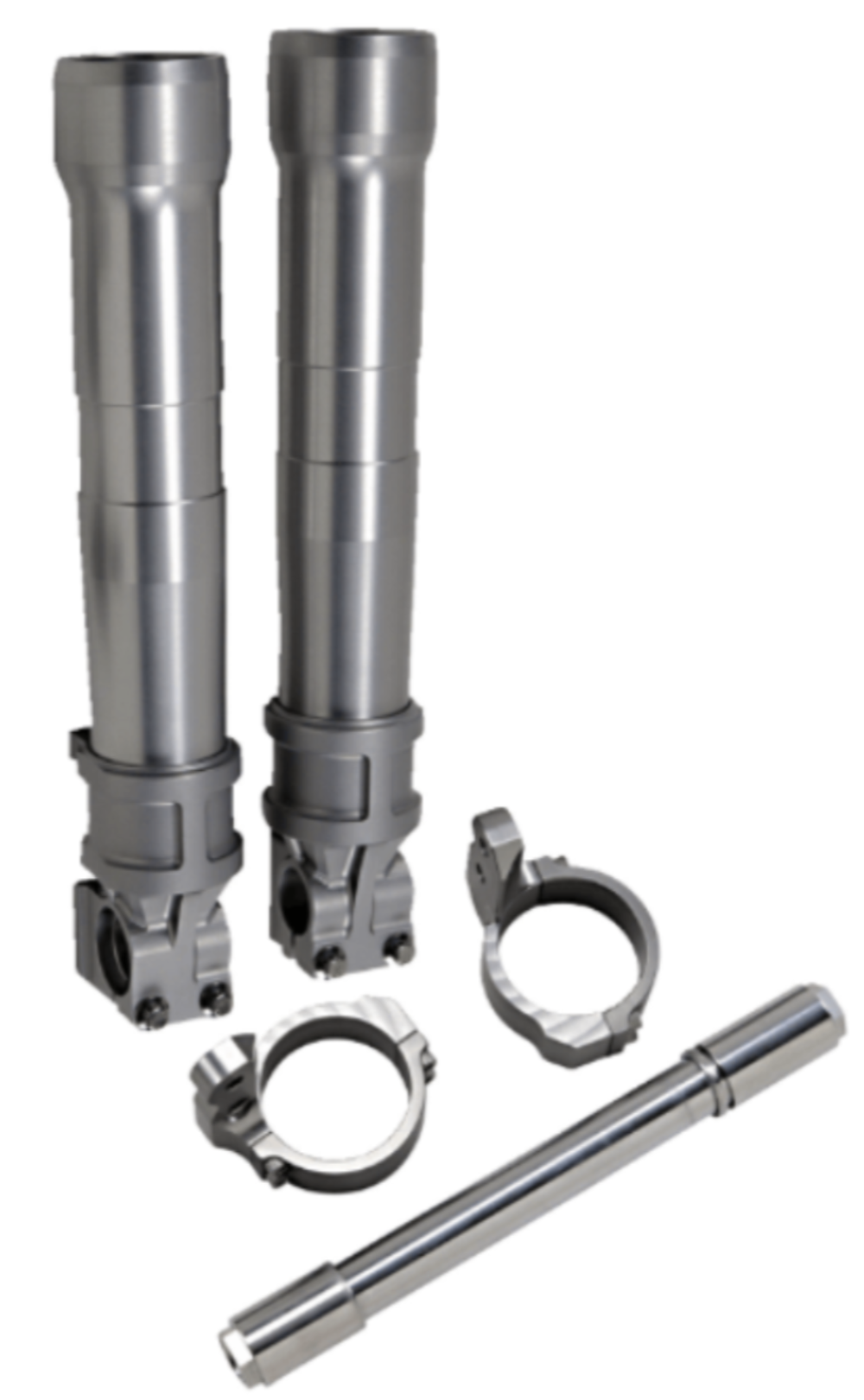

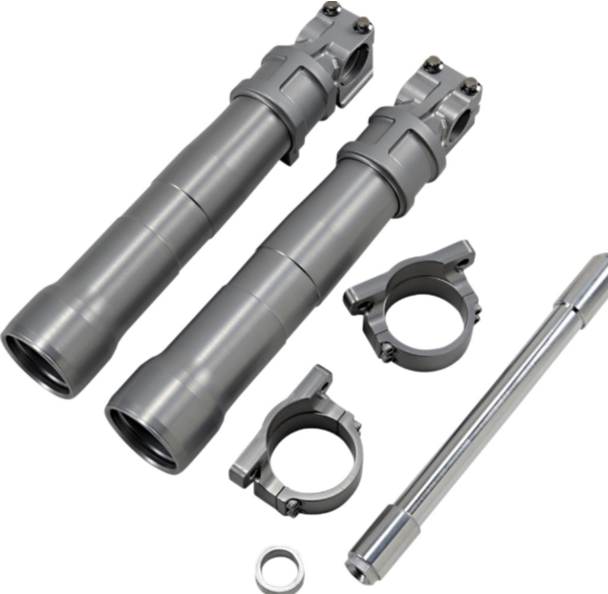

Every component is billet aluminum. A cad plated chromoly 25 mm front axle ships with the kit. Caliper mounts are designed for 11.8" or 13" rotors and come in two patterns: radial calipers on a 108 mm bolt pattern, or '08-'20 OEM-style Dresser calipers. Caliper mounts and calipers are sold separately, so the brake decision stays yours. Made in the USA.

Specifications

• Billet aluminum construction throughout
• Adjustable fender mounts for exact fender placement
• Cad plated chromoly 25 mm front axle included
• Designed for 11.8" or 13" rotors
• Caliper mount options: 108 mm radial, or '08-'20 OEM-style Dresser

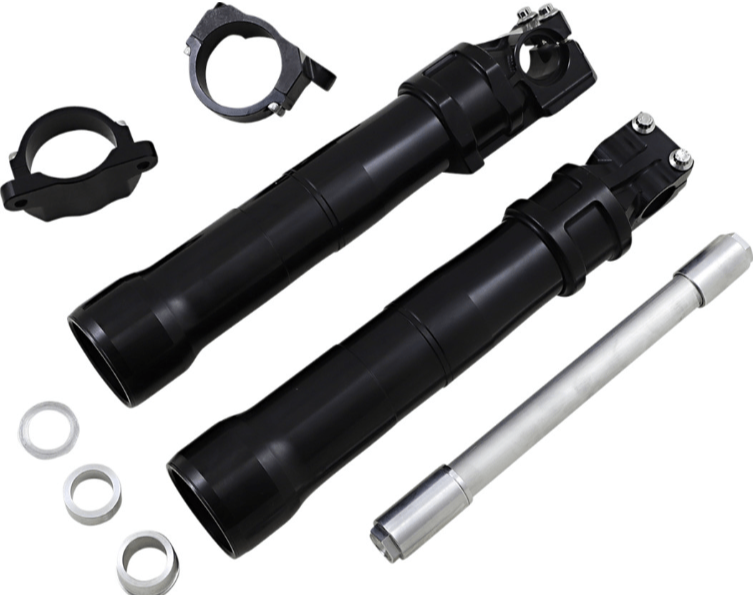

• Finishes: clear or black
• Made in the USA

Fitment

• 2014-2021 Harley-Davidson Touring FLHT, FLHR, FLHX, FLTRX, FLTRU and FLTRK with 49mm forks and ABS
• Caliper brackets and calipers are sold separately
• This kit requires custom wheel spacers, which are not included

Before You Order

Check your fork diameter, rotor size, caliper type and ABS configuration before ordering, and budget for wheel spacers on top of the kit.

Works With

Caliper brackets are sold separately: Radial / Ambidextrous Brake Mount.
