MVX 8K Digital / Analog 6 Gauge Kit / '04-'13 Bagger

The Dakota Digital MVX 8K Six Gauge Kit for '04-'13 baggers covers FLHT, FLTR, FLHX and FL Trike models with a full analog and digital instrument set.

This is the MVX kit for the later bagger dash, and the Trike fitment is worth noting since three wheel models are frequently left out of gauge kits entirely. The format is the same throughout: an analog pointer for immediate reading, with a digital LCD message center handling the readouts a needle cannot display.

Setting Up the MVX Gauges

Two bezel options, four background choices and seven lighting colors combine into a very large number of possible looks. Pointer, backlight and LCD message center colors are each programmed independently rather than locked together, so the instrument set can be tuned to the bike's paint and to how you actually read gauges at night.

MVX 8K Gauge Kit Specifications

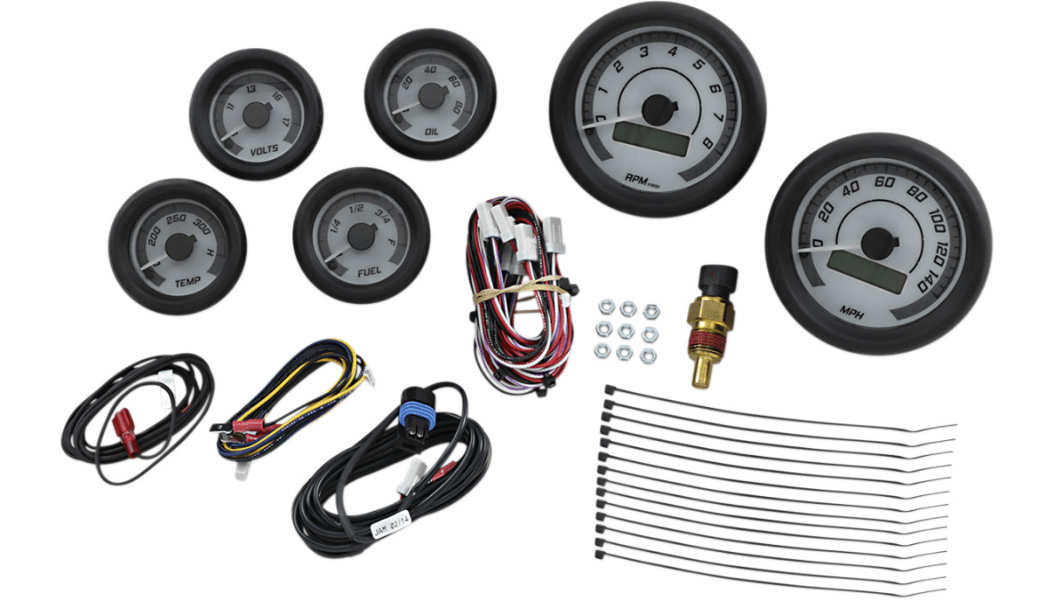

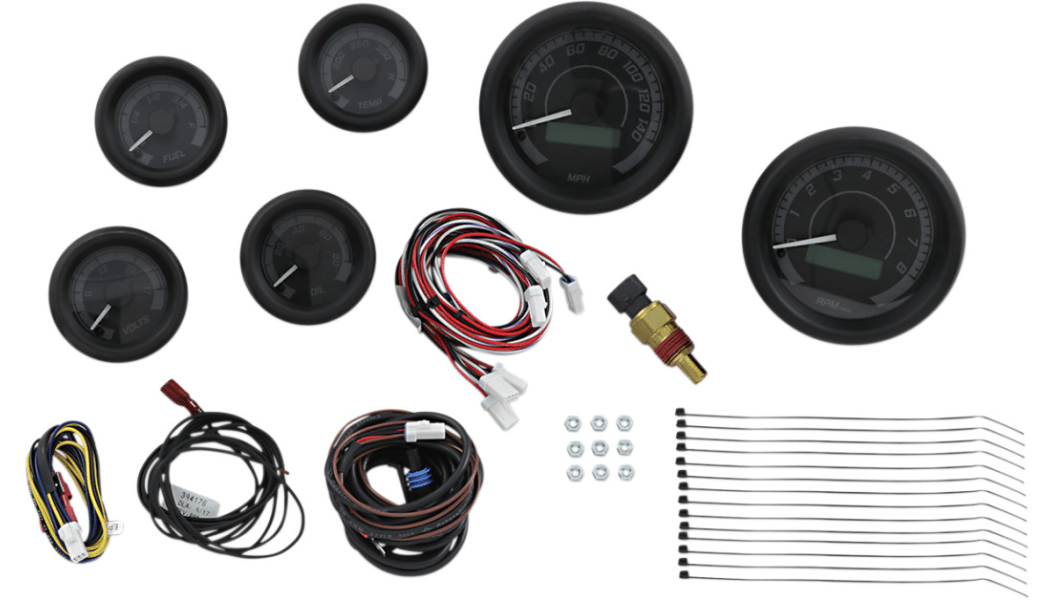

• Six gauge kit: speedometer, tachometer, oil pressure, oil temperature, fuel level and voltmeter
• All seven gauge readings displayed across the set
• Two bezel options and four background choices

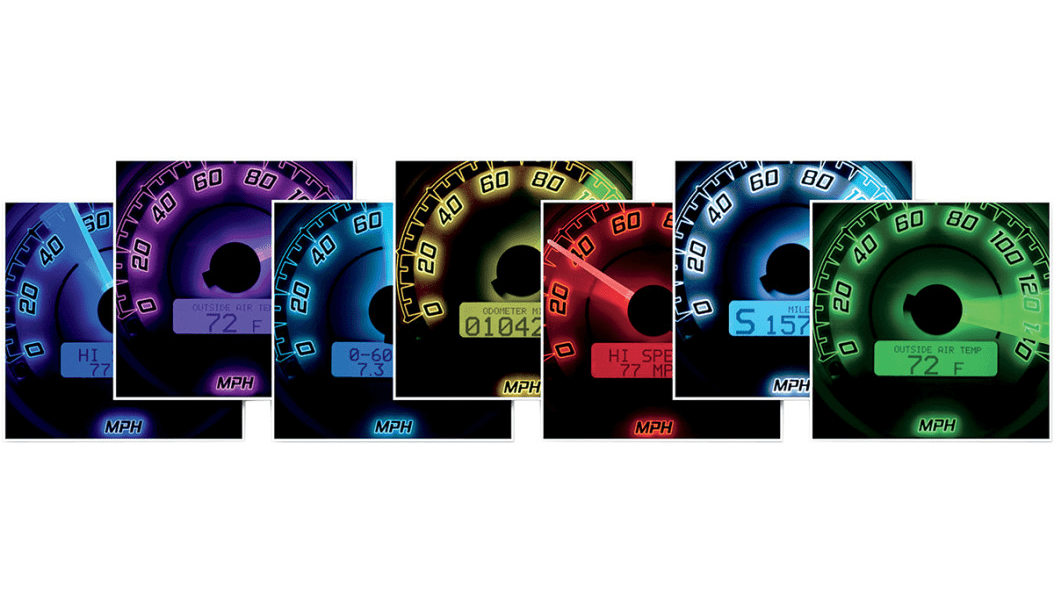

• Seven user-selectable LED colors: red, green, blue, teal, magenta, amber or white
• Pointer, backlight and LCD message center colors programmed independently

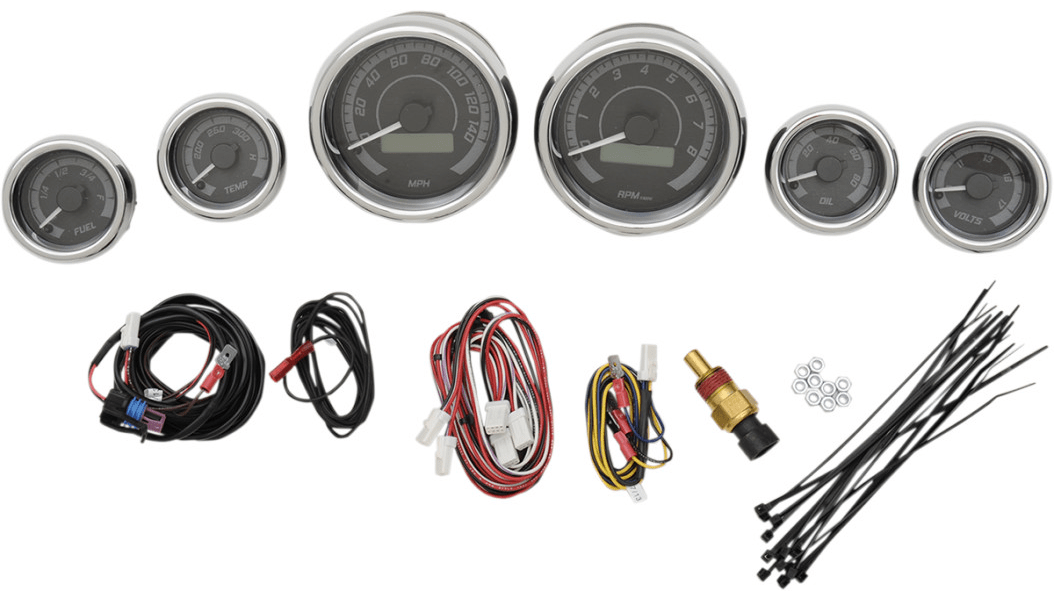

• Color options: black with chrome bezel, black with black bezel, or white with black bezel
• Designed and manufactured in the USA

Expanding the MVX Gauge Set

Optional fuel level, oil pressure, oil temperature and voltmeter gauges work only with MVX six and two gauge kits; they will not function alone. Add-on modules plug directly into MVX and MCL-3014 series gauges and push readings for up to two air suspension pressures, boost pressure, or compass heading into the existing LCD, so nothing already installed has to come out.

⚠️ VERIFY your model year and confirm your bike is an '04-'13 FLHT, FLTR, FLHX or FL Trike before ordering.
