MVX 8K Digital / Analog 6 Gauge Kit / '96-'03 Bagger

The Dakota Digital MVX 8K Six Gauge Kit replaces the full instrument set on a '96-'03 bagger with analog pointers backed by digital readouts.

Analog gauges are easier to read at a glance and digital displays carry more information. The MVX series refuses to choose: a real pointer sweeps the dial while an LCD message center underneath handles everything a needle cannot show. On a '96-'03 FLHT, FLTR or FLT, that turns a basic factory panel into a complete instrument set.

Setting Up the MVX Gauges

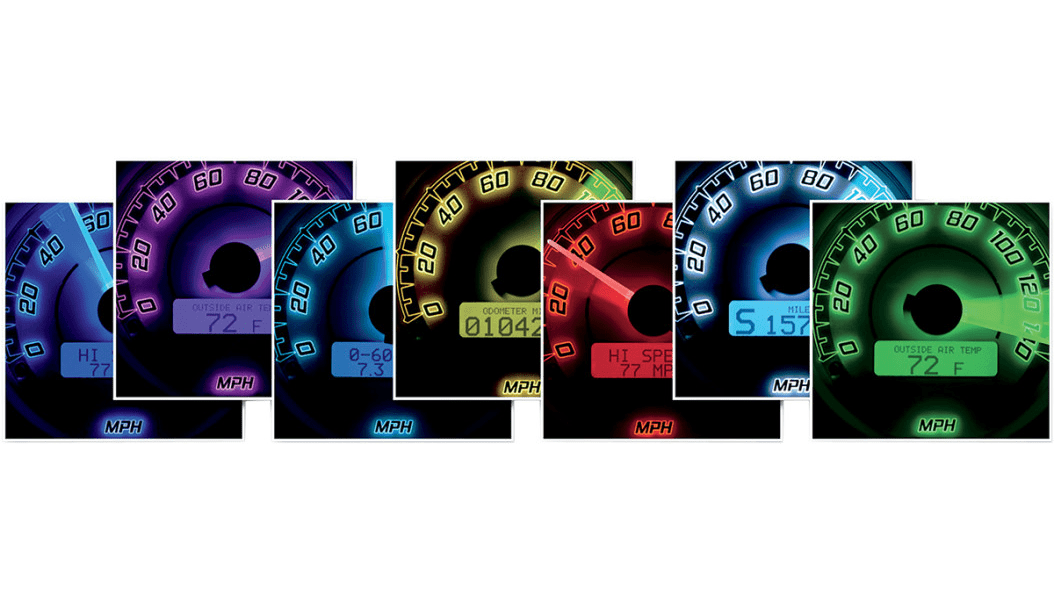

Between two bezel options, four background choices and seven lighting colors, the combinations run into the hundreds. Pointer color, backlight and LCD message center are each programmed independently, so the set can be matched to a bike rather than accepted as a package. Seven colors are available: red, green, blue, teal, magenta, amber and white.

MVX 8K Gauge Kit Specifications

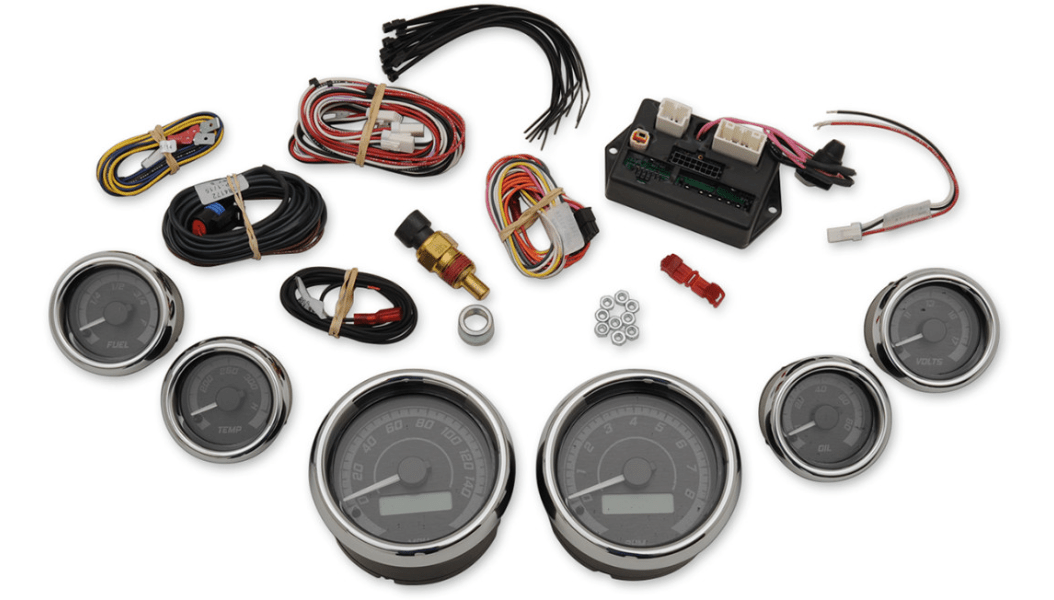

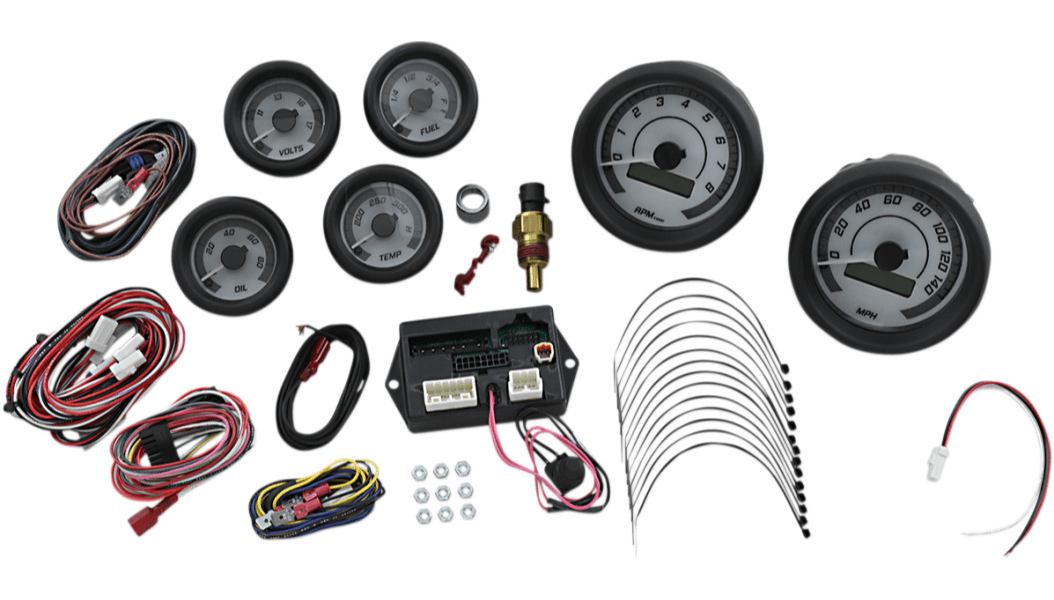

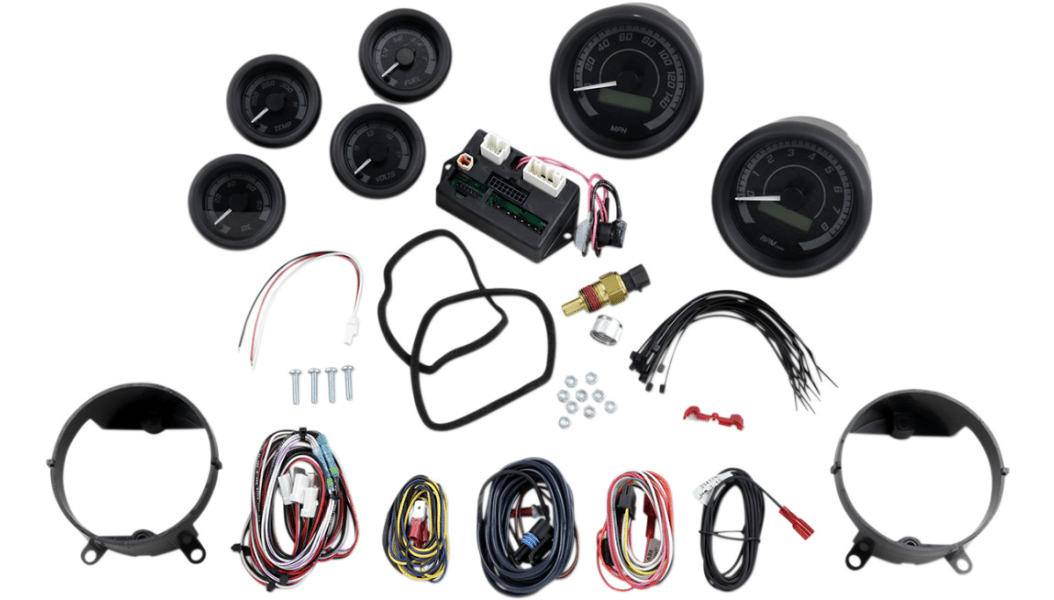

• Six gauge kit: speedometer, tachometer, oil pressure, oil temperature, fuel level and voltmeter
• All seven gauge readings displayed across the set
• Two bezel options and four background choices
• Seven user-selectable LED colors: red, green, blue, teal, magenta, amber or white
• Pointer, backlight and LCD message center colors programmed independently
• Color options: black with chrome bezel, black with black bezel, or white with black bezel
• Designed and manufactured in the USA

Expanding the MVX Gauge Set

Optional fuel level, oil pressure, oil temperature and voltmeter gauges work only with MVX six and two gauge kits; they will not function alone. Add-on modules plug directly into MVX and MCL-3014 series gauges and push readings for up to two air suspension pressures, boost pressure, or compass heading into the existing LCD, so nothing already installed has to come out.

⚠️ VERIFY your model year and confirm your bike is a '96-'03 FLHT, FLTR or FLT before ordering.
