Memphis Shades Road Warrior Trigger-Lock Mount Kit - '84-'25

Model specific hardware that carries a Road Warrior Fairing and releases it by hand.

Each of these kits is cut for one group of Harley-Davidson models, which is why the list runs as long as it does. A kit for an FLHR Road King will not carry a fairing on an FXLRS Low Rider S. The Trigger-Lock mounting system uses CNC machined aluminum plates, stainless steel bolts and aluminum anchors, or black E coated plates, bolts and anchors. Once the hardware is on the bike the fairing comes off and goes back on without tools. Most applications also call for a headlight extension block.

Features of the Road Warrior Trigger-Lock Mount Kit

• CNC machined mounting plates specific to the model listed
• Polished or black E coated hardware
• No tool fairing removal once the base hardware is mounted
• Fits the Memphis Shades Road Warrior Fairing

Road Warrior Trigger-Lock Mount Kit Fitment

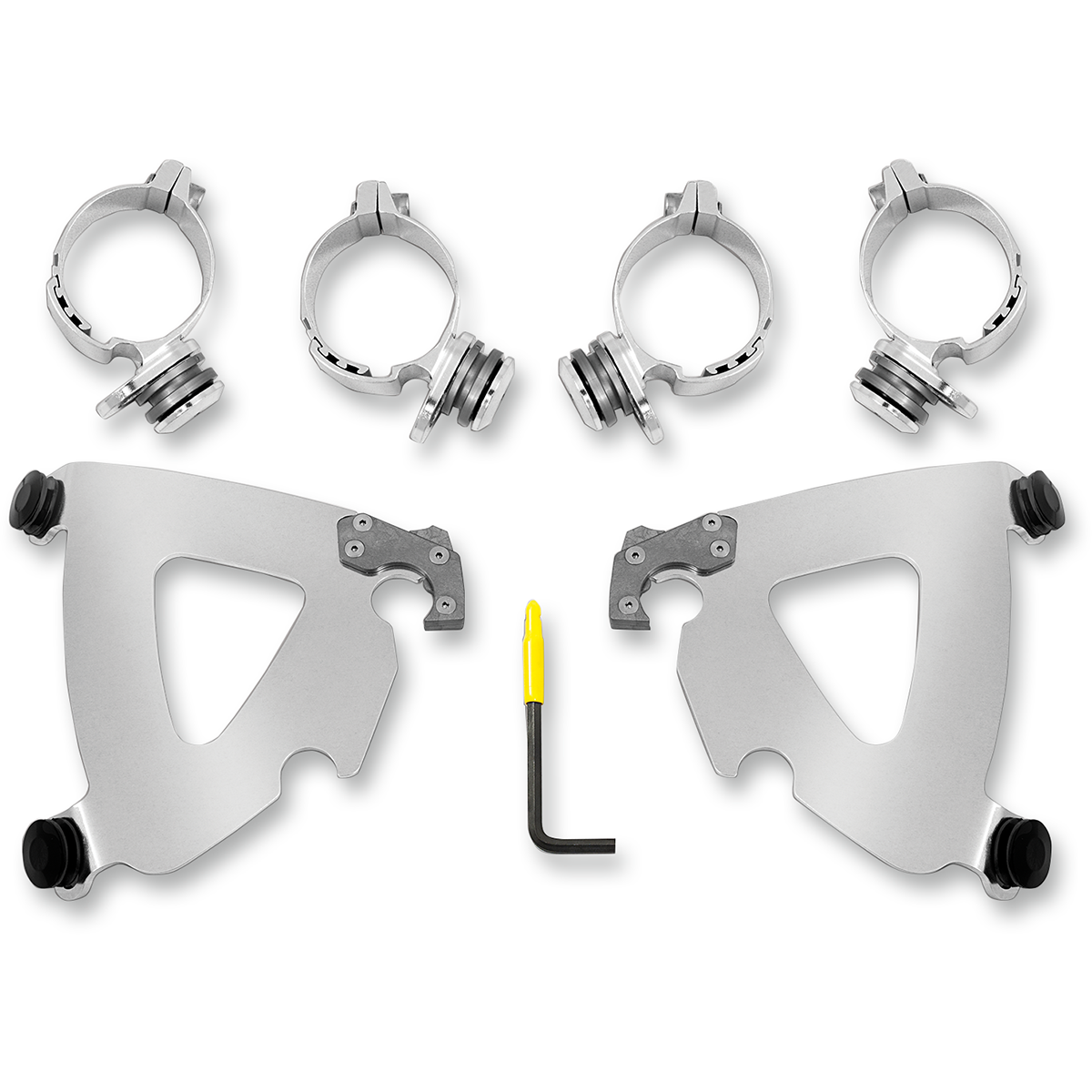

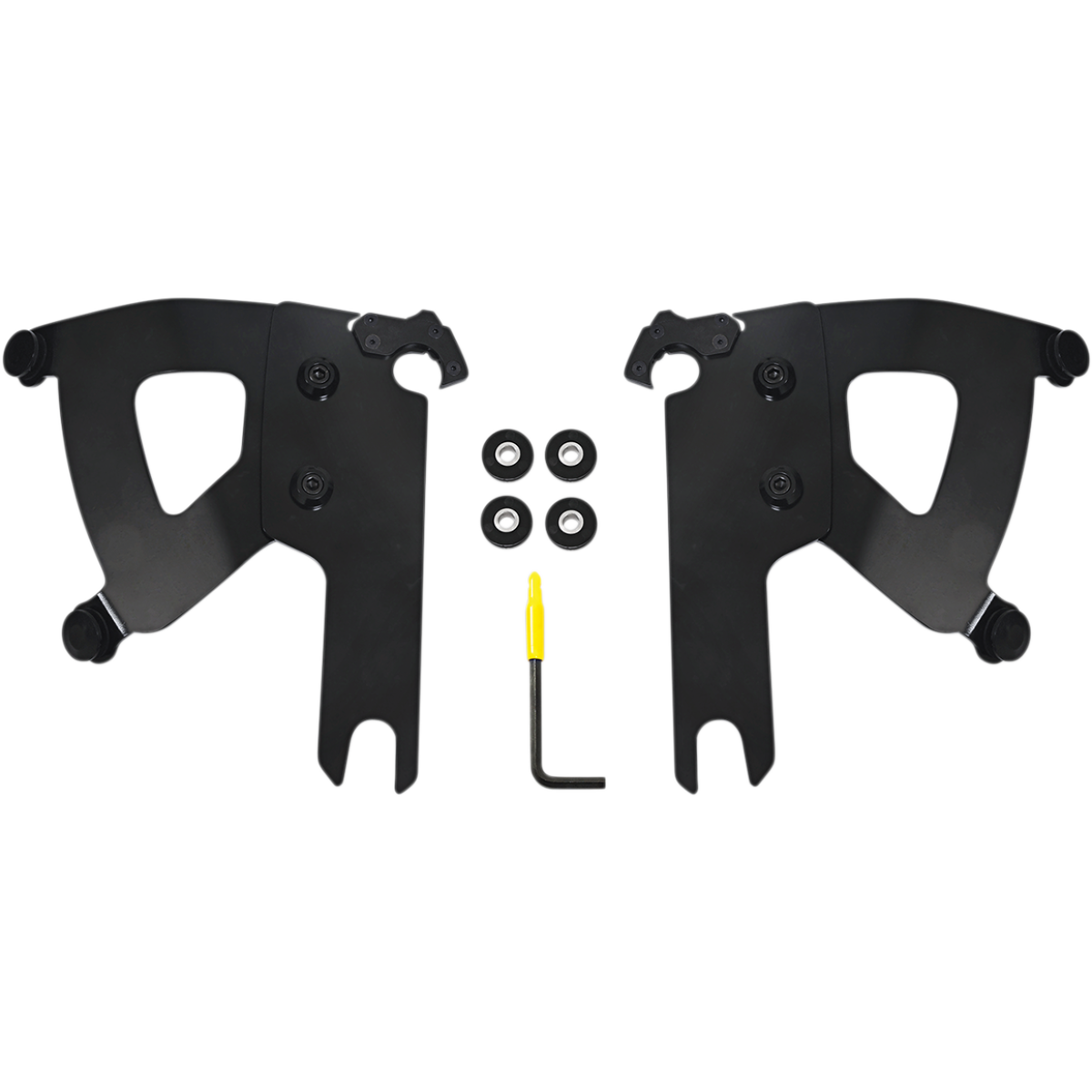

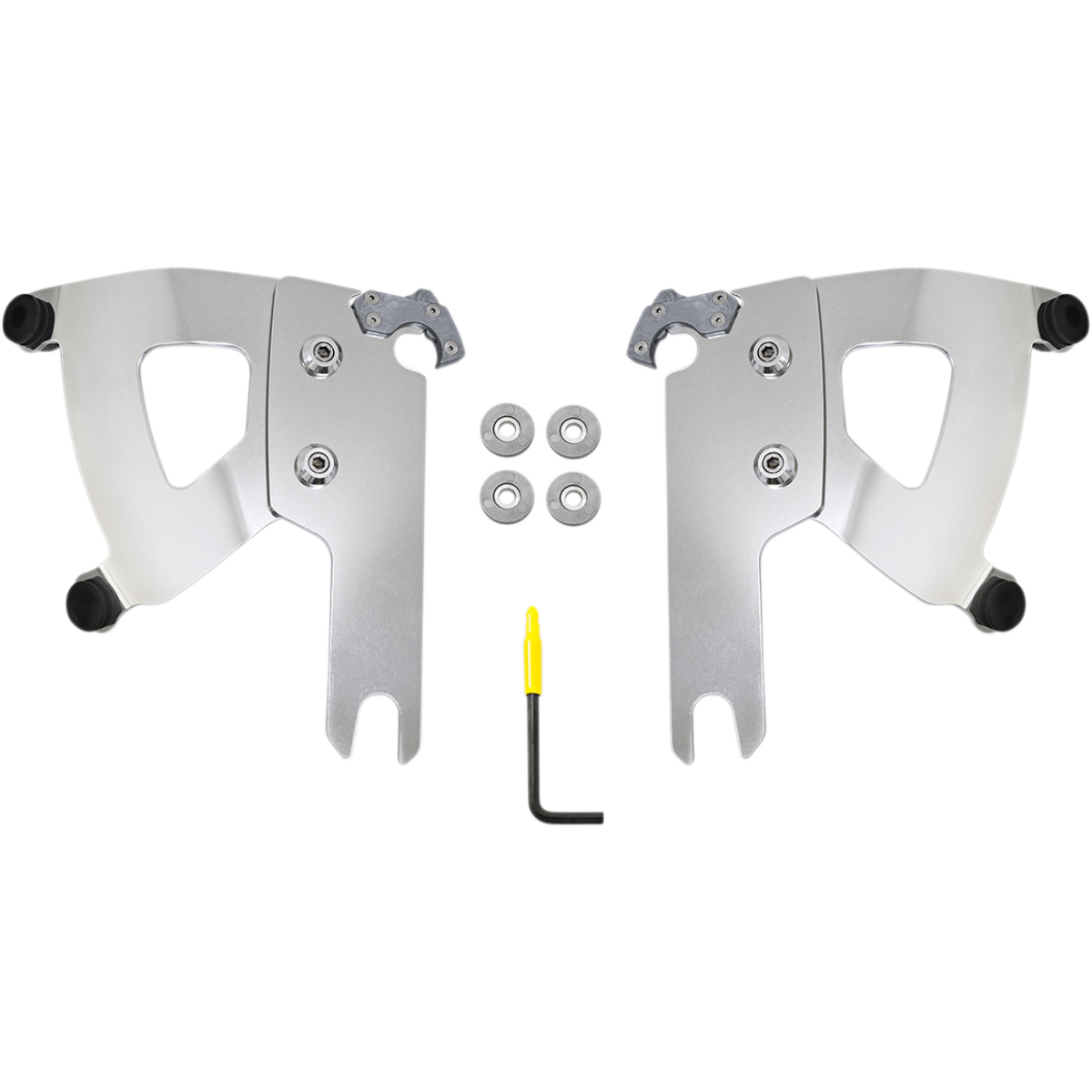

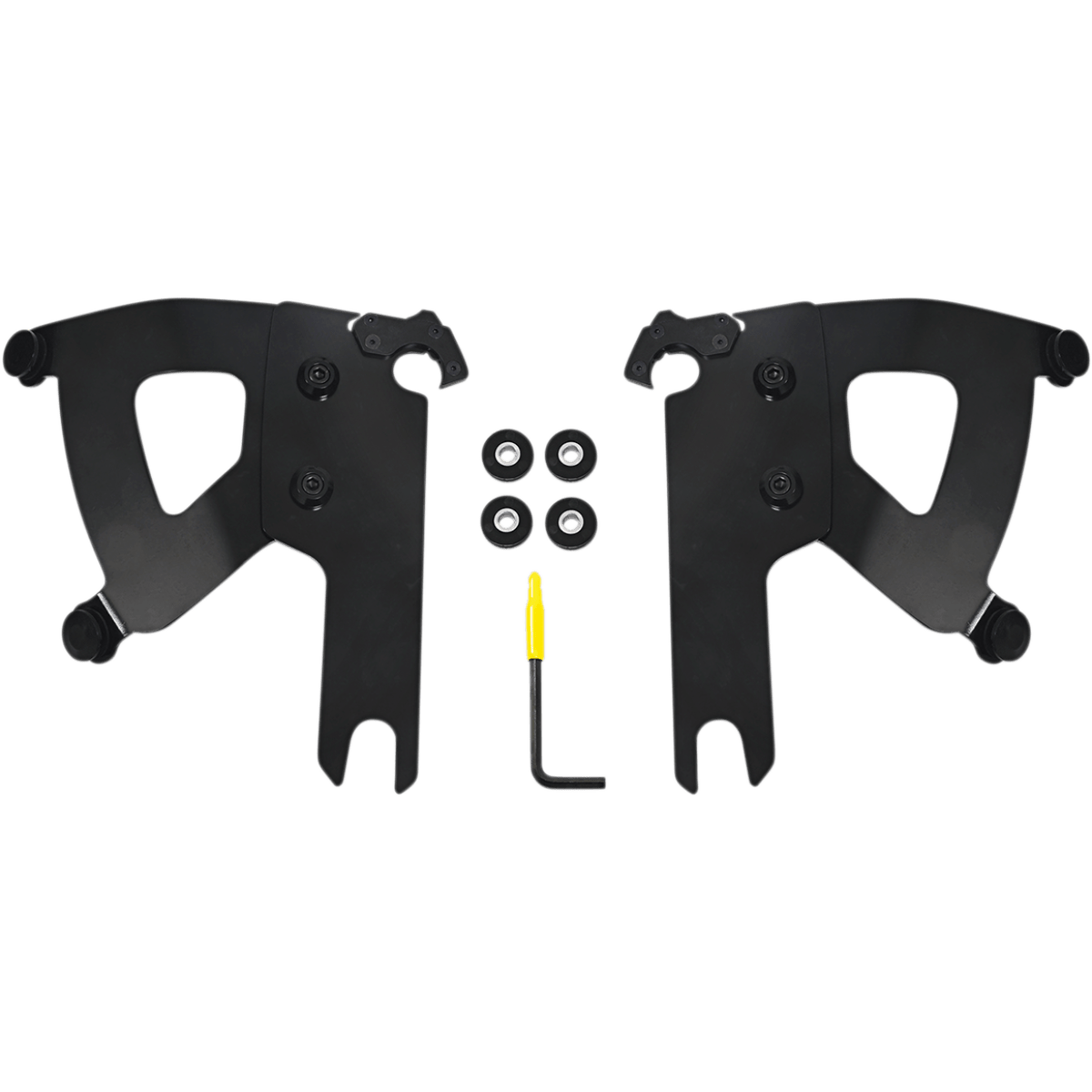

• '99-'22 FLHR/FLHRI/FLHRC/FLHRCI: polished 2320-0238, black 2320-0239

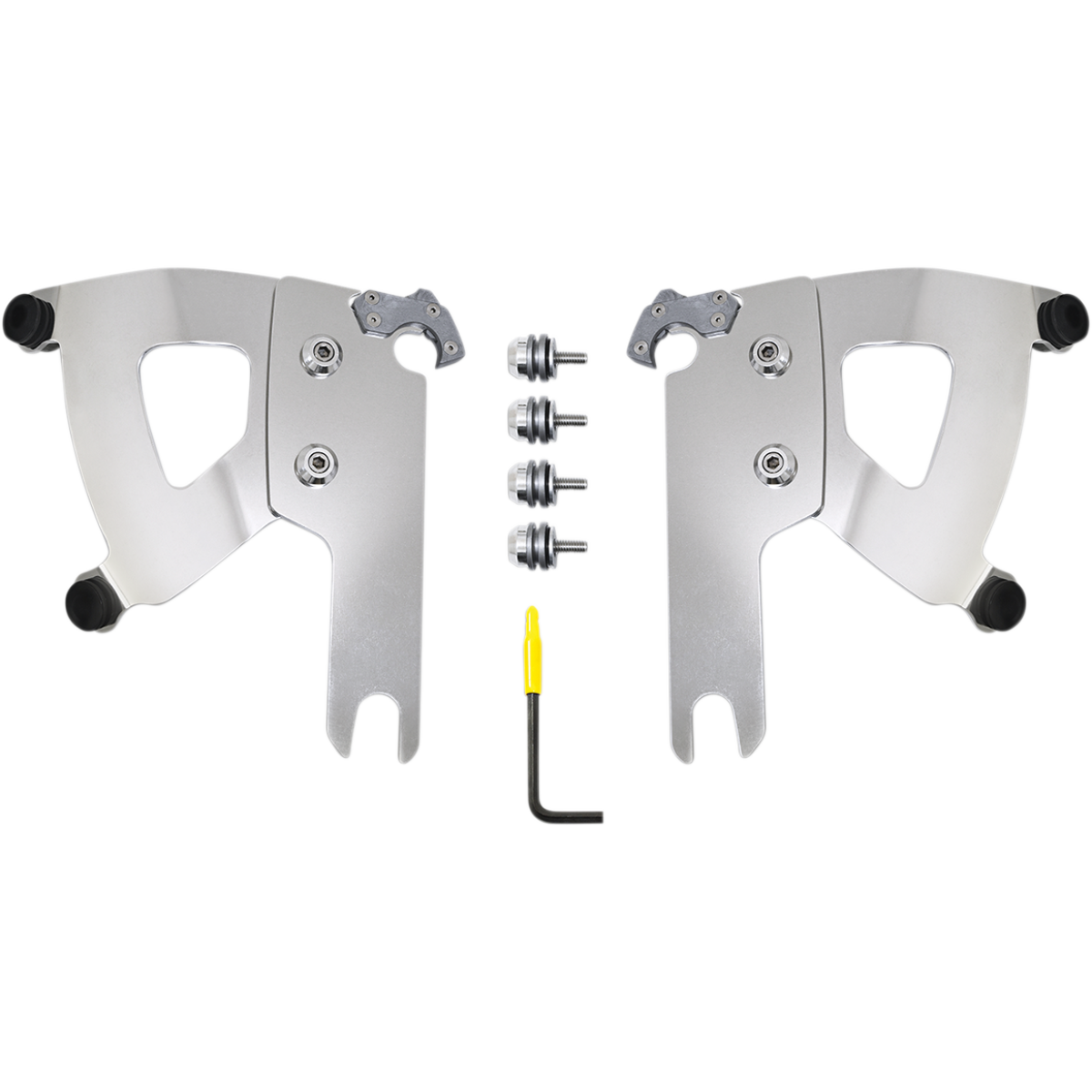

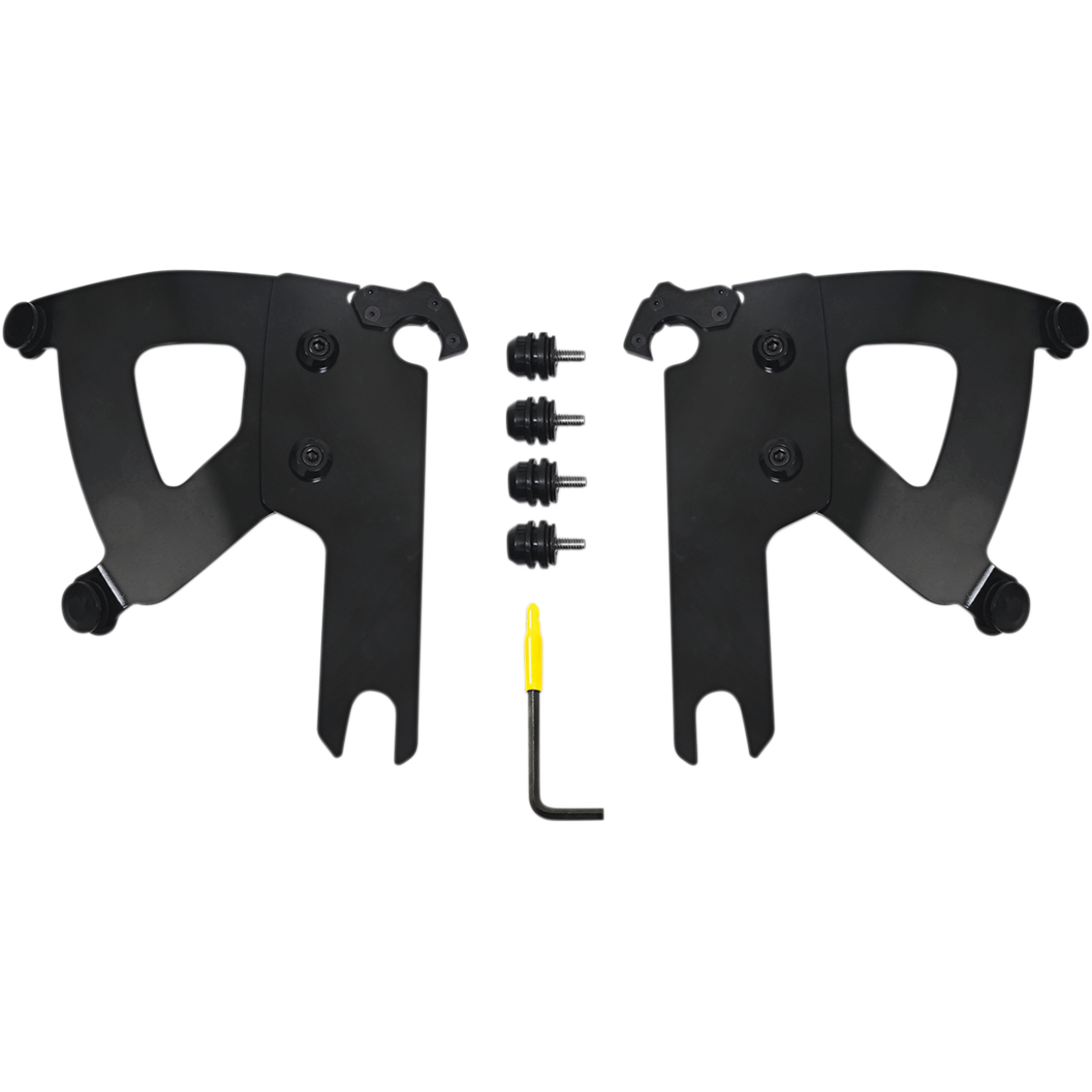

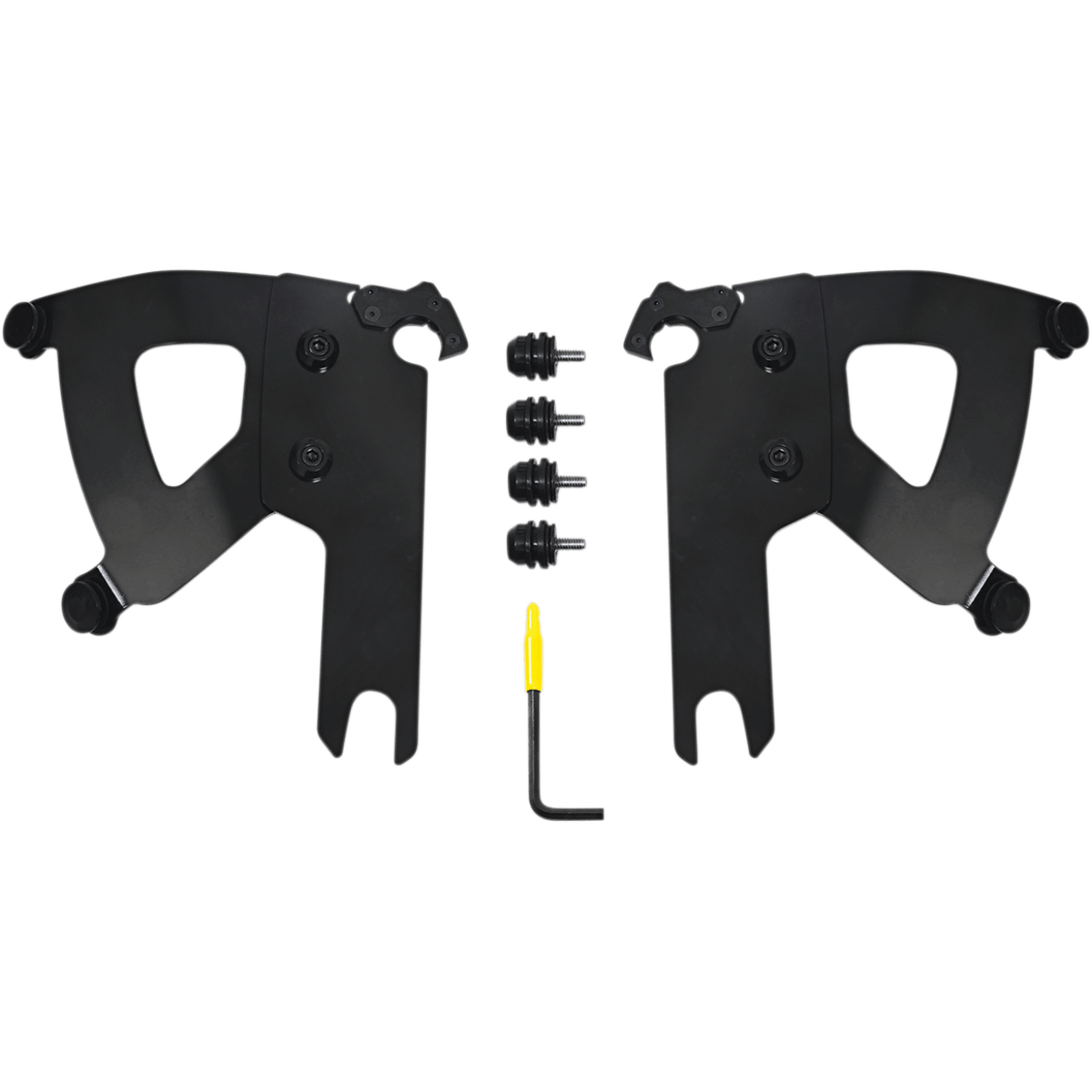

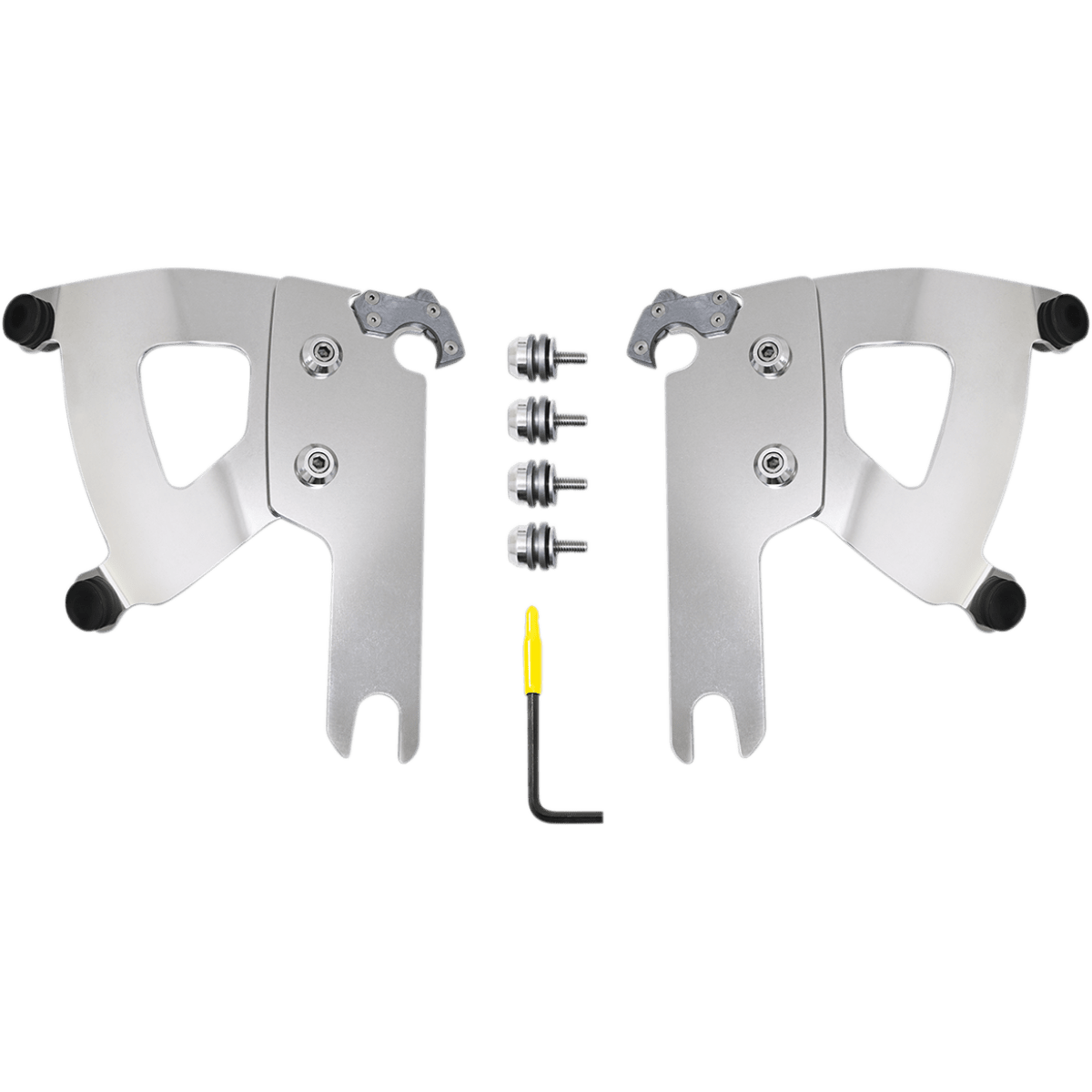

• '18-'24 FLHRXS and '04-'07 FLHRS/FLHRSI: polished 2320-0240, black 2320-0241

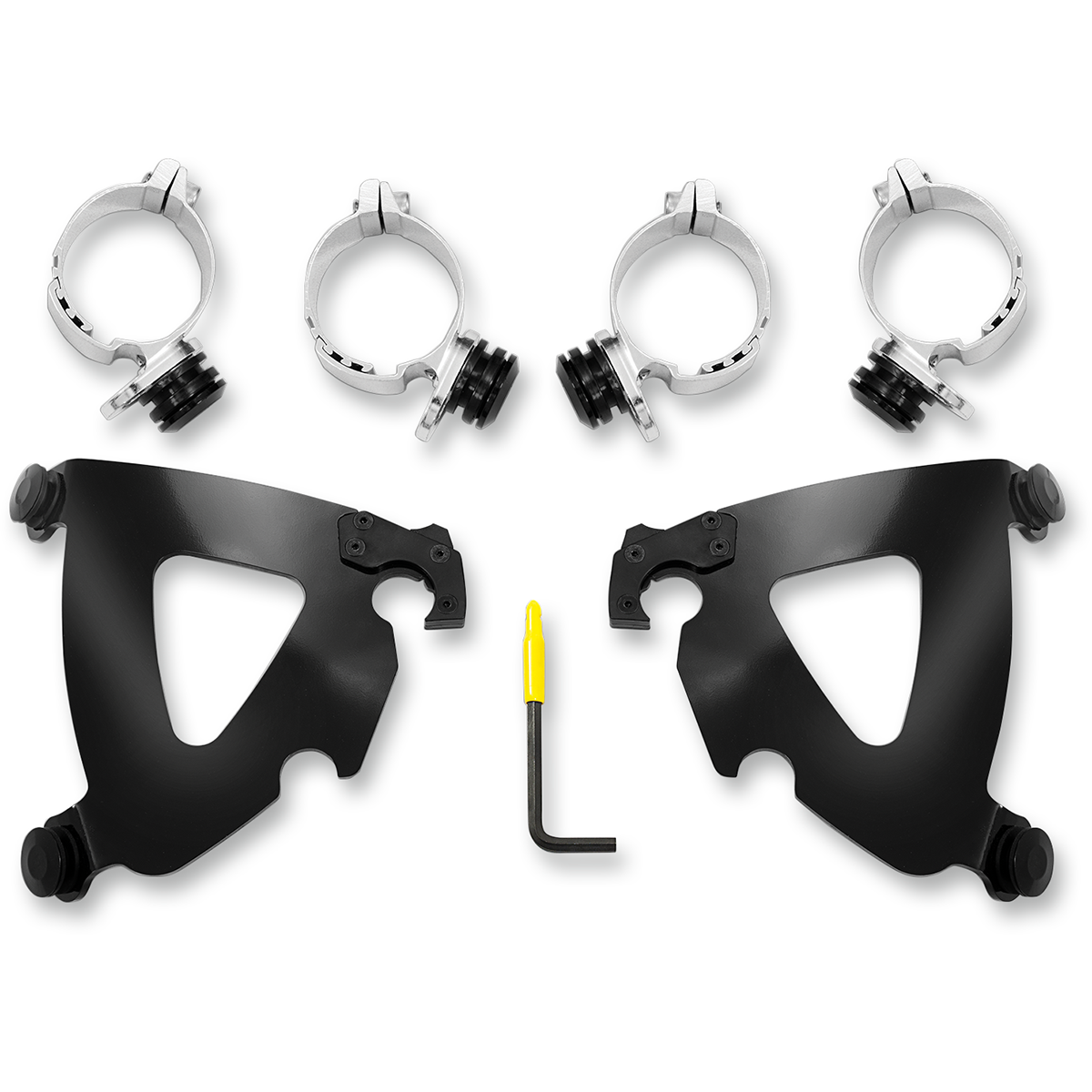

• '18-'25 FXBB/S and FXST, '08-'11 FXCW/C, '06-'17 FXD/FXDC/FXDB/FXDI35/FXDLS, '06-'09 FXDL: polished 2320-0192, black 2320-0194

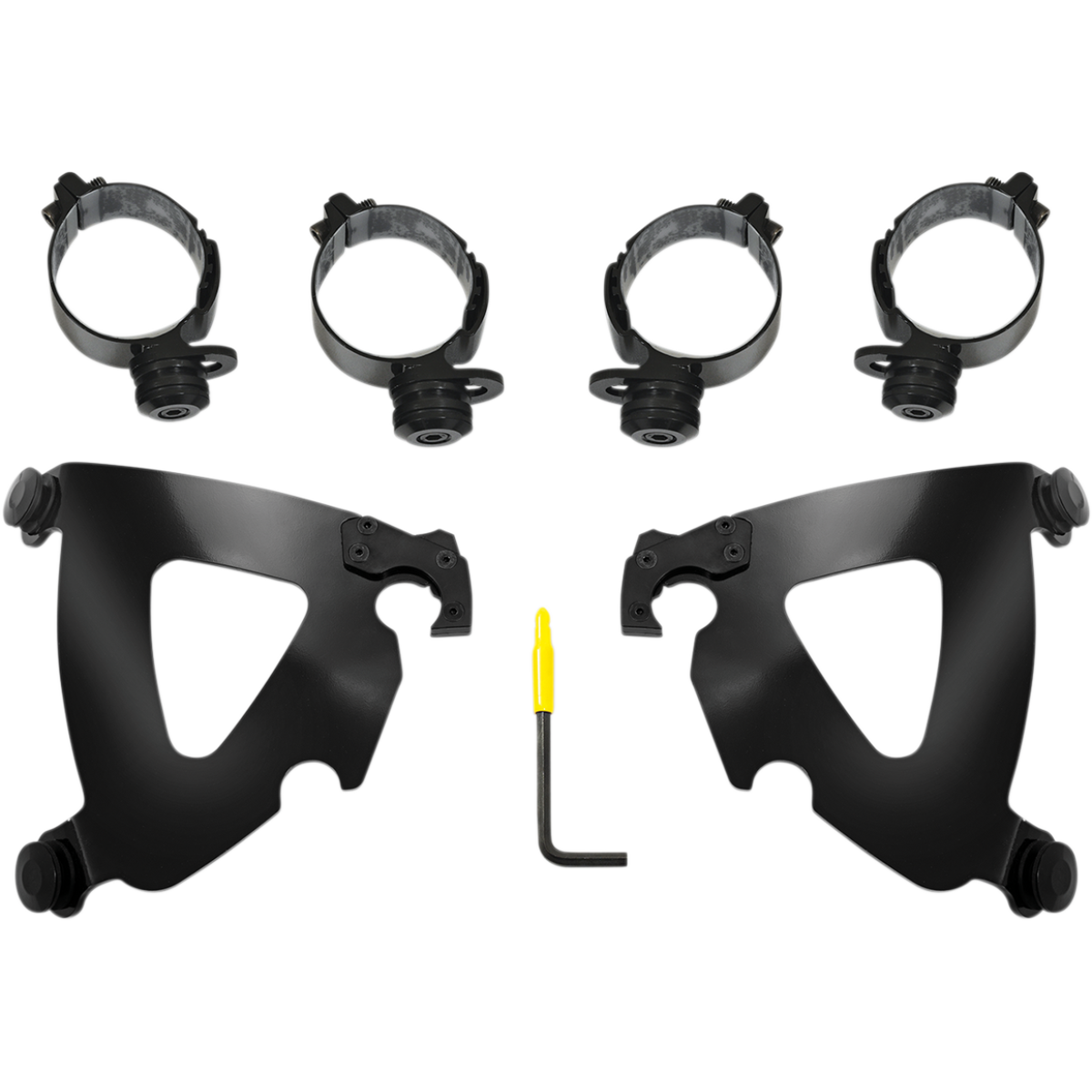

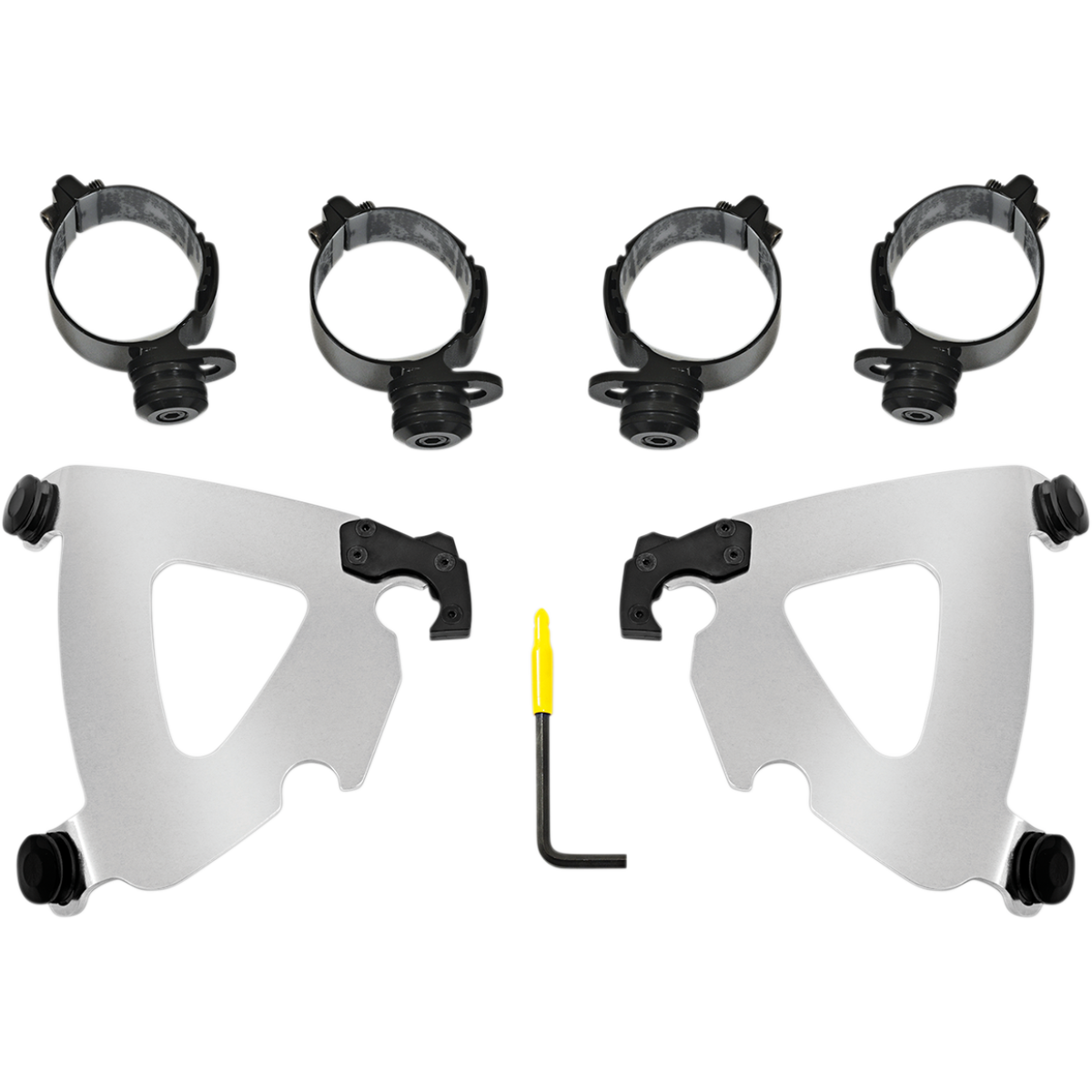

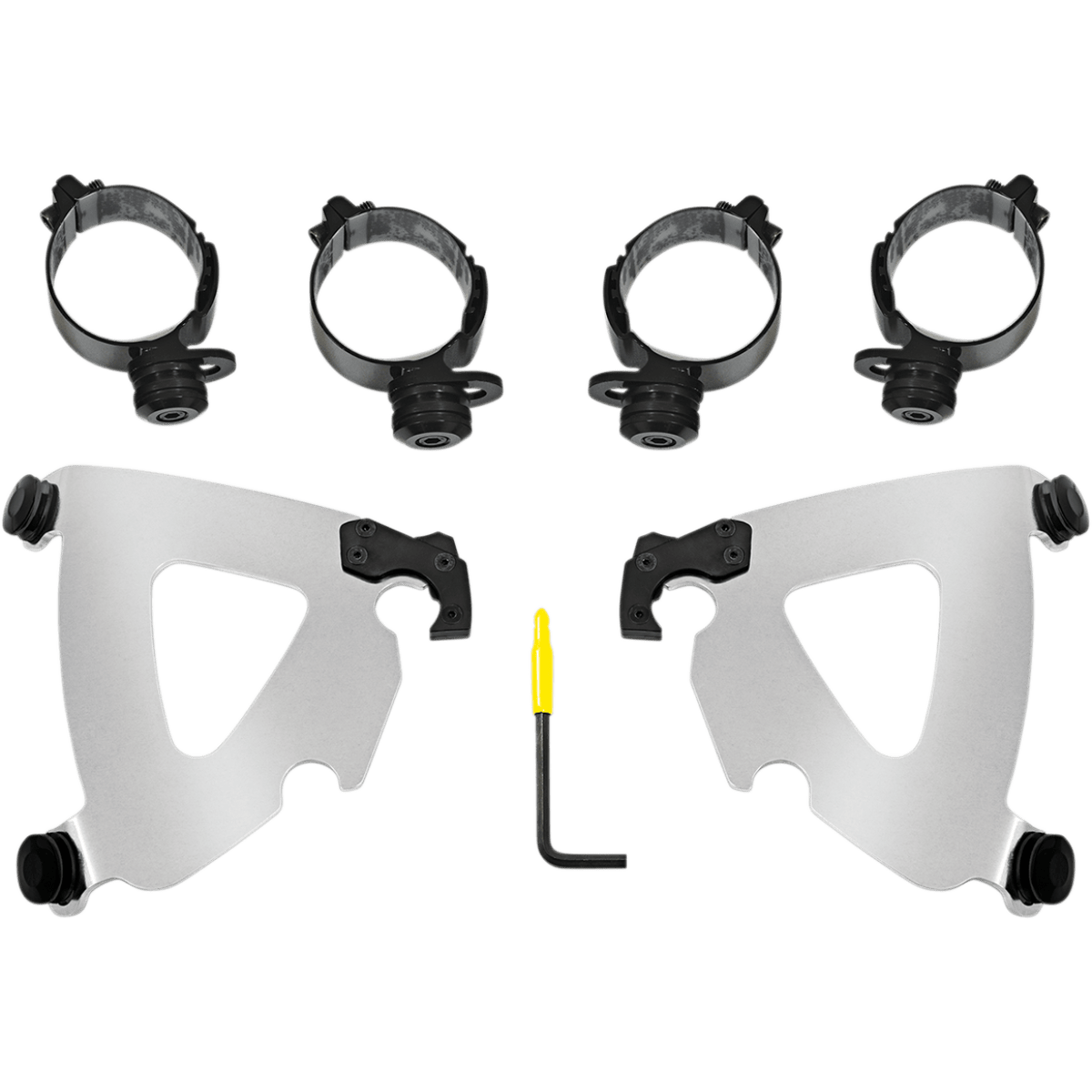

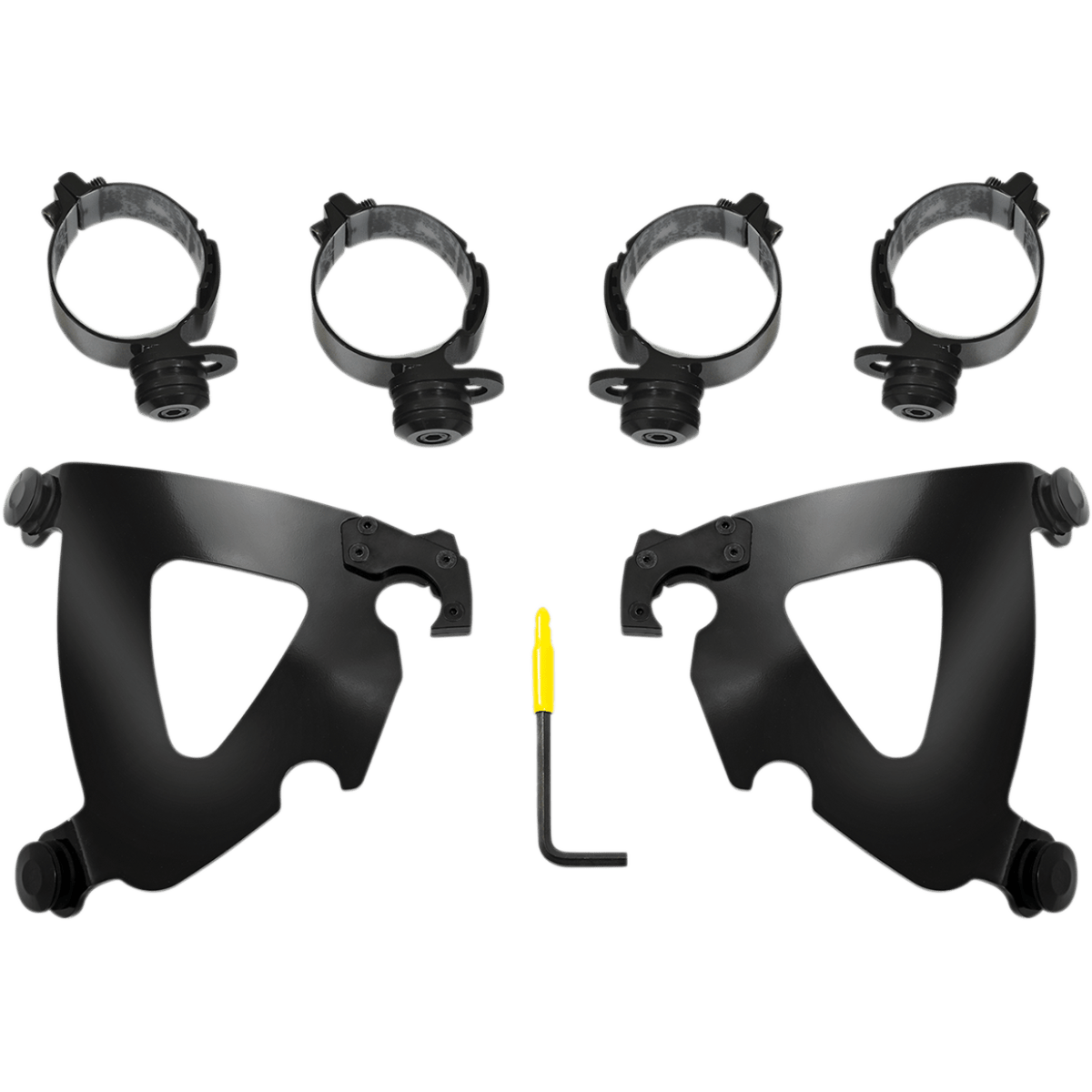

• '20-'24 FXLRS and '18-'24 FLSB: polished 2320-0217, black 2320-0218

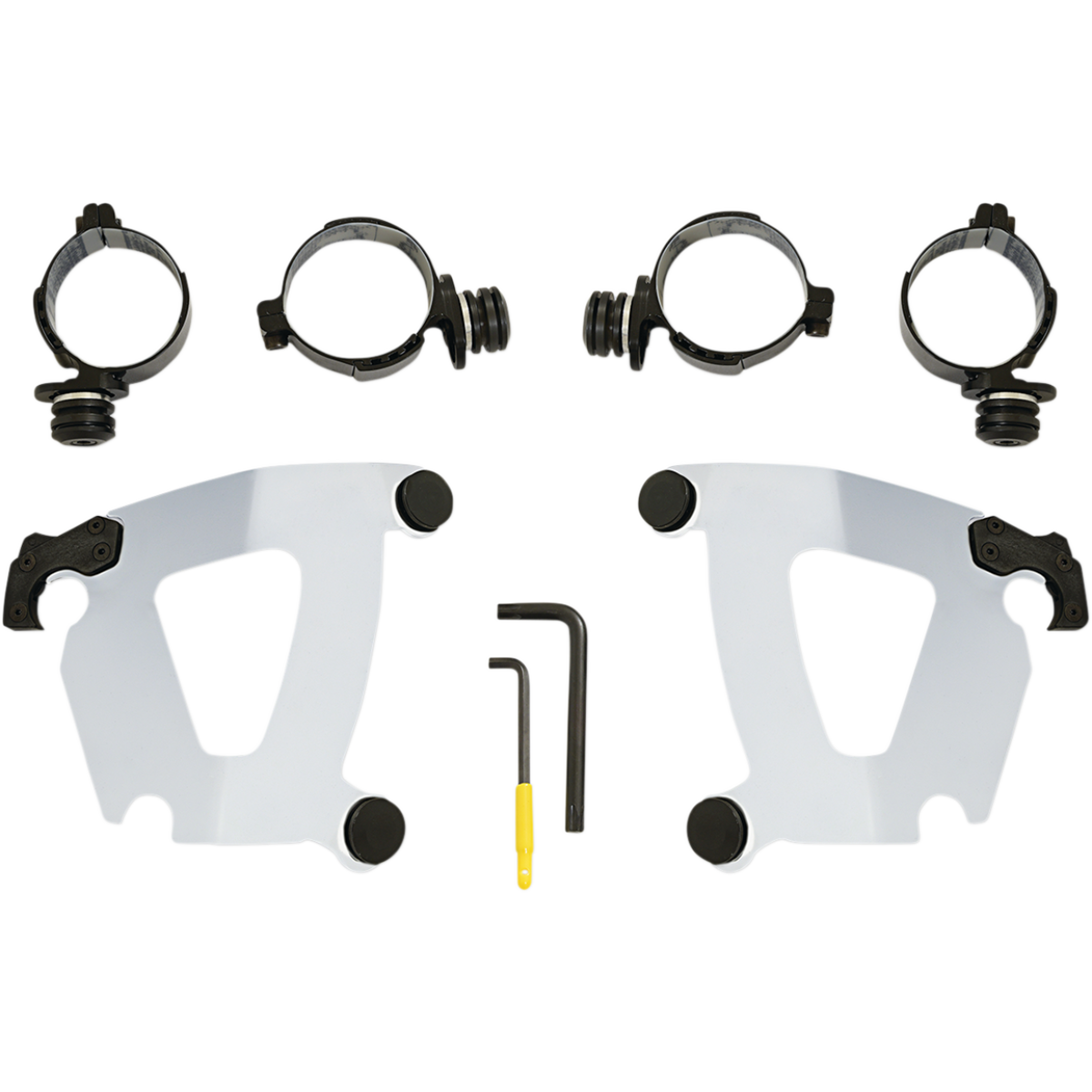

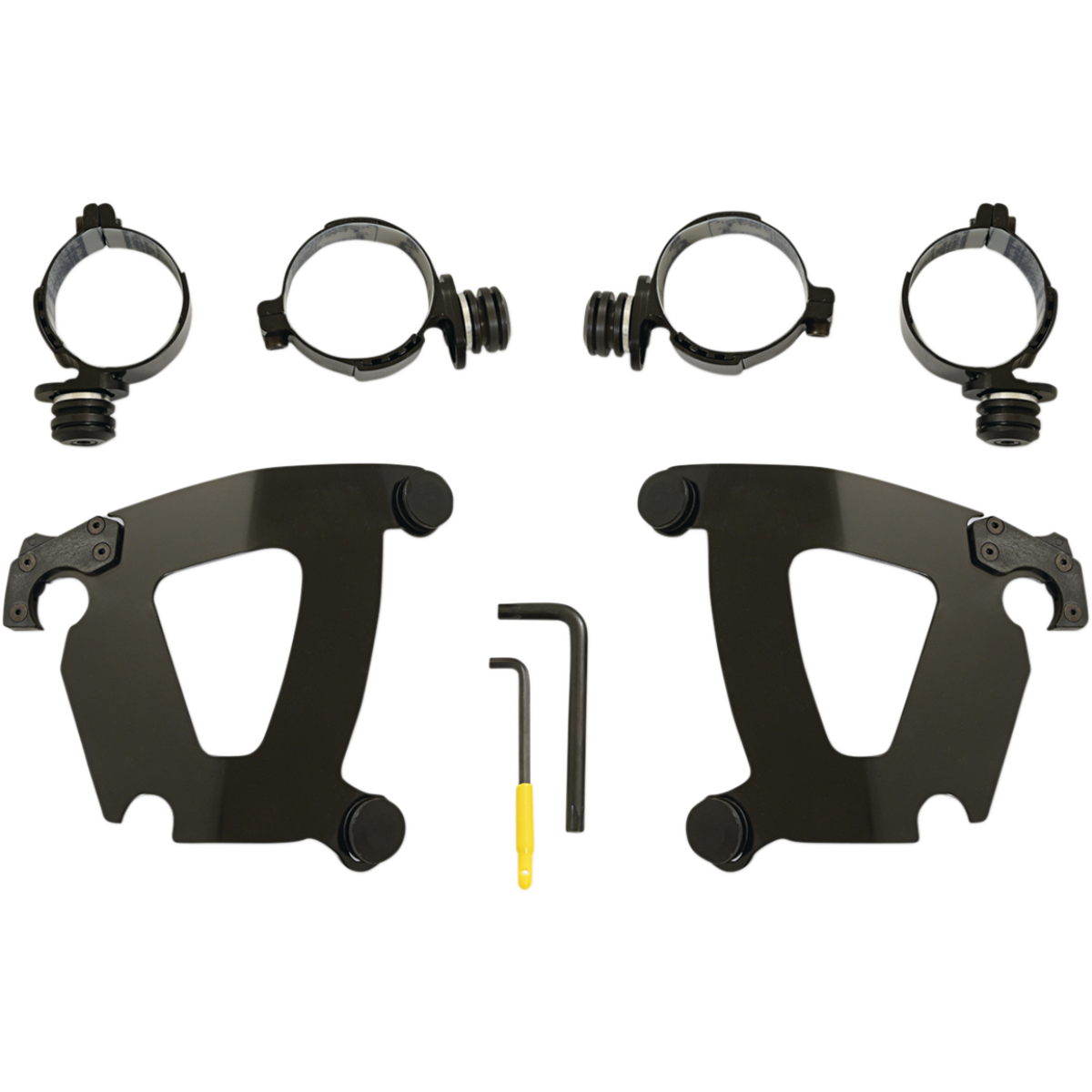

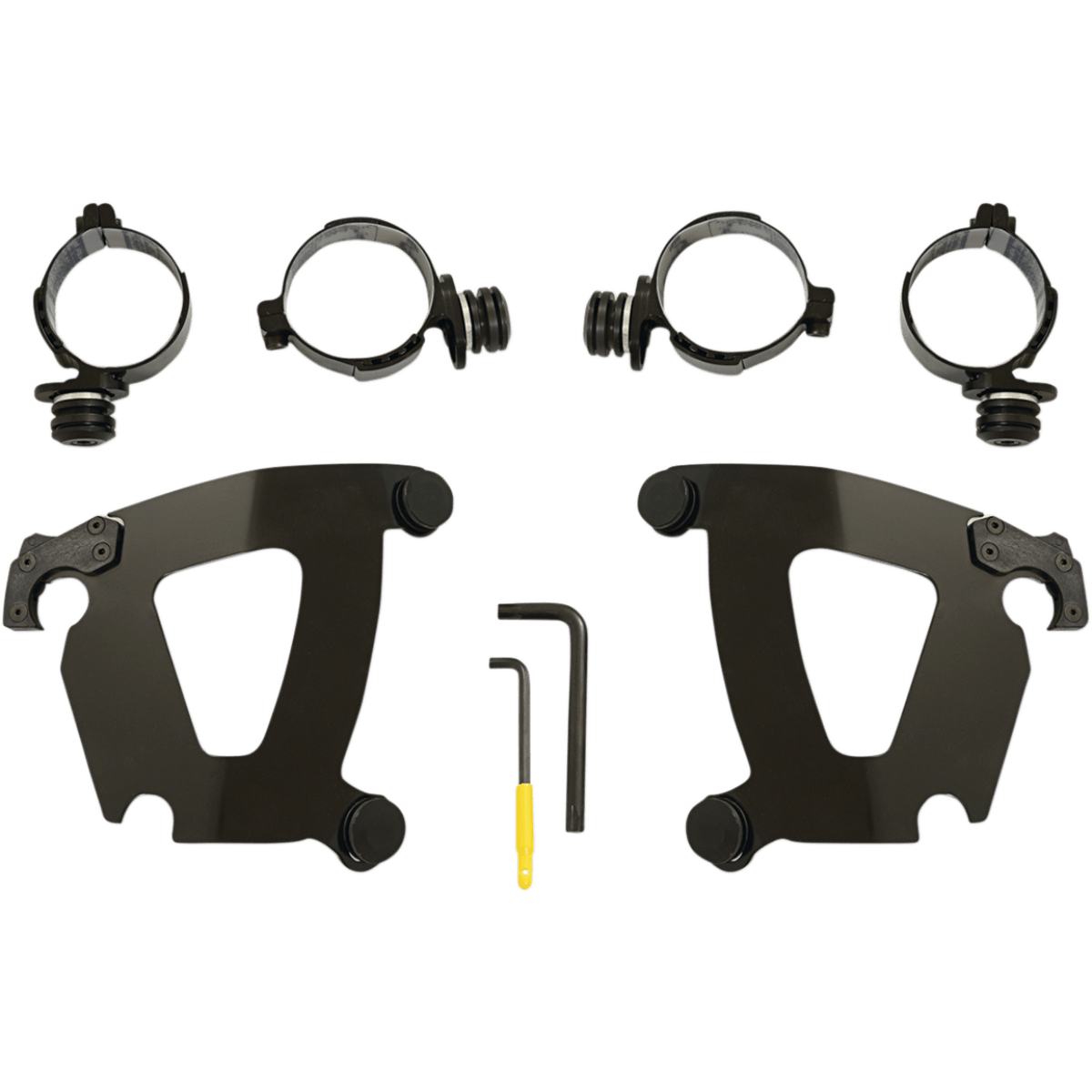

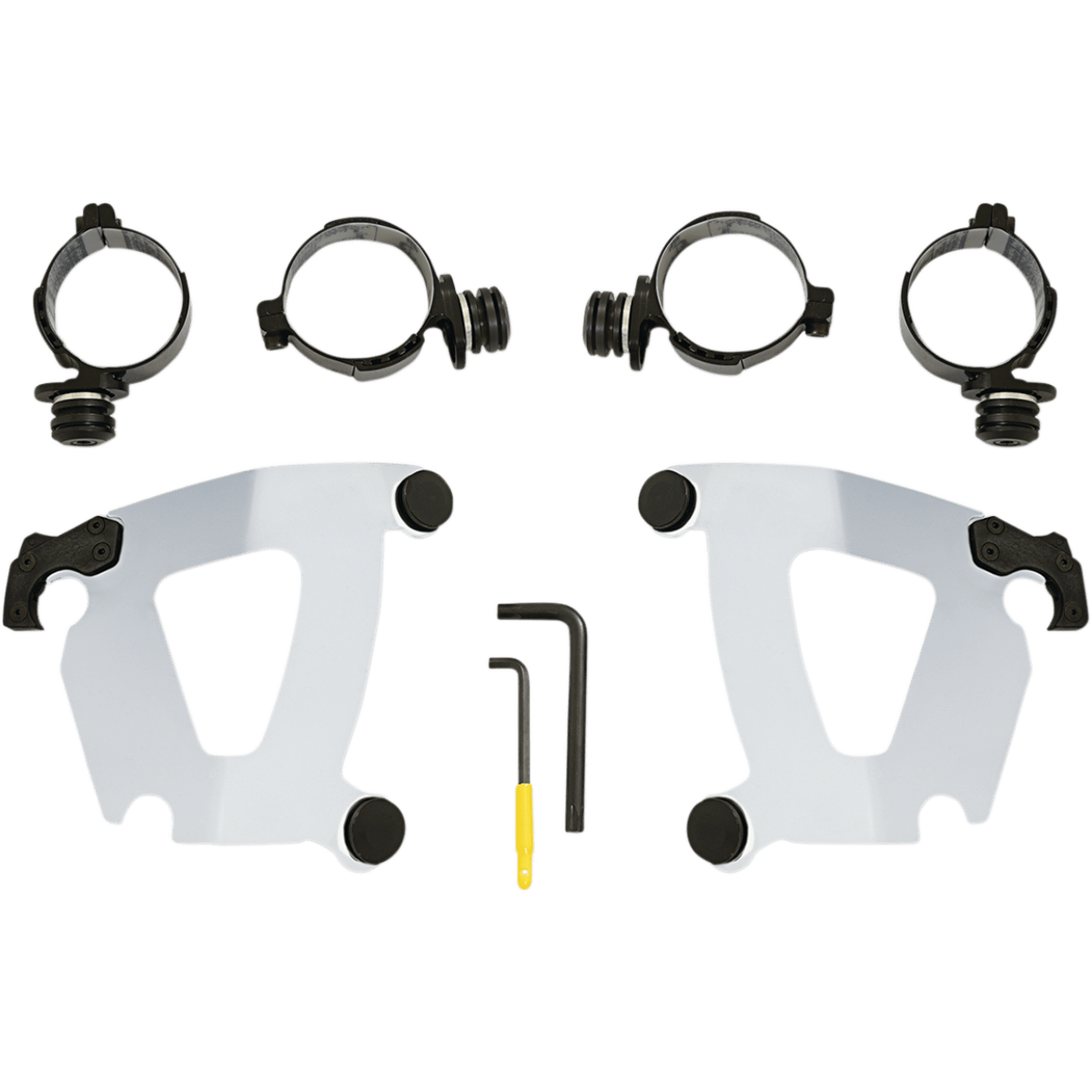

• '18-'24 FXFB/S: polished 2320-0250, black 2320-0251

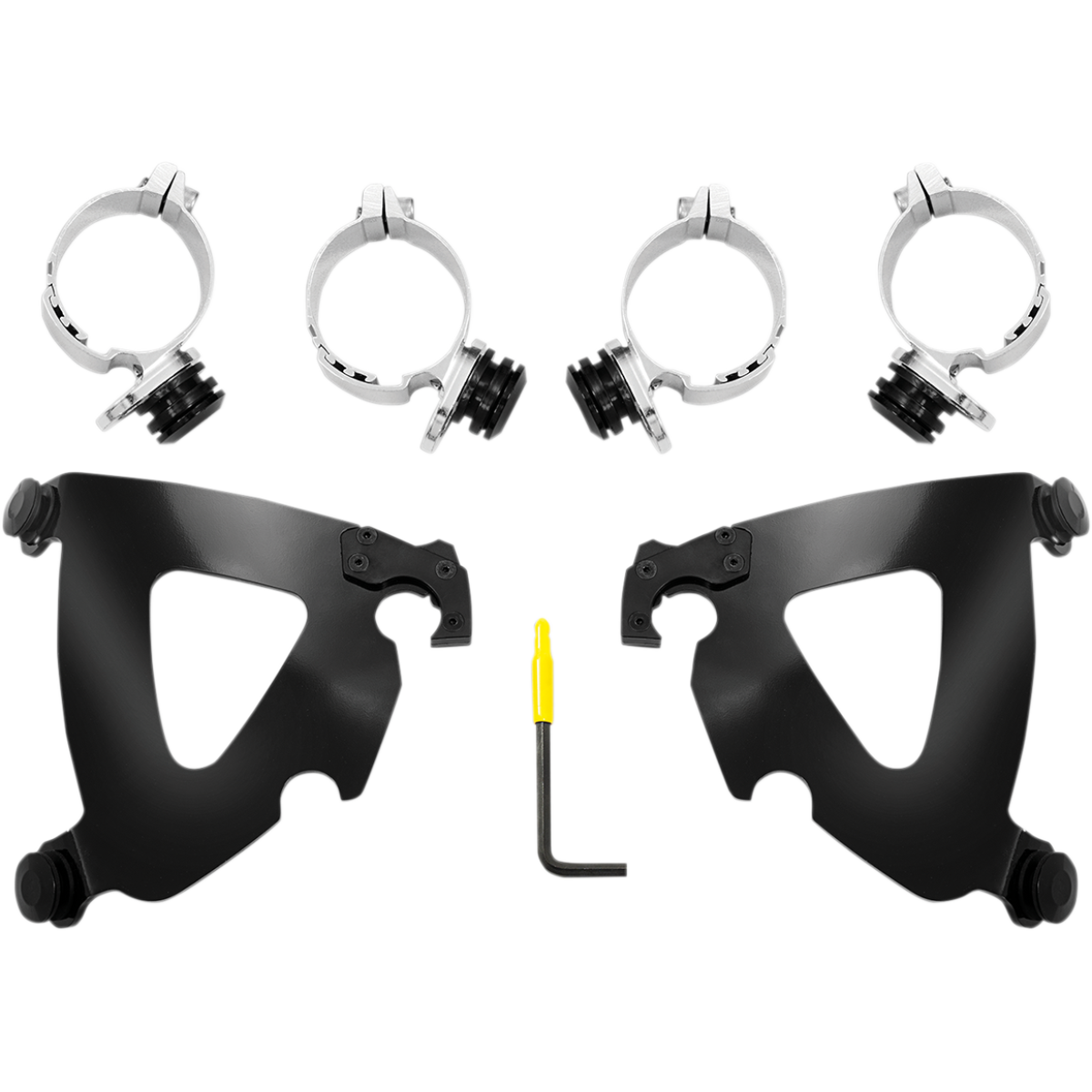

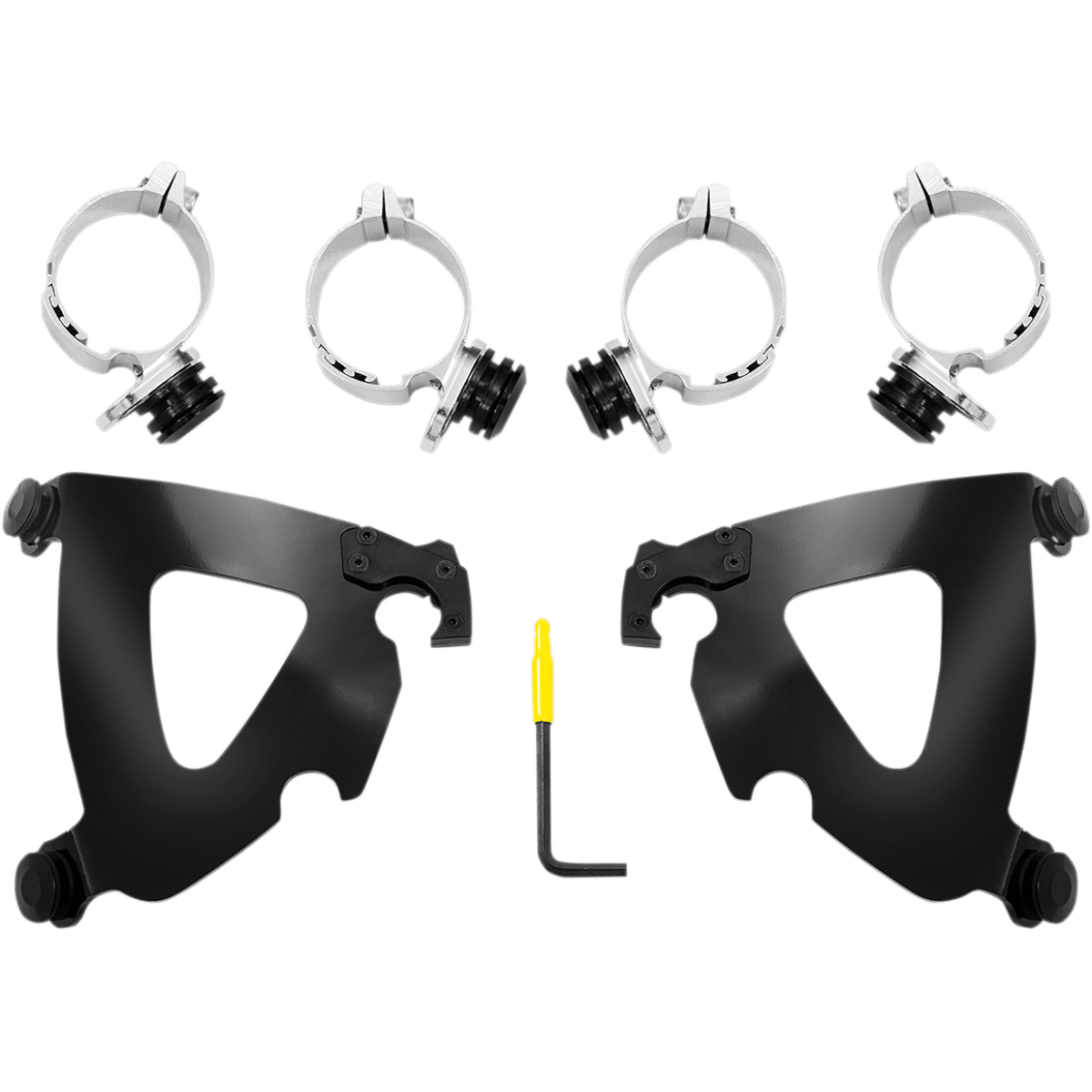

• '18-'21 FXLR: black 2320-0204

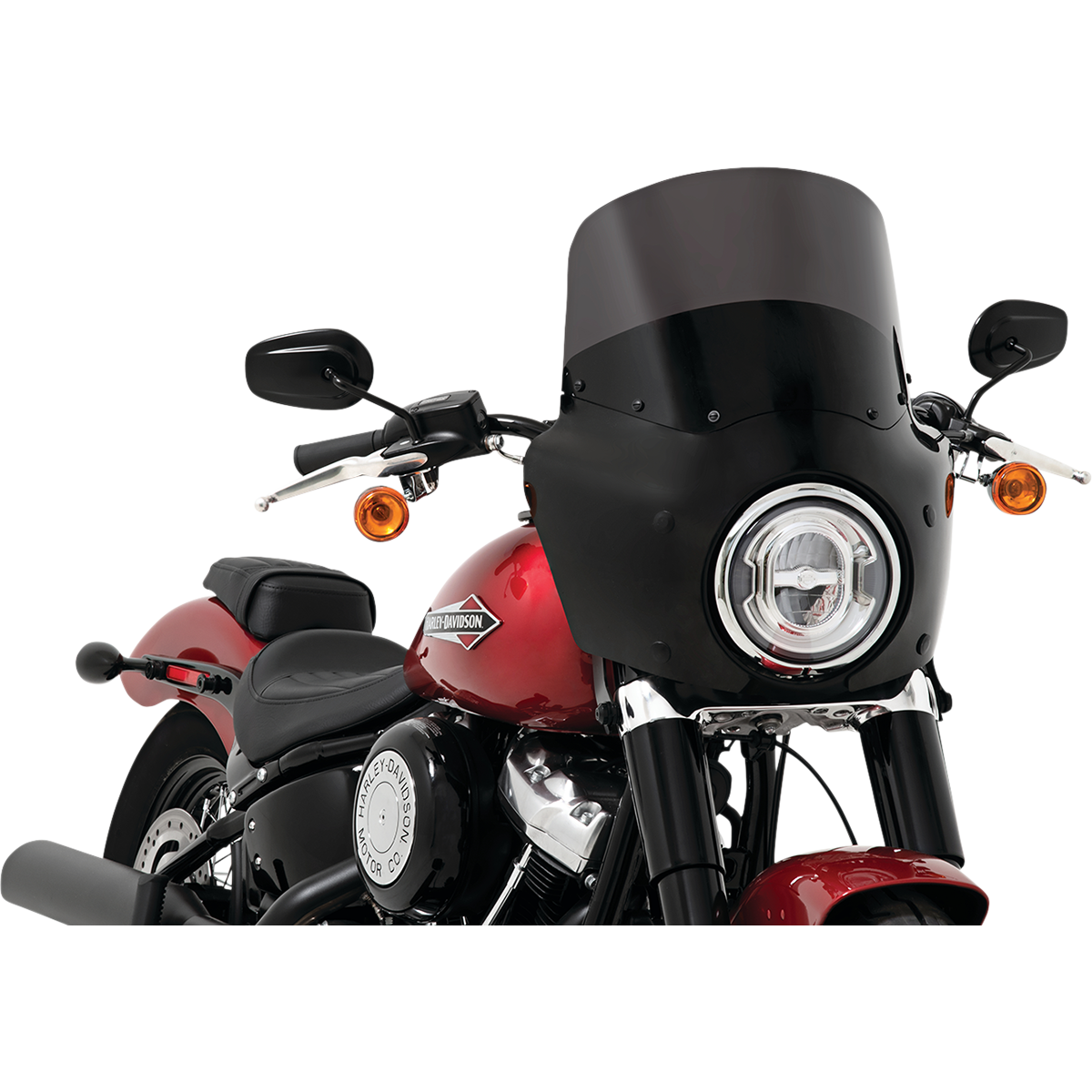

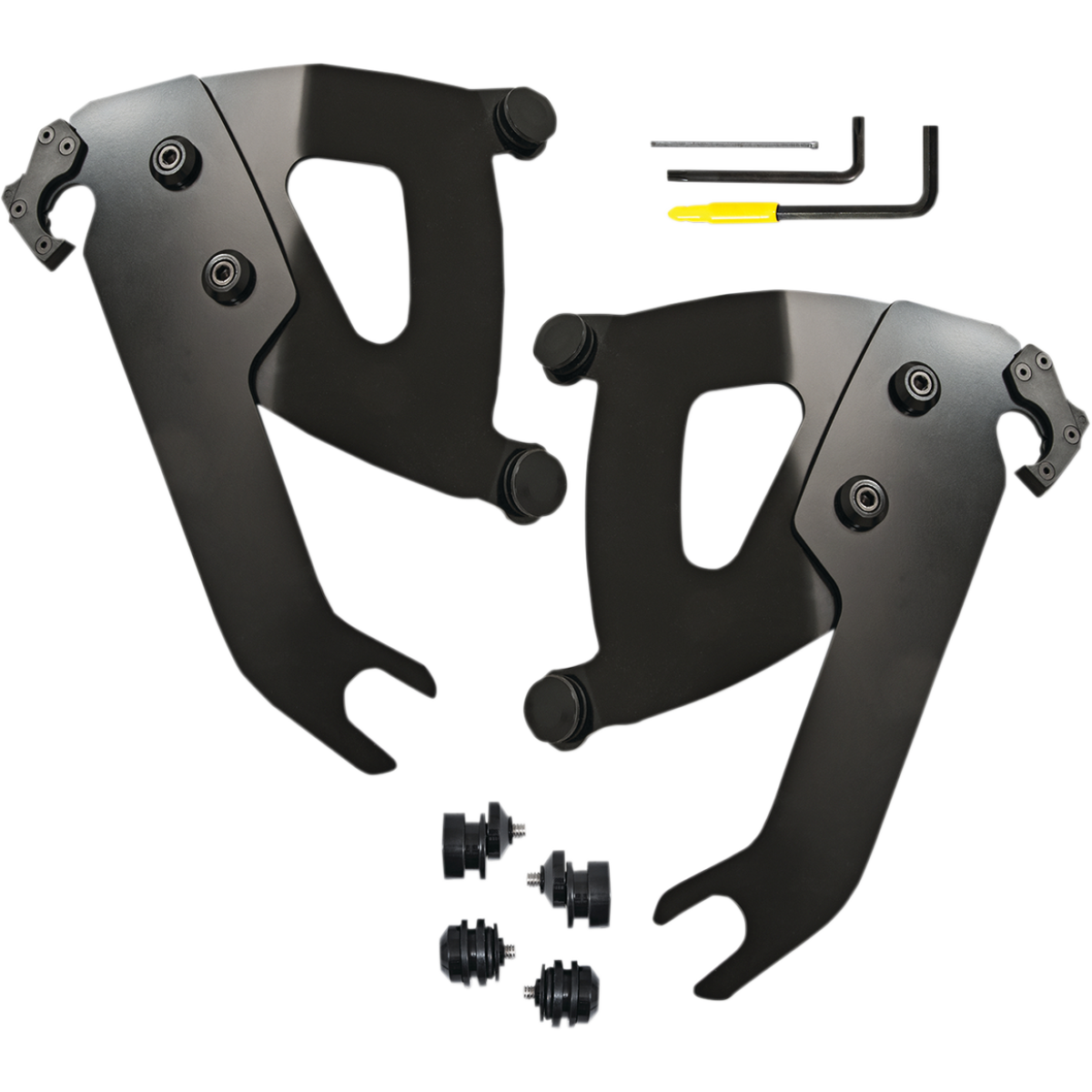

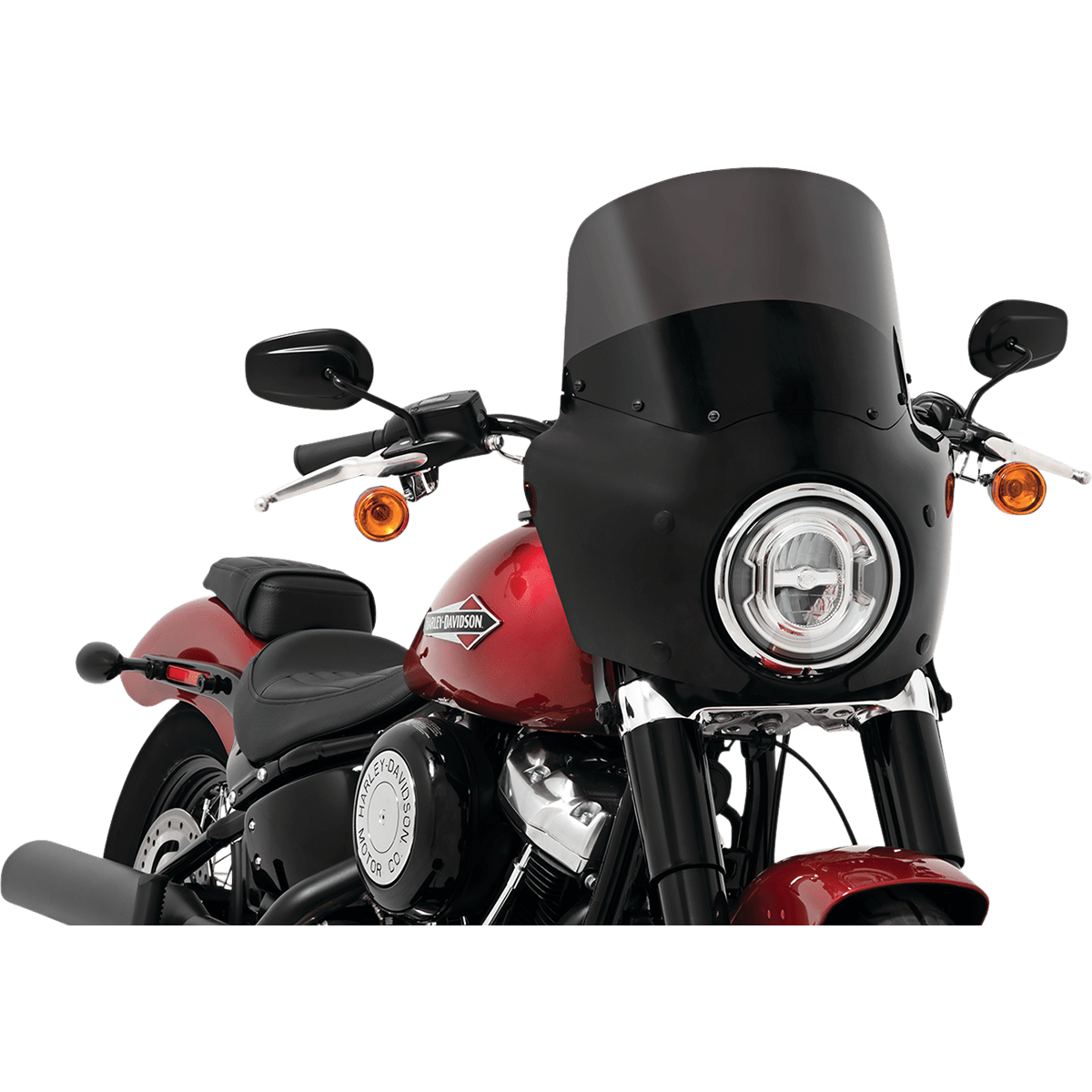

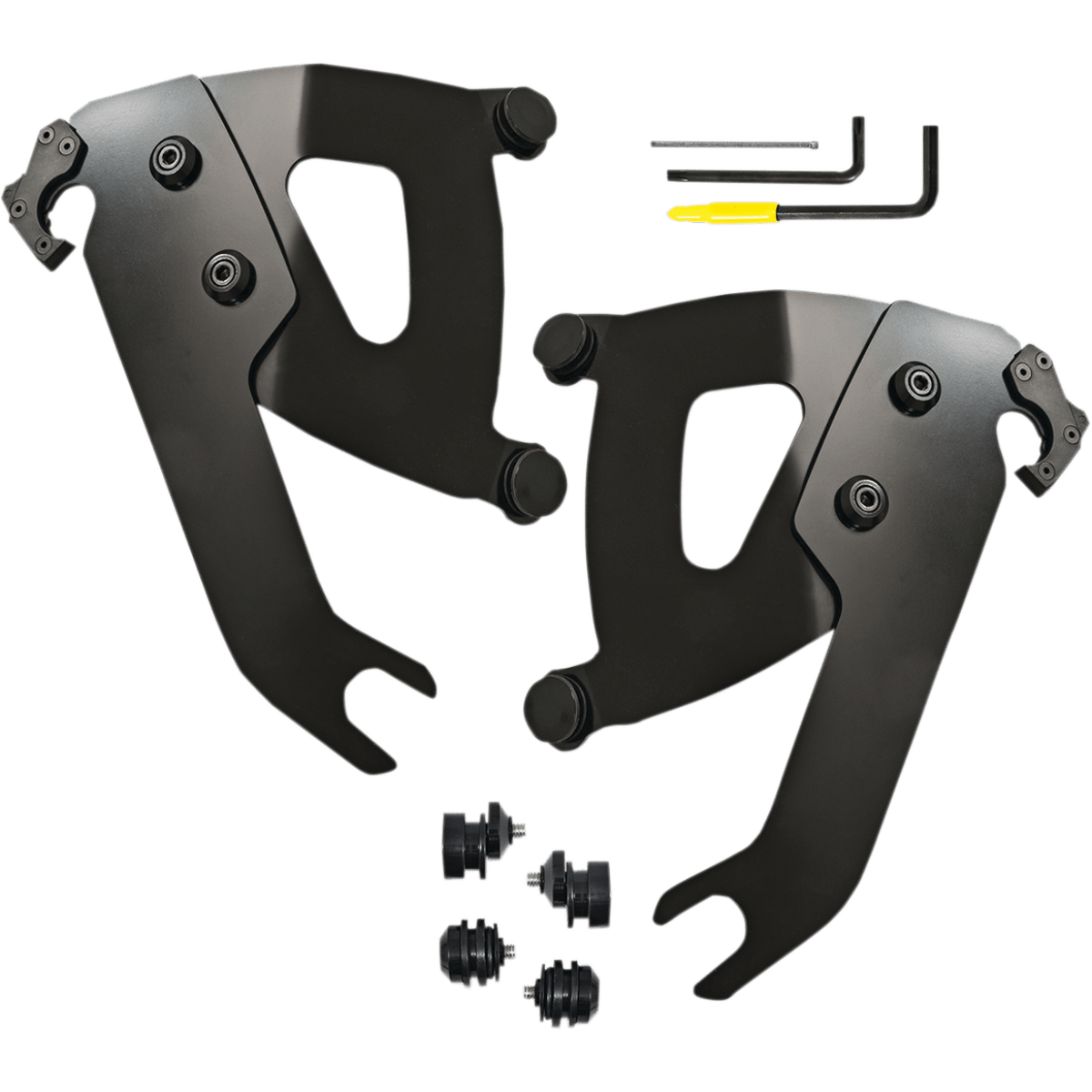

• '18-'21 FLSL: black 2320-0247

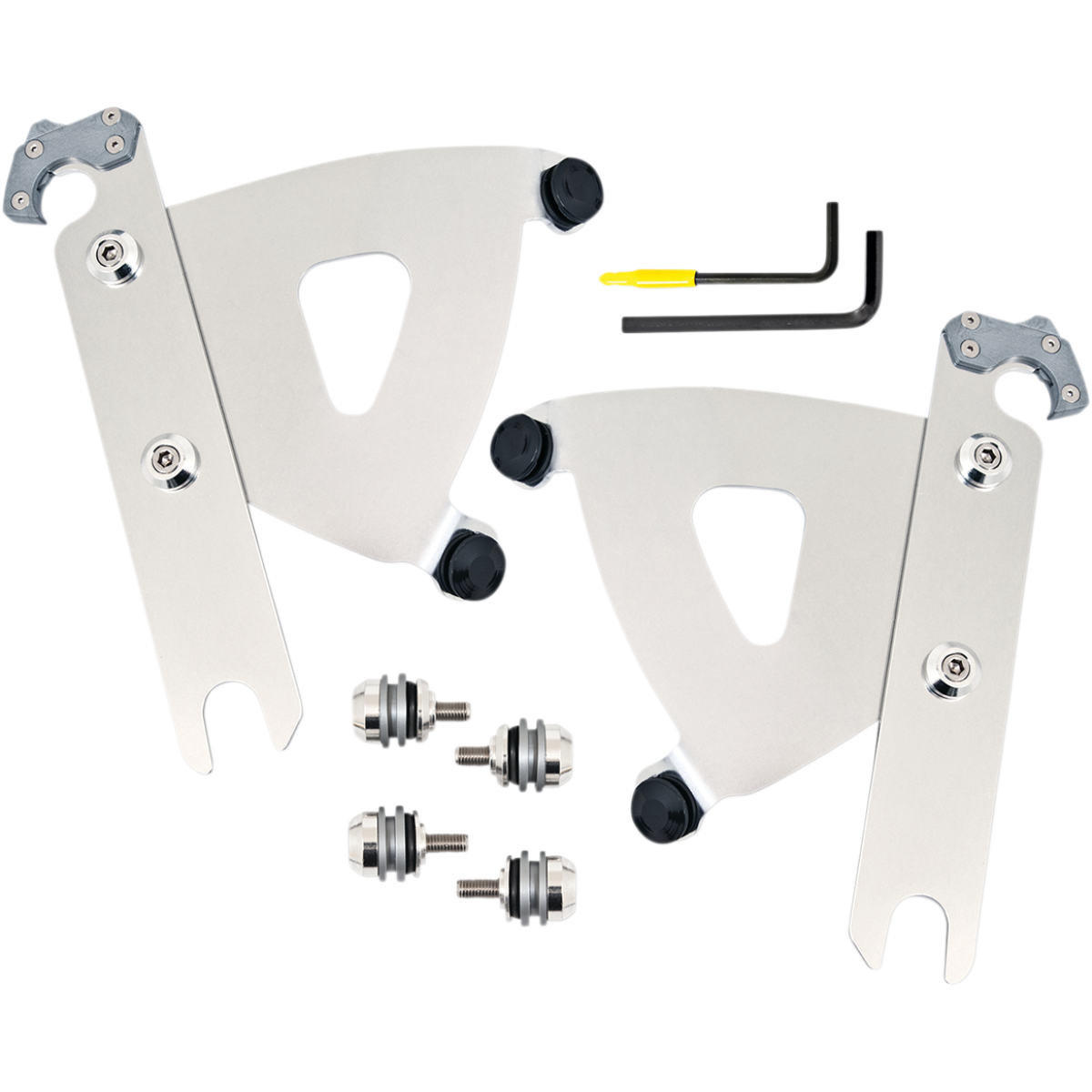

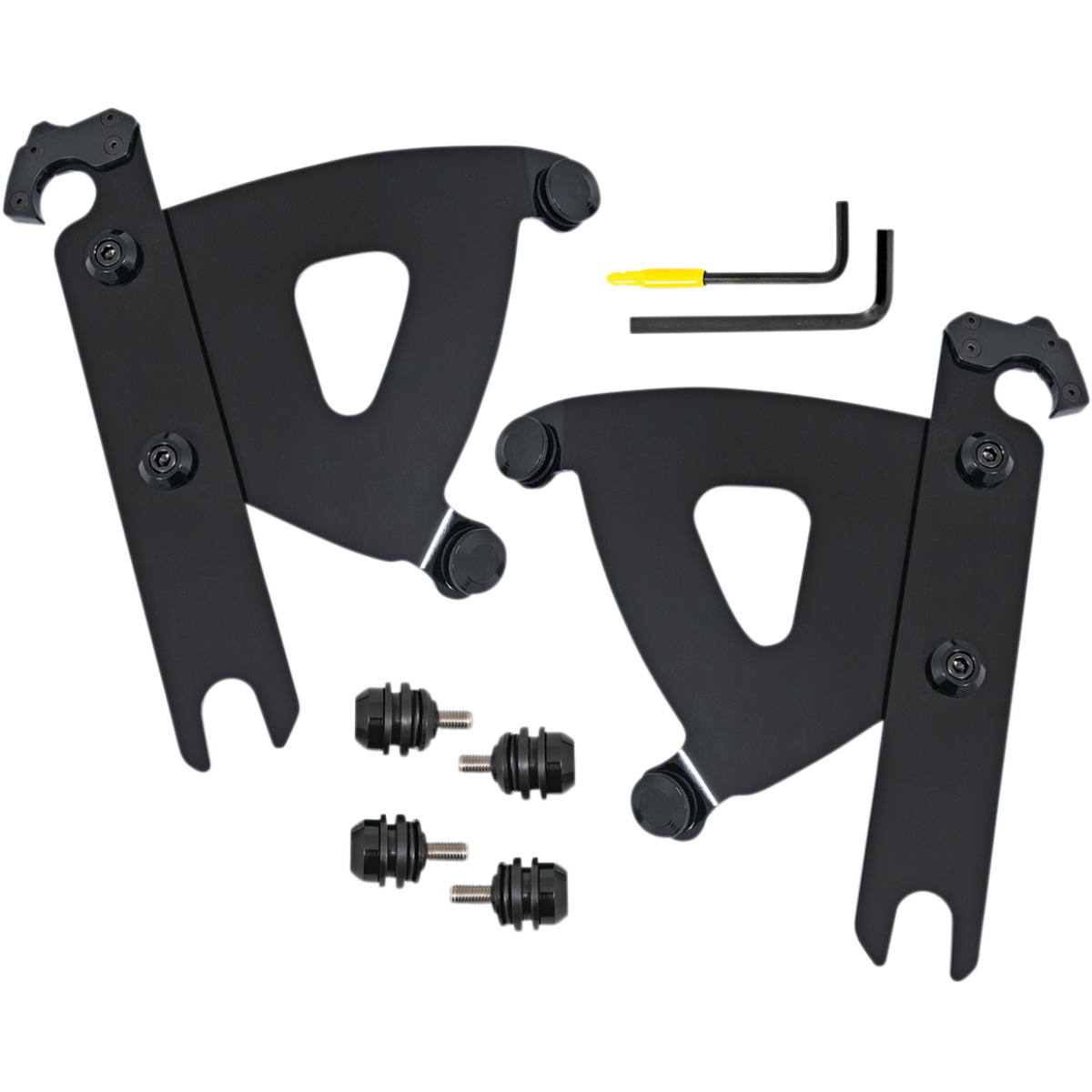

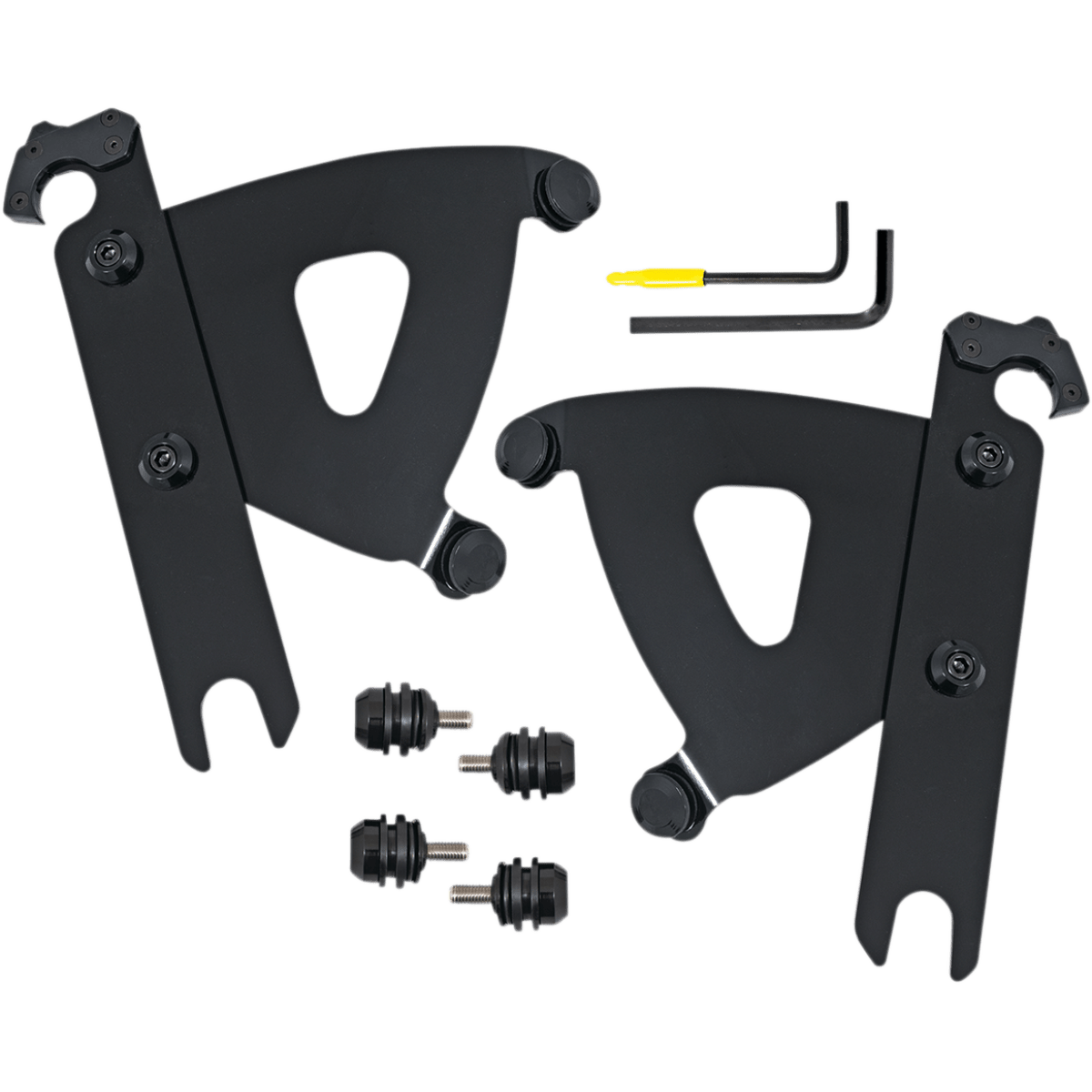

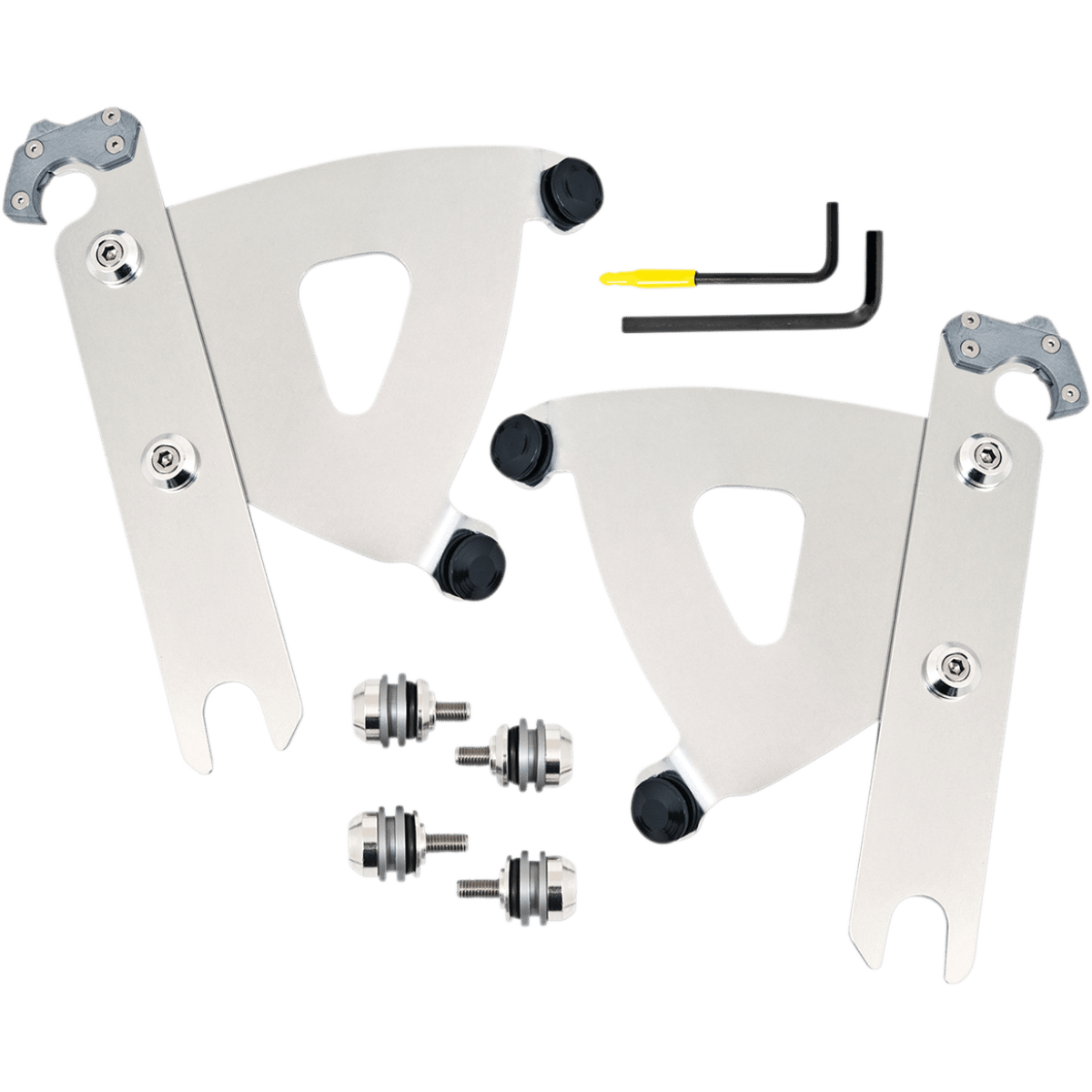

• '00-'17 FLSTC/FLSTF, '10-'16 FLSTFB, '12-'17 FLS, '16-'17 FLSS, '05-'17 FLSTN: polished 2320-0260, black 2320-0261

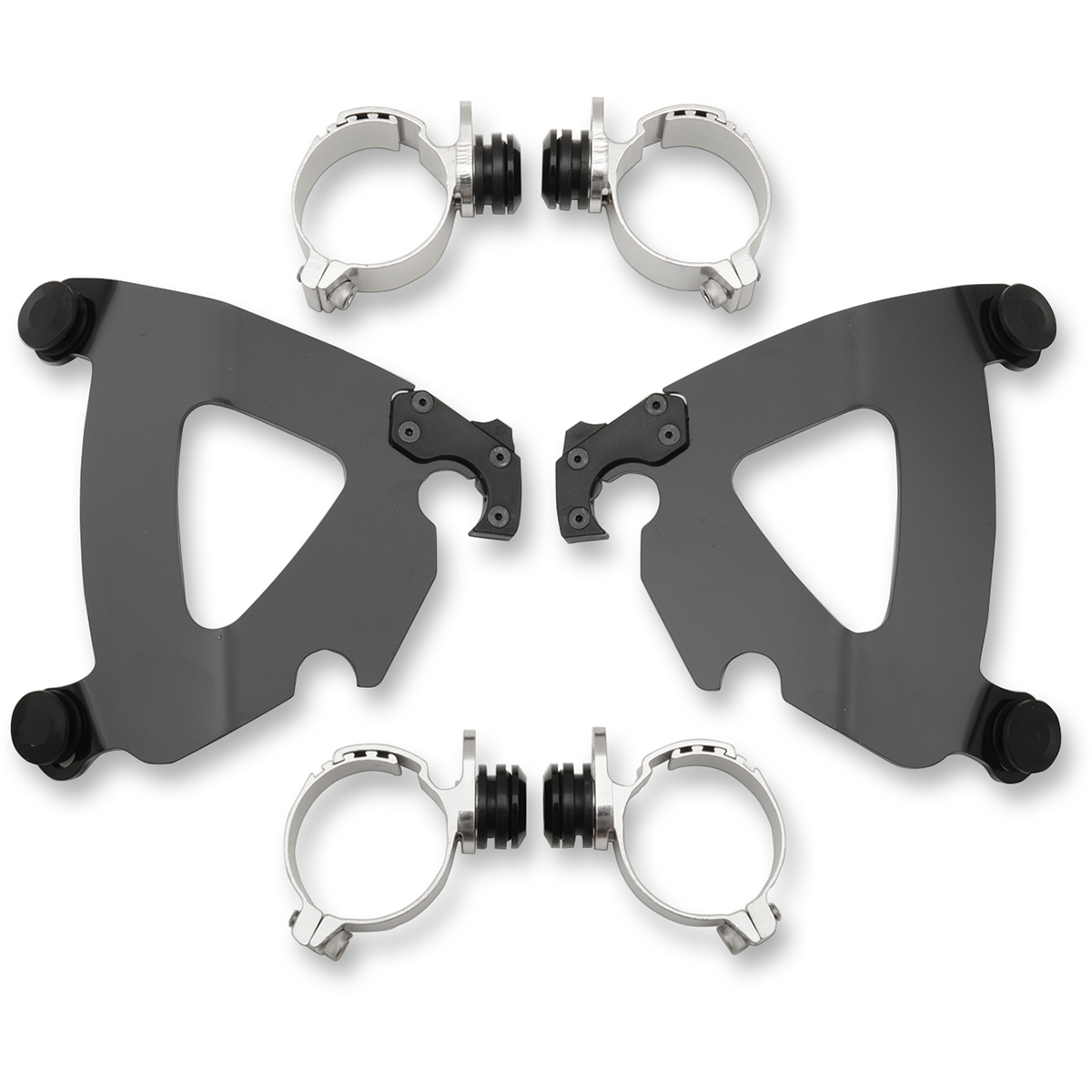

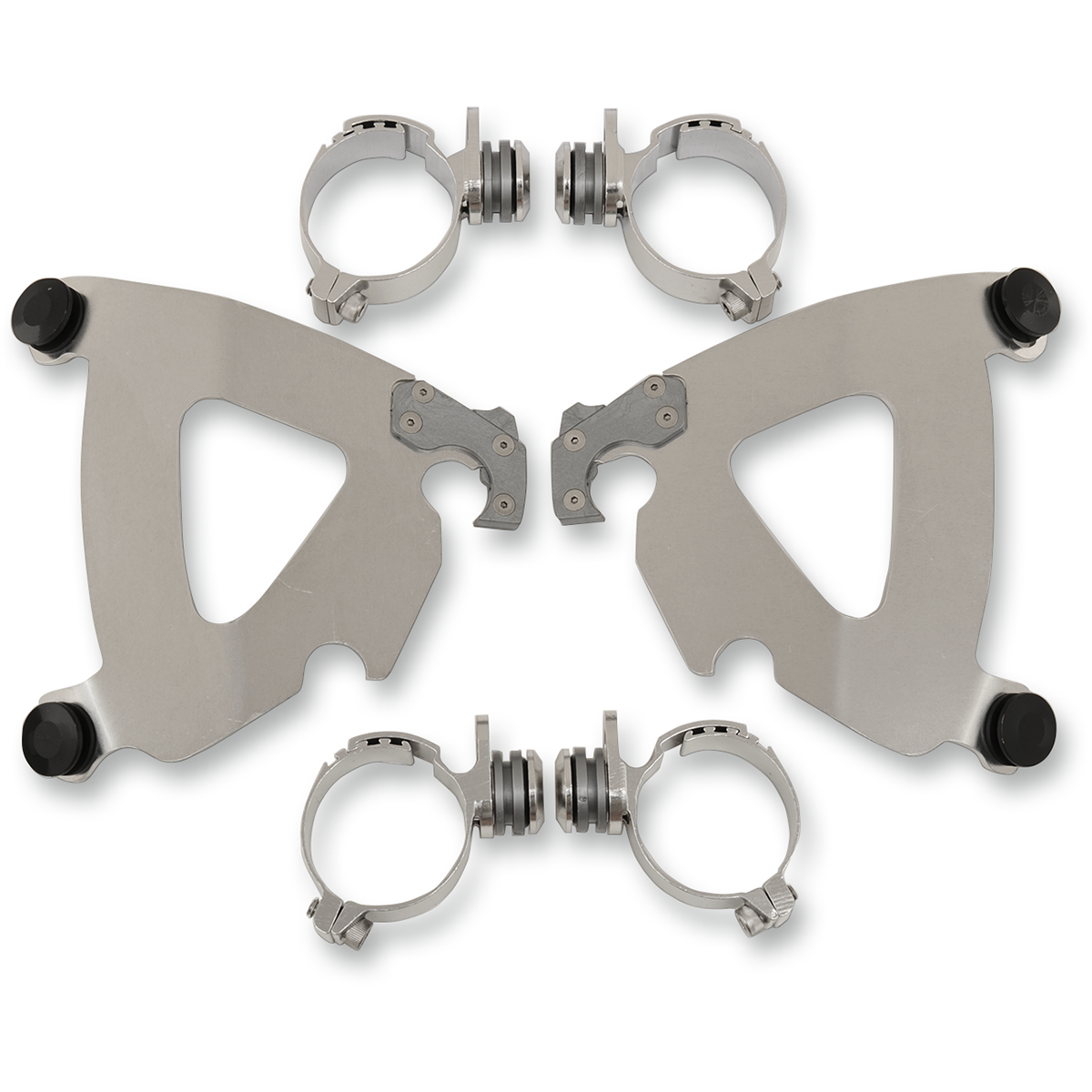

• '13-'17 FXSB, '08-'17 FXDF, '06-'17 FXDWG: polished 2320-0196, black 2320-0198

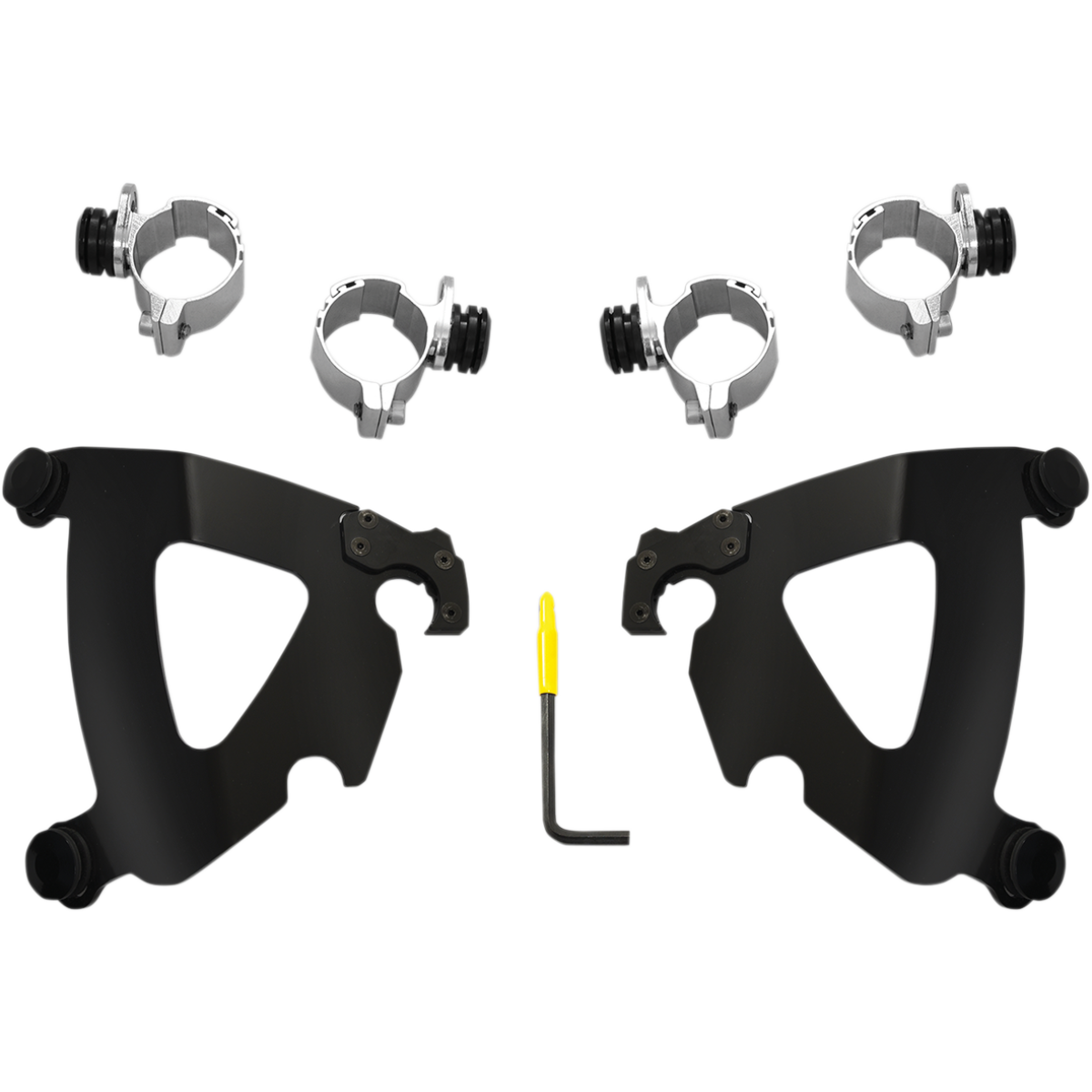

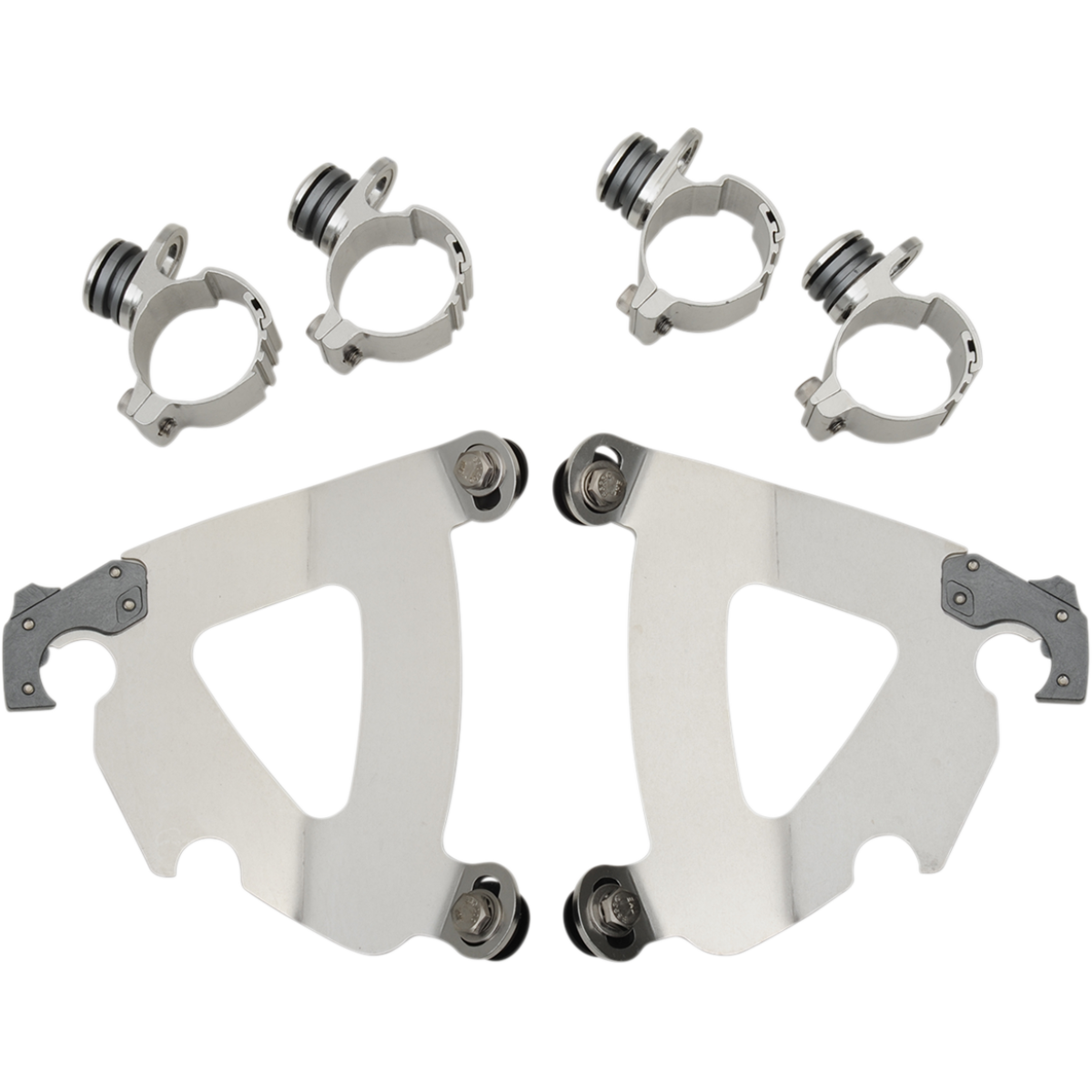

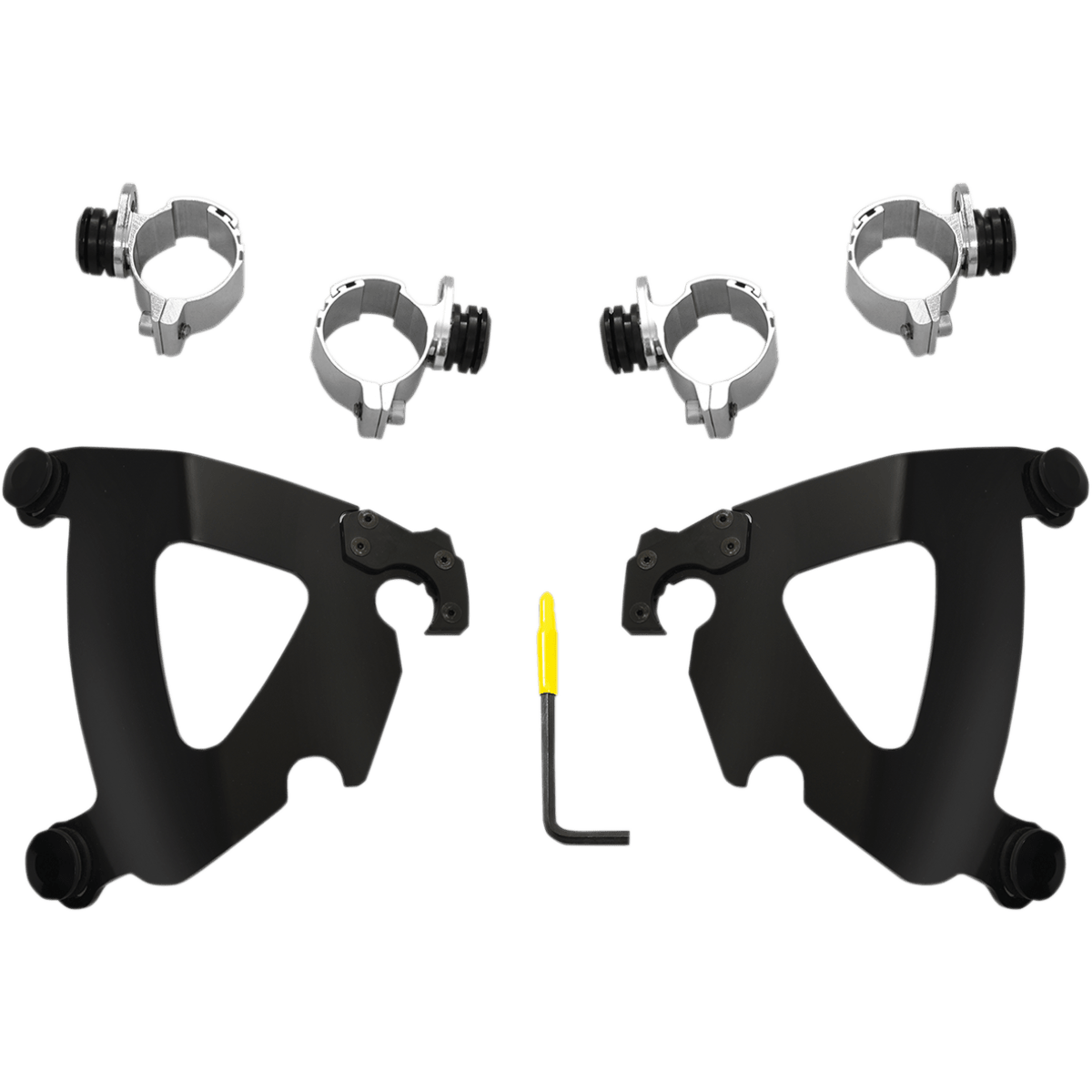

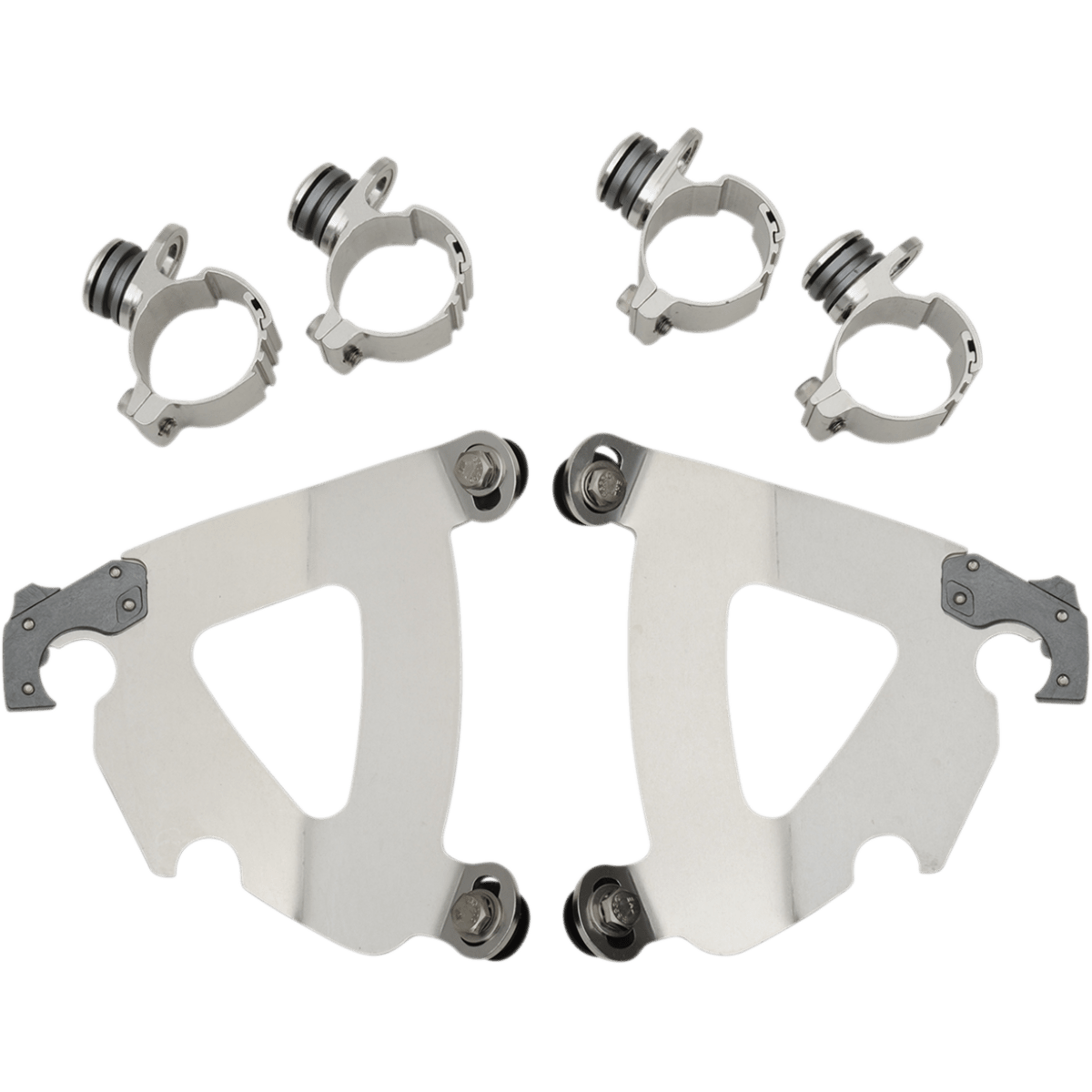

• '11-'13 FXS, '84-'99 FXST/FXSTC/FXSTD/FXSTB, '84-'86 FXWG, '93-'05 FXDWG, '06-'11 XL1200L, '07-'12 XL1200N: polished 2320-0200, black 2320-0201

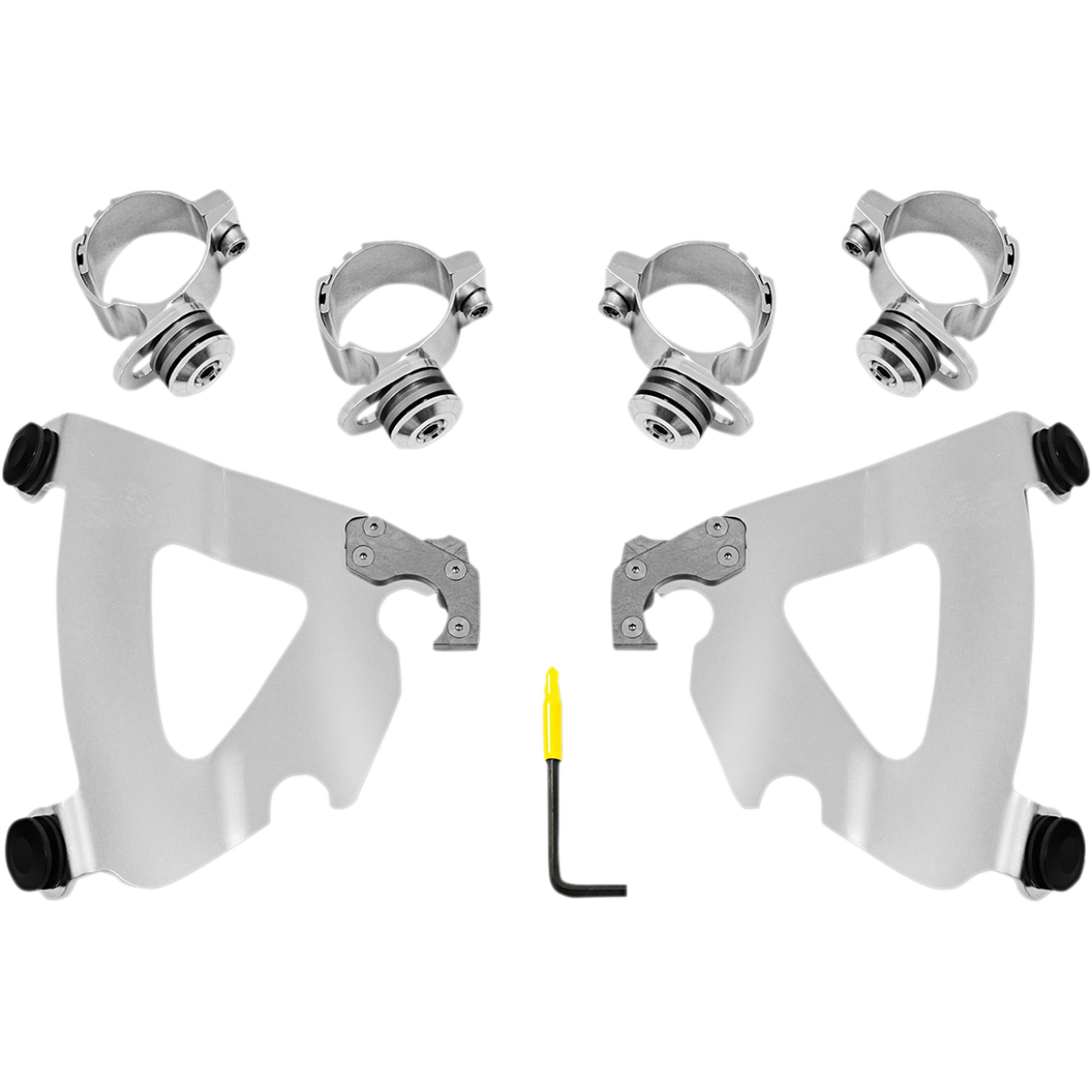

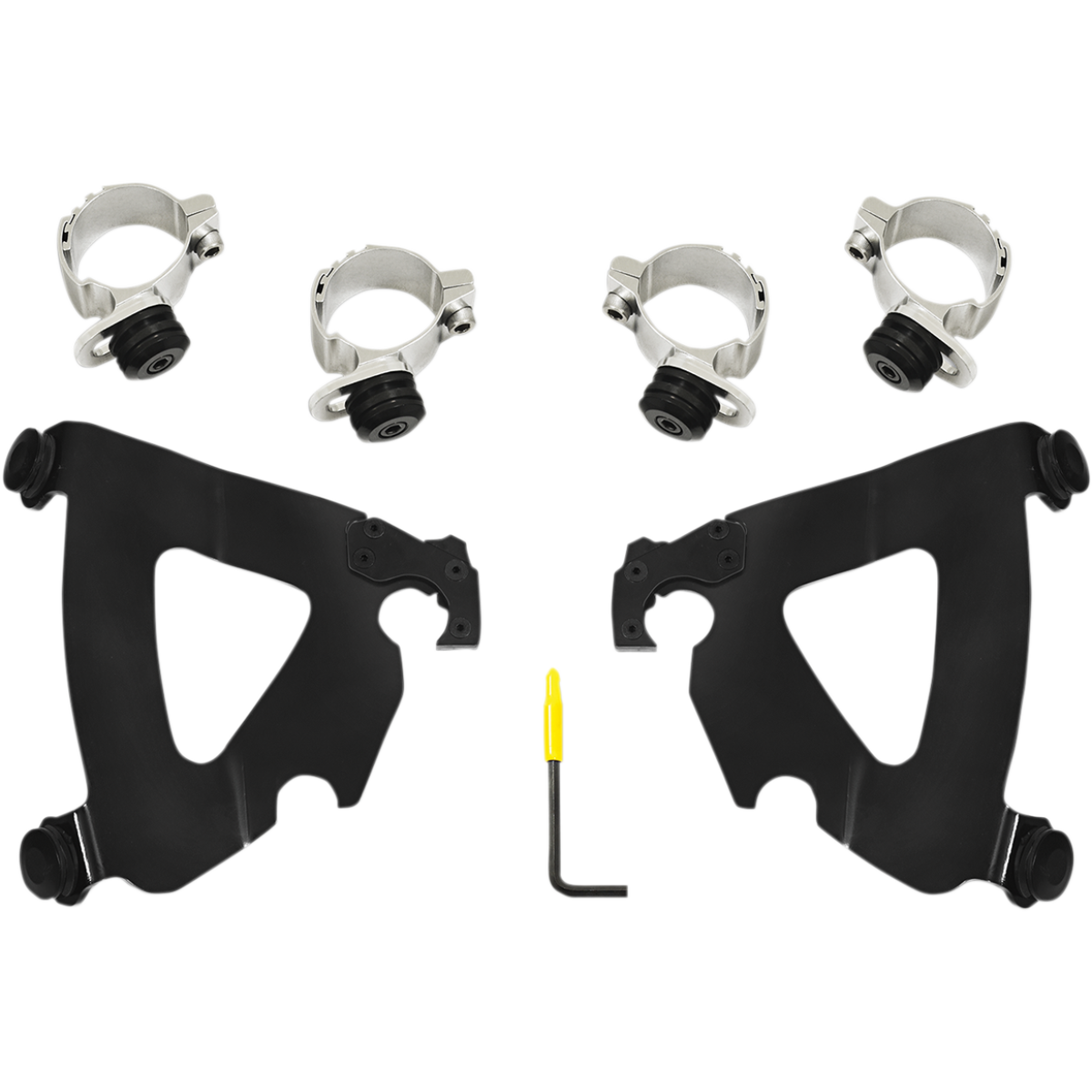

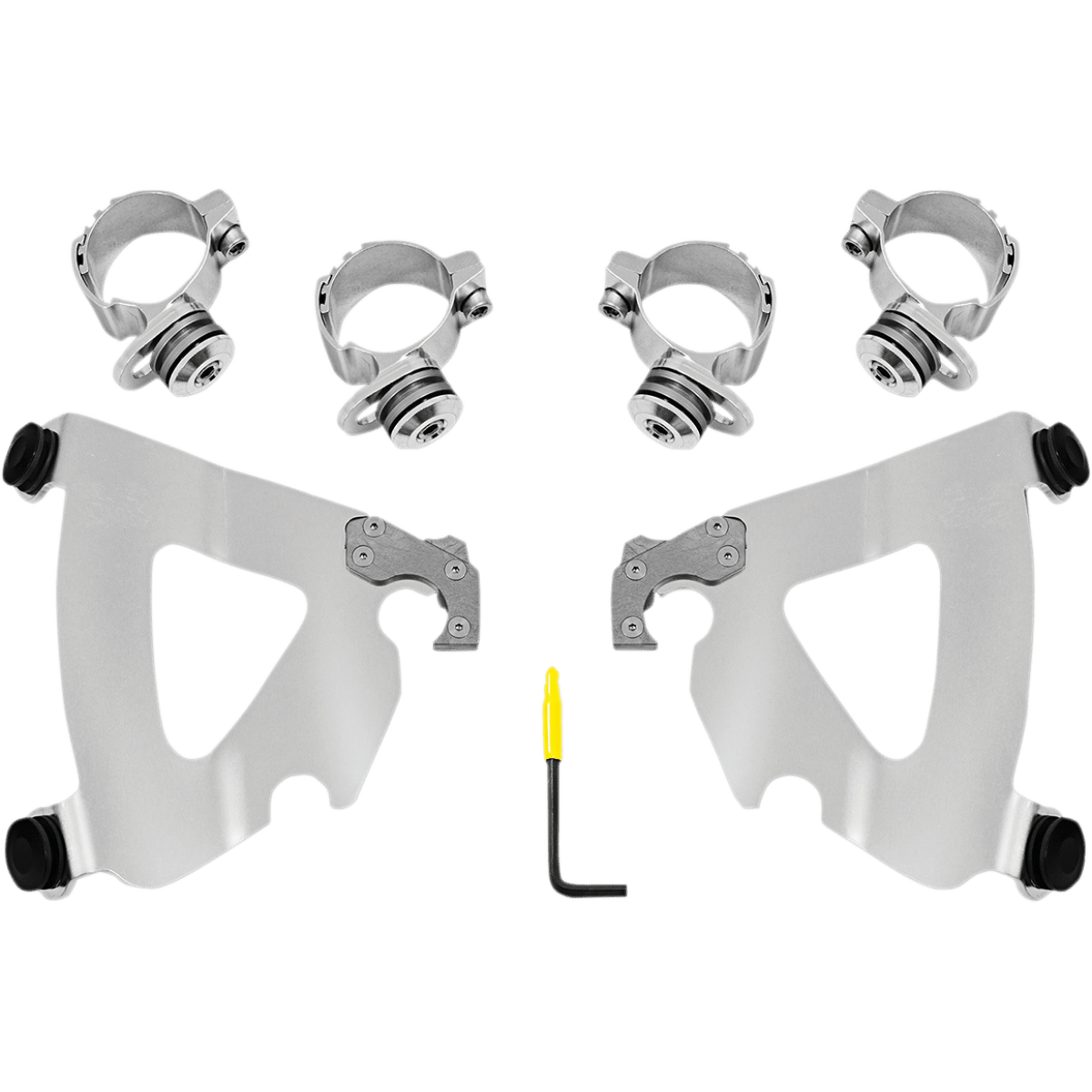

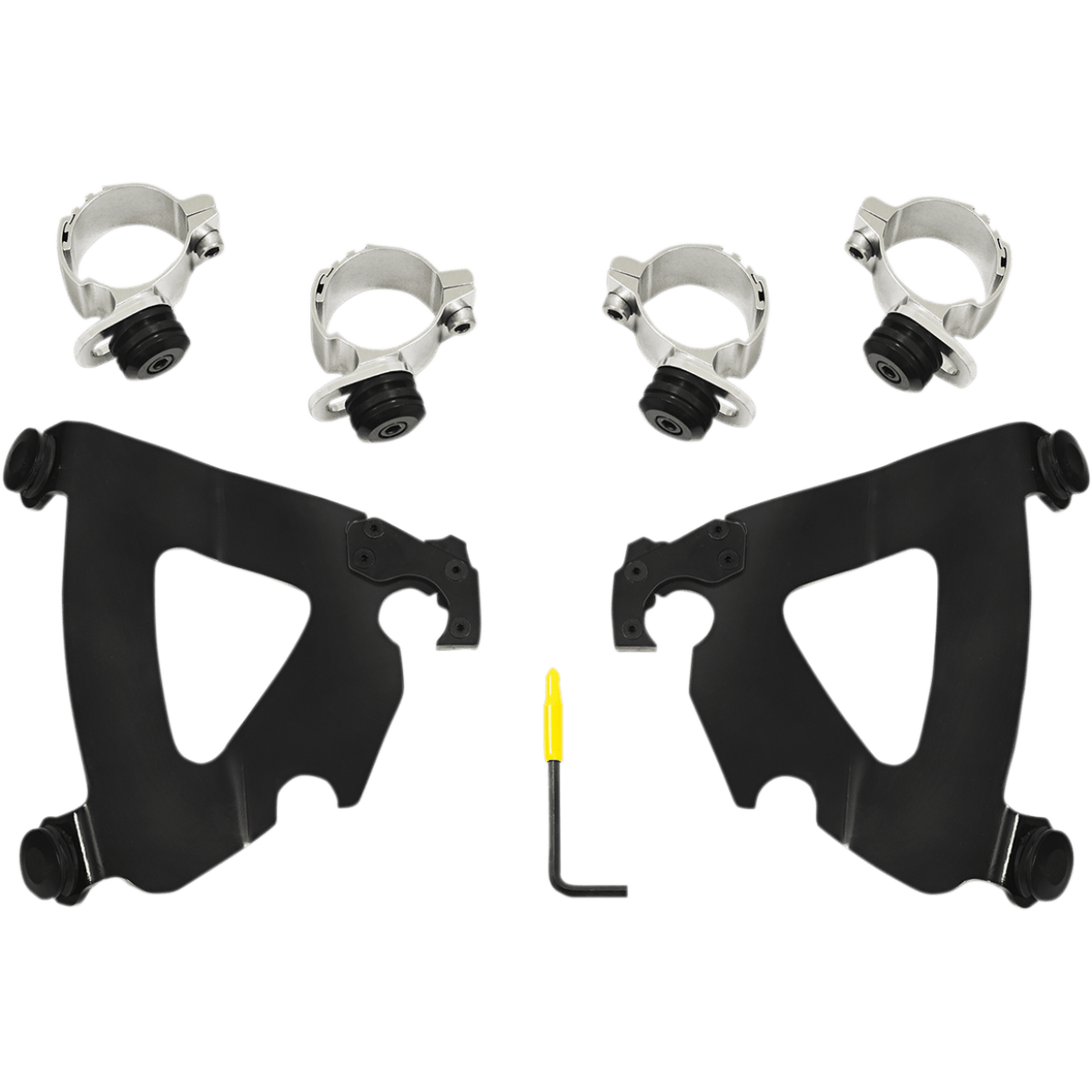

• '91-'05 FXD/FXDL/FXDX, '86-'10 XL, '11-'21 XL883L, '09-'22 XL883N: polished 2320-0213, black 2320-0214

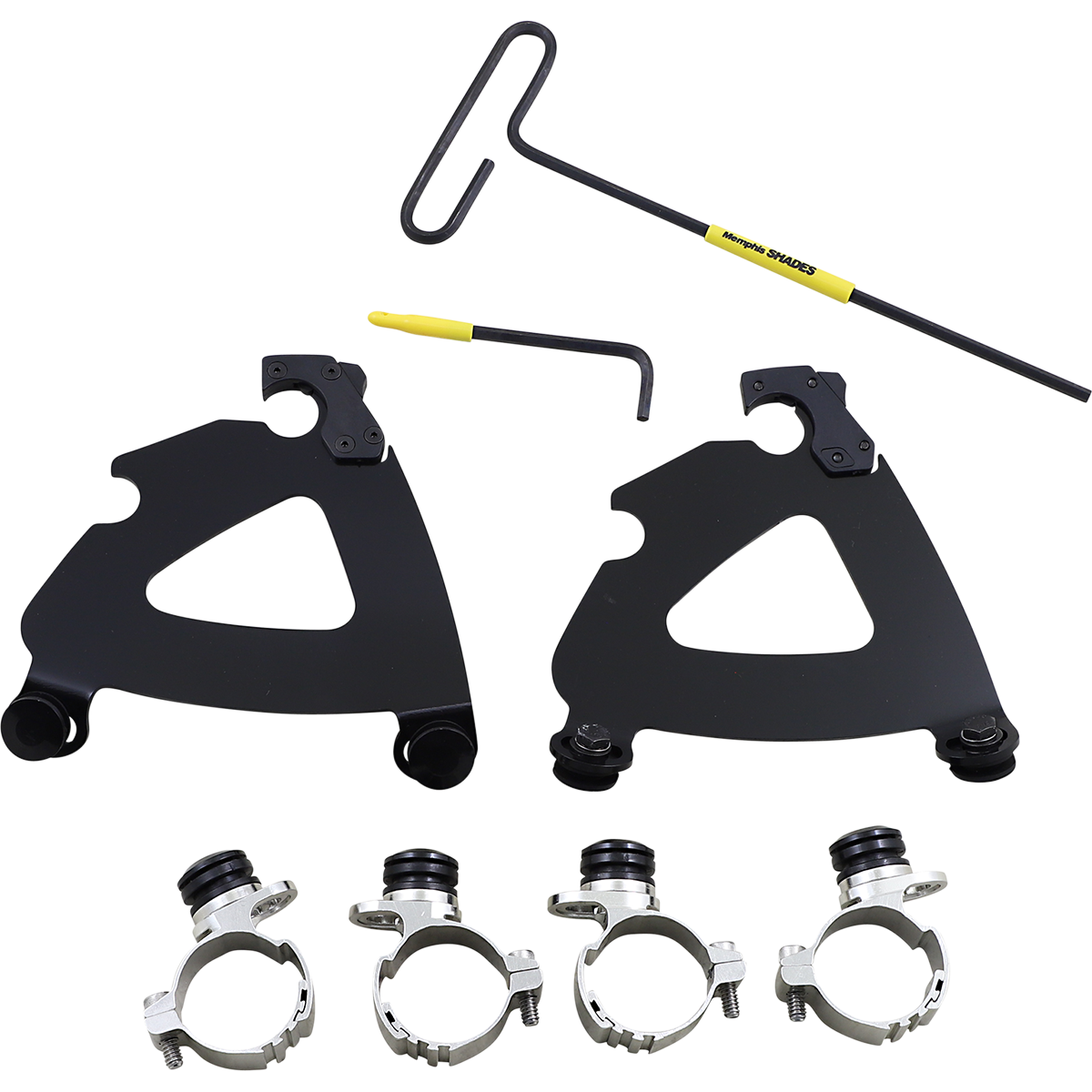

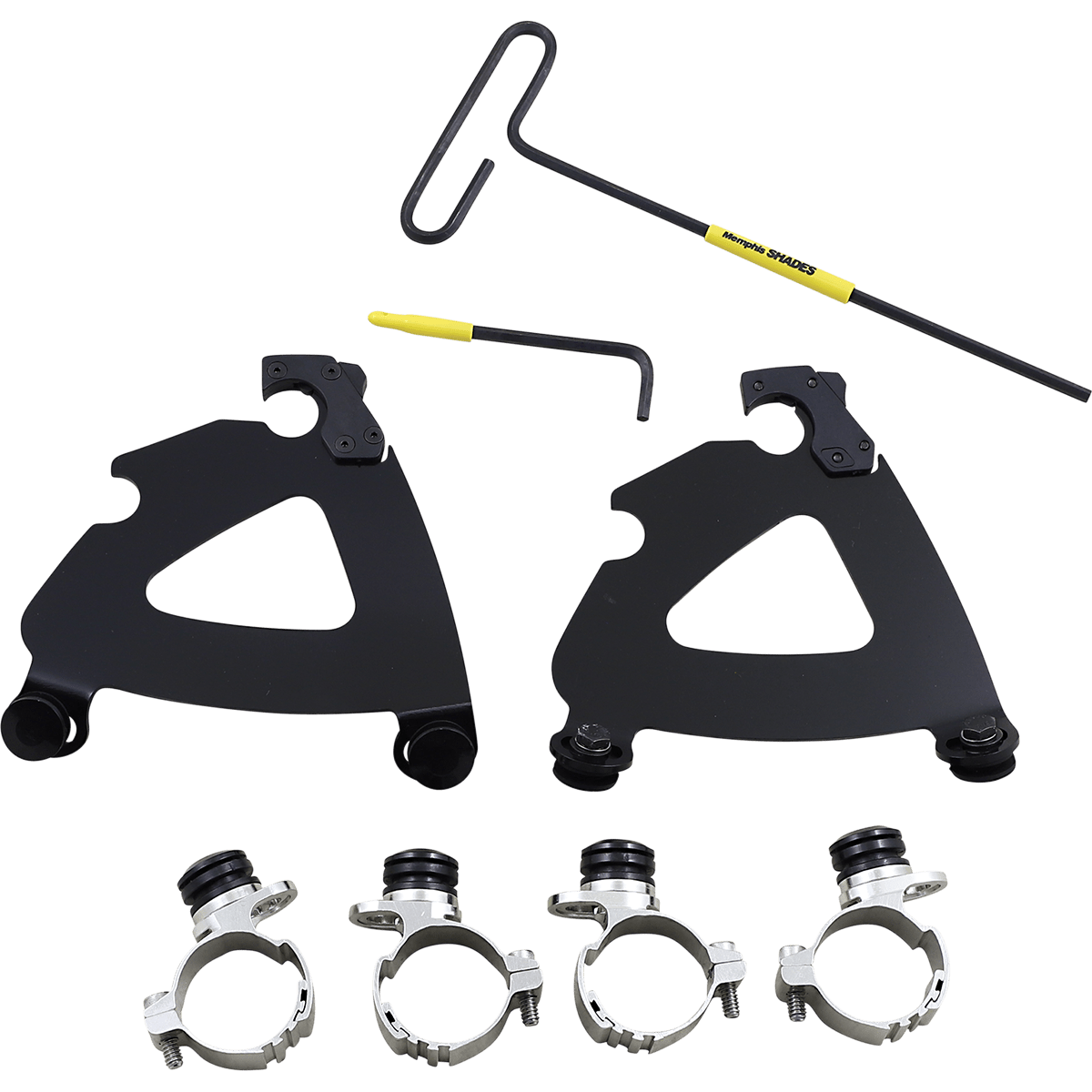

• '11-'19 XL1200C: black 2320-0278

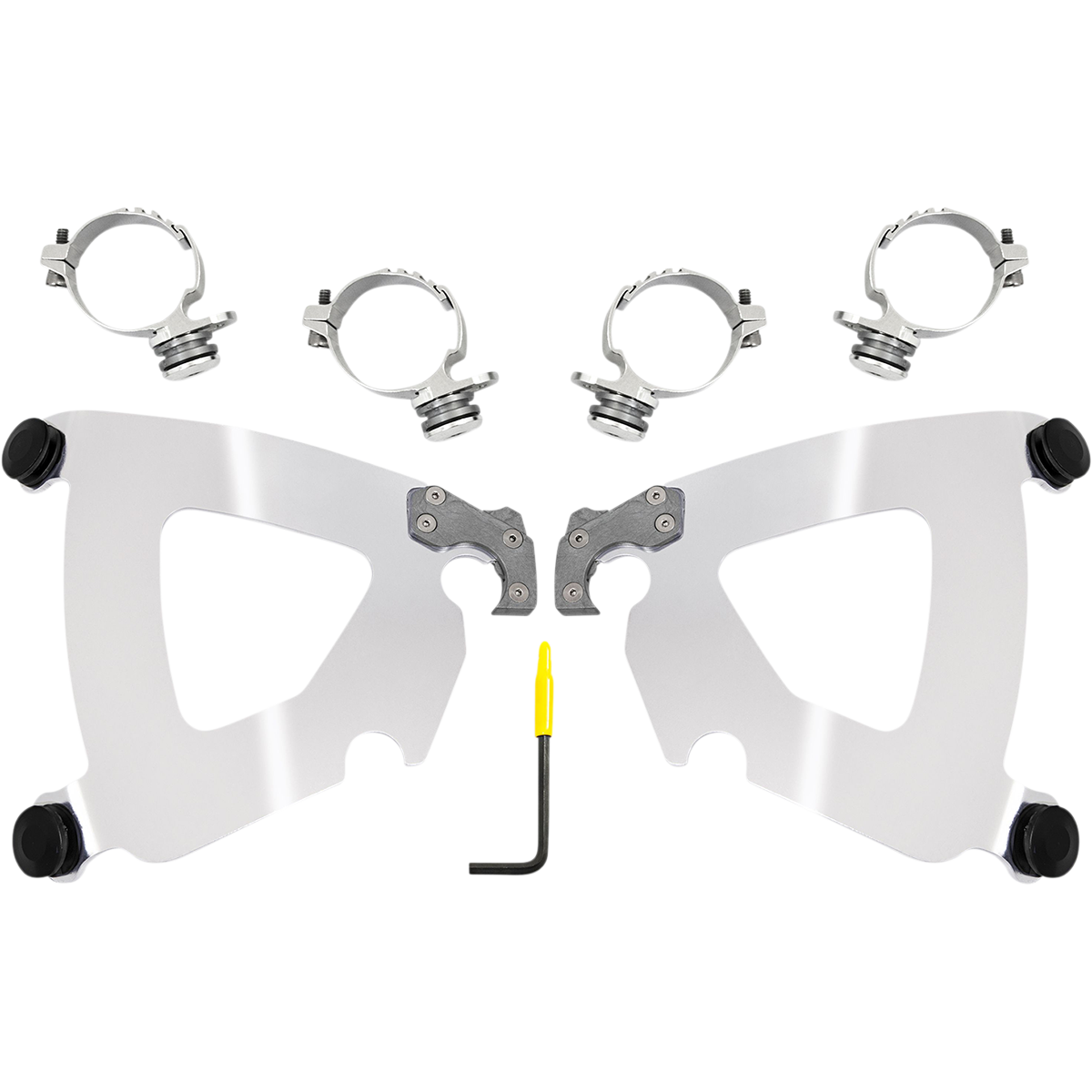

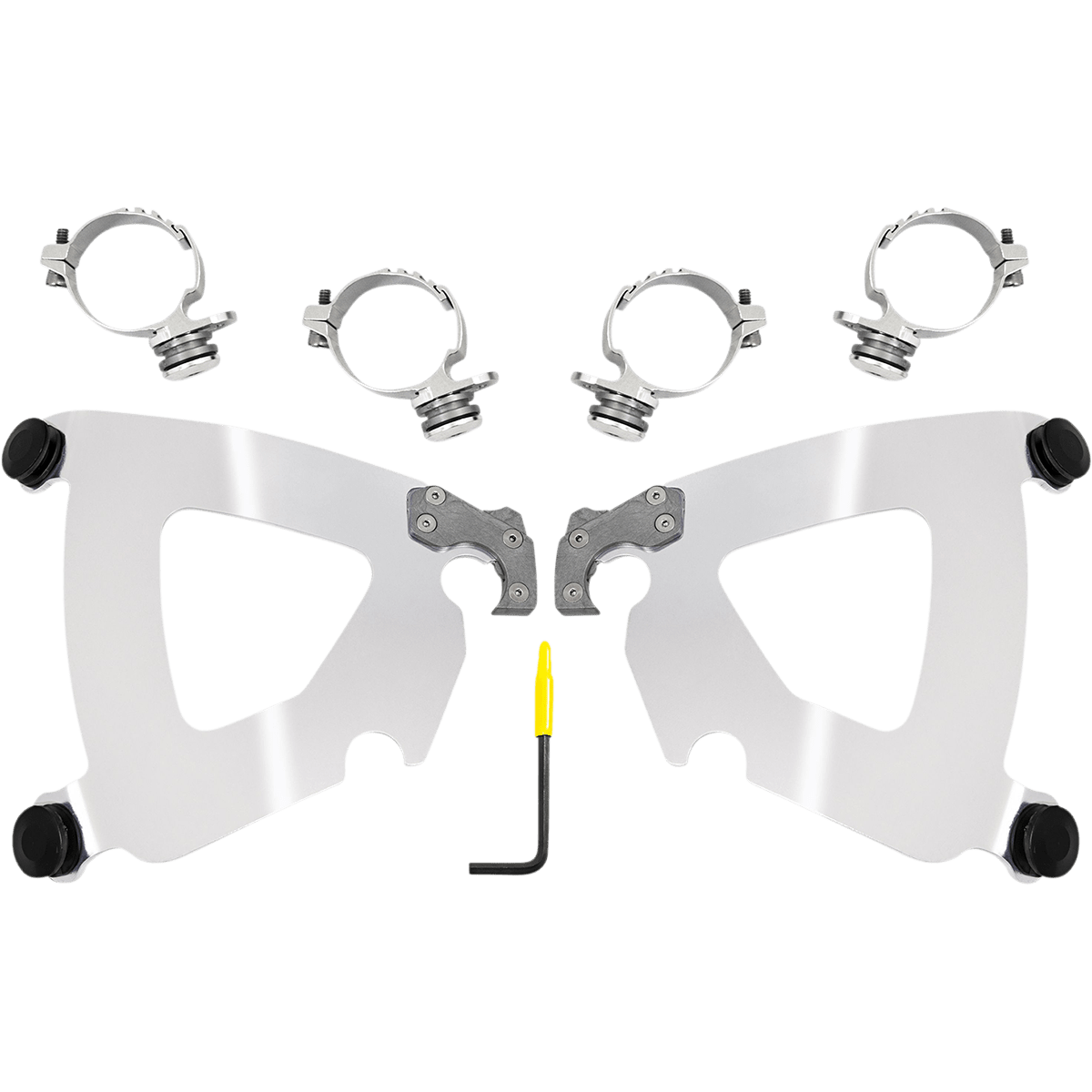

• '16-'22 XL1200X: black 2320-0276

Note: Nearly every application requires a headlight extension block, extension kit or riser kit.

Note: The '18-'24 FXFB and FXFBS Fat Bob application also requires lens cover 2350-0505.

Note: The '16-'22 XL1200X Forty-Eight application requires a turn signal relocation kit.

Common Questions About the Road Warrior Trigger-Lock Mount Kit

Does the mount kit include the headlight extension?
No. The extension block is a separate part and the one you need depends on your model.

Works With

• Road Warrior Fairing
• Headlight Extension Blocks
• Road Warrior Headlight Lens Cover
• Headlight Trim Ring and Shroud Kit
• Turn Signal Relocation Kit
