Memphis Shades Fats Windshield - 9.5" Big Headlight Cutout
Tax excluded. Shipping calculated at checkout
Ships within 24 hrs. Arrives within 1 - 5 days depending on location

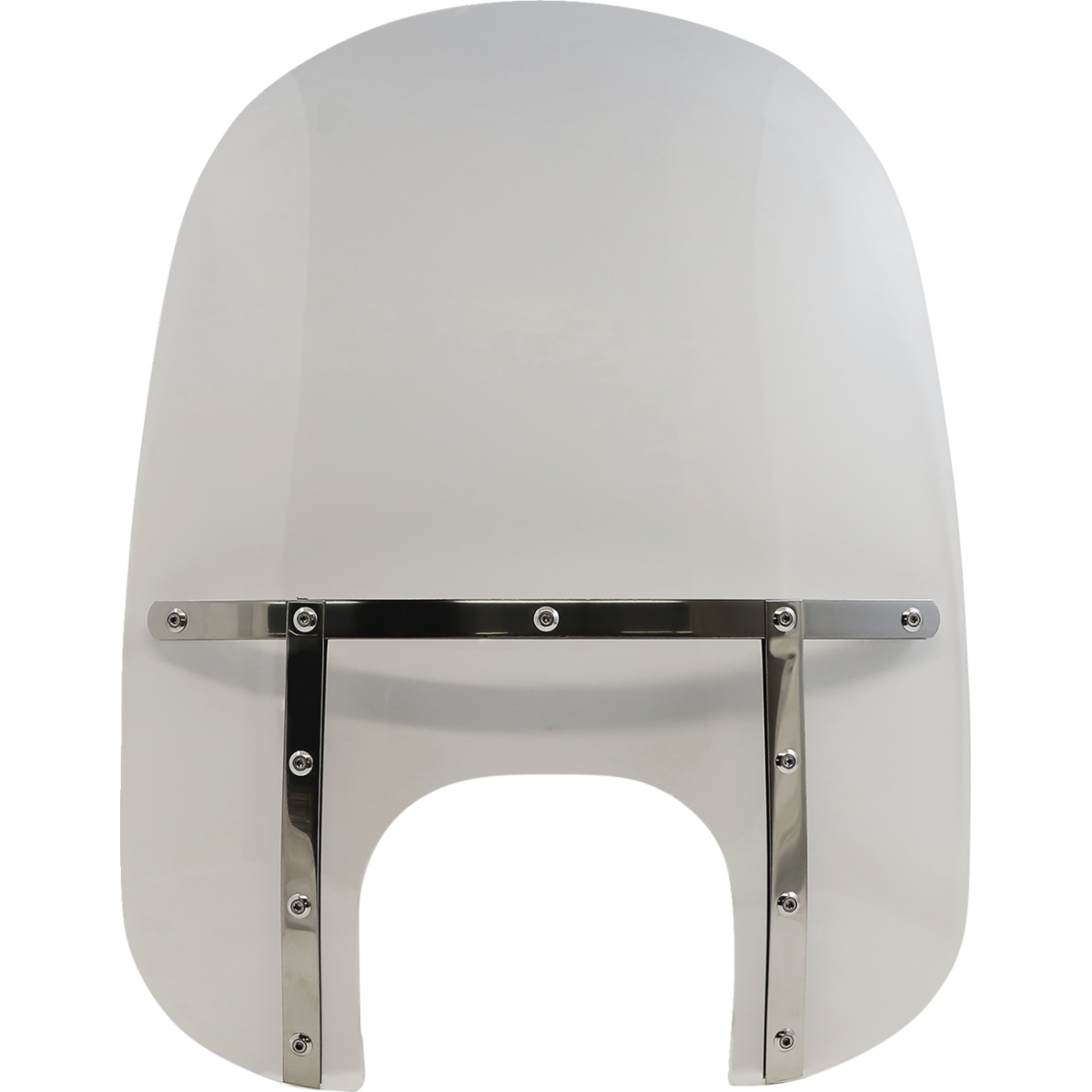

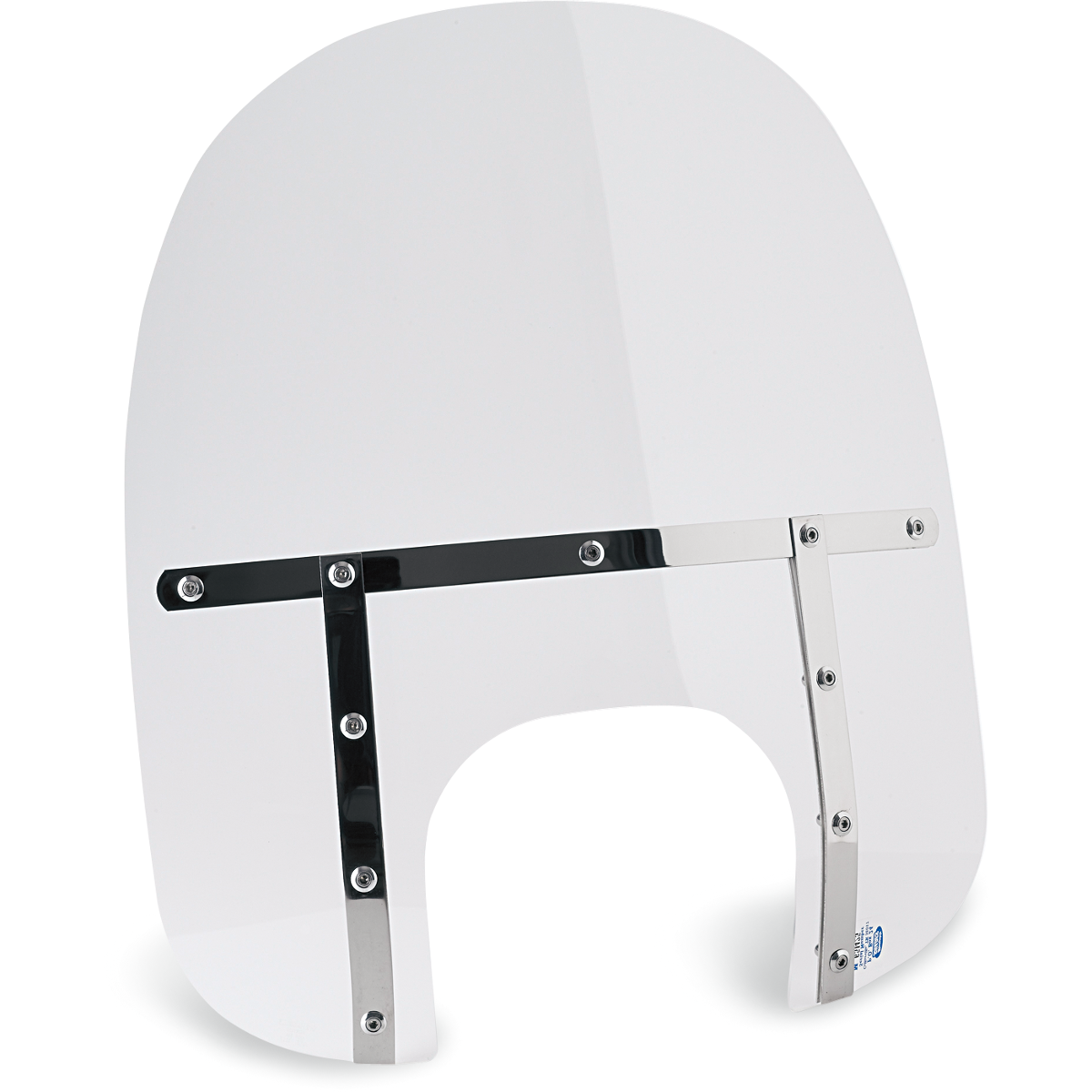

A Memphis Fats with a 9.5 inch cutout shaped for oversized aftermarket nacelle headlights.
MOUNTING HARDWARE IS NOT INCLUDED.
This windshield does not bolt to the motorcycle on its own. It requires a Memphis Shades No Tool Trigger-Lock mount kit, sold separately, and that kit is specific to your model and year. If you do not already have the Trigger-Lock hardware on your bike, add a mount kit to your order or the windshield cannot be installed.
Riders running a large nacelle headlight from Arlen Ness, Rick Doss or a similar builder run into the same problem: the stock windshield cutout is too small and the shield will not clear the housing. This version carries a 9.5 inch opening with a custom shape cut to sit correctly around those larger units.
Clear Lucite, 22 inches wide, offered in two heights.
Straps and hardware
Polished versions use stainless steel straps with CNC machined billet aluminum fittings and stainless steel socket head screws. The Night Shades versions pair a gradient black windshield with black E coated stainless steel straps, fittings and hardware for a black on black look.
Mounting hardware is sold separately. Memphis Shades No Tool detachable Trigger-Lock hardware is what holds this windshield on, and it is bike specific. Once the mount is installed the windshield comes off or goes back on in seconds. Trigger-Lock kits are offered in polished and in Night Shades black.
Optional Lowers are available for additional windshield coverage. Made in the U.S.A.
Specs
- Width: 22 inches
- Heights: 17 and 19 inches
- Material: Lucite, clear
- Cutout: 9.5 inches, custom shape
- Straps: polished stainless with CNC machined billet aluminum fittings
- Made in the U.S.A.
Big Headlight Cutout Fitment
Memphis Shades specifies this windshield by headlight nacelle rather than by motorcycle, naming Arlen Ness and Rick Doss style units, so what determines fitment is the aftermarket headlight housing you are running and not your Harley-Davidson year and model. ⚠️ VERIFY that your nacelle fits within the 9.5 inch cutout before ordering. Contact us with the brand and size of your headlight housing if you want us to confirm before you buy.
Works With
