FEULING-High Load Beehive® Spring Kit / M8 Motors-Valve Springs / Retainers / Seals-MetalCore Harley Supply
FEULING

High Load Beehive® Spring Kit / M8 Motors

SKU: 9263138
6 in stock
Sale price$559.95 USD

Tax excluded. Shipping calculated at checkout

  • High Load Beehive® Spring Kit
  • Machined from a premium grade Hi-tensile chrome silicon single conical ovate wire, shot-peened with a specially processed thermal heat treat and super NexTex® finish to give these valve springs the needed fatigue life to exceed the high demands of V-Twin engines from stock to performance
  • FEULING® BEEHIVE® valve springs use a smaller lighter weight retainer which drastically reduces the valve weight creating a quicker revving and smoother motion than comparable dual or single valve springs.
  • Valve springs are a direct bolt-in replacement, no spring seat or rocker cover machining required up to .565” lift
  • Springs will accommodate over .600 cam lift, but will require spring seat pocket machining on the cylinder heads to set correct spring open height
  • Smaller lighter weight retainers which drastically reduce the valve weight creating a quicker revving and smoother motion than comparable dual or single valve springs
  • Eliminate valve spring separation, maximize stability, reduce valve-train noise & harmonics

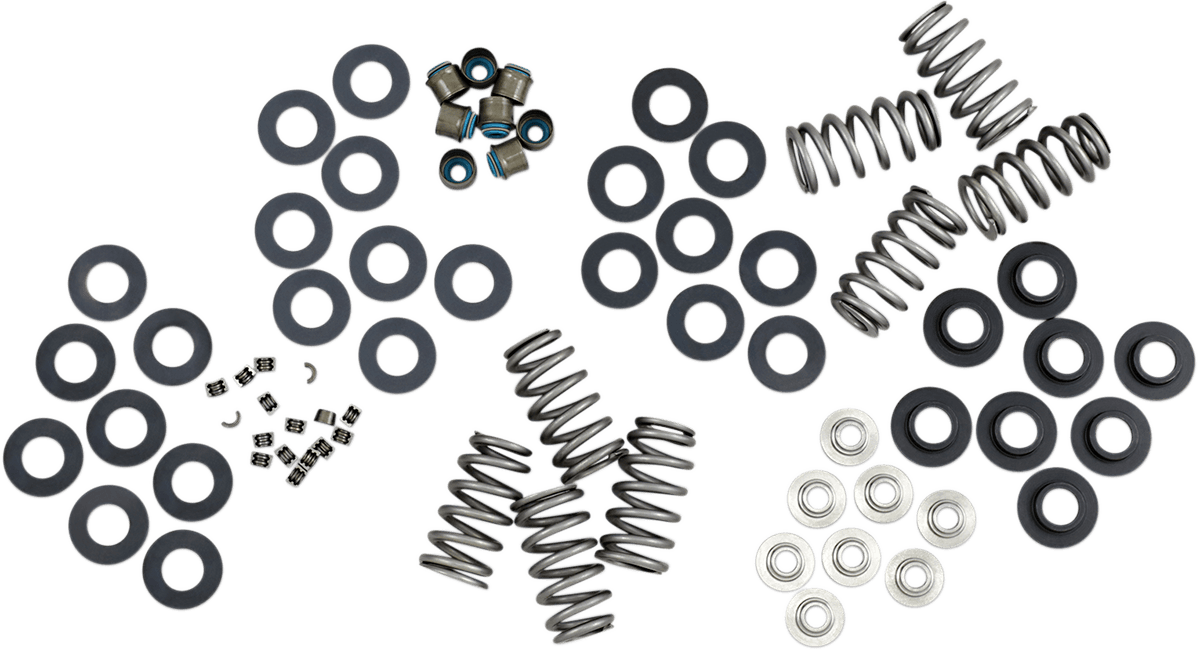

  • Kits include: matched set of Feuling® High Load Beehive® valve springs, Ti retainers, machined spring seats, seat shims, valve locks and a set of premium Viton® valve seals equipped with a spring loaded valve stem wiper system
  • ONLY recommended for large lift camshafts and RACE style engines as these valvesprings if not set properly will create extreme rocker arm deflection
  • Seat lbs./Installed Height
  • 151 Lbs. @ 1.475 (0.485 Lift)
  • 144 Lbs. @ 1.498 (0.508 Lift)
  • 143 Lbs. @ 1.501 (0.511 Lift)
  • 140 Lbs. @ 1.511 (0.521 Lift)
  • 124 Lbs. @ 1.562 (0.578 Lift)
  • 120 Lbs. @ 1.582 (0.592 Lift)
  • 304 Lbs @ 0.990 OPEN HEIGHT
  • Coil Bind @ .945
  • Recommended for .540”+ lift camshafts
  • Feuling® BeeHive® valve springs must be installed at the correct OPEN HEIGHT, matching max lift to the open height spec of the valve springs
  • Made in the U.S.A.
