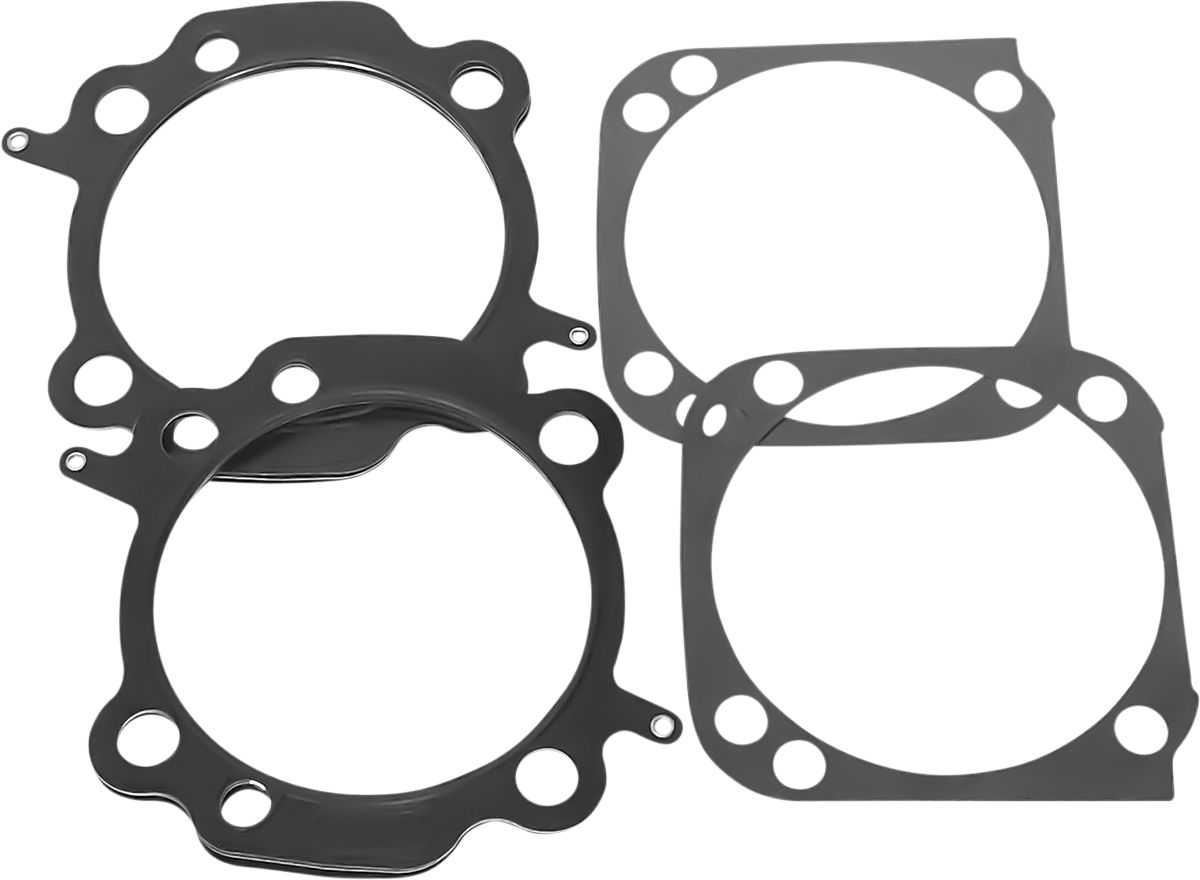

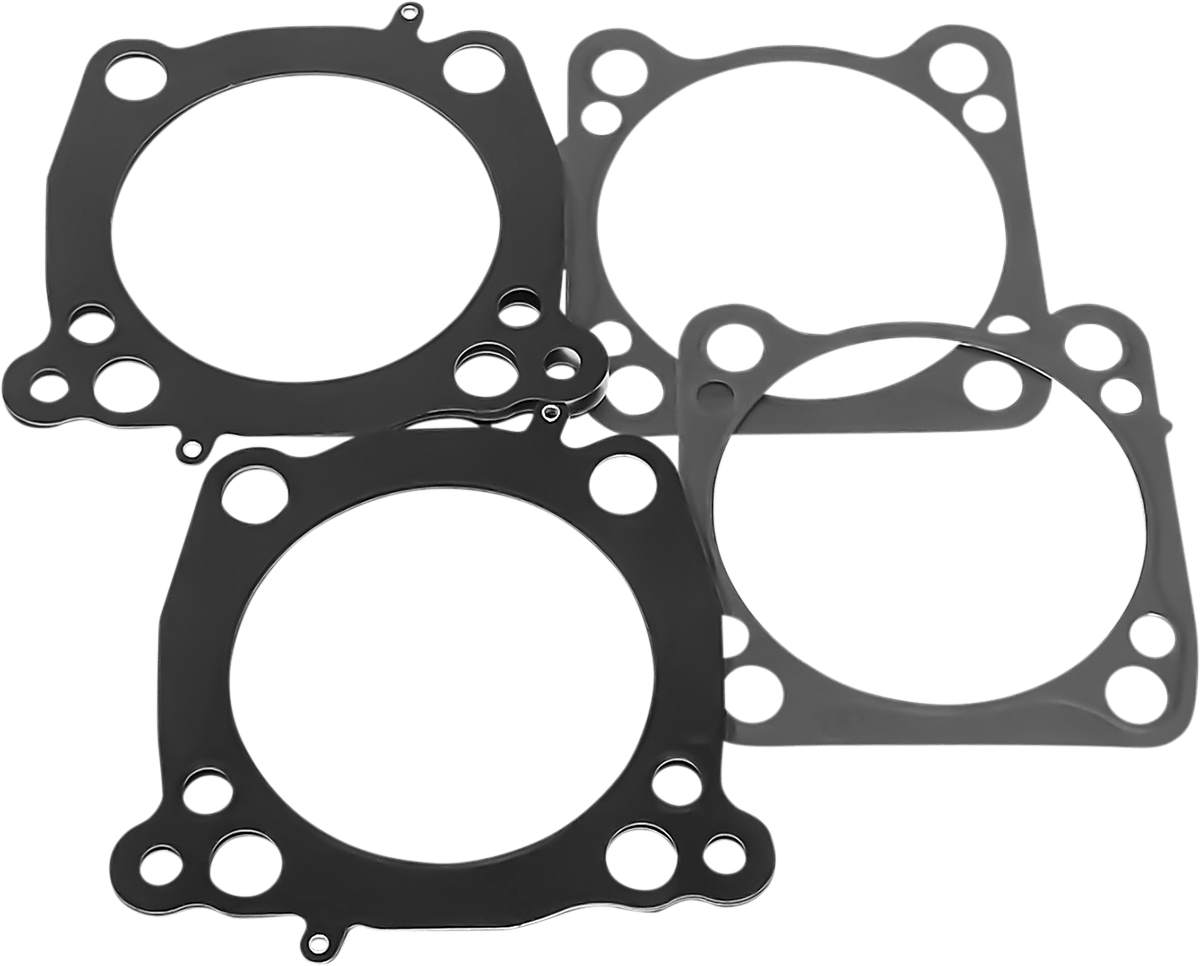

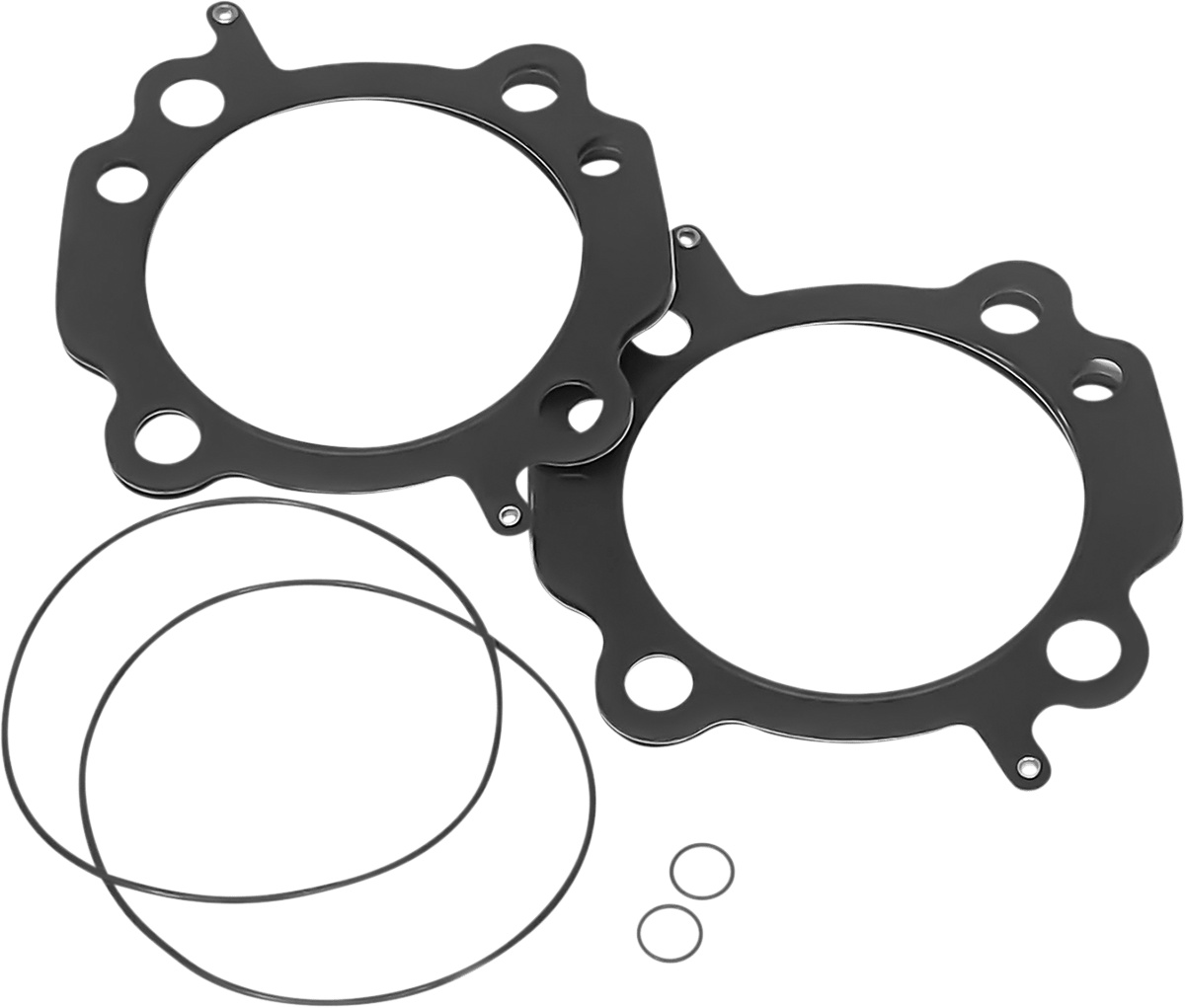

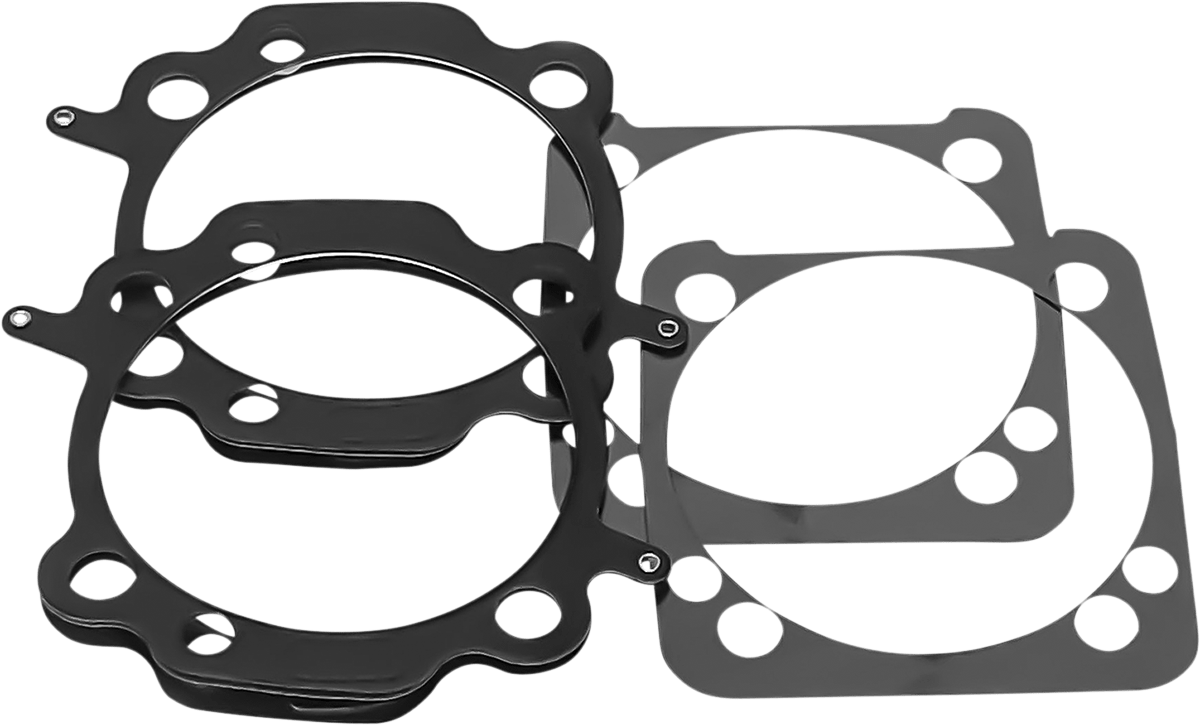

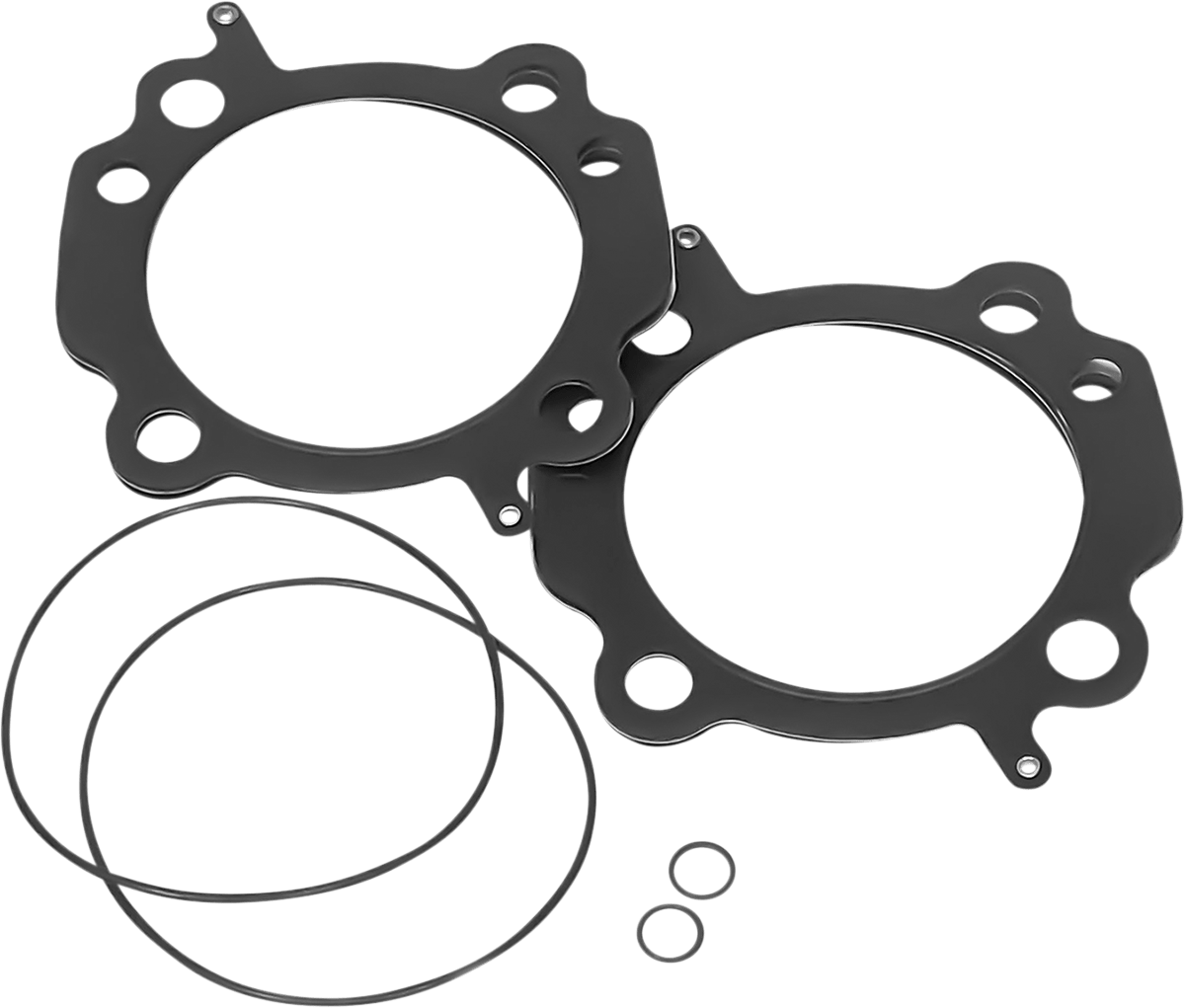

Top End Gasket Kits / Twin Cam - M8

Revolution Performance top end gasket kits, matched to displacement rather than sold as one gasket set for everything.

A big bore motor does not seal like a stock one. The bore is larger, so the head gasket's fire ring sits in a different place, and the cylinder studs are holding down more combustion pressure than the factory ever planned for. Revolution Performance builds these kits by displacement for exactly that reason, so the head gaskets, base gaskets and seals in the box are the ones that suit the bore you are actually running. Choosing by the number on the motor rather than by the year is the whole point of the range.

Features of the Revolution Performance Top End Gasket Kits

• Top end gasket kits for Harley-Davidson Twin Cam and Milwaukee-Eight motors
• Matched by displacement rather than sold as a single universal set
• Built for high displacement, high pressure applications
• Made in the U.S.A.

Top End Gasket Kit Fitment

Choose the kit by motor family and displacement.

• Twin Cam, 98 inch and 107 inch
• Twin Cam, 113 inch
• Twin Cam, 117 inch
• Twin Cam, 124 inch and 131 inch
• Milwaukee-Eight, 124 inch and 128 inch

⚠️ VERIFY your actual displacement and bore before ordering, not the year of the bike. A built motor is whatever it was last assembled as, and a gasket kit for the wrong bore will not seal.

Common Questions About the Gasket Kits

Is this a full engine gasket set?
No. It is a top end kit, which is what a cylinder or head job needs. A full rebuild also needs the bottom end gaskets and seals.

Can I use a stock gasket set on a big bore motor?
Not reliably. The fire ring has to match the bore, and stock gaskets are not built for the cylinder pressures a big bore build makes.

I do not know my displacement.
Measure the bore and stroke, or go by the paperwork from whoever built the motor. Do not guess from the model year on a bike that has been apart.
