HP+ Oiling System and Camchest Freshen Up Kit / '07-'17 Twin Cam

Everything needed to refresh a tired late Twin Cam camchest in one kit.

A high mileage camchest is a wear item rather than a failure, and this kit is built around that. It refreshes the oiling system and the camchest together on '07-'17 Harley-Davidson Twin Cam engines and the '06 Dyna, covering the FLHT Electra Glide, FLHR Road King, FLTR Road Glide, FLHX Street Glide, FXD Dyna and Softail models of that era.

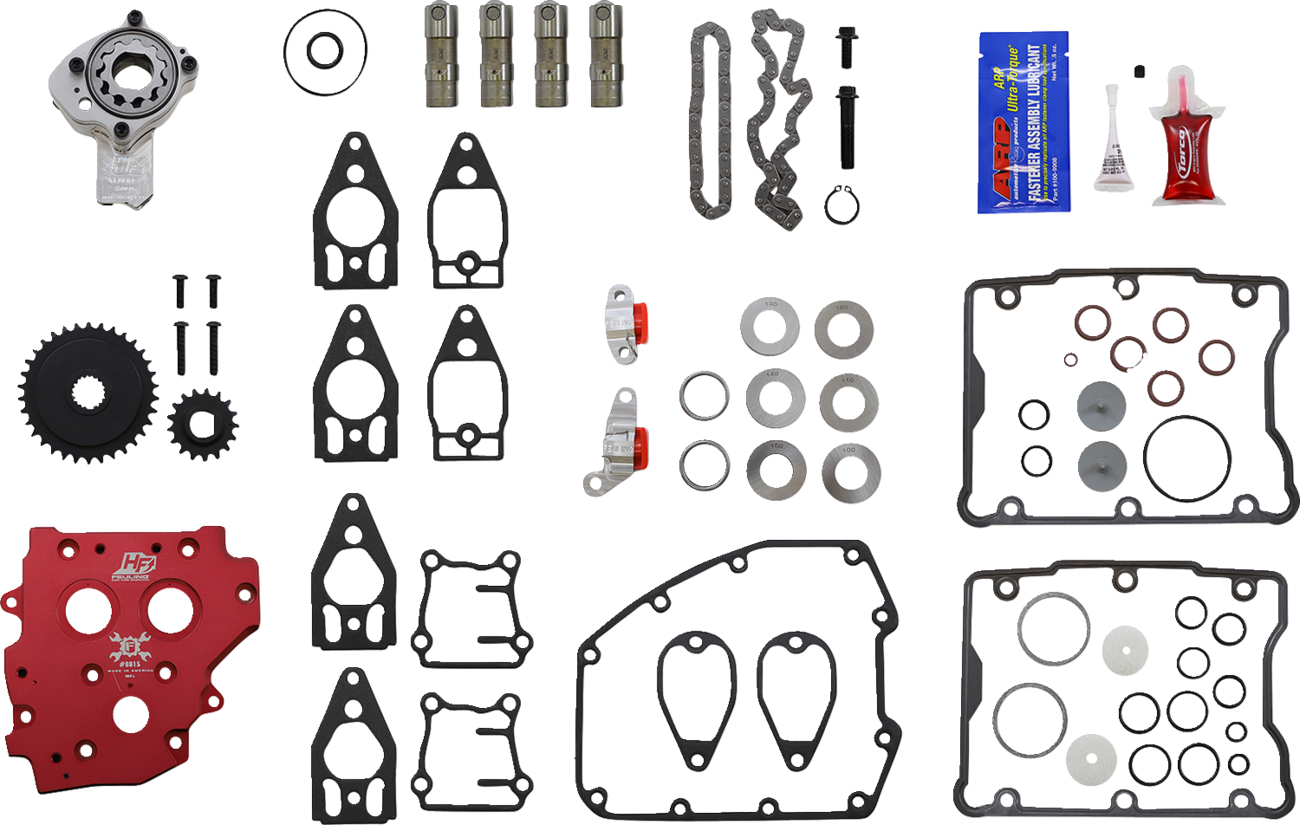

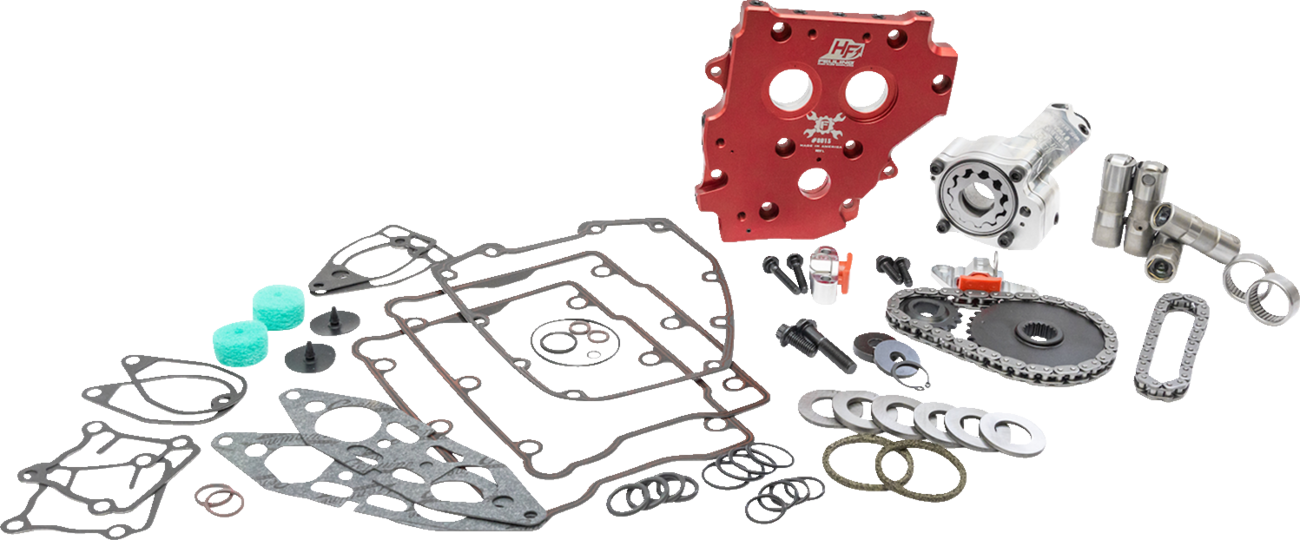

You can reuse the camshafts already in the motor, or take the opportunity to fit a grind you would rather have while the cover is off. The kit upgrades the camchest with an HP+ high volume oil pump, High Flow camplate, HP+ lifters, billet tensioner housings, tensioner pads, cam and crank sprockets, sprocket alignment spacers, cam chains, cam bearings, hardware, gaskets and O-rings.

• Refreshes the camchest and oiling system in one job
• Reuse your existing camshafts or fit a preferred grind
• Includes an HP+ high volume oil pump, High Flow camplate and HP+ lifters
• Billet tensioner housings, tensioner pads, cam and crank sprockets and alignment spacers
• Cam chains, cam bearings, hardware, gaskets and O-rings included
• Made in the U.S.A.

Fitment

• '07-'17 Twin Cam and '06 Dyna
• Designed for use with '07-'17 chain drive camshafts

Camshaft options, if you are changing grinds: 09250427 for the 525 grind, 09250673 for the 543 grind, 09250430 for the 574 grind, 09250677 for the 594 grind and 09250433 for the 630 grind. All sold separately.
