Direct Drive 6-Speed Gear Set / '98-'06

Baker direct drive 6-speed gear set covering '98-'06 Big Twin touring, Dyna, and Softail 5-speed cases.

There is a reason builders default to Baker when a transmission comes apart. This direct drive 6-speed installs into the existing 5-speed case with a 3.24 first and .86 sixth, lowering rpm at cruise while helical fourth, fifth, and sixth gears run silent. Three variants cover '01-'06 touring, '98-'00 FXR and touring, and '01-'05 FXD with '00-'06 FXST applications; choose the correct one for your model.

Features

• Fits into existing 5-speed cases and lowers rpm at cruising speeds

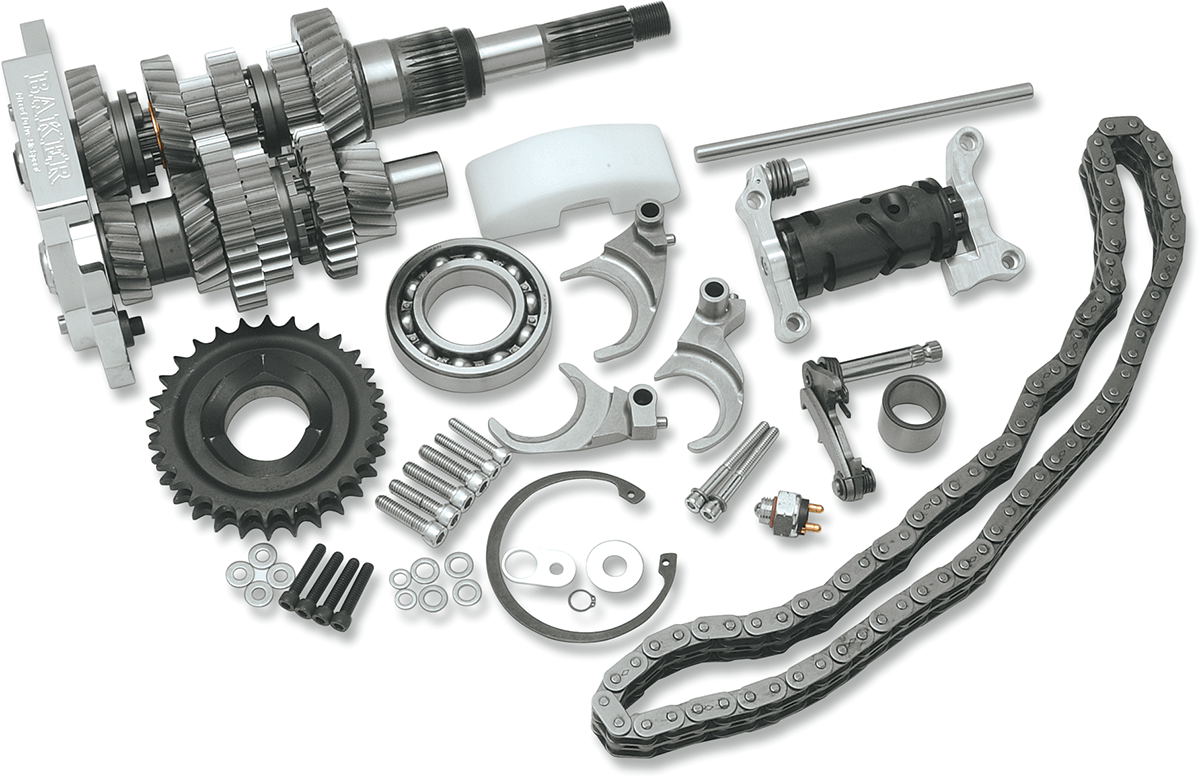

• Includes 28-tooth motor sprocket, longer primary chain, adjusting shoe, fixed spindle shift drum, and anti-overshift ratchet shift pawl assembly
• All gears are full width Baker ground gears; 4th, 5th, and 6th are helical for silent operation
• Bearing door manufactured from 6061-T6 aluminum with wider bearings and bearing retainer plates in place of stock style snap rings
• Gearsets made from 8620 steel; gears are cut before heat treating, then precision ground with diamond coated tooling for quieter operation
• Redundant Neutral Smooth Shift System
• Easy to follow instructions included
• Made in the U.S.A.

Specifications

• 3.24:1 first gear, .86:1 sixth gear

Frequently Asked Questions

Will this fit my stock transmission case?
Yes. The direct drive gear set installs into your existing 5-speed case.

Why are the top gears helical?
Fourth, fifth, and sixth gears are helical cut for silent operation at cruising speed, where you spend most of your miles.

What is included beyond the gears?
The kit includes a 28-tooth motor sprocket, longer primary chain, adjusting shoe, fixed spindle shift drum, and the anti-overshift ratchet shift pawl assembly.
