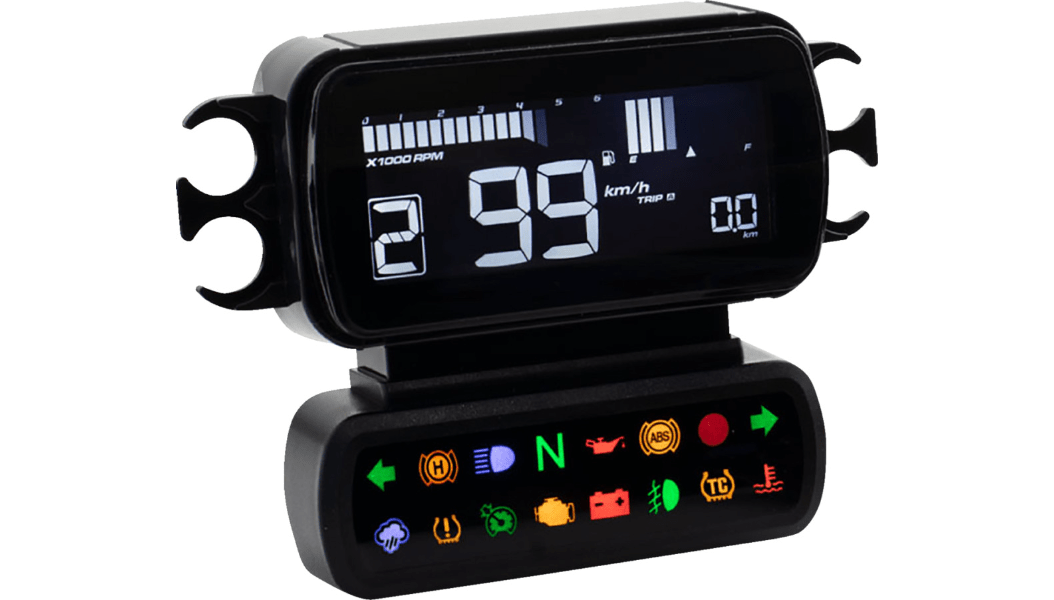

D2 Multi Function Meter / '04-'23 Models

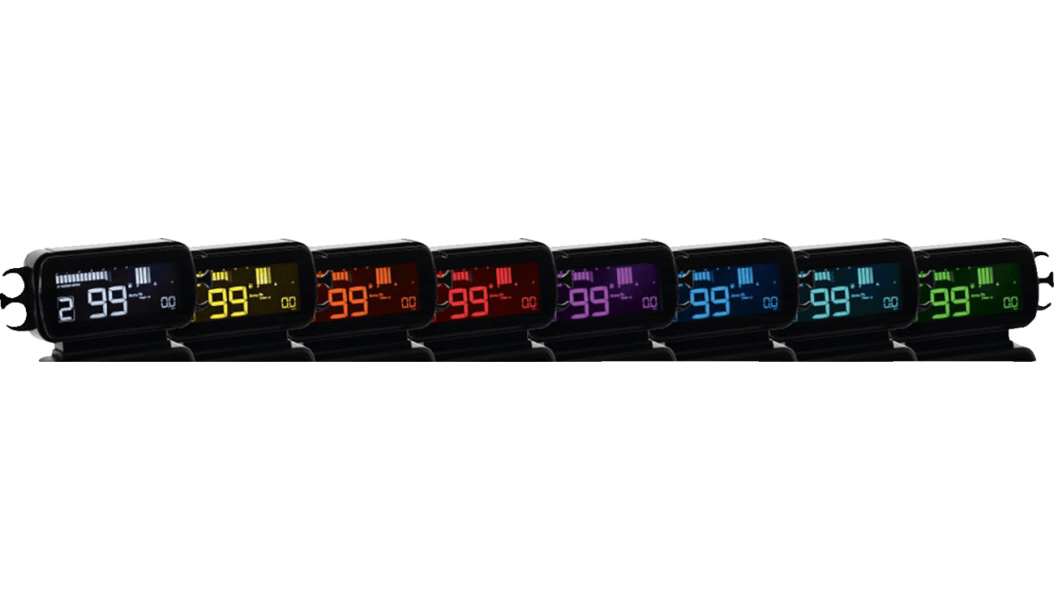

Introducing KOSO's high-quality plug & play meter, engineered to elevate your riding experience with advanced functionality and sleek design. Equipped with an 8-color changeable LCD display, this meter offers customizable aesthetics to match your style seamlessly.

• For '14 - '23 FLHT / FLHX / FLTR | '14 - '23 FLHR | '04 - '13 FLHR | '11 - '17 FXST | '04 - '10 FXST | '12 - '23 FXD | '04 - '11 FXD | '14 - '22 XL | '04 - '13 XL (DOES NOT FIT RH SPORTSTER)
• Aftermarket or OEM Risers with the Gauge Cutout in top clamp will be needed.

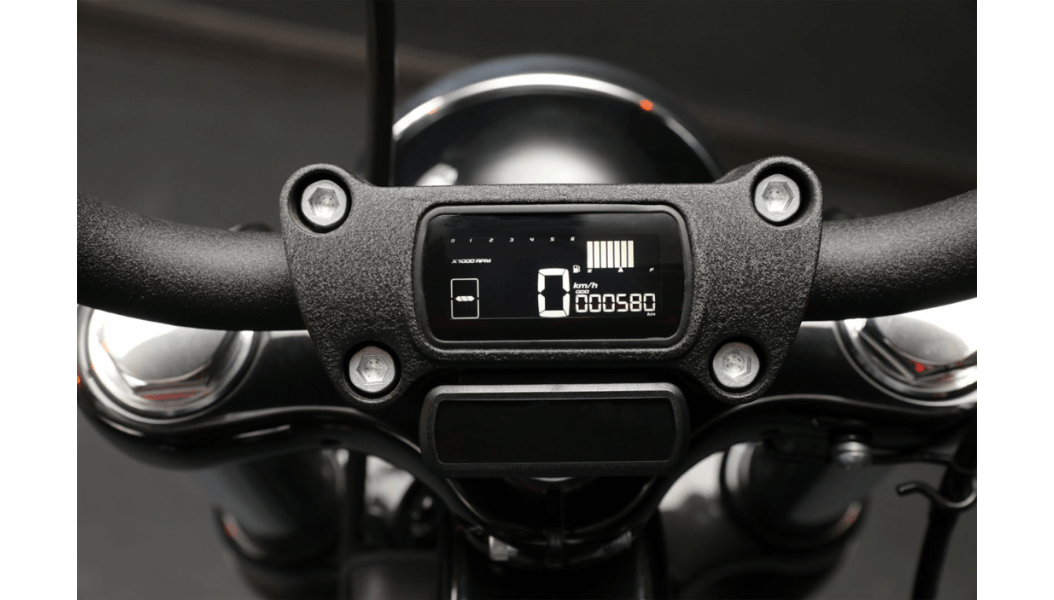

• Designed to mount below cutout top handlebar clamp for a sleek look
• Features a tachometer/speedometer combination with a programmable shift light for precise performance tracking
• Includes a gear indicator for enhanced gear management
• Displays vital readings such as engine temperature, battery voltage, and tire pressure, along with a complete system of indicator lights to monitor vital signs on the bike

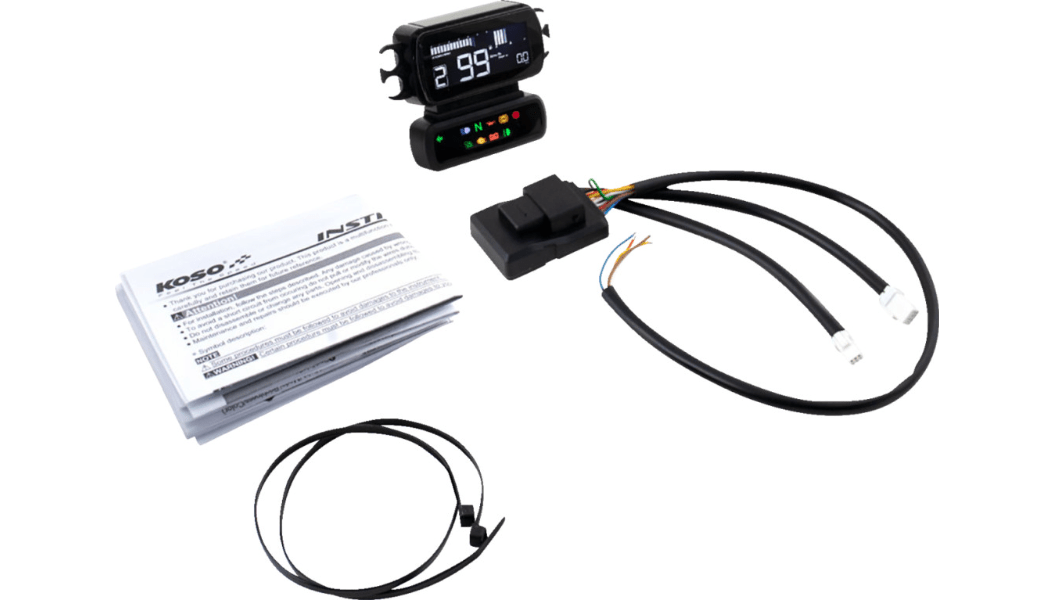

• Plugs directly into the stock harness and works seamlessly with CANBUS system for effortless integration
• Display range: 0-124 mph, providing accurate speed readings
• Effective temperature range: -4°F-185°F (-20°C-85°C) for reliable performance in various conditions
• Operates on 12VDC battery voltage for consistent power supply
• Compact design measuring 3-7/16” L x 1-1/16” W x 2-5/8” H for easy installation and discreet placement

For XL models, a separate fuel level sensor kit (OEM PART #6120008) may be required for the fuel meter to function properly. Elevate your ride with precision and style with our plug & play meter.
