SMART Triple Play Module / Run, Brake and Turn Converter

The SMART Triple Play converts your rear turn signals into running, brake and turn lights, so the back of the bike shows three functions instead of one.

A stock Harley-Davidson puts one bulb in the middle doing brake duty and two amber signals that only work when you ask them to. The Triple Play wakes the outer two up. They run dim all the time, brighten with the brake and still flash to signal, which turns a single point of light into a wide triangle that traffic reads faster.

What separates it from a simple converter is the control. Ten brake strobe patterns, or none at all if you would rather not flash. Ten running light intensities so the turns can be matched to the centre taillight rather than washing it out. And you can choose whether the strobe plays on the centre light, the rear turns, or both.

SMART Triple Play Specifications

• Converts rear turn signals to run, brake and turn
• Works with LED or incandescent bulbs
• Ten user selectable built in brake light strobe and flash patterns, including no flash at all
• Ten user selectable running light intensities, so the turns match the brightness of the center taillight
• Brake patterns can run on the center taillight only, the rear turns only, or both
• Requires red rear turn signals for DOT compliance
• Built in short circuit protection
• Sealed, weathertight case
• Slim line design, 2.25" x 2" x 0.5"

SMART Triple Play Fitment

Pick the module that matches your bike. Custom Dynamics builds a different harness for each family, and Drag Specialties lists them as follows.

• '14-'25 FLH / FLT for '23 FLHFB, '22-'23 FLHXST and FLTRXST, '19-'22 FLHT, '15 FLTRUSE, '14-'25 FLHP and FLHTP, '14-'22 FLHR, '14-'15 FLHTKSE

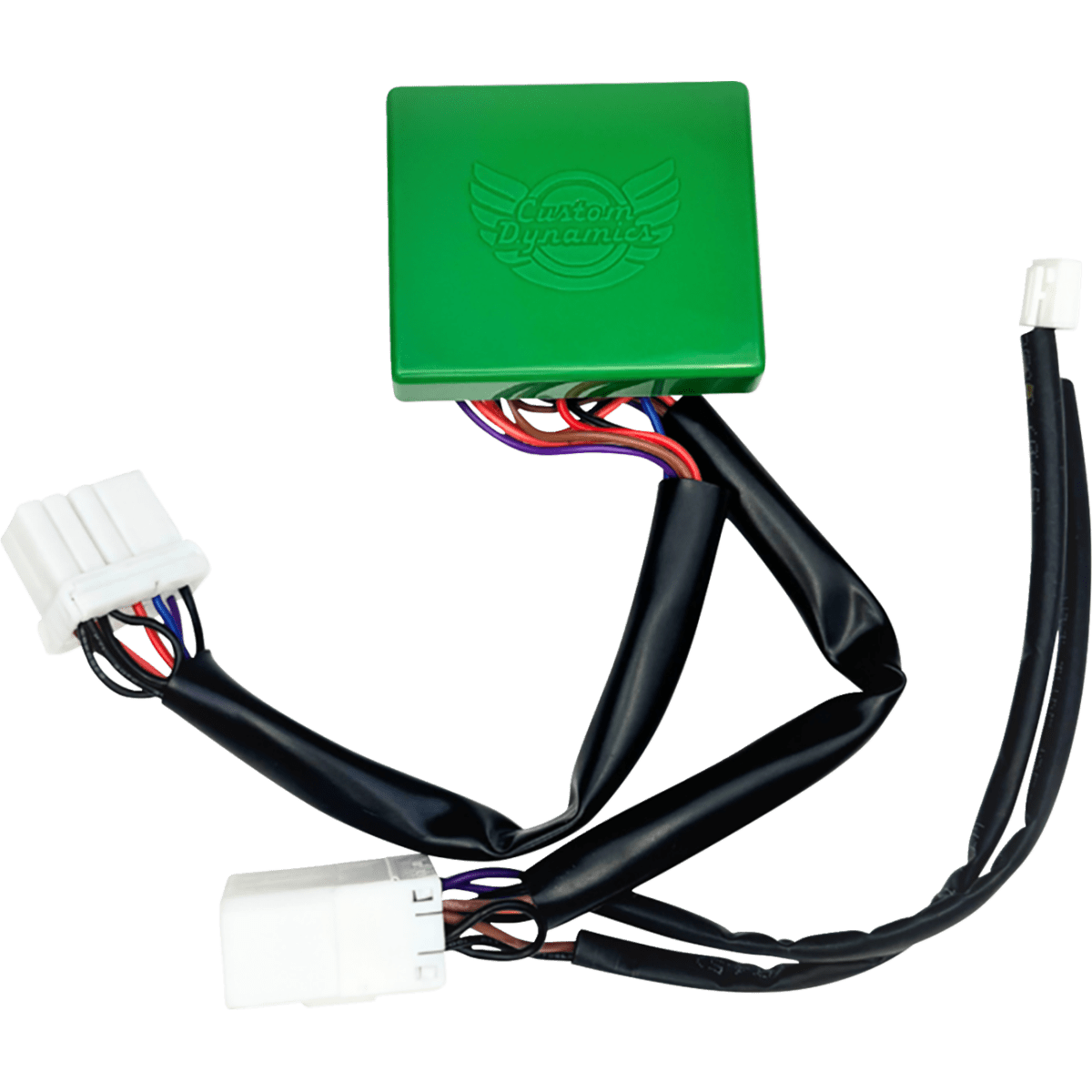

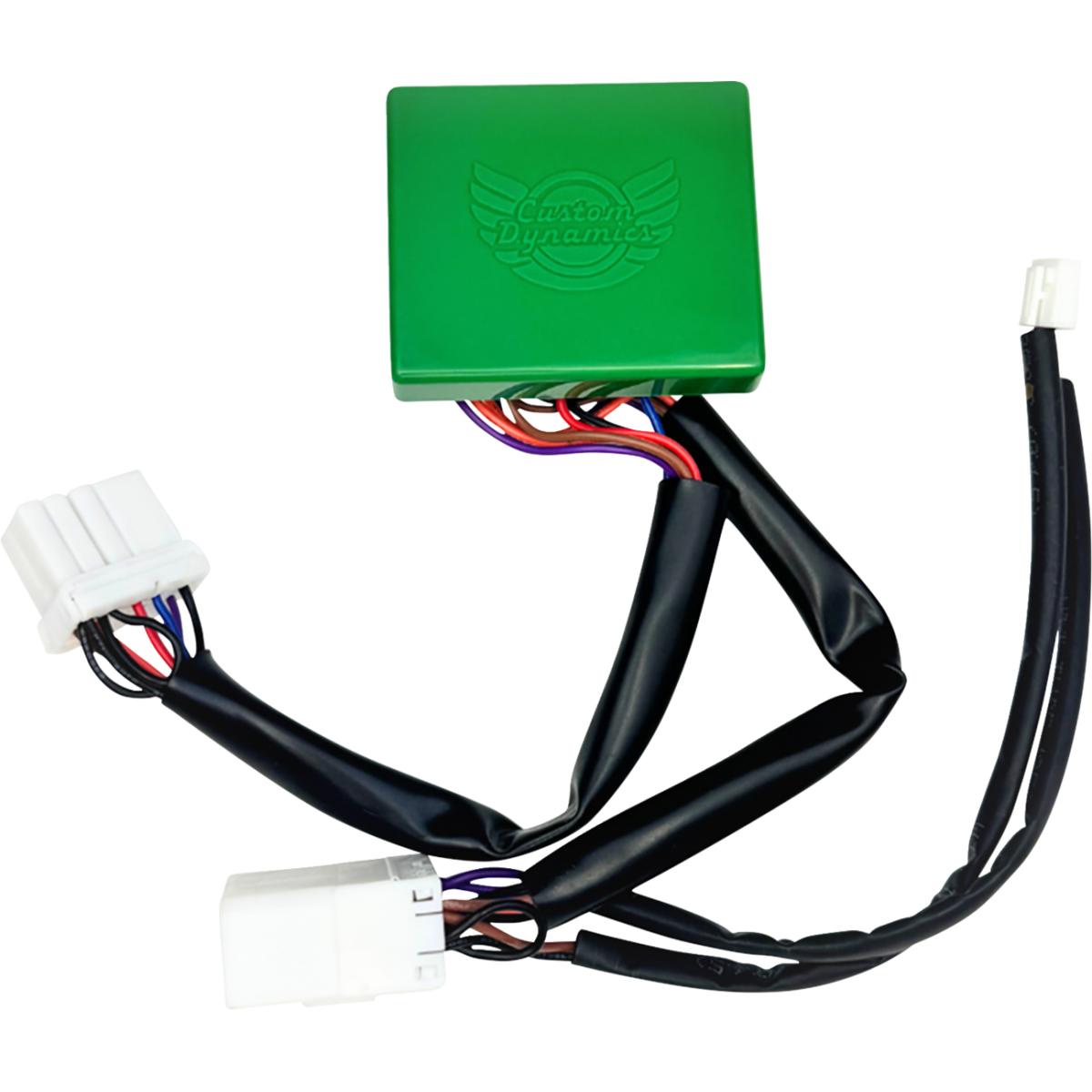

• '96-'17 Most Models for the long early list, covering '99-'13 FLHTP and FLHTCU, '00-'13 FLHTC, '06-'13 FLHTCUSE, '10-'13 FLHTK, '99-'09 FLHT, '04-'05 FLHTCSE, '06-'09 FLHX, '99-'09 FLTR, '11-'13 FLTRU, '00-'01 FLTRSE, '99-'13 FLHR, FLHRC and FLHP, '04-'07 FLHRS, '11-'17 FLSTN, FLSTF, FLSTFB and FLSTC, '11 FLSTSB, '06-'10 FLST, '05-'10 FLSTN, '00-'09 FLSTS, '00-'10 FXSTC, '00-'09 FXSTB, '00-'07 FXSTD and FXST, '12-'16 FLD, '14-'17 FXDL, '00-'10 FXD and FXDL, '12-'14 FXDC, '09-'10 FXDFSE, '08-'11 FXDF, '06-'08 FXDB, '00-'08 FXDWG, '00-'05 FXDX, and '00-'03 XLH883 and 1200 models

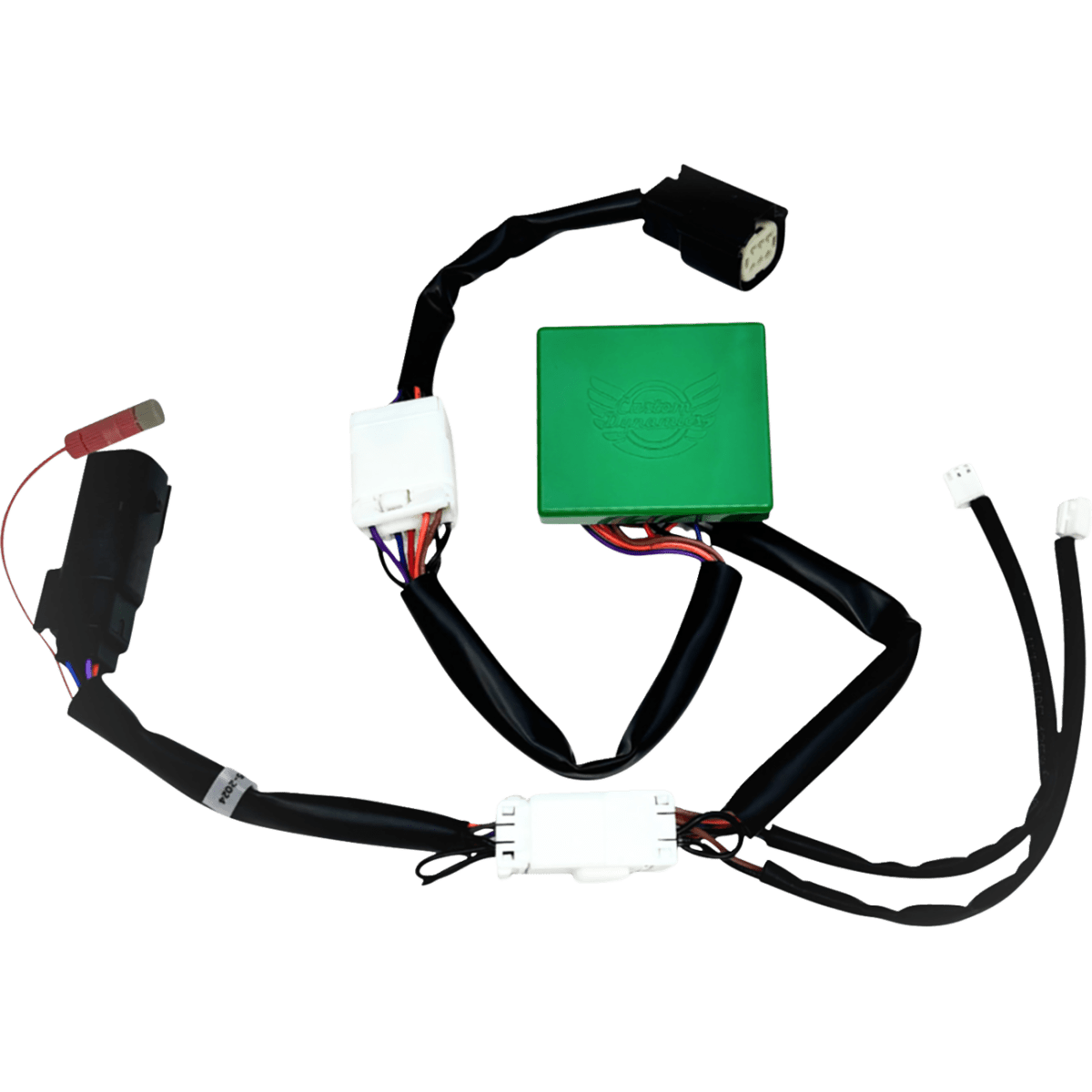

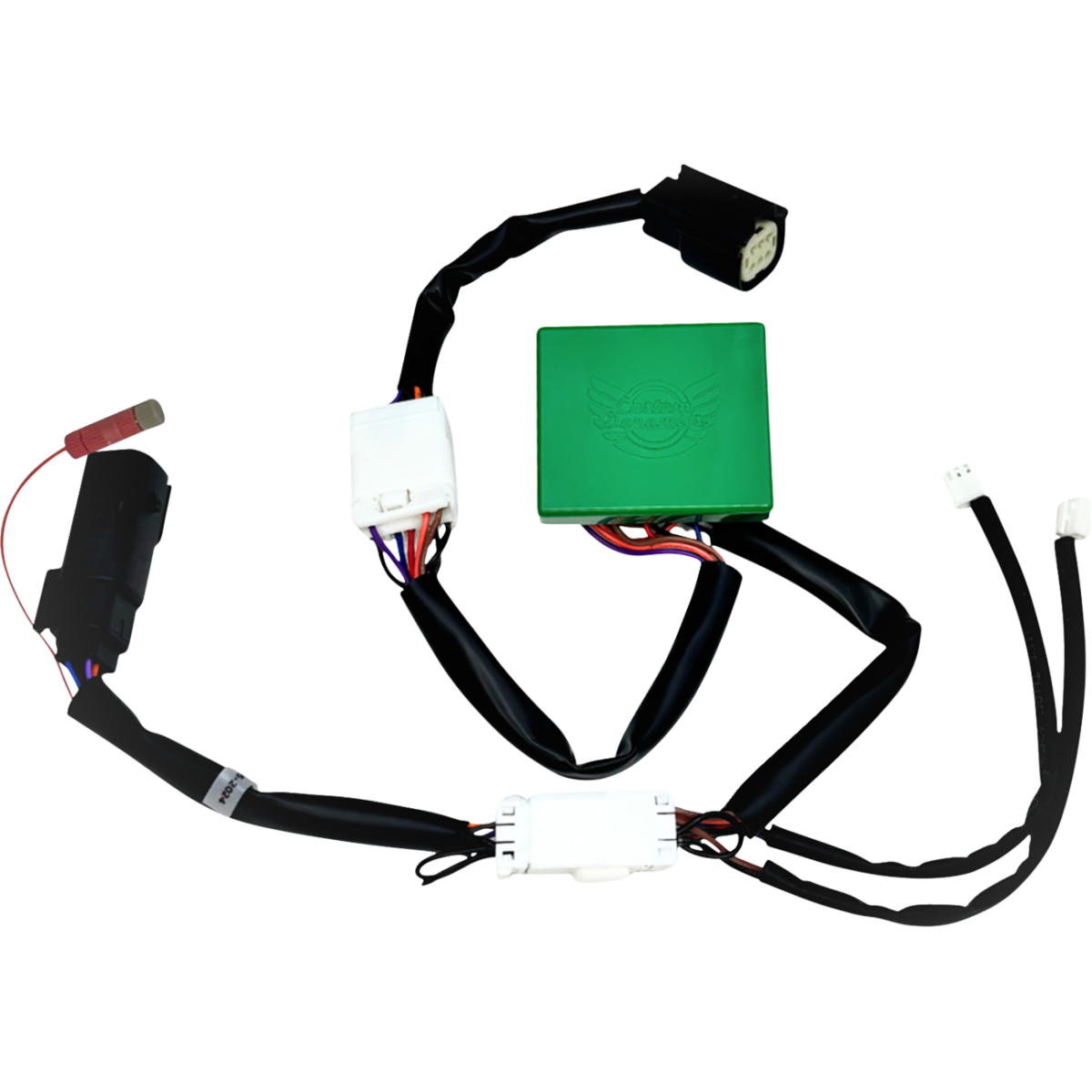

• '14-'22 CVO for '18-'22 FLTRXSE, '15-'22 FLHXSE, '14 FLHRSE

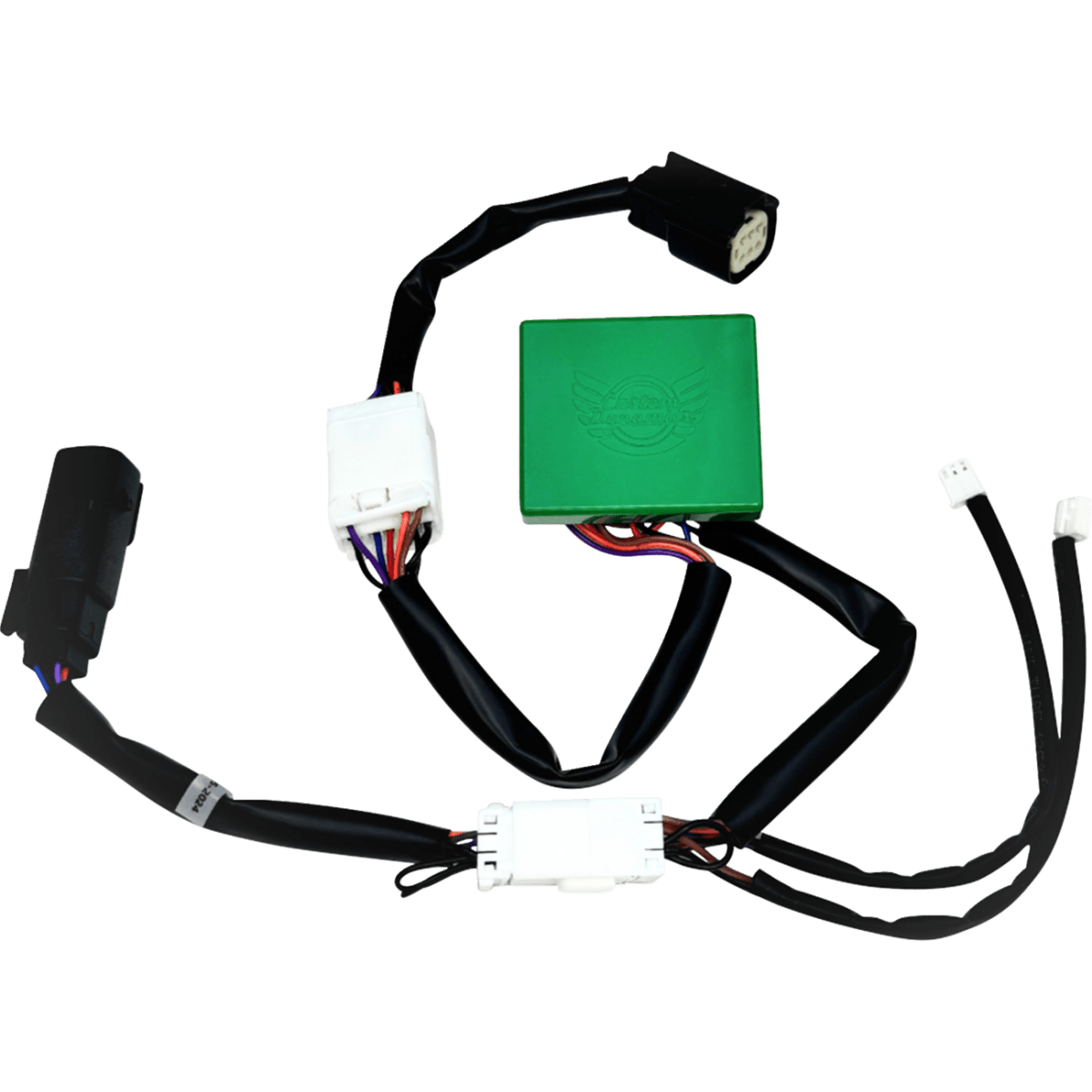

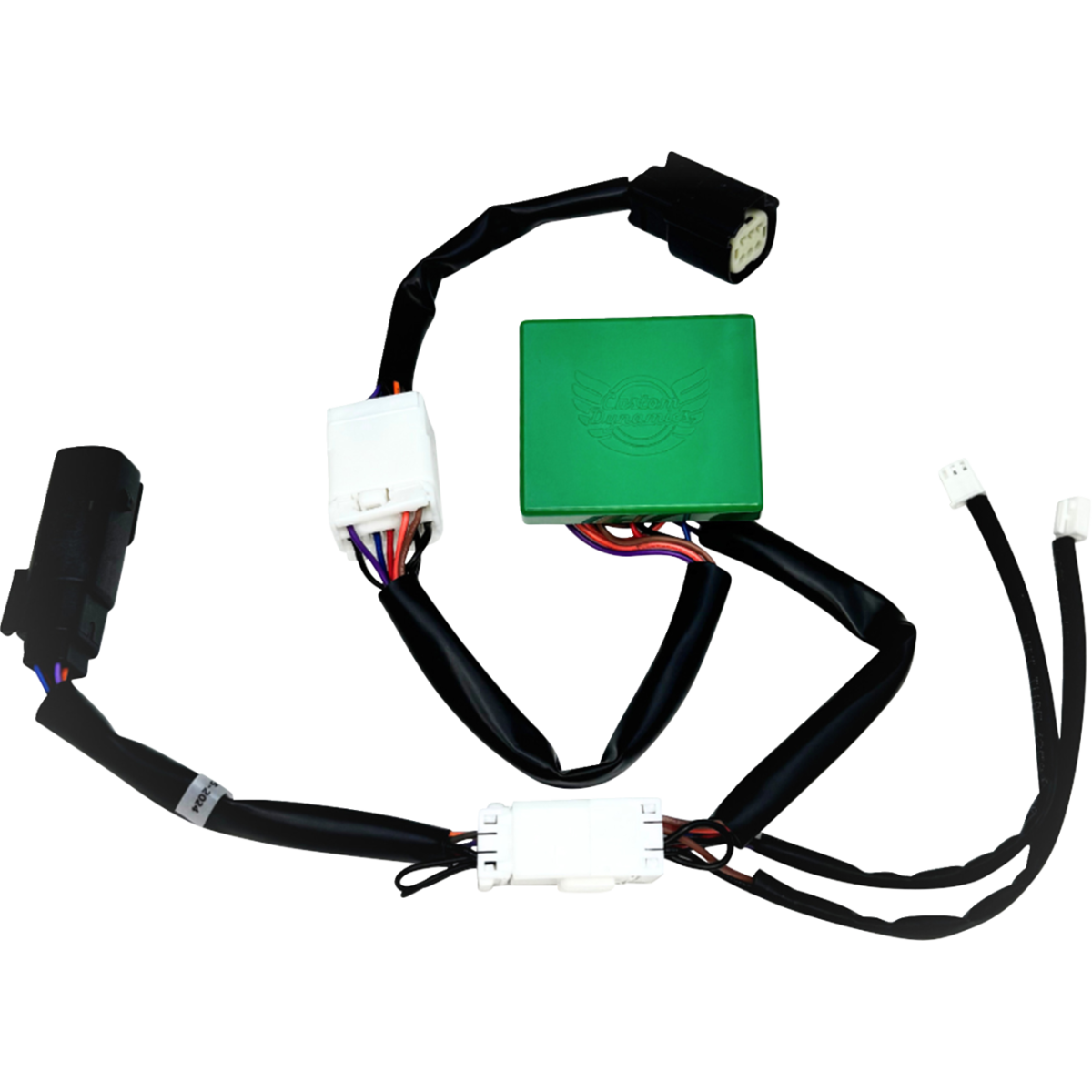

• '10-'13 FLTRX / FLHX for '10-'13 FLTRX and FLHX, '10-'11 FLHXXX, '09-'13 FLHTCUTG

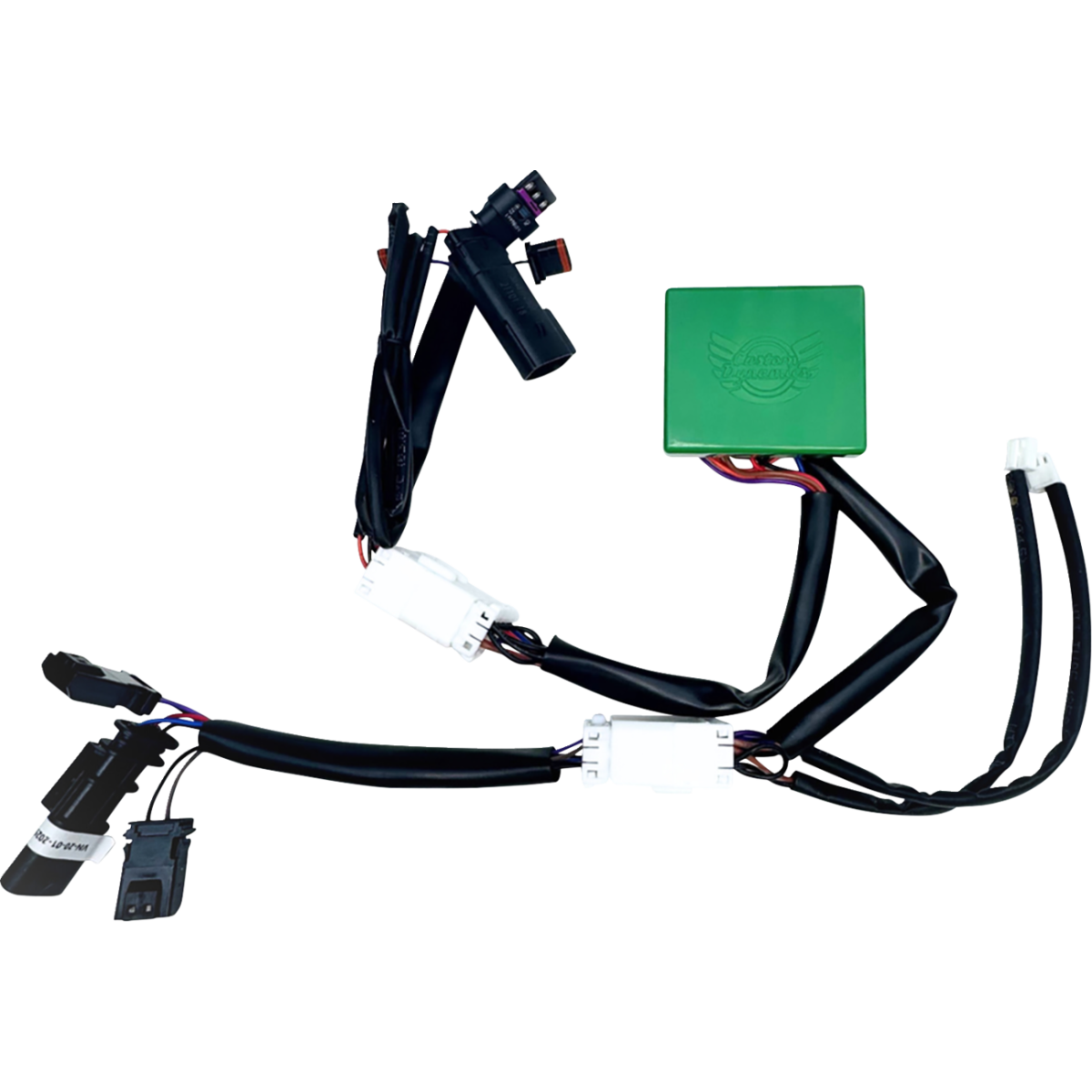

• '18-'24 Softail for '24 FLI, '22-'24 FXLRST, '22 FXRST, '20-'24 FXLRS, '19-'20 FXDR, '18-'24 FLHCS, '18-'21 FLHC, '18-'20 FLDE and FXLR

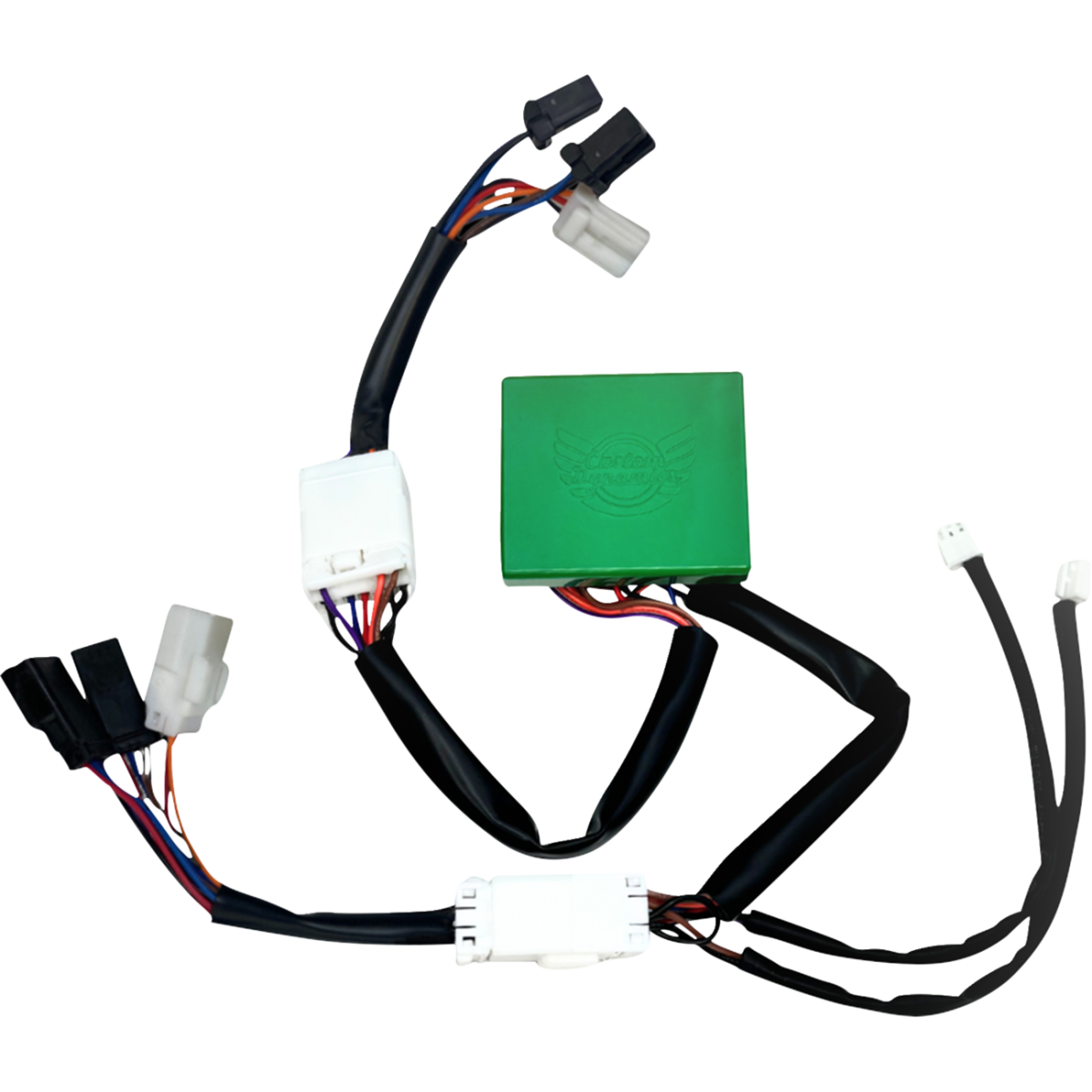

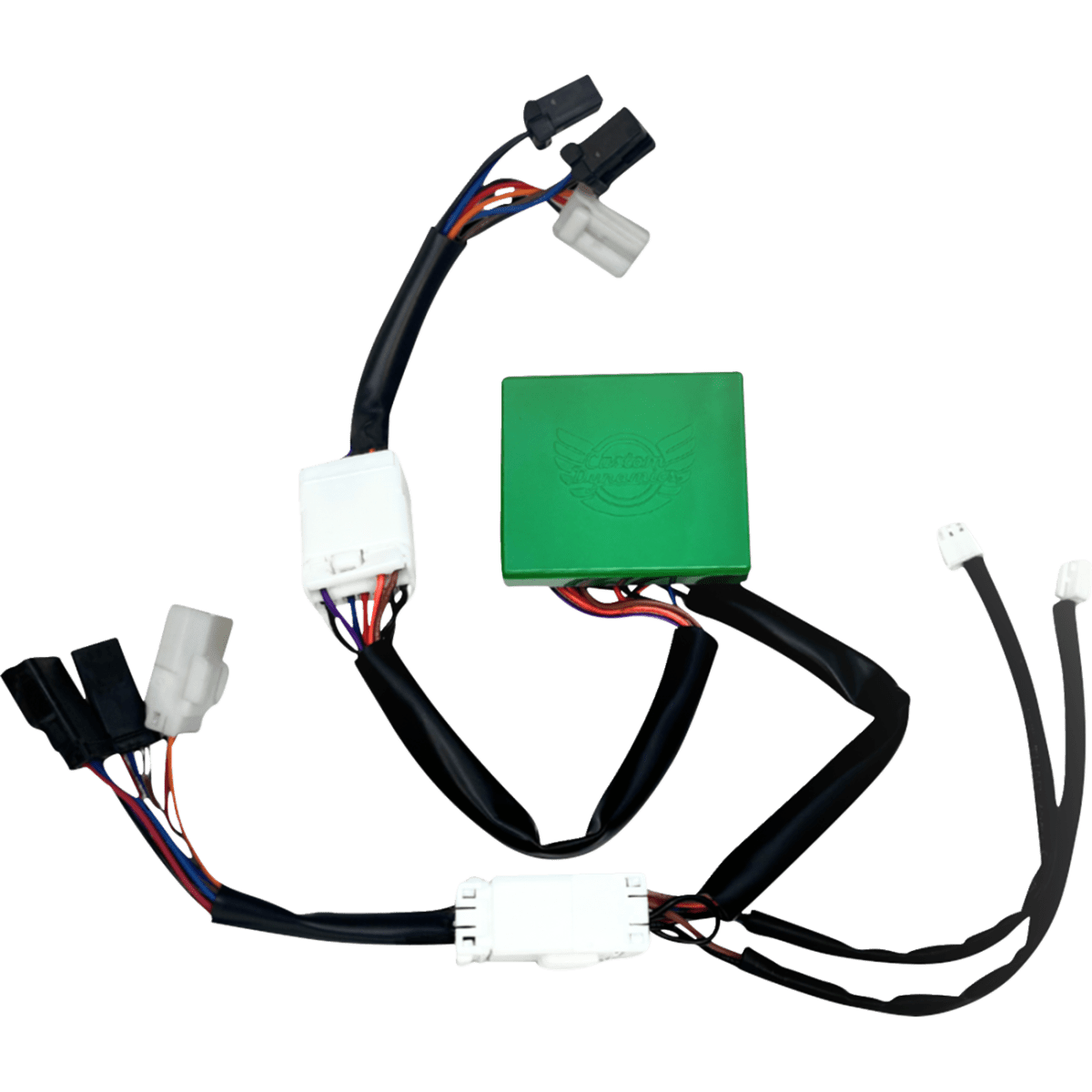

• '14-'19 Sportster for '14-'19 XL883L and XL1200C, '14-'18 XL1200T

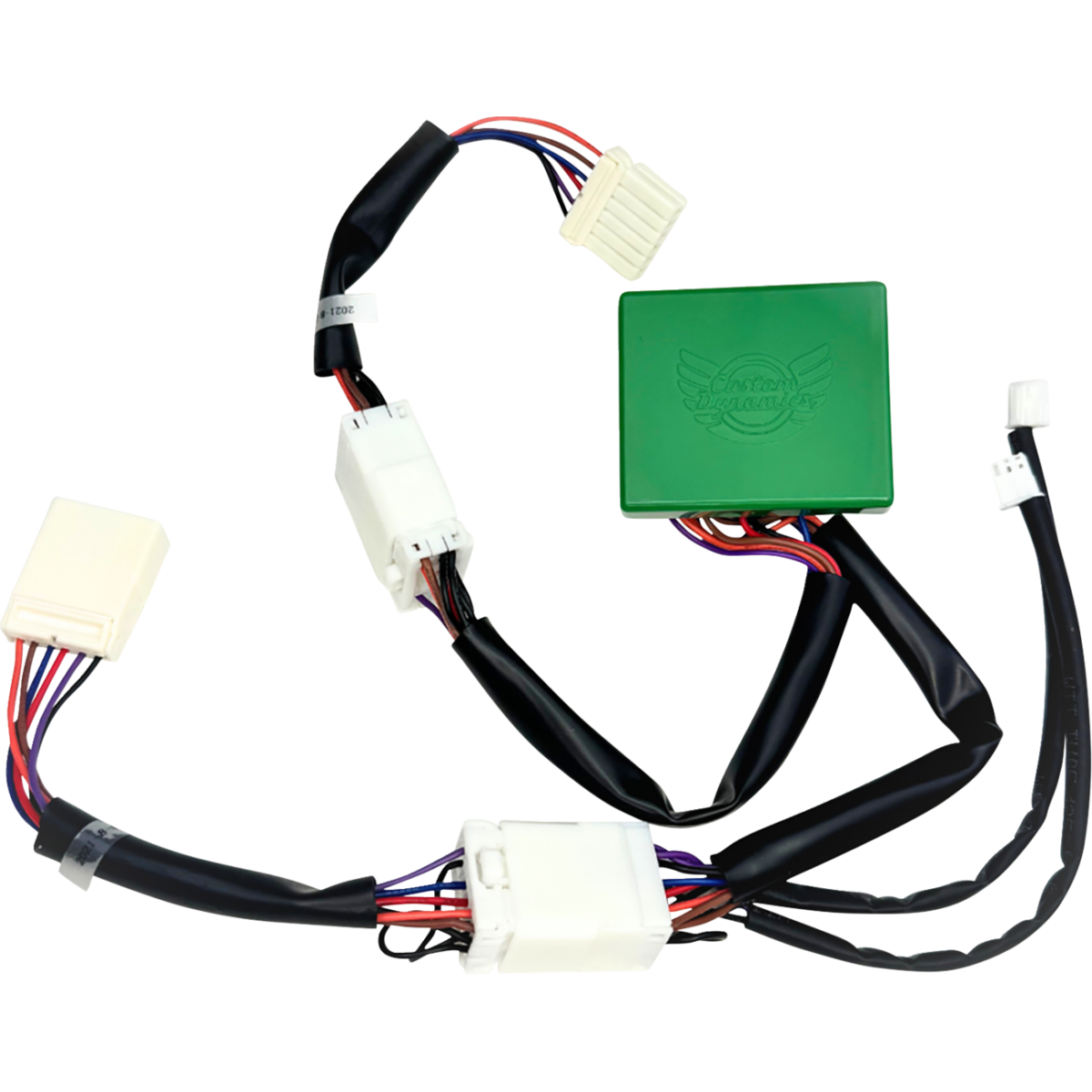

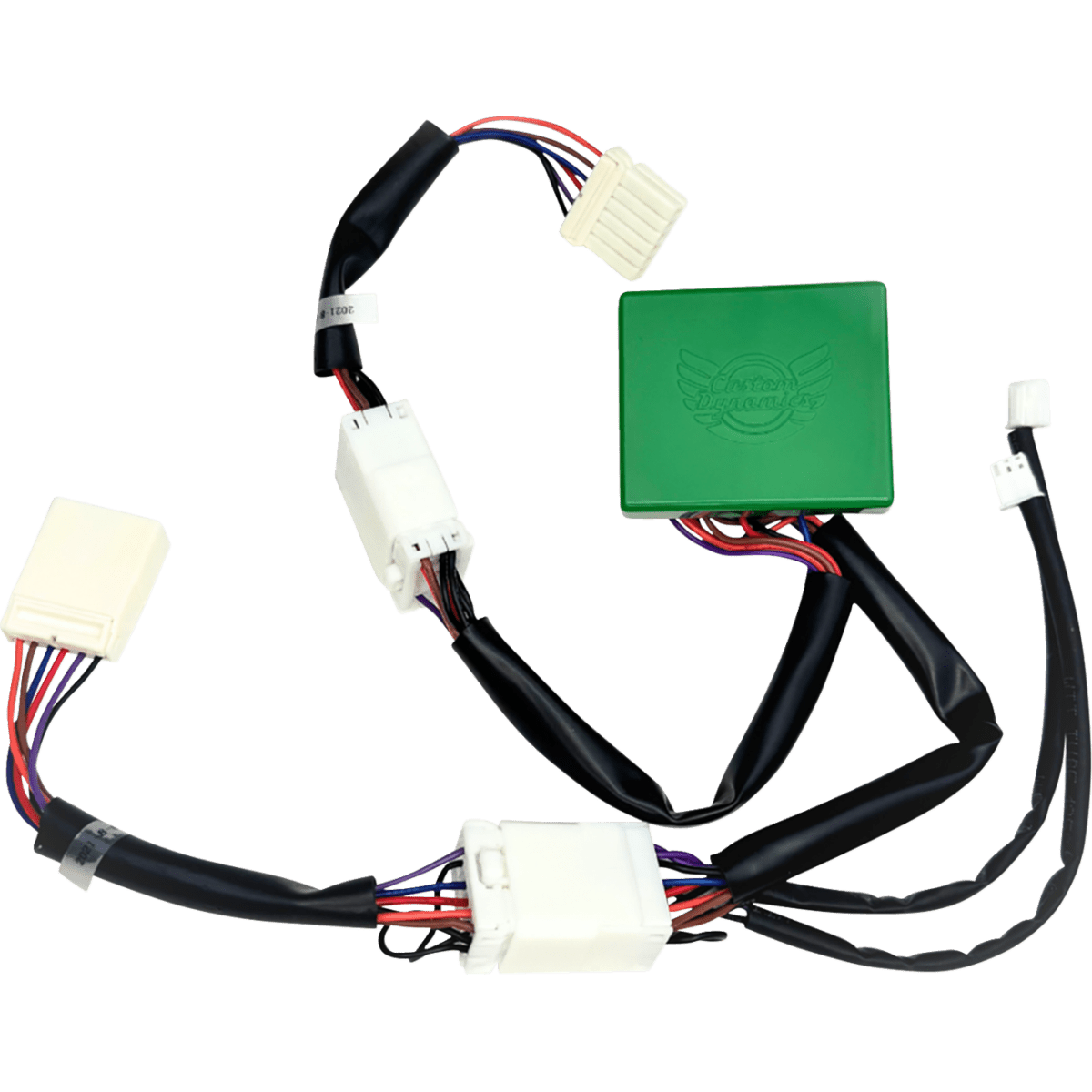

• '04-'16 Sportster for '12-'16 XL1200V, '11-'13 XL883L, '10-'12 XL1200X, '09-'12 XL883N, '07 XL50, '06-'11 XL1200L, '05-'10 XL883L, '05-'08 XL883R, '04-'13 XL1200C, '04-'09 XL883 and 883C, '04-'08 XL1200R

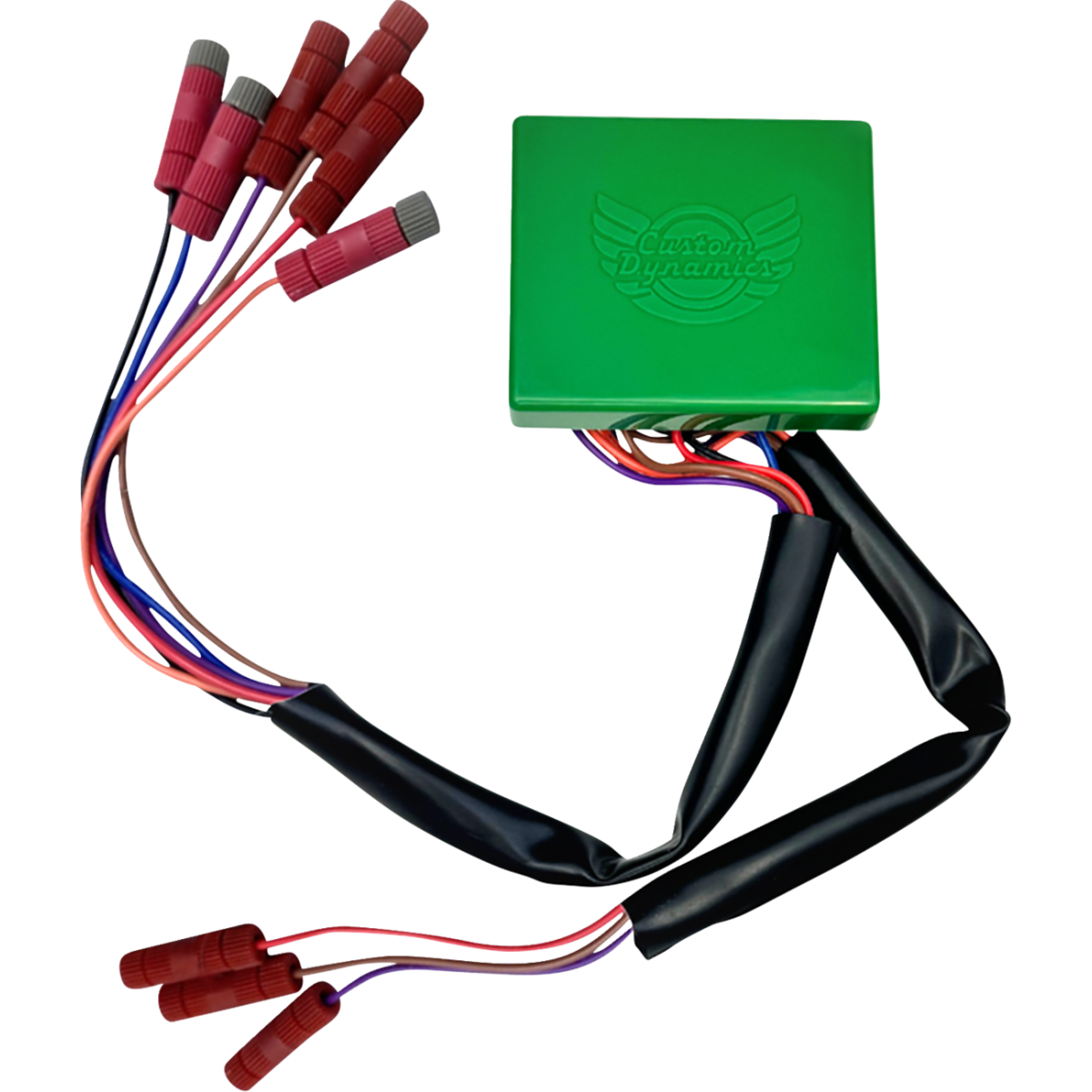

• XR1200 & V-Rod for '10-'12 XR1200X, '09-'10 XR1200, '07-'12 VRSCDX, '07-'10 VRSCAW, '07 VRSCX, '06-'08 VRSCD, '06-'07 VRSCR, '04-'05 VRSCB, '05-'06 VRSCSE, '02-'06 VRSCA

Works With

Adding lighting to a Tour-Pak rather than converting the bike's own turn signals? That takes the SMART Triple Play Module for add-on Tour-Pak lighting, which is a different unit.

⚠️ VERIFY your model and year against the list above before ordering. The modules are not interchangeable between families.
