REVO ARC Remote Reservoir FL Coil Suspension / '14 and Up FL

Legend REVO ARC Remote Reservoir Coil Suspension for '14 and up FL models uses 35 mm monotube shocks with separate compression and rebound adjusters.

The '14 and later touring chassis carries more weight and more electronics than the generations before it, and the stock rear shocks are tuned for an average rider on an average road. The REVO ARC replaces that compromise with adjustment: compression and rebound set independently, preload changed by hand in the time it takes to load a passenger.

How the REVO ARC Shocks Work

A 35 mm monotube body carries deflective disc valve stacks with a piston and base-valve design matched to these specific motorcycles. A nitrogen gas bladder gives ultra-fast response and stiction-free movement, while low friction seals and PTFE based sliding bearings keep that feel through the whole stroke. REVO's extended coil length widens the usable range without making the shock longer, so ride height is unaffected. Legend's touring specific spring rates underpin all of it.

REVO ARC Specifications

• Fits '14 and up Harley FL touring models
• 35 mm monotube construction
• Independent compression and rebound damping adjusters
• Deflective disc valve stacks with matched piston and base-valve design
• Nitrogen gas bladder for fast, stiction-free response
• Low friction sealing system with PTFE based sliding bearings
• Hand adjustable preload, no tools required
• Lengths: 13" or 14". Standard or heavy duty

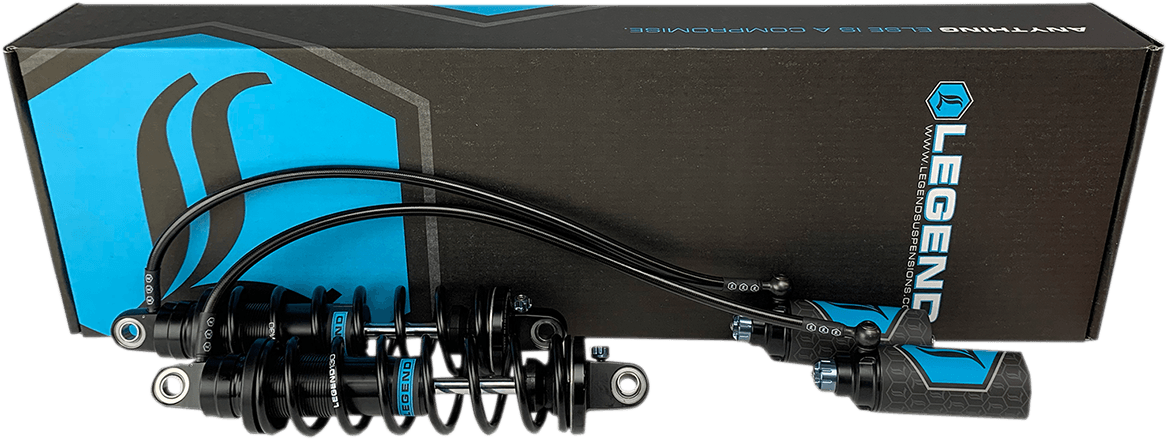

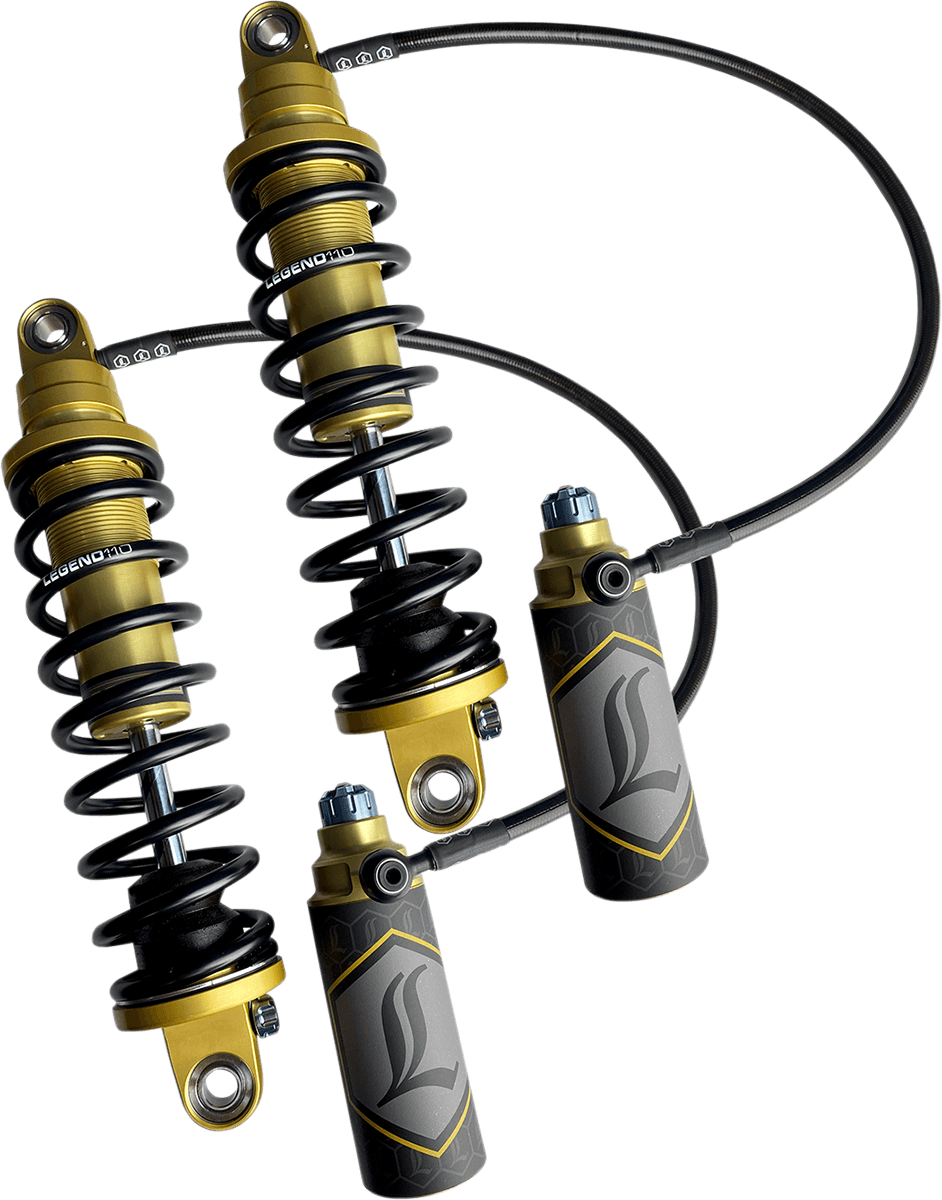

• Finishes: Black, Gold or Clear Type III hard-coat anodize
• Spherical bearings top and bottom for easy alignment
• Lifetime warranty, made by hand in Sturgis, SD

Choosing Standard or Heavy Duty

On FL models, heavy duty is recommended for 500 lbs and above of combined rider and passenger weight.

P65 WARNING: Cancer and Reproductive Harm.

⚠️ VERIFY your model year and required length before ordering.
