AXEOM8 Front Suspension System / M8

The Legend AXEO M8 Front Suspension System replaces the damping internals in 49 mm forks with mono-tube, dual-chambered cartridges.

Front end dive under braking is the clearest sign that stock fork damping has run out of range, and no amount of preload adjustment fixes it. The AXEO replaces the damping mechanism itself. Nitrogen chambers with internal floating pistons keep the oil under pressure so it damps consistently instead of aerating, which is what holds the front end up when you need it most.

What the AXEO System Changes

Two mono-tube, dual-chambered fork damping cartridges do the work, paired with performance fork spring rates. Machined 303 stainless steel threaded preload adjusters give a wider range of settings than stock, so the front end can be matched to rider weight and riding style rather than accepted as delivered. The result is a firm feel through high speed sweepers, controlled ride quality over rough surfaces, and an end to bottoming on large bumps or potholes. Less dive also means less floorboard and peg dragging.

AXEO M8 Specifications

• For M8 models with 49 mm front forks

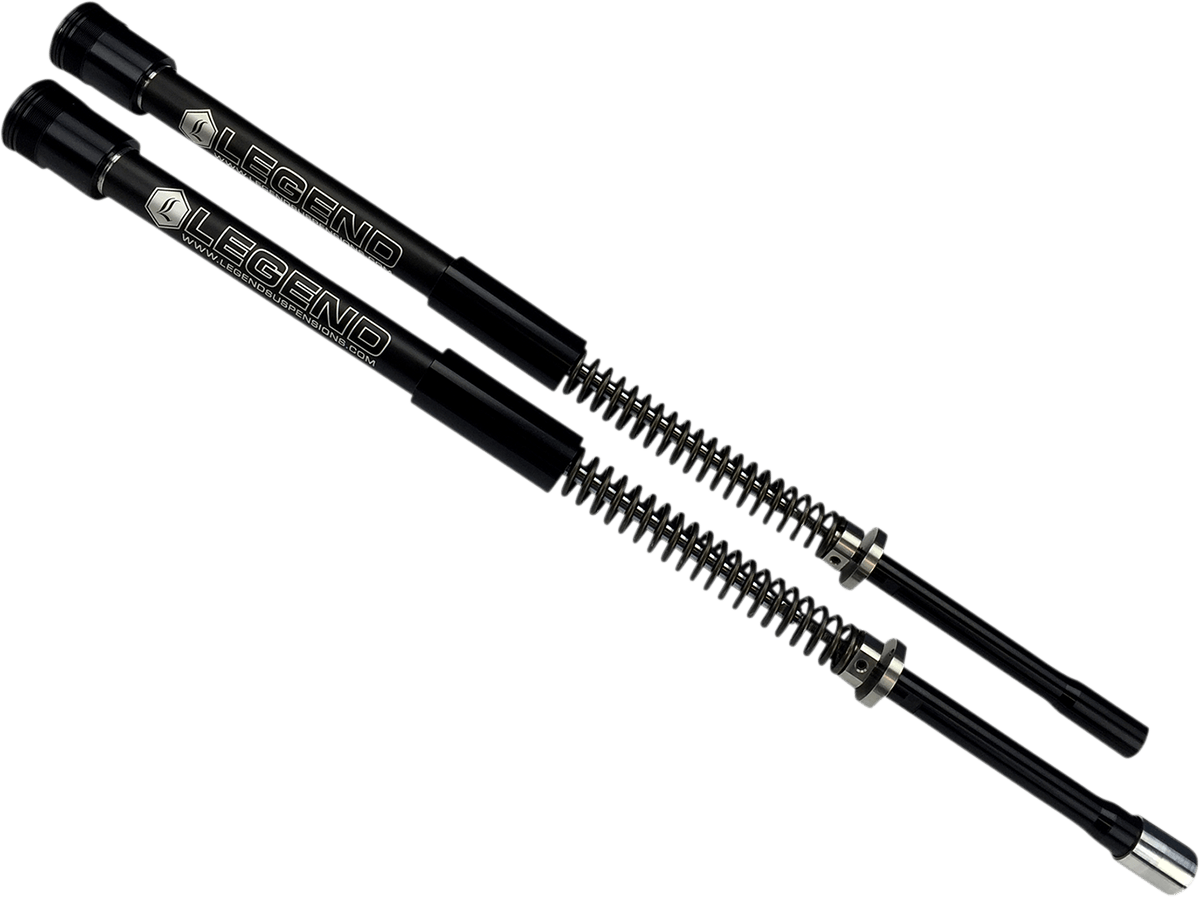

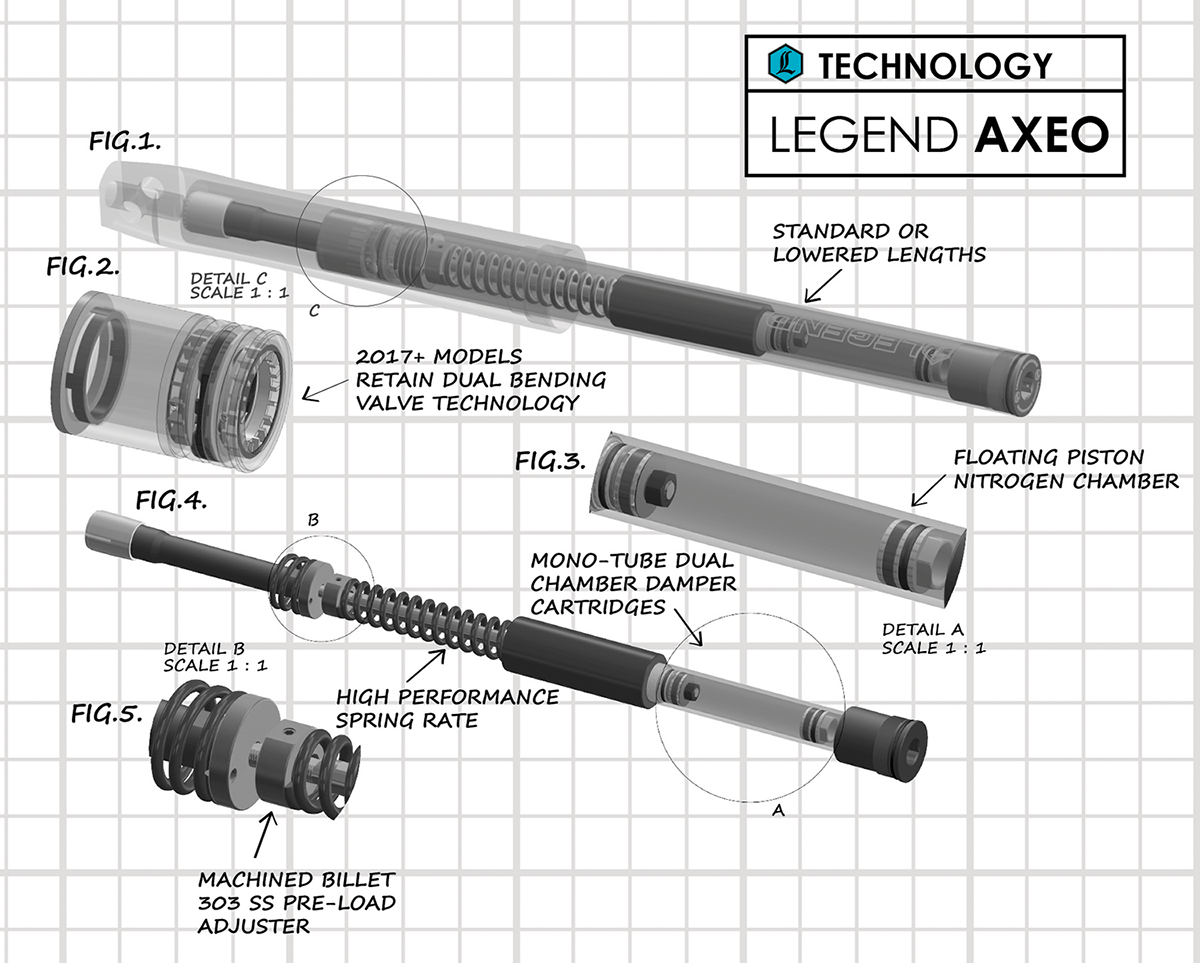

• Two mono-tube, dual-chambered fork damping cartridges
• Nitrogen chambers with internal floating pistons
• Machined 303 stainless steel threaded preload adjusters
• Performance fork spring rates
• Standard height
• Lifetime warranty
• Made by hand in Sturgis, South Dakota

Designed to work alongside Legend rear suspension systems. ⚠️ VERIFY your fork diameter and model year before ordering.
