AXEO21 Front Suspension System / '14 and Up FLH

The Legend AXEO21 Front Suspension is built for '14 and up FLH baggers running a 21 inch front wheel on 49mm forks.

A 21 inch front wheel changes front end geometry, and suspension tuned for a stock wheel does not account for it. The AXEO21 is the version Legend sizes for that setup. It includes top out springs alongside the damper cartridges, and on '17 and later bikes it retains Harley's Dual Bending Valve technology in the stock upper fork tubes rather than discarding it.

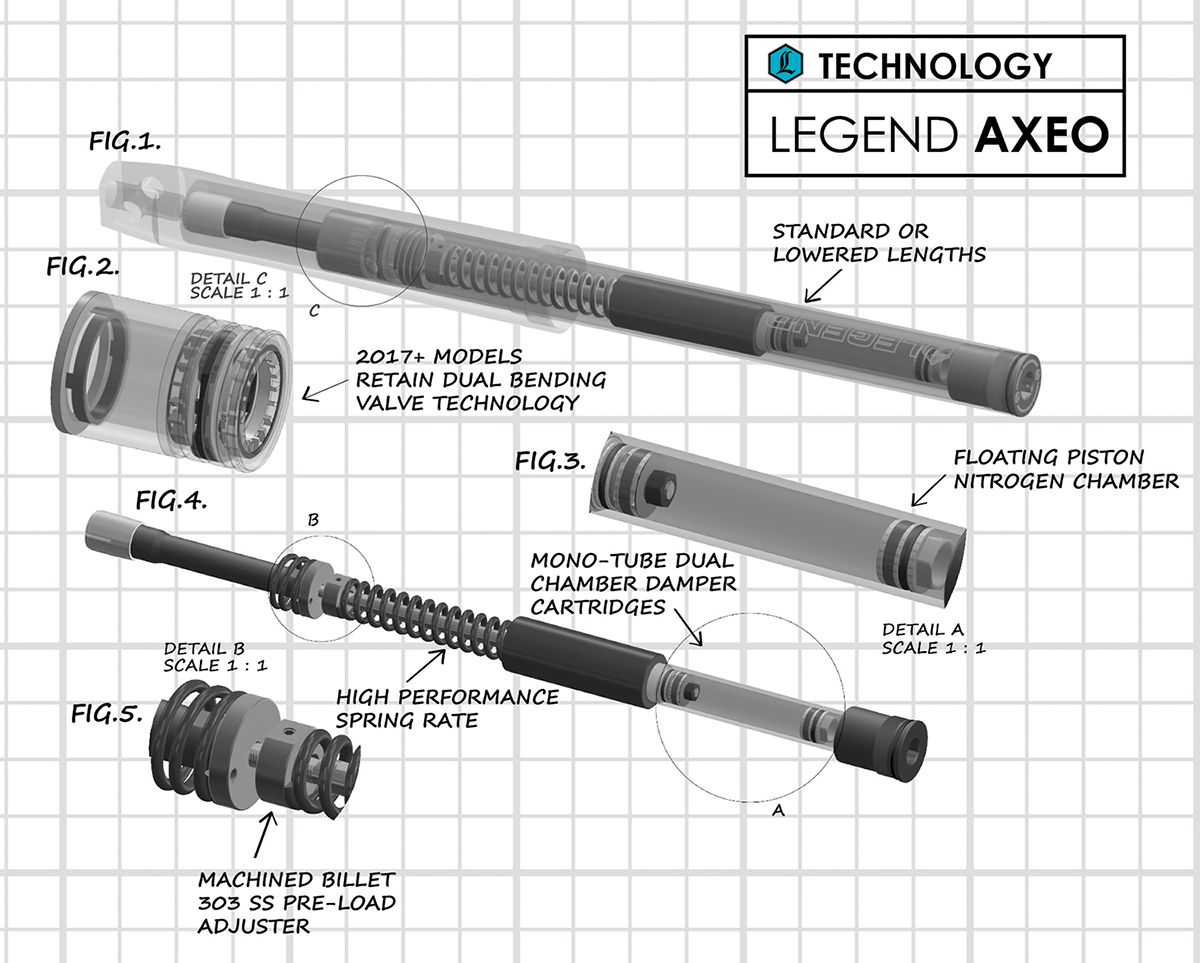

How the AXEO21 System Works

Two mono-tube, dual chambered damper cartridges carry the damping, paired with two top out springs and a performance spring rate. A machined 303 stainless preload adjuster gives an increased range for tuning to weight and riding style. The result is controlled ride quality, stability and traction, no dive under braking, and no bottoming on large bumps. Lifetime warranty, made by hand in Sturgis.

AXEO21 Specifications

• Fits '14 and up FLH baggers with 49mm forks and a 21" front wheel

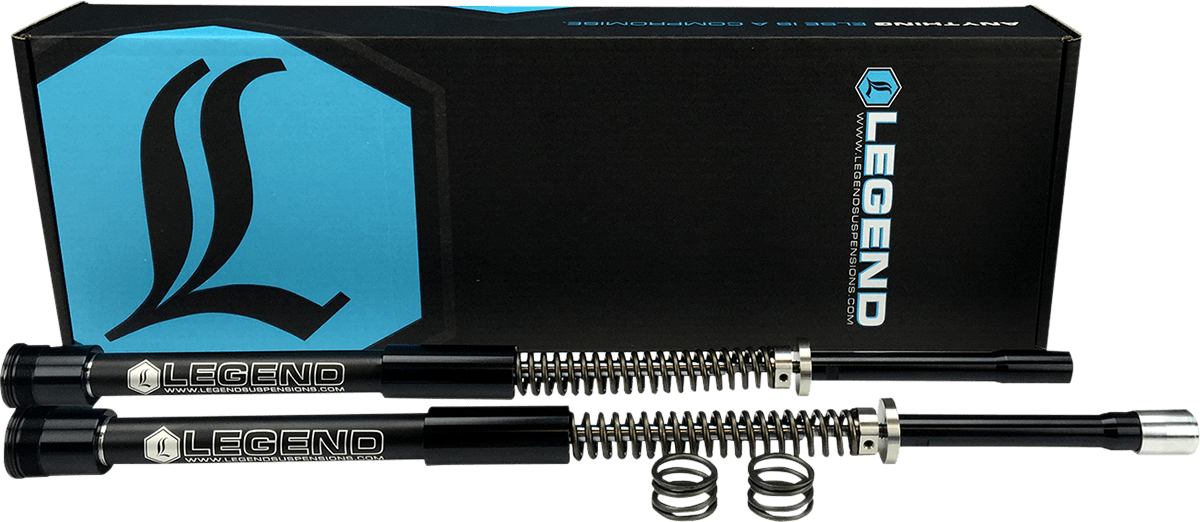

• Includes two mono-tube, dual chambered damper cartridges and two top out springs
• Performance spring rate
• Machined 303 stainless steel threaded preload adjuster
• '17 and later retains Harley Dual Bending Valve technology in stock upper tubes
• Eliminates front end dive, firm through high speed sweepers
• Eliminates bottoming, reduces floorboard and peg dragging
• Designed to work with Legend rear suspension
• Lifetime warranty, made by hand in Sturgis, SD

⚠️ VERIFY your front wheel size and model year before ordering, since this version is specific to a 21" front wheel. A CVO Road Glide '18 and up option is offered.
