AXEO Front Suspension System / '10-'17 FXDWG

The Legend AXEO Front Suspension for the '10-'17 Dyna Wide Glide replaces the 49mm fork internals with performance cartridges, for stock diameter front wheels.

The Wide Glide runs a specific front end, and this AXEO is cut for it with stock diameter wheels in mind. It is the straightforward version of the system: no lift, no 21 inch wheel accommodation, just a damping upgrade that replaces what the factory fork does poorly under hard riding with something adjustable and controlled.

How the AXEO System Works

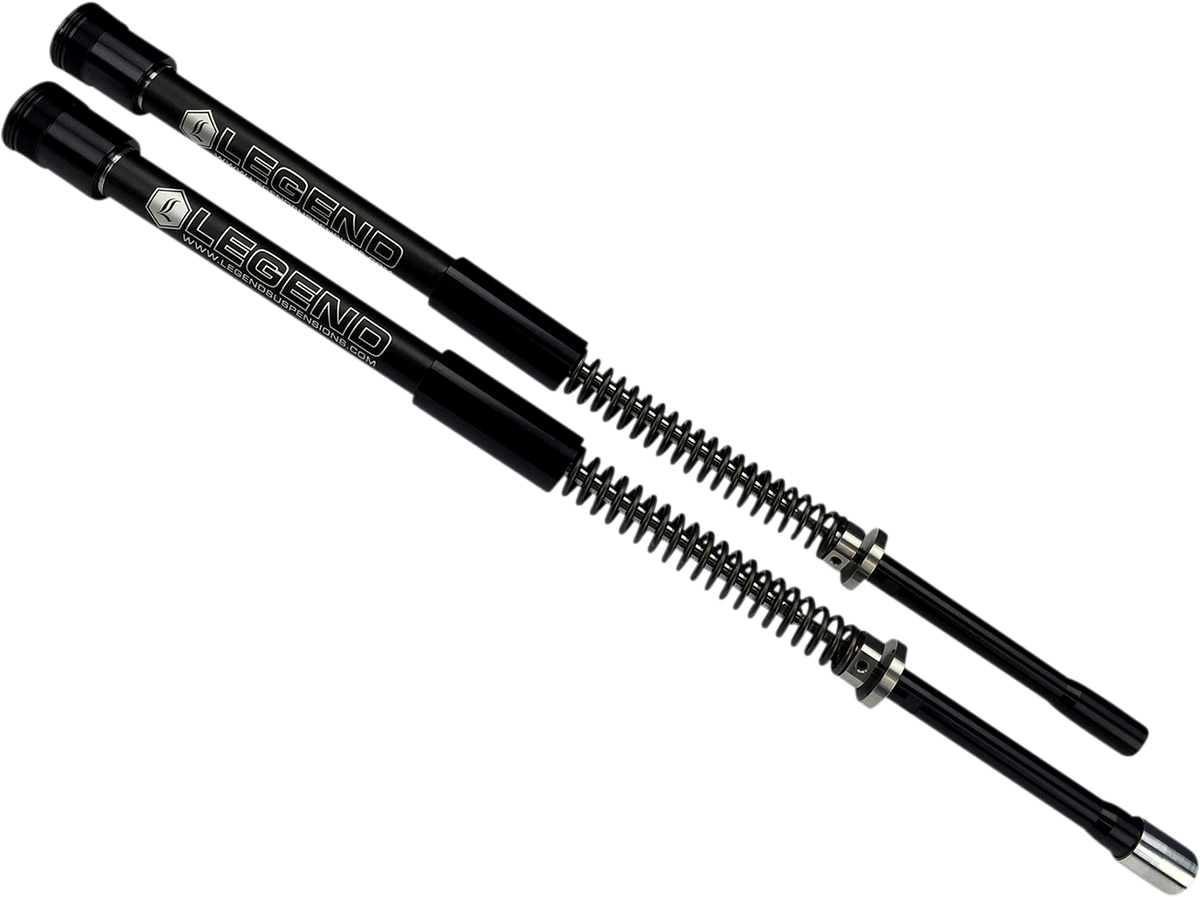

Two mono-tube, dual chambered damper cartridges and two top out springs handle the damping, on a performance spring rate. A machined 303 stainless threaded preload adjuster provides the range to tune for rider weight and style. Front end dive under braking is eliminated, the front stays firm through sweepers, and bottoming on large bumps is stopped. Made by hand in Sturgis.

AXEO Wide Glide Specifications

• Fits '10-'17 FXDWG Dyna Wide Glide, 49mm
• Designed for stock diameter front wheels
• Two mono-tube, dual chambered damper cartridges and two top out springs
• Performance spring rate
• Machined 303 stainless steel threaded preload adjuster
• Eliminates front end dive, firm through high speed sweepers
• Eliminates bottoming, reduces floorboard and peg dragging
• Designed to work with Legend rear suspension
• Made by hand in Sturgis, SD

This product is NOT designed for use with 21" and 23" wheels. ⚠️ VERIFY your front wheel diameter and model year before ordering.
