AXEO+2 (+2" Raised) 49 mm Front Suspension / '06-'17 Dyna

The Legend AXEO+2 49mm Front Suspension raises a '06-'17 Dyna front end 2 inches on a 49mm fork, with performance damping cartridges.

This is the 49mm Dyna version of the raised AXEO, and it suits a rider who wants both more front end height and better control from a Dyna's fork. The 2 inch lift changes the stance and the geometry, while the cartridge set underneath addresses the damping shortfall that stock Dyna forks show under hard use.

How the AXEO+2 System Works

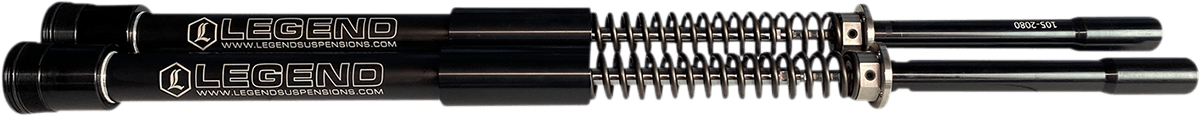

Two mono-tube, dual chambered damper cartridges use nitrogen chambers with internal floating pistons to keep damping consistent as heat builds. A machined 303 stainless threaded preload adjuster gives a broad range for tuning to rider weight and style, on a performance spring rate. Front end dive under braking is eliminated, the front stays firm through fast sweepers, and bottoming on large bumps is stopped. Lifetime warranty, made by hand in Sturgis.

AXEO+2 49mm Specifications

• Fits '06-'17 Dyna, 49mm, raised 2 inches
• Two mono-tube, dual chambered damper cartridges
• Nitrogen chambers with internal floating pistons
• Performance spring rate
• Machined 303 stainless steel threaded preload adjuster
• Increased preload range for tuning to rider weight and style
• Eliminates front end dive under braking, firm through high speed sweepers
• Eliminates bottoming on large bumps, reduces floorboard and peg dragging
• Designed to work with Legend rear suspension
• Made by hand in Sturgis, SD
• Lifetime warranty

P65 WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov

⚠️ VERIFY your model year and fork diameter before ordering.
