AIR-A Adjustable Air Suspension / '04-'13 Sportster
Tax excluded. Shipping calculated at checkout
Ships within 24 hrs. Arrives within 1 - 5 days depending on location

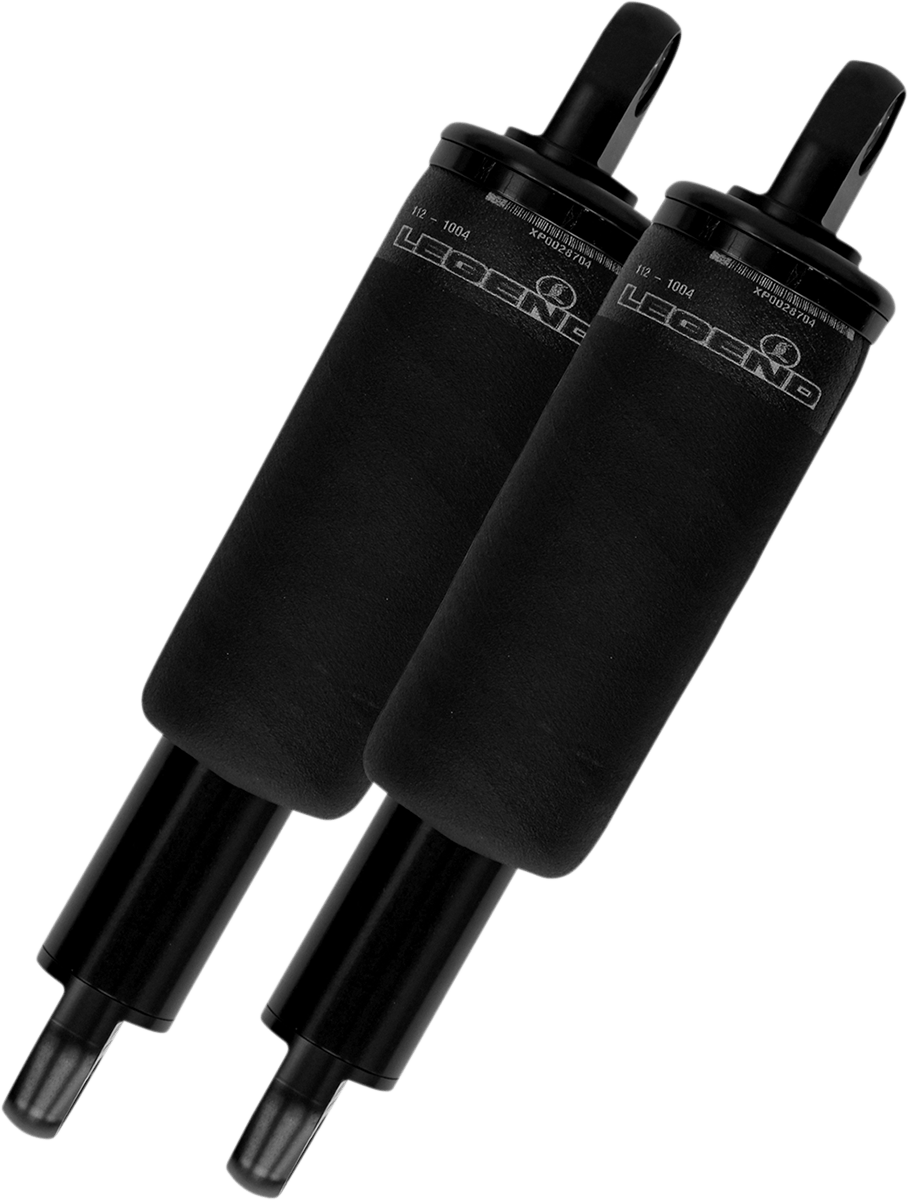

Adjustable air suspension system from Legend with on the fly ride height control for '04-'13 Sportsters.
Air suspension is the rare upgrade that improves the ride and the stance at the same time. Legend's AIR-A uses exclusive Aramid Fiber air spring technology to make spring rate adjustable, maximizing wheel travel while letting you set any ride height from the handlebar mounted control. Inside the hard anodized aluminum bodies, low friction seals eliminate stiction, a High Flow Piston reacts instantly, and Deflective Disc Valved Damping self adjusts to road frequency. Six external knob positions fine tune rebound for rider weight and style, and the included air compressor arrives pre-wired with model specific mounting and a NAMZ/Legend harness that connects with three Deutsch connectors. Made in the U.S.A.
Features
- Exclusive Aramid Fiber air spring technology with adjustable spring rate
- Air springs maximize wheel travel and set any desired ride height
- Fitment accommodates 12" and 13" shock length needs
- Spherical mount bearings top and bottom
- Hard anodized machined aluminum bodies
- Low friction seals eliminate stiction
- High Flow Piston improves fluid flow management
- Deflective Disc Valved Damping self adjusts to frequency
- Six external knob adjustments fine tune rebound damping for any rider weight or style

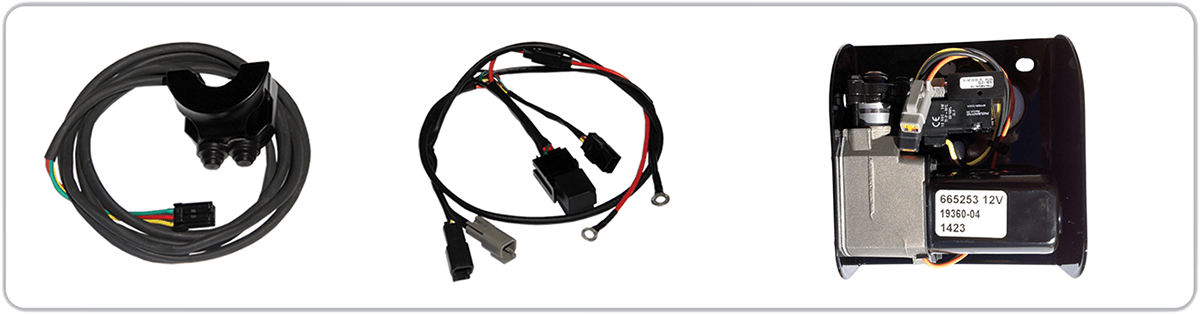

- Air compressor included, pre-wired with model specific mounting
- NAMZ/Legend complete wire harness with three Deutsch connectors
- OEM style black handlebar mounted control included; chrome optional
- Made in the U.S.A.
Fitment
Fits '04-'13 Sportster models. Does not fit the 883L or Sportster SuperLow.
Frequently Asked Questions
Can I adjust it while riding?
Yes. The handlebar mounted control adjusts ride height on the go, with the included compressor doing the work.
Is the wiring complicated?
No. The compressor comes pre-wired with model specific mounting, and the NAMZ/Legend harness connects with three Deutsch connectors.
Will it work for my weight?
Between the adjustable air spring rate and six rebound settings, light to heavy riders can tune the ride to preference.
