Air-A Adjustable FL Air Suspension / '15-'21 FLTRX / U / K

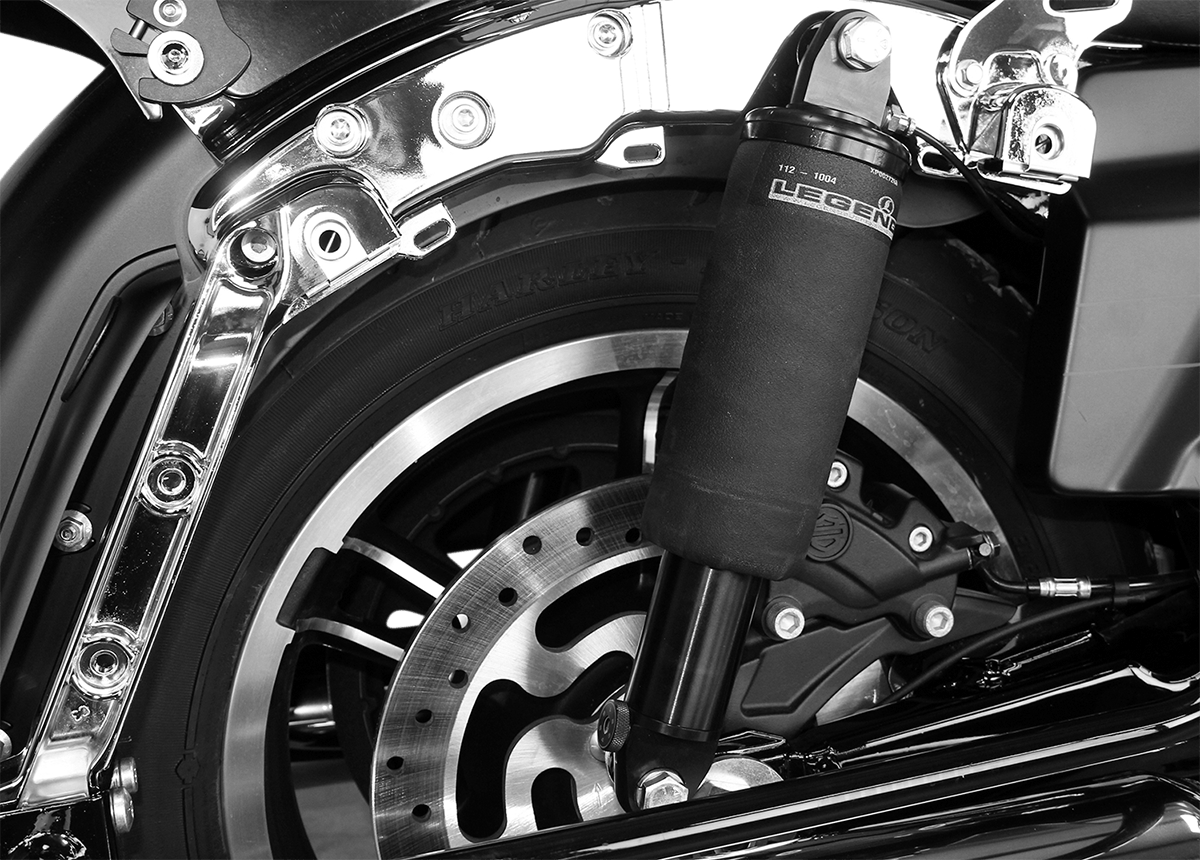

Legend Air-A Adjustable FL Air Suspension for '15-'21 Road Glide models adjusts ride height from the handlebars using Aramid fiber air springs.

A Road Glide carries its weight differently from a batwing bagger, and the ride height you want loaded is not the one you want at a stop light. Air suspension resolves that from the bars rather than from the garage. Aramid fiber air springs adjust spring rate on the move and maximize wheel travel while letting you set any ride height in the range.

How the Air-A System Works

Six external knob adjustments fine tune rebound damping, which covers riders from light to heavy and styles from casual to aggressive on the same hardware. Deflective disc valved damping self adjusts to frequency, so sharp impacts and long swells get treated differently. A high flow piston reacts quickly to fluid movement, low friction seals eliminate stiction, and hard anodized machined aluminum bodies carry it all. Spherical mount bearings top and bottom let the shock float rather than bind.

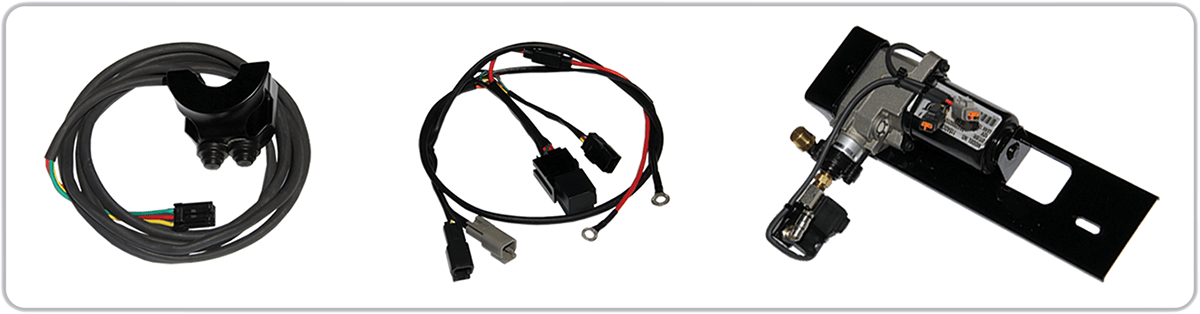

The air compressor ships pre-wired on model specific mounting, with a NAMZ and Legend wire harness using three Deutsch connectors. Fitment accommodates both 12" and 13" requirements. Made in the USA.

Air-A FLTRX Specifications

• Fits '15-'21 FLTRX, FLTRU and FLTRK

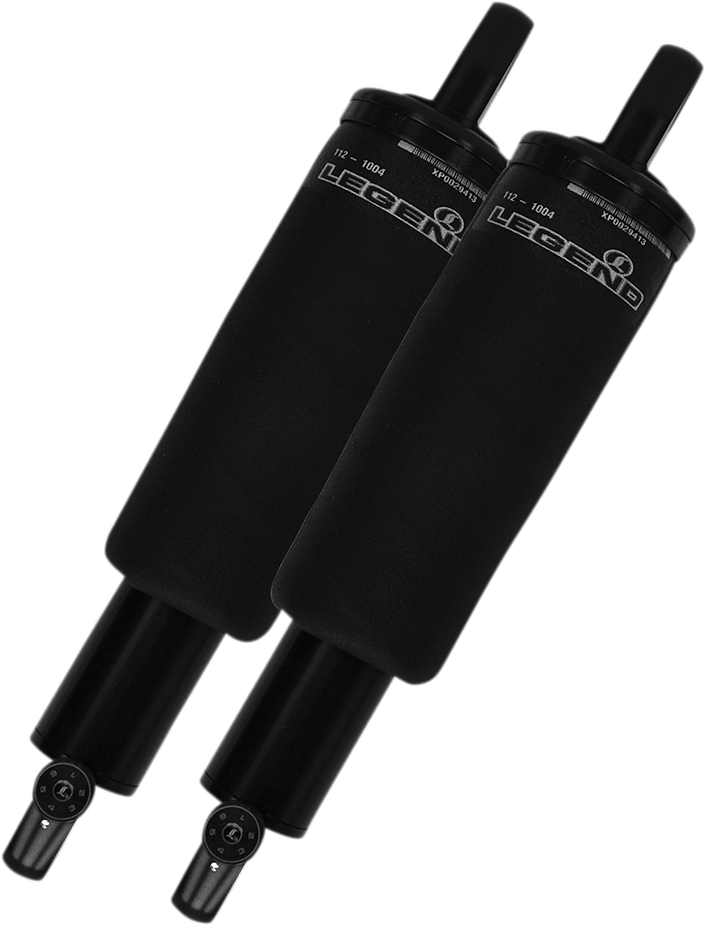

• Aramid fiber air spring with adjustable spring rate
• Accommodates 12" and 13" fitment needs
• Six external knob rebound adjustments
• Deflective disc valved damping, self adjusting to frequency
• Hard anodized machined aluminum bodies, low friction seals
• Spherical mount bearings top and bottom
• Pre-wired air compressor on model specific mounting
• NAMZ and Legend harness with three Deutsch connectors
• Handlebar mounted control: black or chrome
• Made in the USA

Optional Additions

An optional chrome handlebar control is available separately, part 0616-0207. Optional fairing mounted matching gauges are available under parts 2212-0484, 2212-0485, 2212-0492, 2212-0493 and 2212-0494.

⚠️ VERIFY your exact model and year against the fitment guide before ordering.
