Air-A Adjustable FL Air Suspension / '99-'22 FL

Legend Air-A Adjustable FL Air Suspension covers '99-'22 FL touring models, replacing the rear shocks with an air system controlled from the handlebars.

This is the broadest fitment in the Legend air lineup, spanning more than two decades of FL touring chassis. That range is the reason to note it: an owner of a '99 Road King and an owner of a '22 Street Glide are shopping the same part. Aramid fiber air springs handle spring rate adjustment on the move, and ride height becomes a button rather than a wrench.

How the Air-A FL System Works

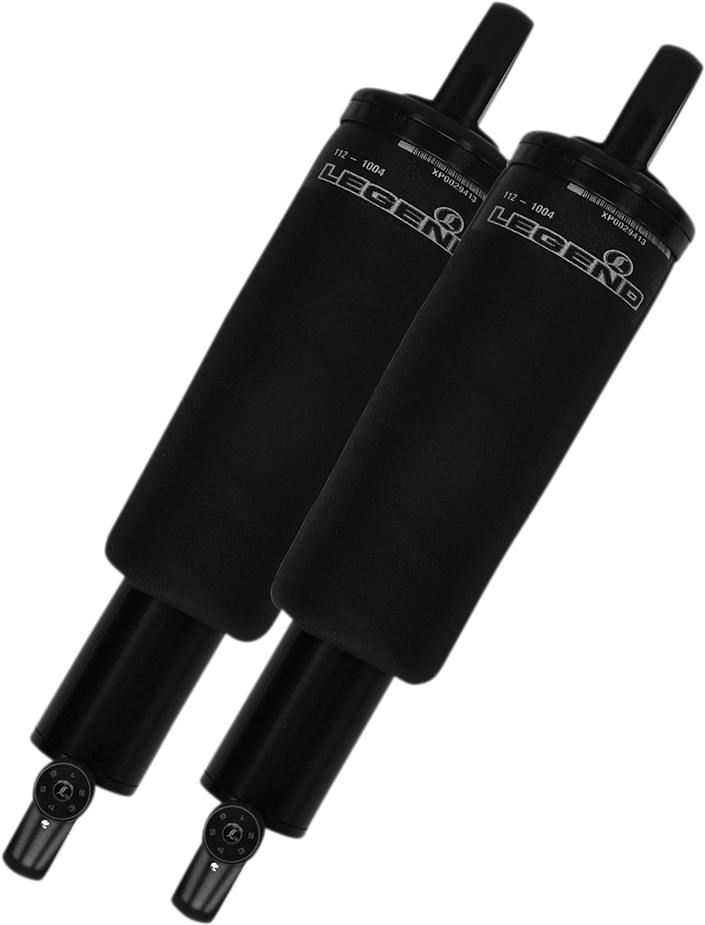

Air springs maximize wheel travel while allowing any ride height in the range, which matters most when the bike goes from solo to two up with luggage. Six external knob adjustments dial rebound damping to rider weight and riding style. Deflective disc valved damping self adjusts to frequency, a high flow piston manages fluid movement quickly, and Legend's low friction seals remove stiction from the stroke. Hard anodized machined aluminum bodies and spherical mount bearings top and bottom complete the assembly.

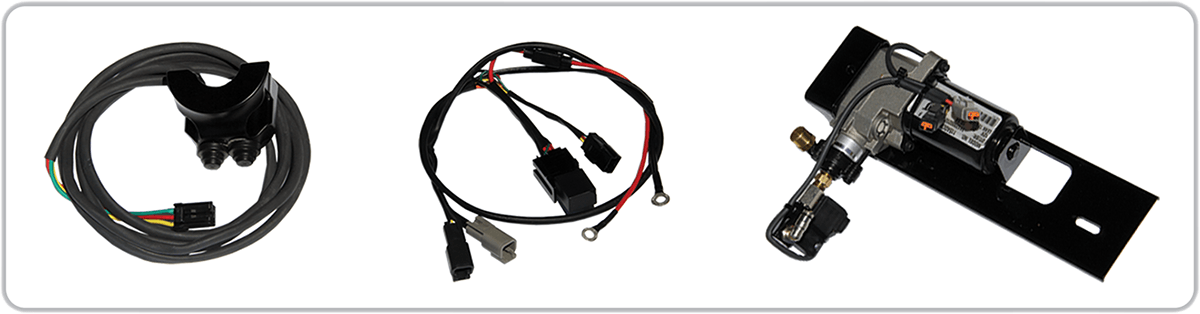

The air compressor arrives pre-wired on model specific mounting, with a complete wire harness using three Deutsch connectors and an OEM looking handlebar mounted control. Made in the USA.

Air-A FL Specifications

• Fits '99-'22 Harley FL touring models
• Aramid fiber air spring with on the go spring rate adjustment
• Six external knob rebound adjustments
• Deflective disc valved damping, self adjusting to frequency
• High flow piston, low friction seals
• Hard anodized machined aluminum bodies
• Spherical mount bearings top and bottom
• Pre-wired air compressor on model specific mounting
• Complete wire harness with three Deutsch connectors
• Handlebar mounted control
• Made in the USA

⚠️ VERIFY your exact model and year against the fitment guide before ordering, since a fitment range this wide covers several different chassis generations.
