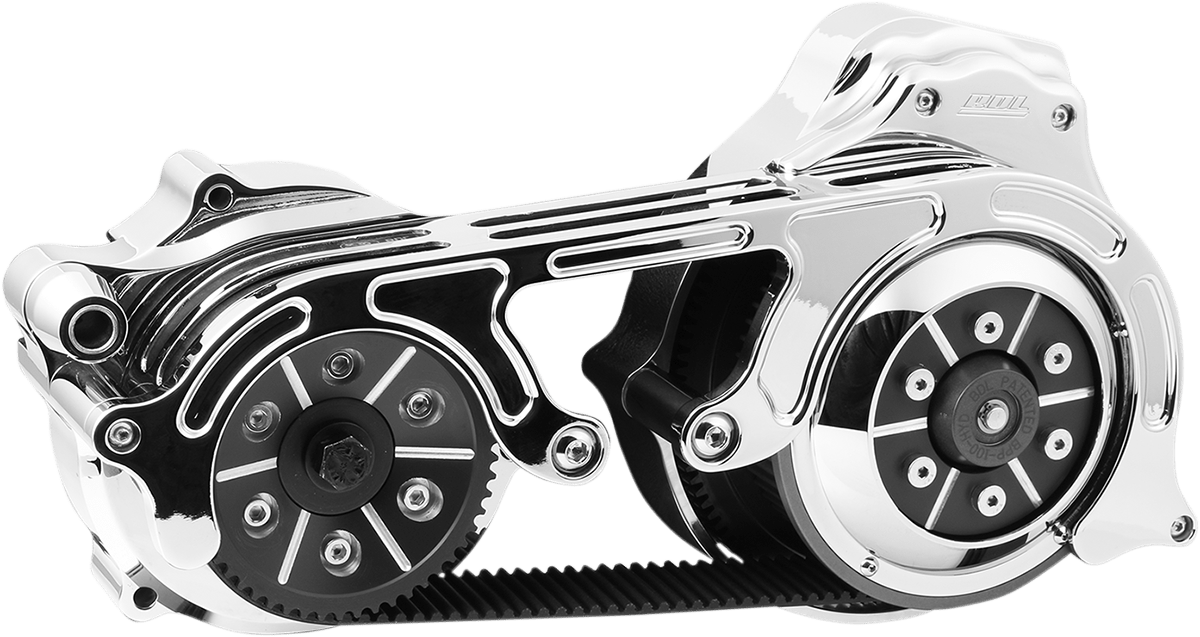

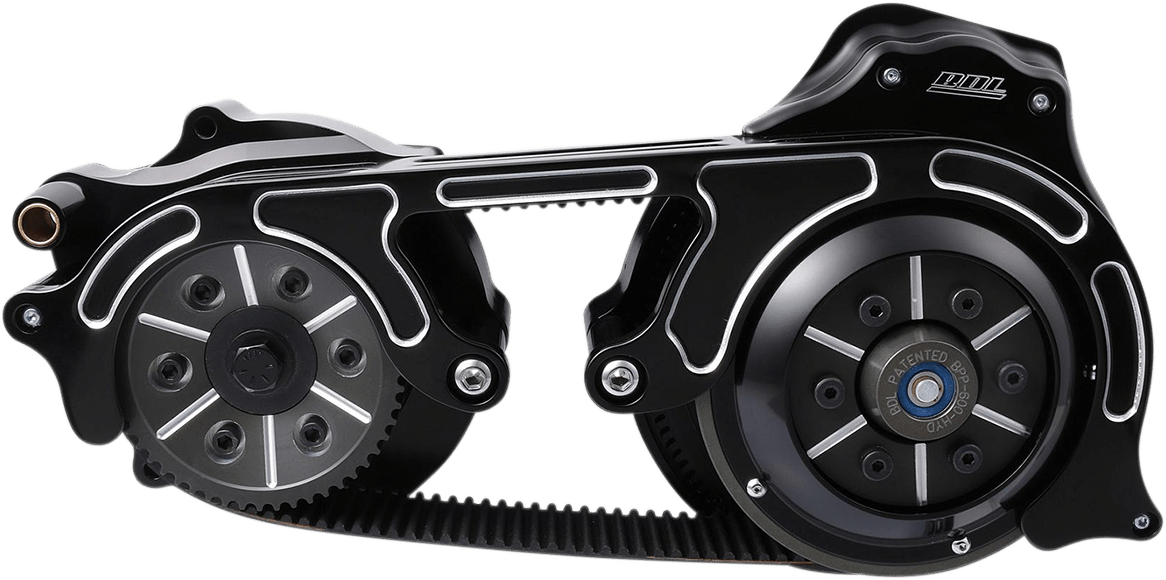

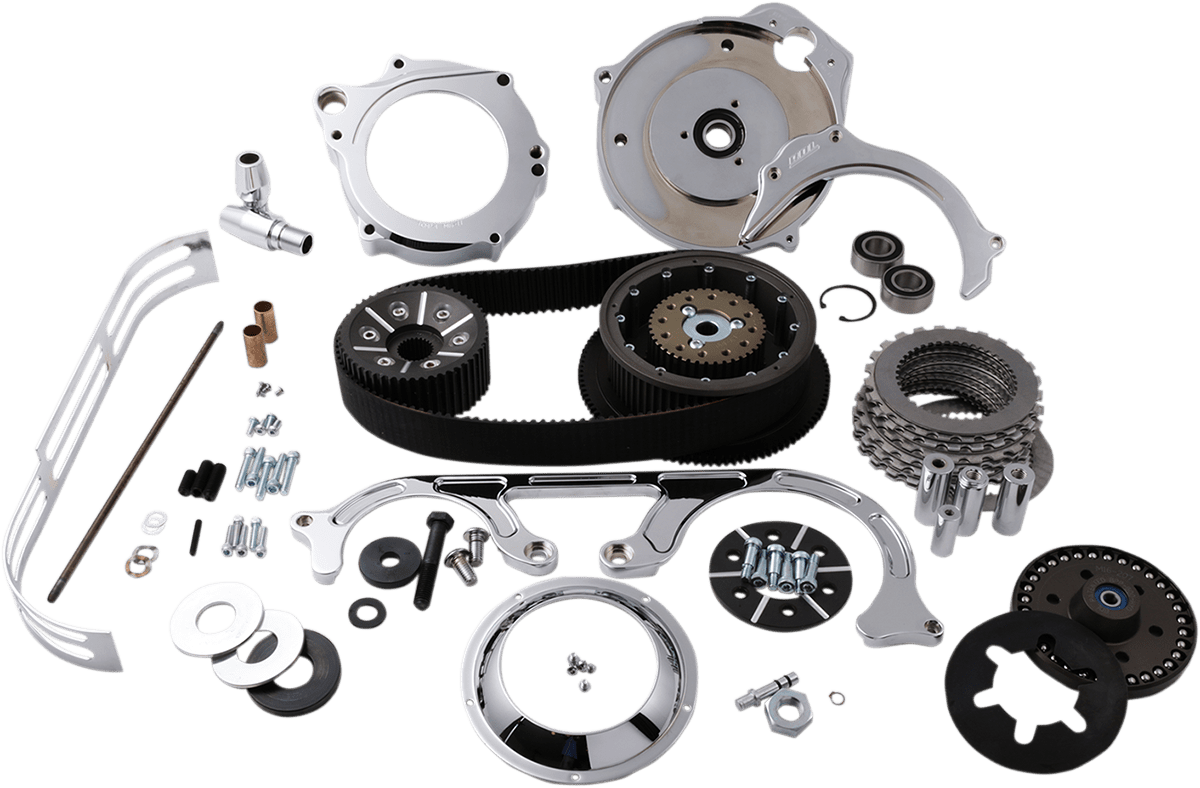

2" Open Belt Drive Kit with 2-Piece Motor Plate / '14-'16 Bagger

2" open belt drive kit with a two-piece motor plate for '14-'16 hydraulic clutch Harley baggers.

Open primaries used to be a chopper thing. BDL brought them to the modern bagger with kits like this one, matching a two-piece motor plate to a 2" belt and 52/69 pulley set for a 1.32:1 final drive ratio. The 6-bolt diaphragm clutch runs enhanced springs and a ball bearing pressure plate for lockup that holds behind serious power. Offered in chrome or black. Fits '14-'16 FLHT, FLHR, and FLTRX models with hydraulic clutch, except FLHTCUL and FLHTKL.

Features

• 2" primary belt with 52/69 pulley combination for a 1.32:1 final drive ratio
• Belt profiles are unique to each kit; pulleys are matched to the belt and may not be interchanged
• Front pulley face and spring collar carry a matching pattern to the rear pulley
• Counterbored front pulley cover for a clean face
• 6-bolt diaphragm clutch for a firmer feel and improved appearance
• Ball bearing pressure plate
• Enhanced springs and spring collar for positive lockup engagement behind big inch, high horsepower motors
• Side and top belt guard included for the open dome look
• Made in the U.S.A.

Frequently Asked Questions

Can I mix pulleys between BDL kits?
No. Belt profiles are unique to each kit, so the pulleys are matched to the belt and cannot be interchanged.

Will it hold up behind a big motor?
Yes. The enhanced springs and spring collar are designed for positive lockup engagement on big inch, high horsepower builds.

Does it work with my clutch?
This kit is built for '14-'16 FLHT / FLHR / FLTRX models with hydraulic clutch, except FLHTCUL and FLHTKL. Match the kit to your model years and clutch type before ordering.
