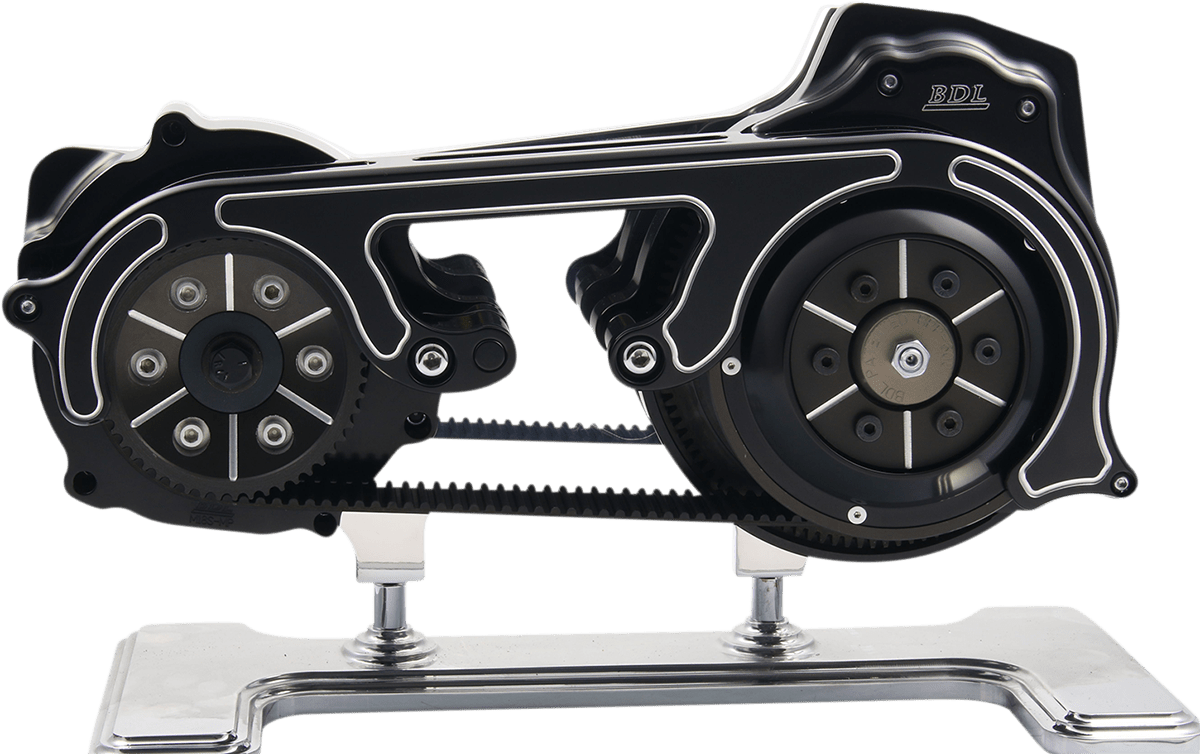

2" Open Belt Drive / '18-'20 Softail

2" open belt drive with a two-piece motor plate for '18-'20 M8 Softail models.

Show the belt. BDL brings the open primary look to the M8 Softail with a two-piece motor plate design, a 2" belt on a 52/69 pulley combination, and a 6-bolt diaphragm clutch with enhanced lockup engagement. The counterbored front pulley cover and matching pulley patterns keep the presentation as sharp as the engineering. Fits '18-'20 Softail models except FXFB, FXBR, and FXDRS.

Features

• 2" primary belt with 52/69 pulley combination for a 1.32:1 final drive ratio
• Belt profiles are unique to each kit; pulleys are matched to the belt and may not be interchanged
• Front pulley face and spring collar carry a matching pattern to the rear pulley
• Counterbored front pulley cover for a clean face
• 6-bolt diaphragm clutch for a firmer feel and improved appearance
• Ball bearing pressure plate
• Enhanced springs and spring collar for positive lockup engagement behind big inch, high horsepower motors
• Side and top belt guard included for the open dome look
• Made in the U.S.A.

Frequently Asked Questions

Can I mix pulleys between BDL kits?
No. Belt profiles are unique to each kit, so the pulleys are matched to the belt and cannot be interchanged.

Will it hold up behind a big motor?
Yes. The enhanced springs and spring collar are designed for positive lockup engagement on big inch, high horsepower builds.

Does it work with my clutch?
This kit is built for '18-'20 Softail models except FXFB, FXBR, and FXDRS. Match the kit to your model years and clutch type before ordering.
