Memphis Shades Sportshield Trigger-Lock Mount Kit
Tax excluded. Shipping calculated at checkout
Ships within 24 hrs. Arrives within 1 - 5 days depending on location
The mount kit that makes a Memphis Shades Sportshield windshield work on your bike.
Memphis Shades sells the windshield and the mounting hardware separately, because the shield is universal and the mount is not. This is the mount. Without it the windshield has nothing to attach to.
The No Tool Trigger-Lock system is the reason people run these. A pair of latches hold the shield down until you deliberately disengage the spring loaded triggers, and then the whole windshield lifts off in seconds. No tools, no fasteners to lose, no relearning the angle every time. The hardware is fully adjustable so you can set the rake once and leave it.
Kits are a combination of CNC machined aluminum plates, stainless steel bolts and aluminum anchors, or the same parts black E coated. Each kit is cut for one family of bikes, so pick the line that matches yours.
Sportshield Trigger-Lock Mount Kit Fitment

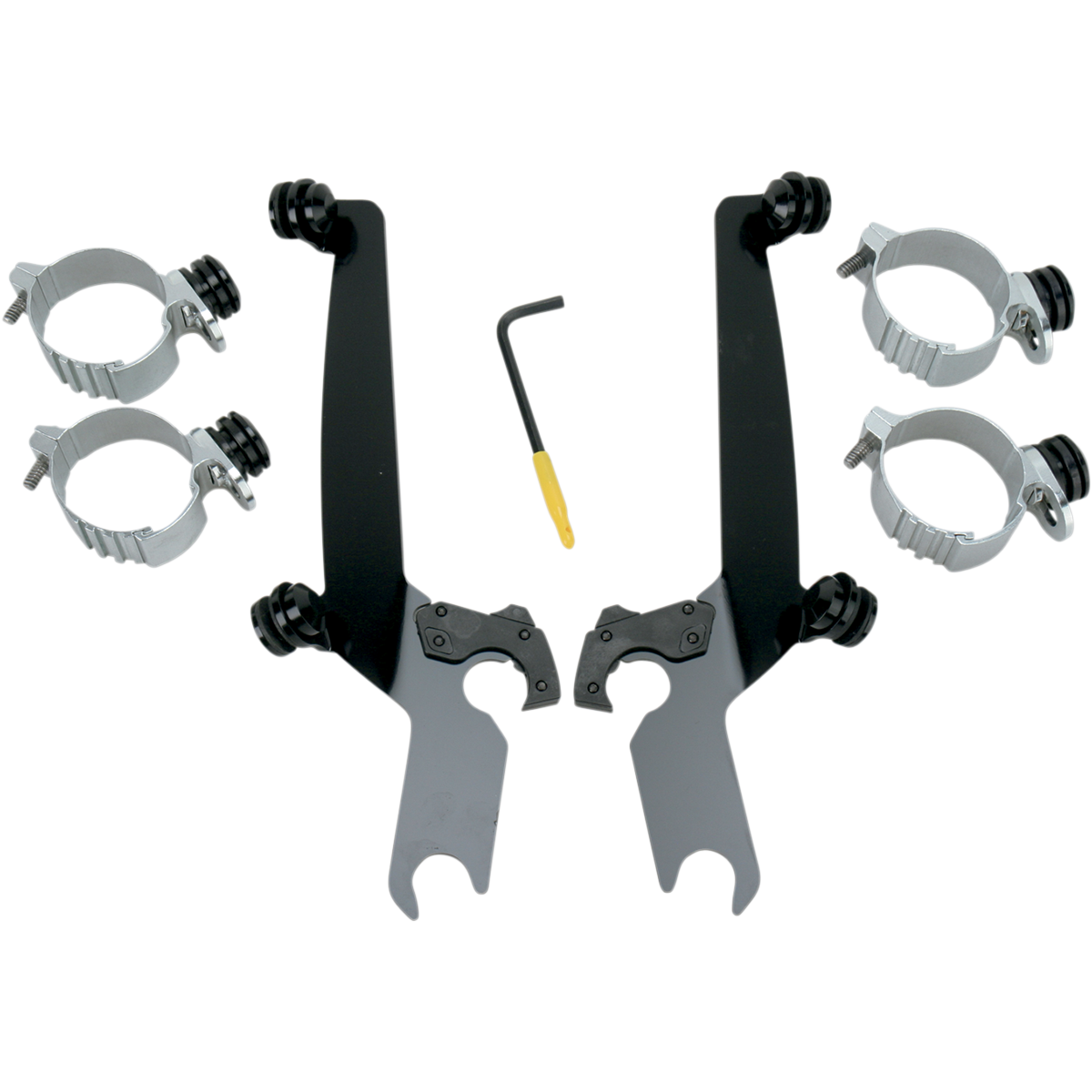

- 18-25 FXBB/S, 18-20 FXLR, 20-24 FXST, 08-11 FXCW/FXCWC, 06-17 FXD/FXDC/FXDB/FXDI35: polished 2320-0030, black 2320-0075

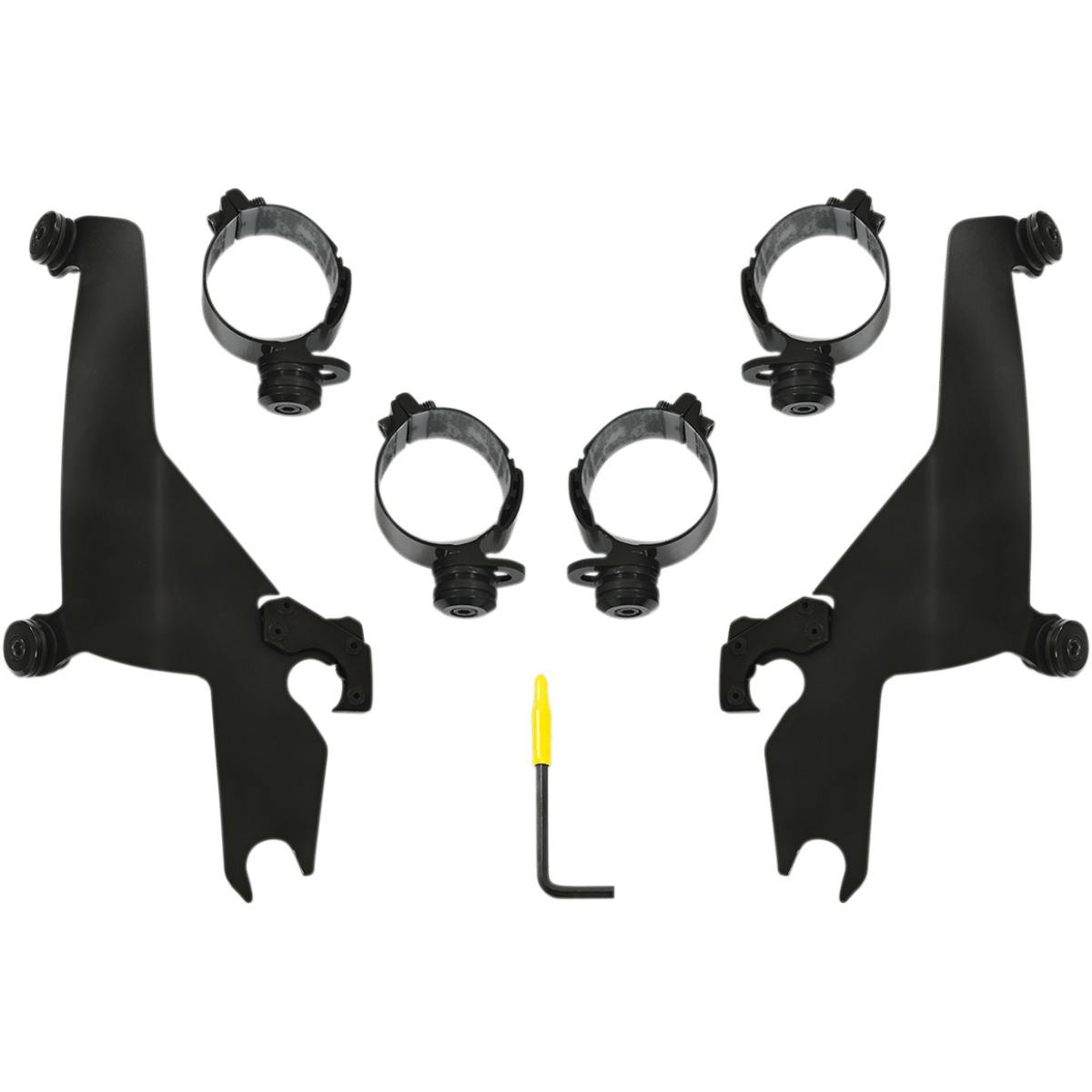

- 20-23 FXLRS, 18-21 FLSB: black 2320-0234

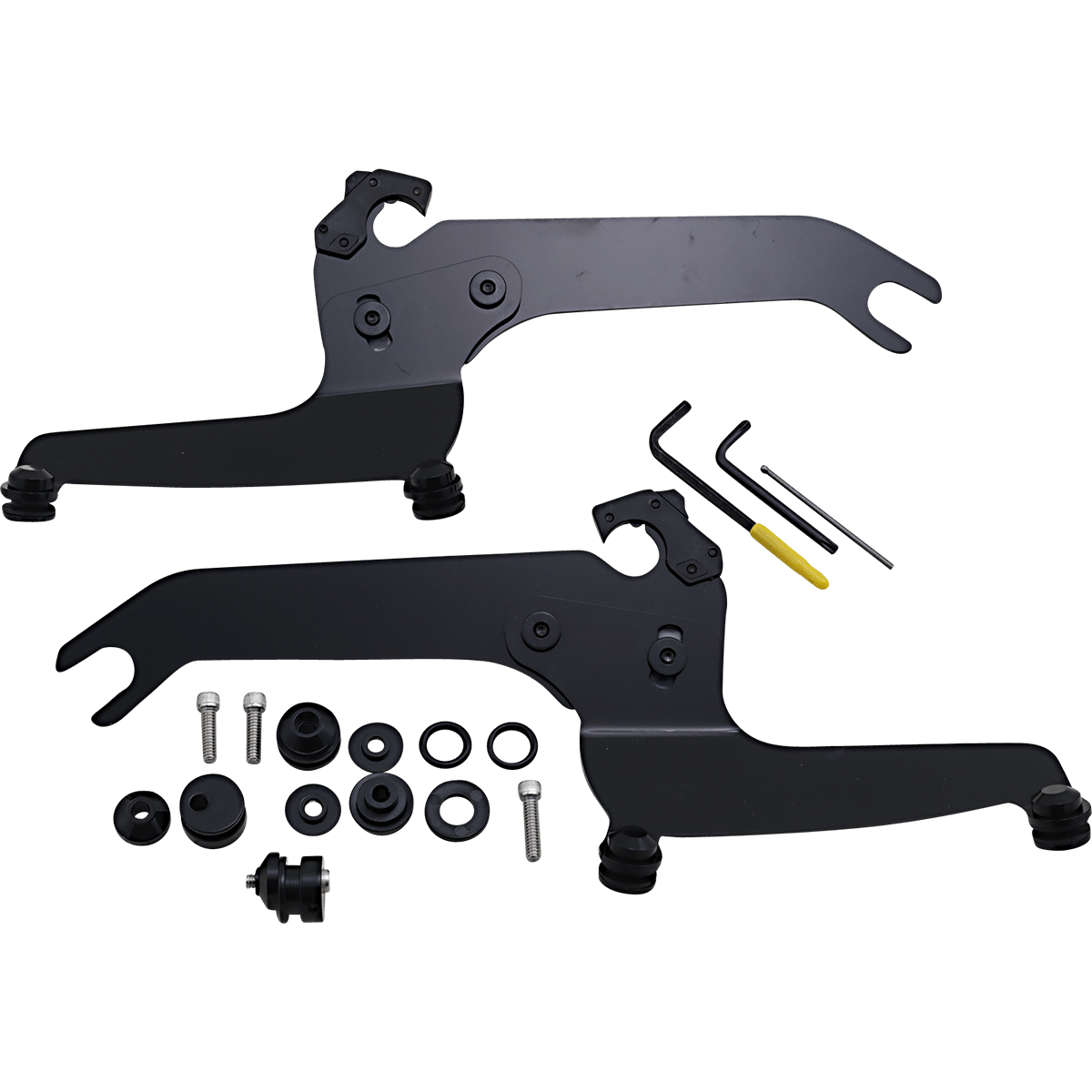

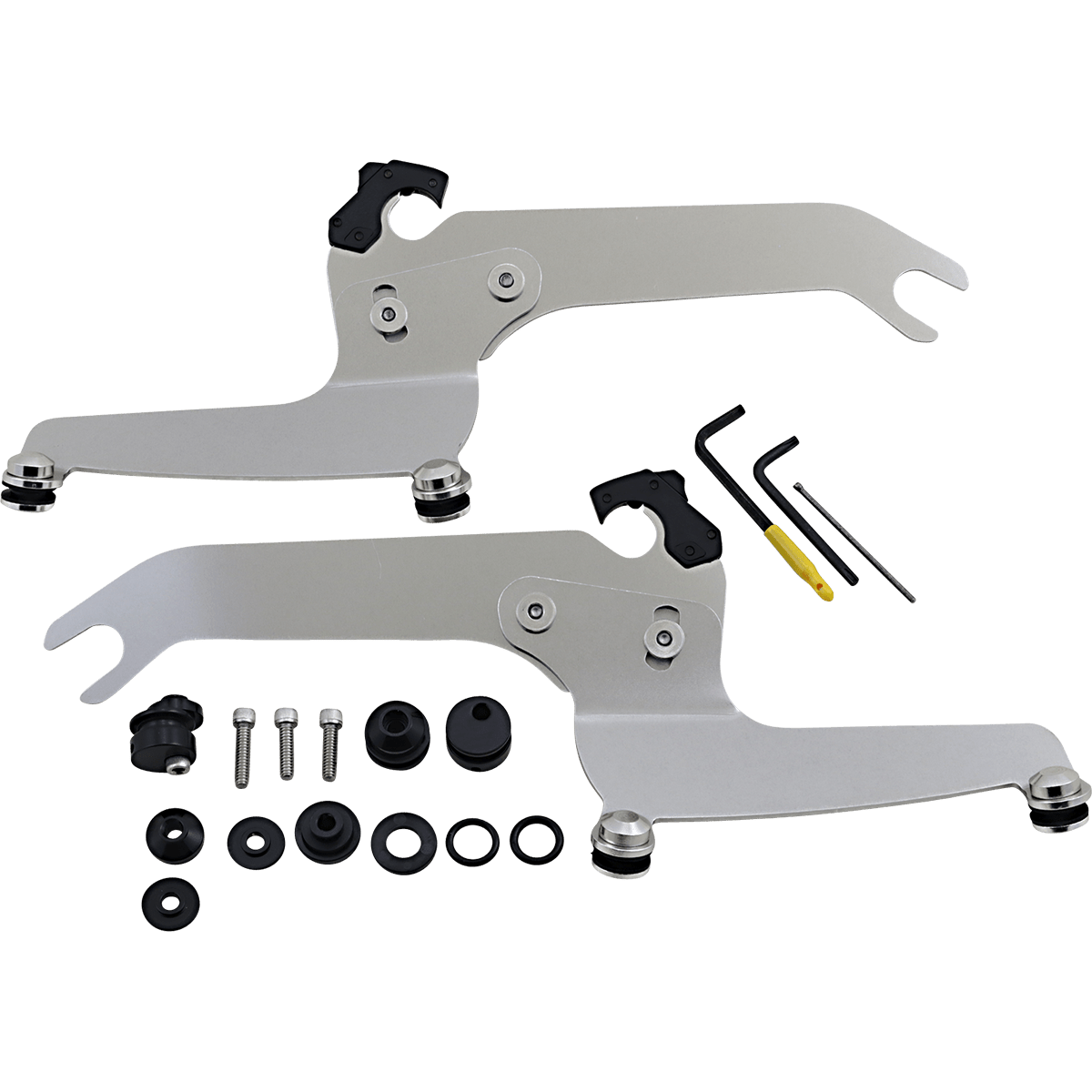

- 18-21 FLSL: polished 2320-0256, black 2320-0257

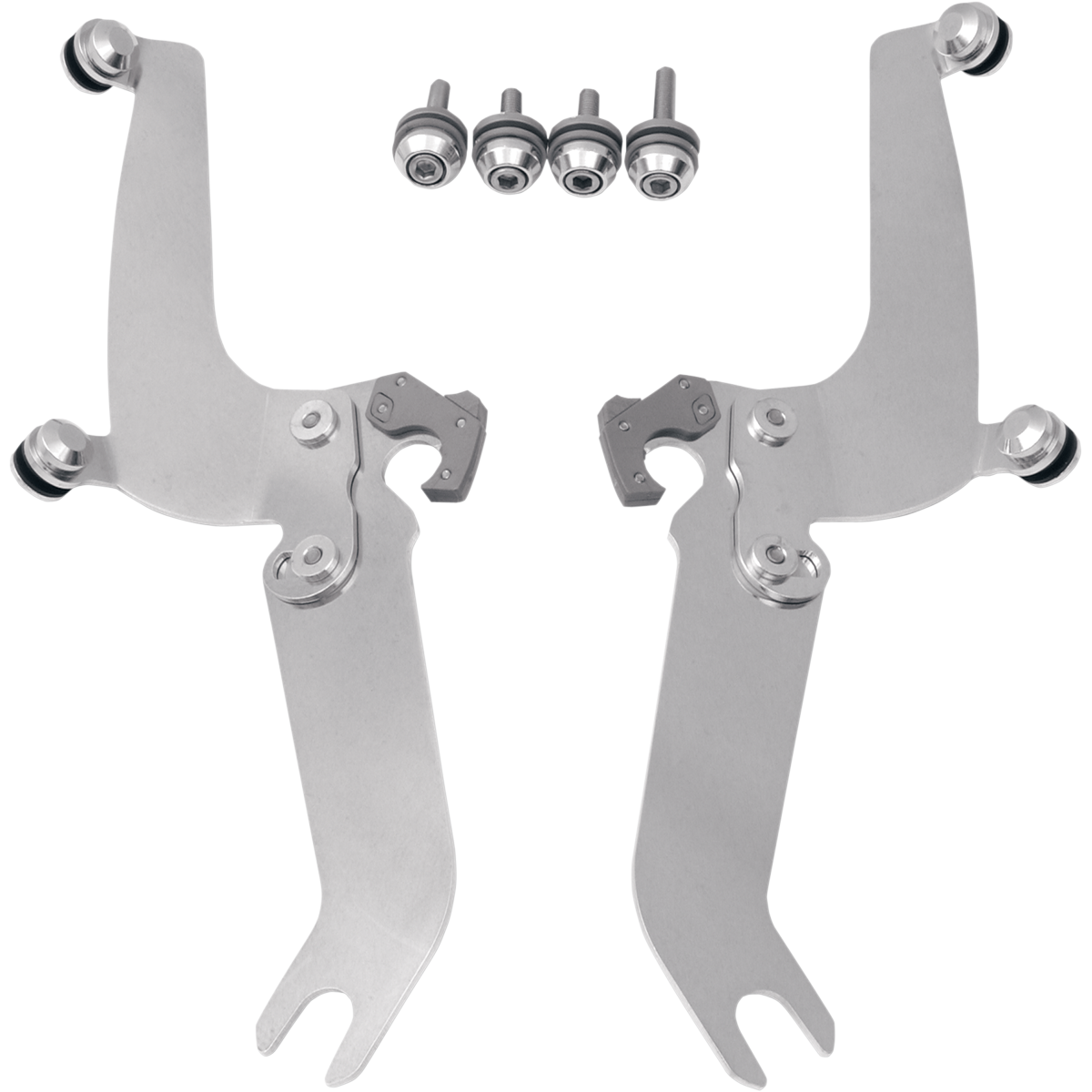

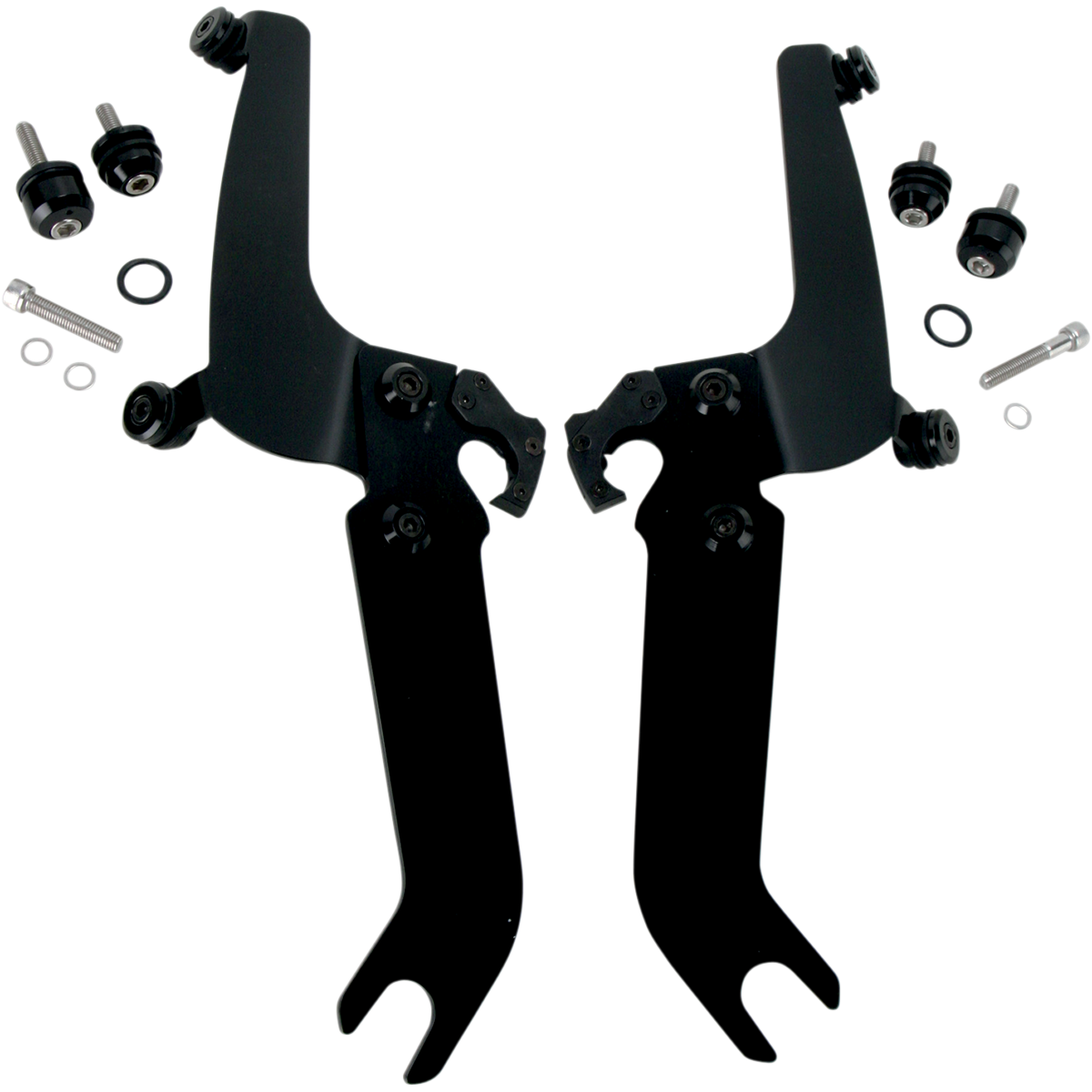

- 86-17 FLSTC, 90-17 FLSTF/FLSTFB/FLS, 93-96 and 05-17 FLSTN, with OEM light bar: polished 2320-0022, black 2320-0072

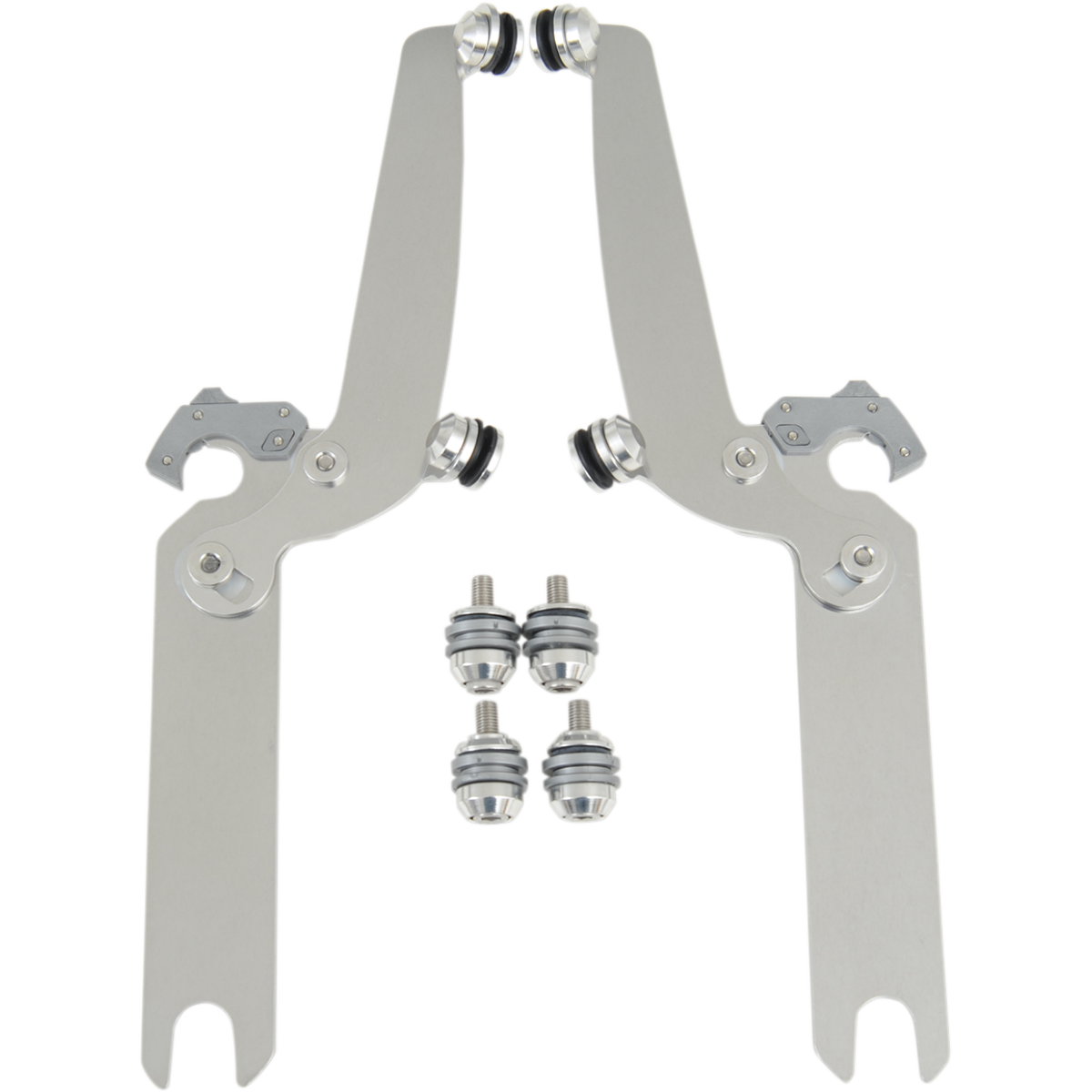

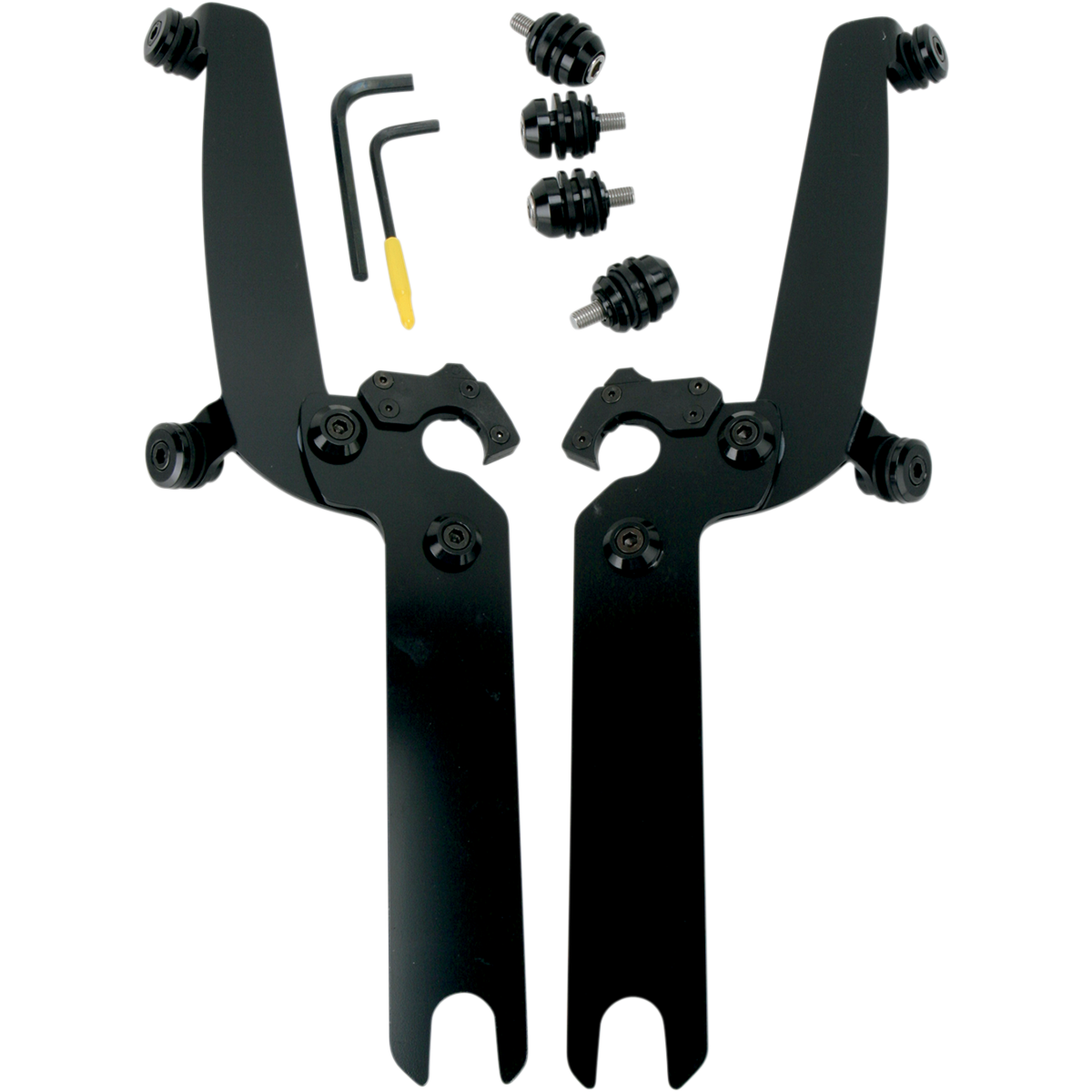

- 86-17 FLSTC, 90-17 FLSTF/FLSTFB/FLS, 93-96 and 05-17 FLSTN, without OEM light bar: polished 2320-0020, black 2320-0071

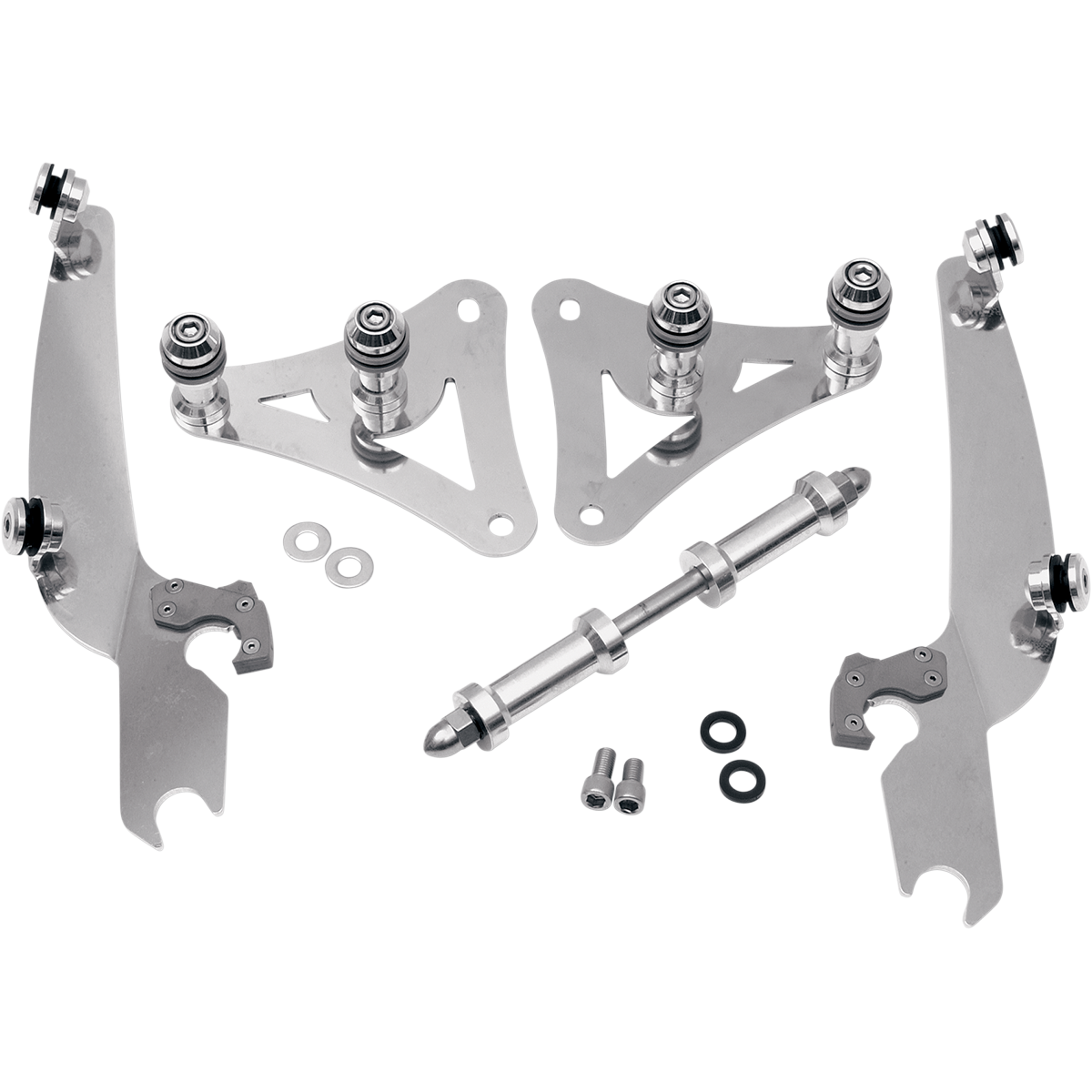

- 88-07 FLSTSC/FXSTS Springer: polished 2320-0028, black 2320-0073

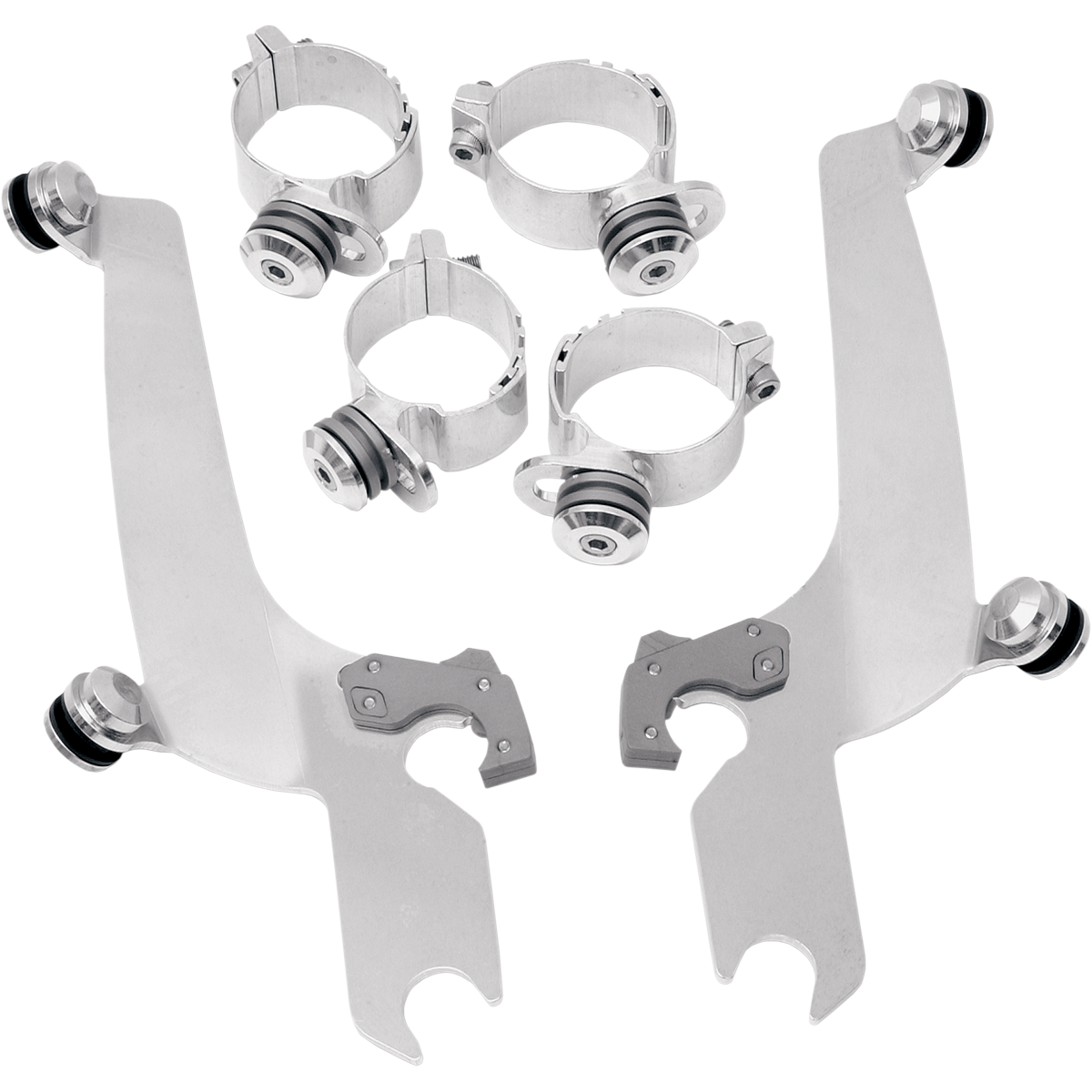

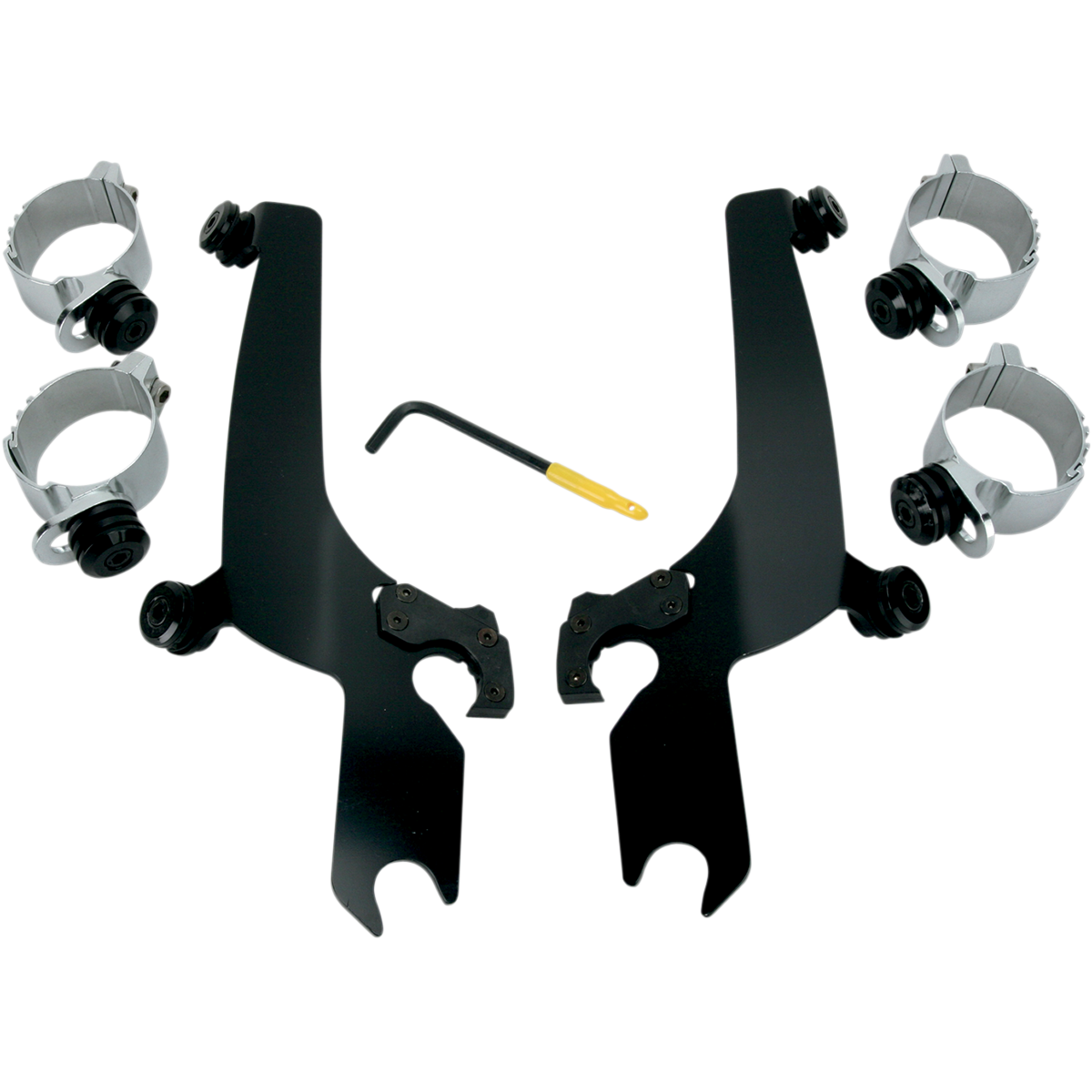

- 13-17 FXSB, 06-17 FXDWG: polished 2320-0032, black 2320-0076

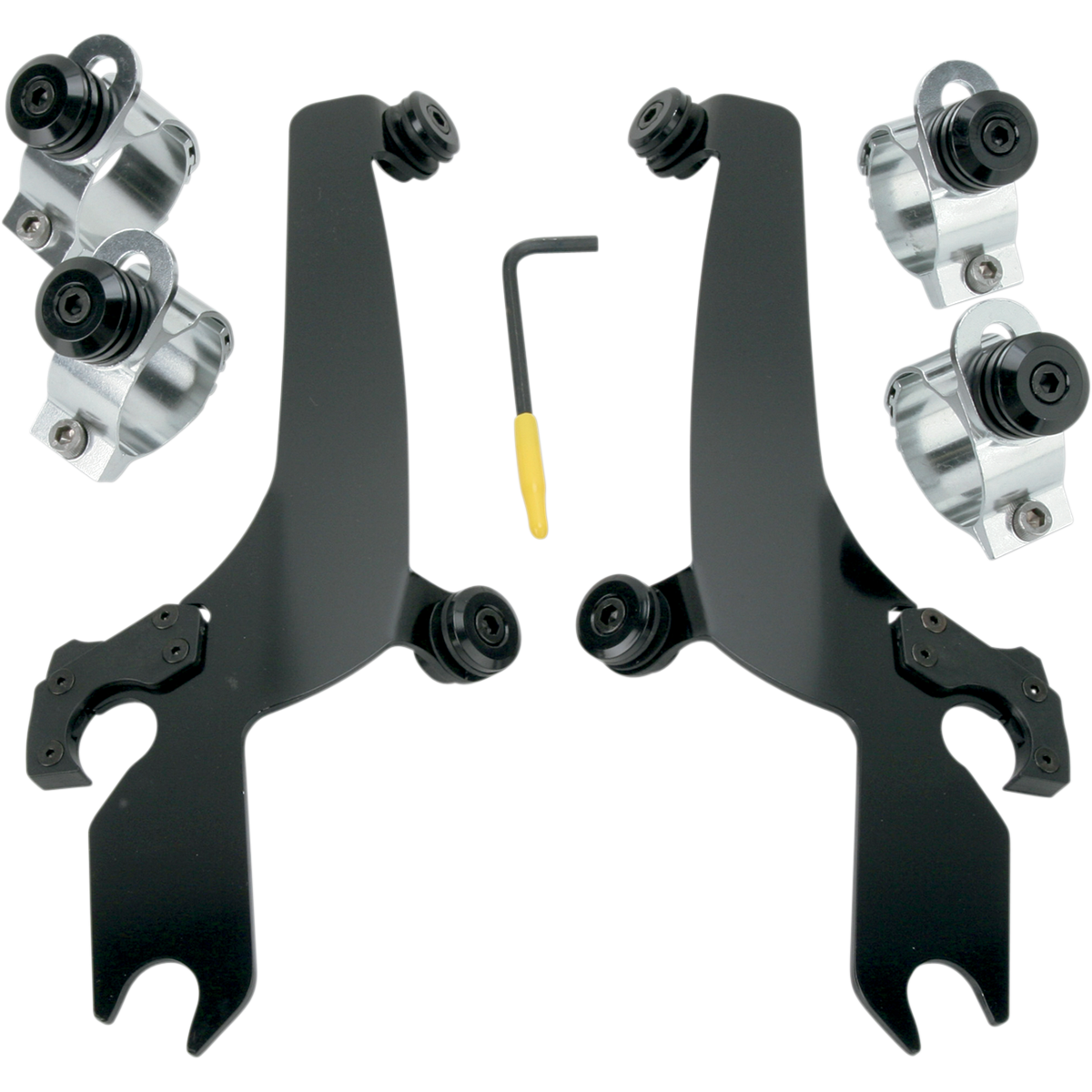

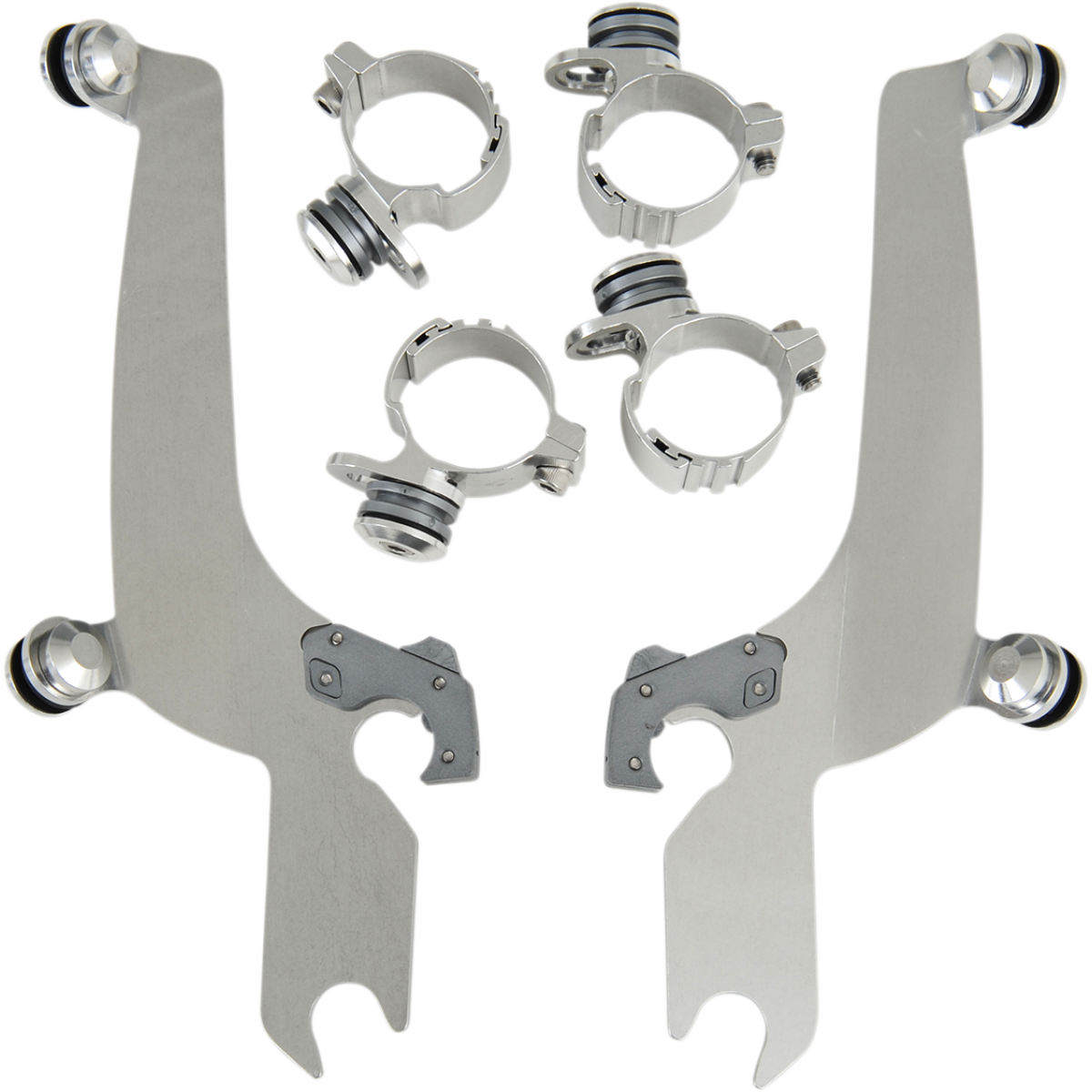

- 84-13 FXST/FXSTD/FXSTB/FXS, 93-05 FXDWG, 80-86 FXWG, other wide forks 11-1/2in to 12in: polished 2320-0014, black 2320-0070

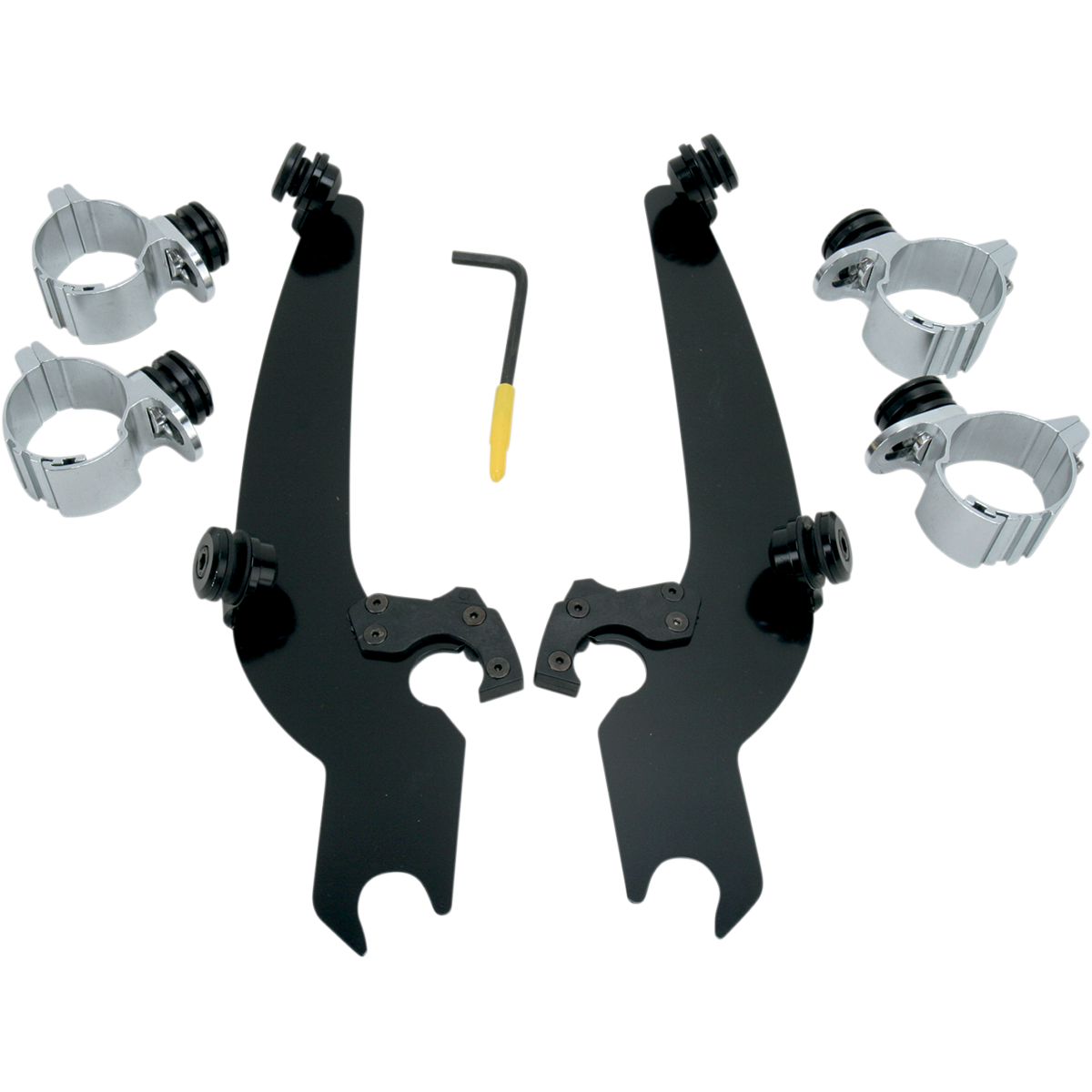

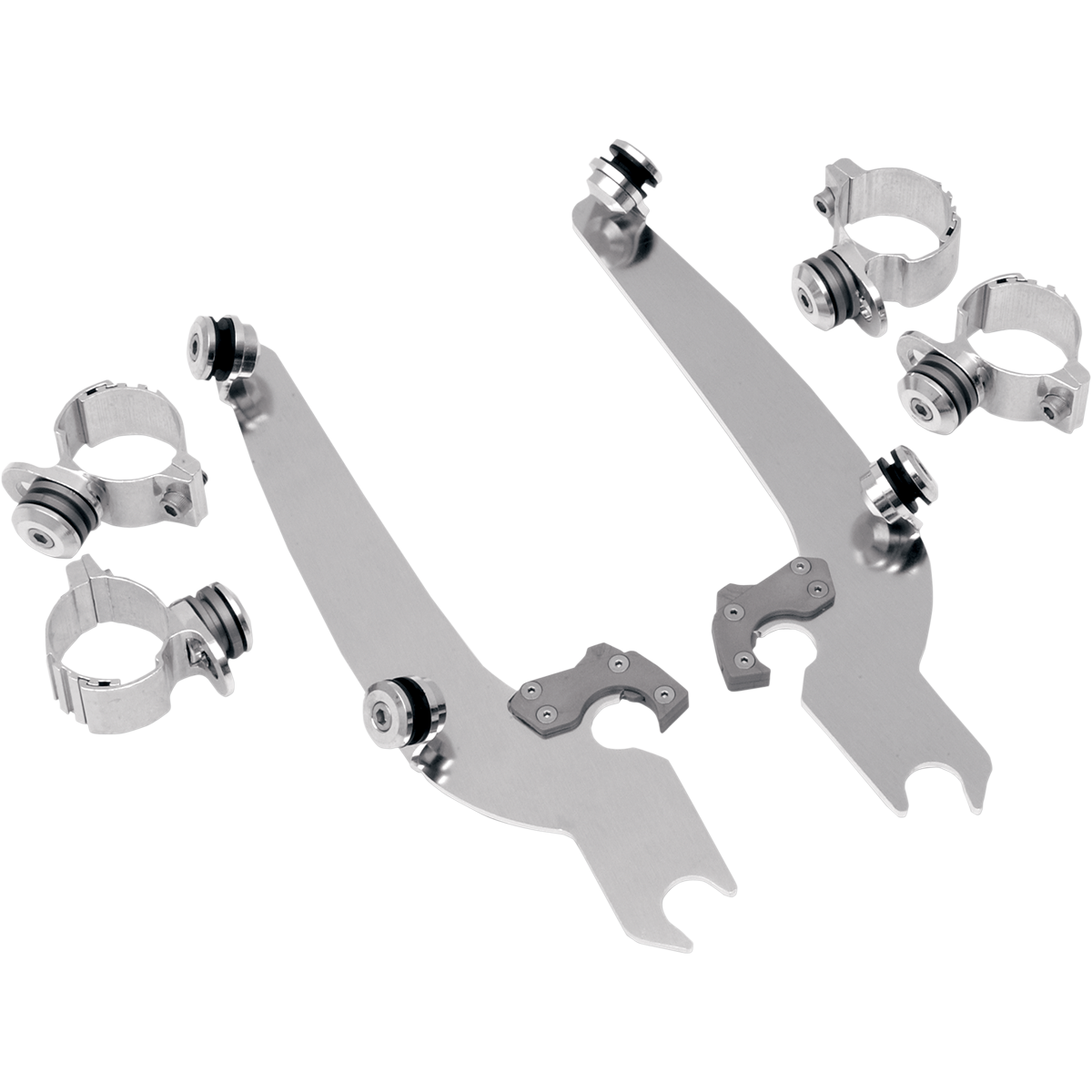

- 91-05 FXD/FXDL, 73-21 XL, 82-94 and 99-00 FXR, 73-85 FX/FXE/FXS, 15-20 XG500/750, other narrow forks 8-1/2in to 9in: polished 2320-0012, black 2320-0069

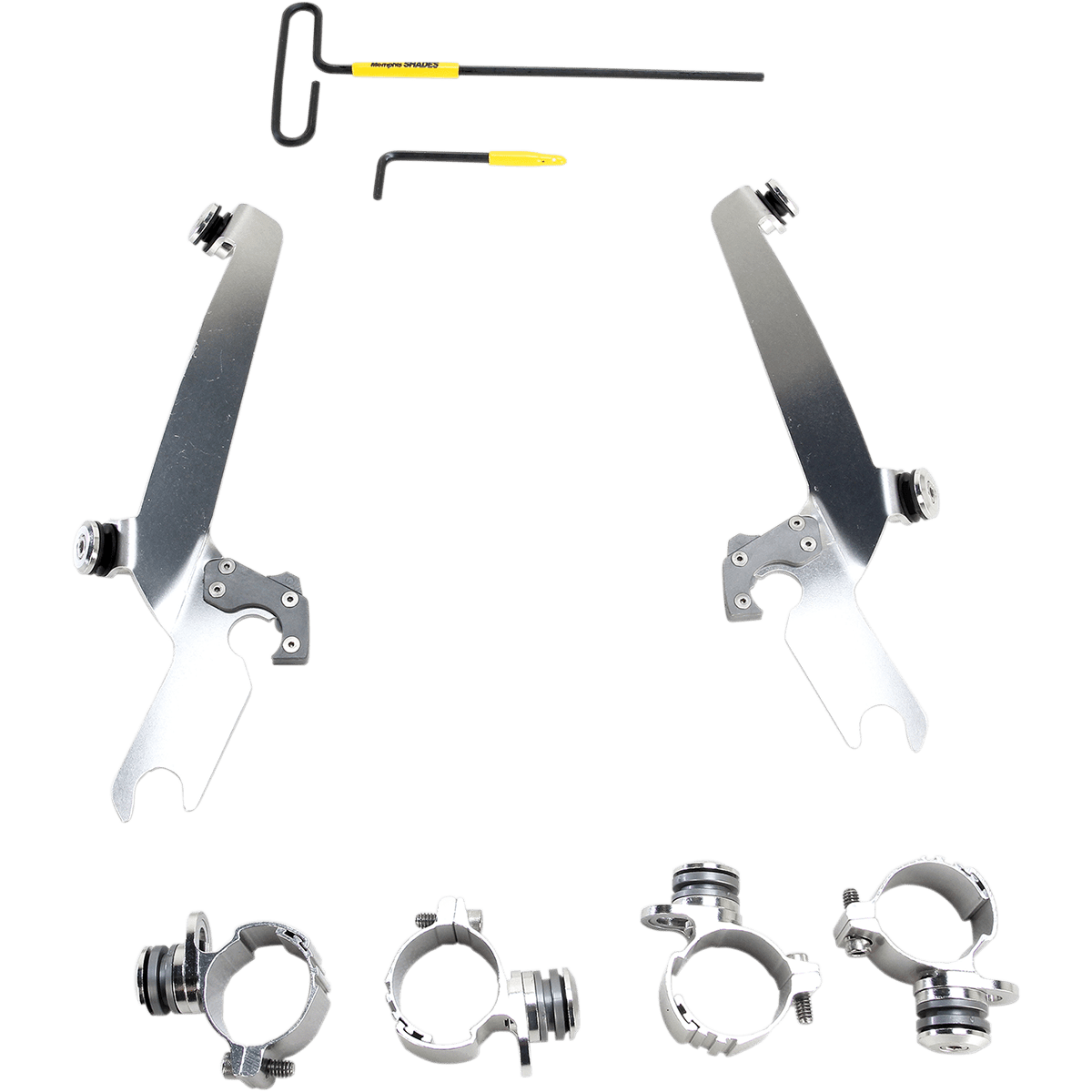

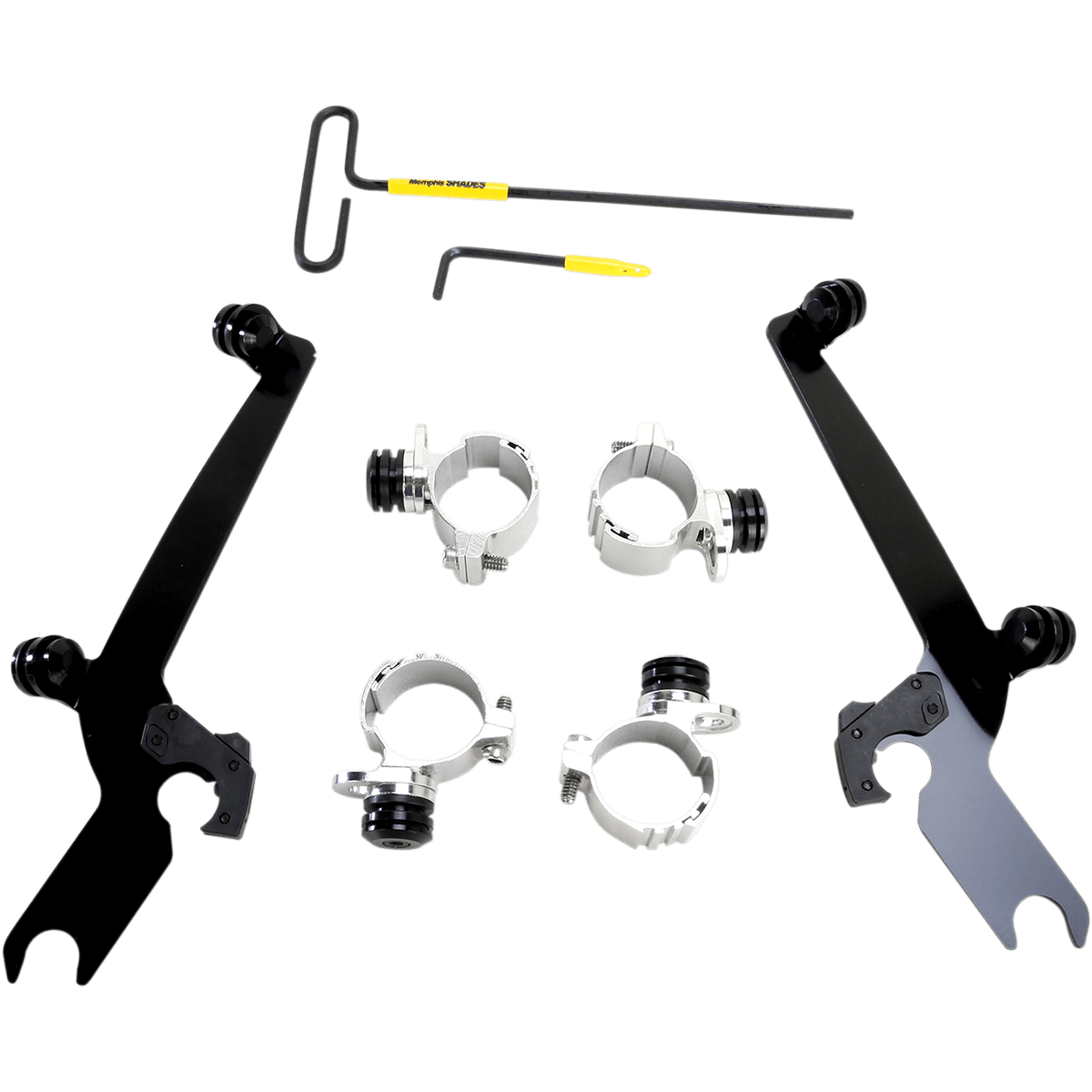

- 11-21 XL883L, 11-21 XL1200C, 15-17 XL1200T: polished 2320-0168, black 2320-0169

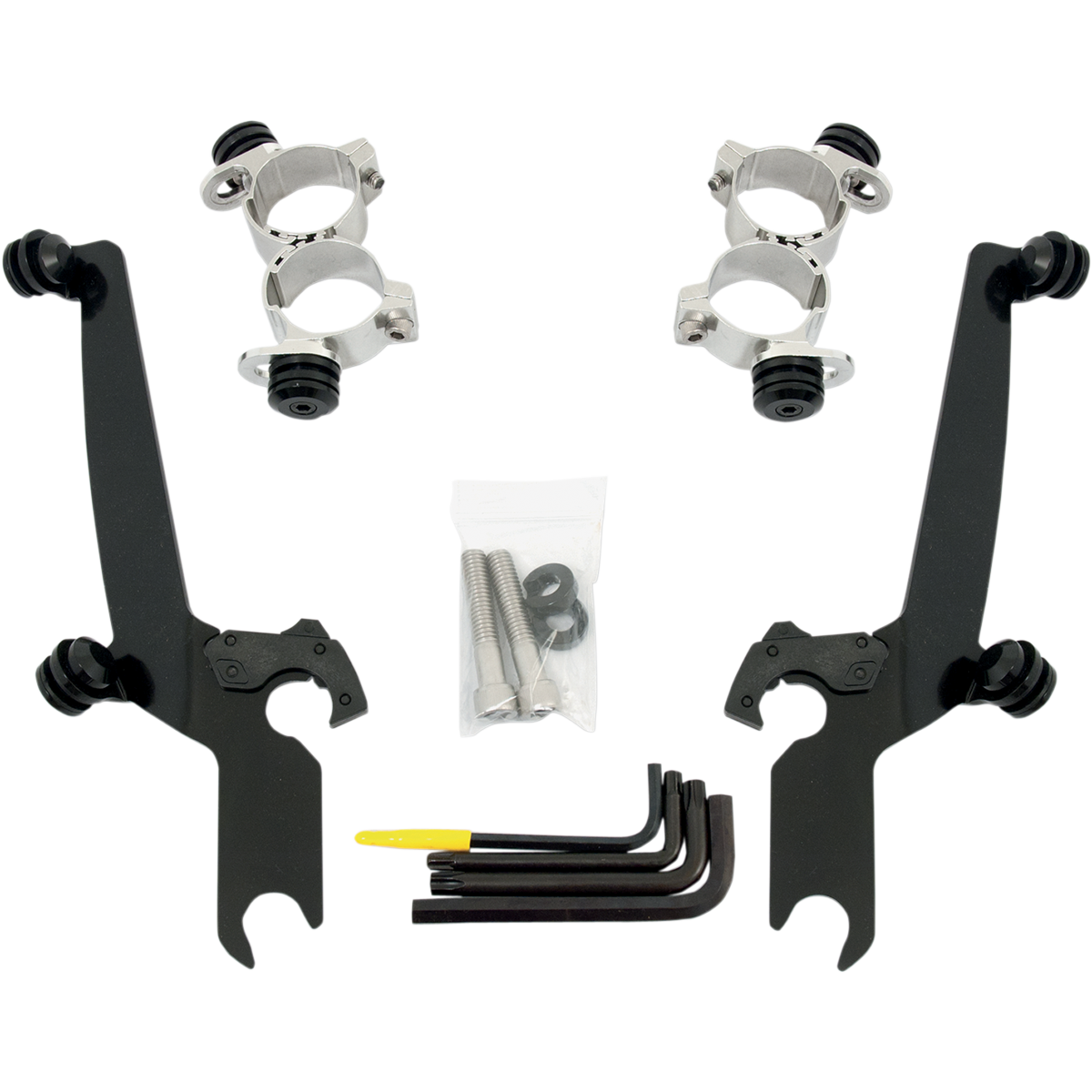

- 10-15 XL1200X: polished 2320-0109, black 2320-0110

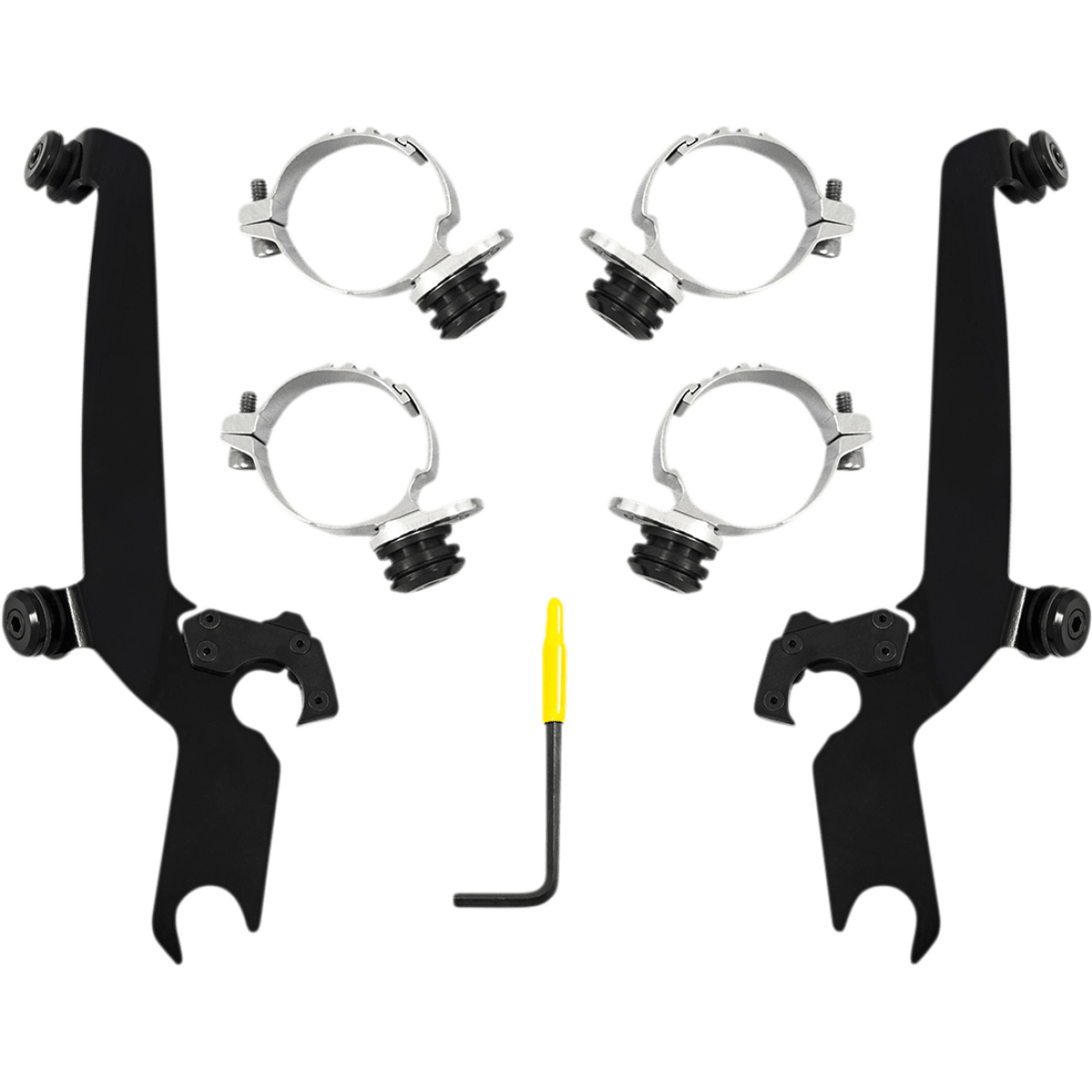

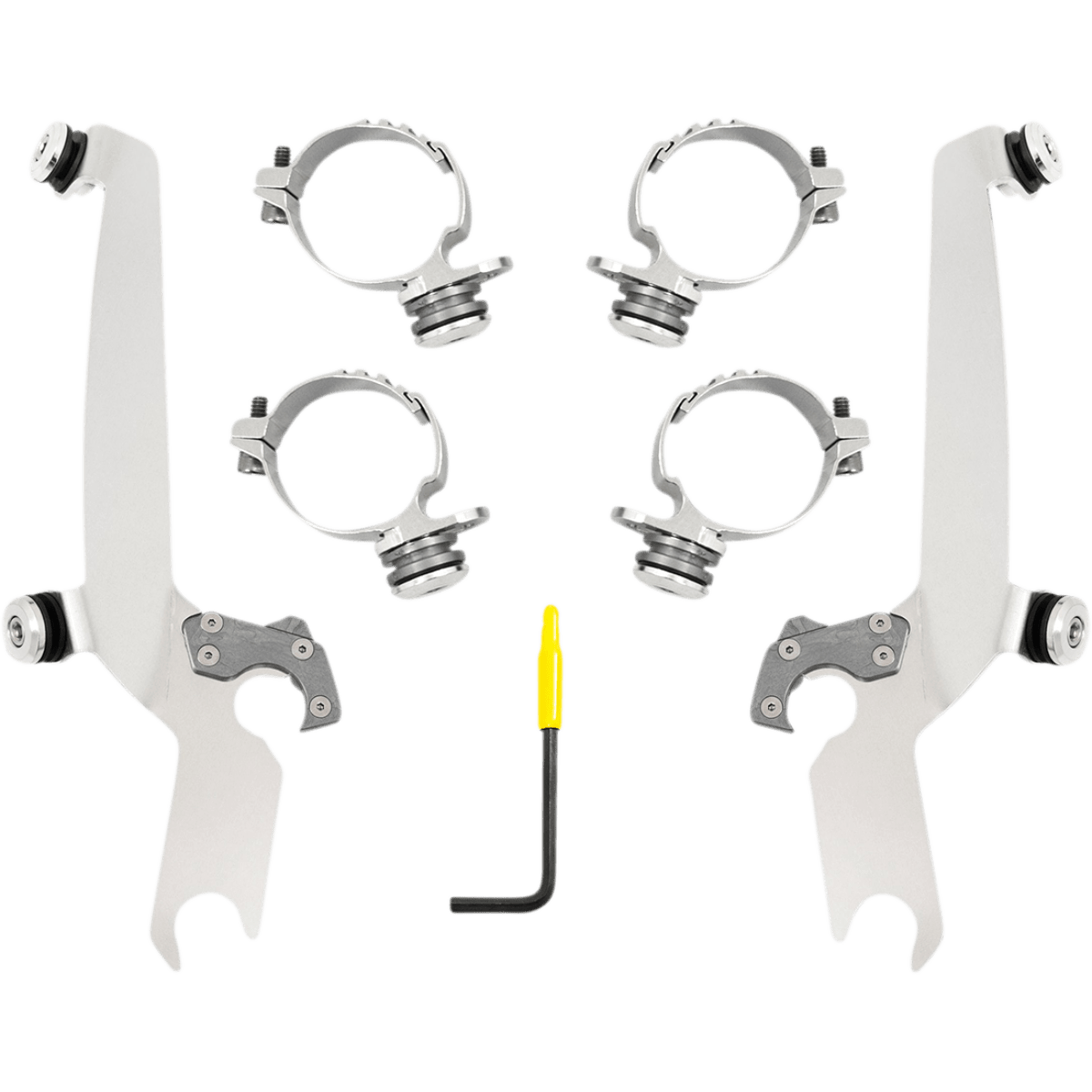

- 16-22 XL1200X: polished 2320-0269, black 2320-0268

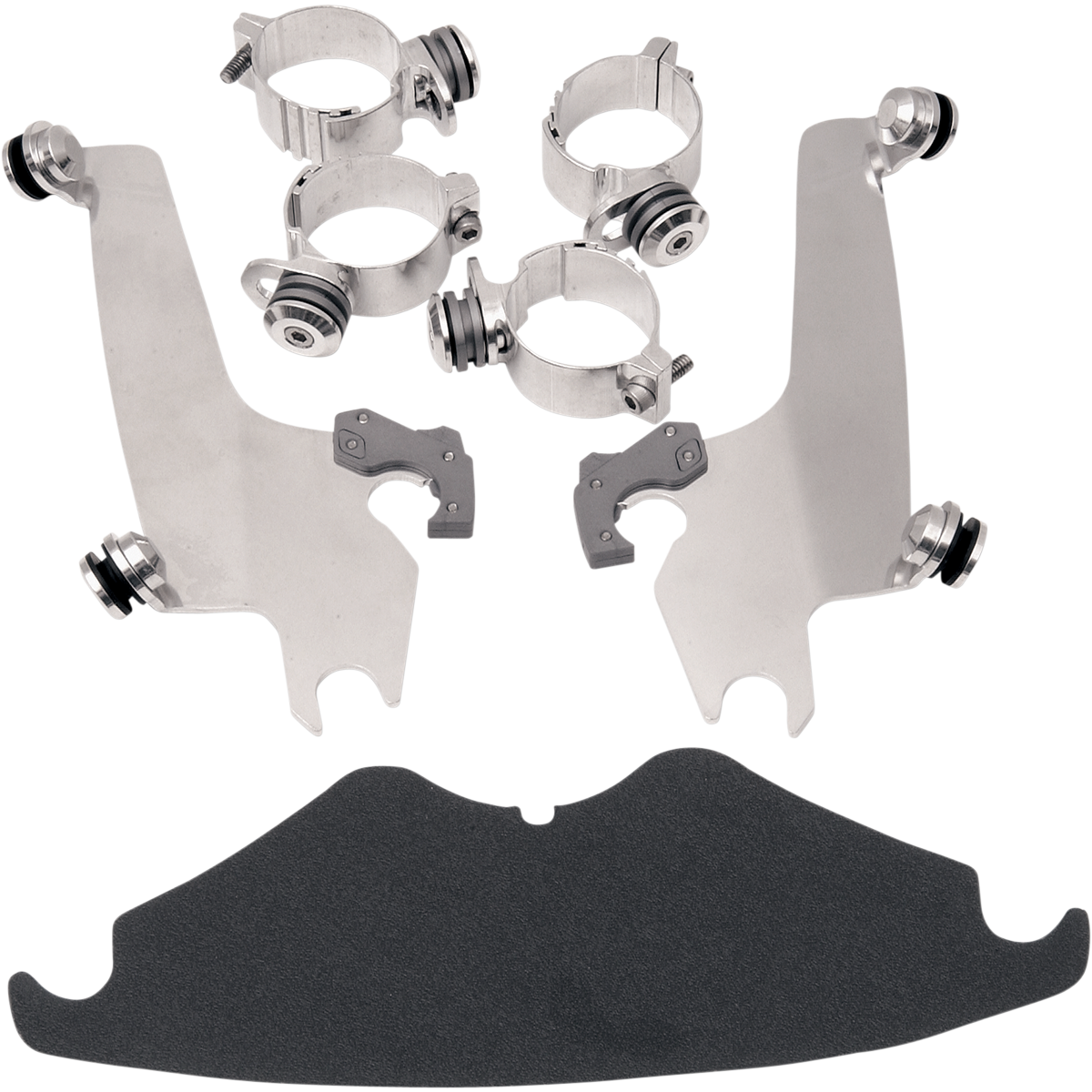

- 02-11 VRSCA/B except VRSCR: polished 2320-0034, black 2320-0074
Fitment above combines the FatBook 2000 and later listings with the OldBook listings for the same part numbers, so the year spans run continuous where Memphis Shades covers them. ⚠️ VERIFY your model against the list before ordering, and note that some applications require a headlight extension kit, a trim ring, or a turn signal relocation kit.
Made in the U.S.A.
