The model specific hardware that carries a Bullet Fairing and swaps it for a windshield.
Each kit here is machined for one group of Harley-Davidson models so the Bullet Fairing sits correctly on an FLHR Road King, FLSTC Heritage Softail, FLSB Sport Glide, FXSB Breakout or VRSCDX Night Rod Special. The Trigger-Lock mounting system uses CNC machined aluminum plates, stainless steel bolts and aluminum anchors, or black E coated plates, bolts and anchors. Once the hardware is on the bike the fairing comes off and goes back on without tools. The same mount also carries a Memphis Fats, Slim or Sportshield windshield, so one set of hardware covers two very different looks.
Features of the Bullet Trigger-Lock Mount Kit
- CNC machined mounting plates specific to the model listed
- Polished and black options depending on application
- No tool fairing removal once the base hardware is mounted
- Also carries Memphis Fats, Slim and Sportshield windshields
Bullet Trigger-Lock Mount Kit Fitment
| Application | Polished | Black |
|---|---|---|

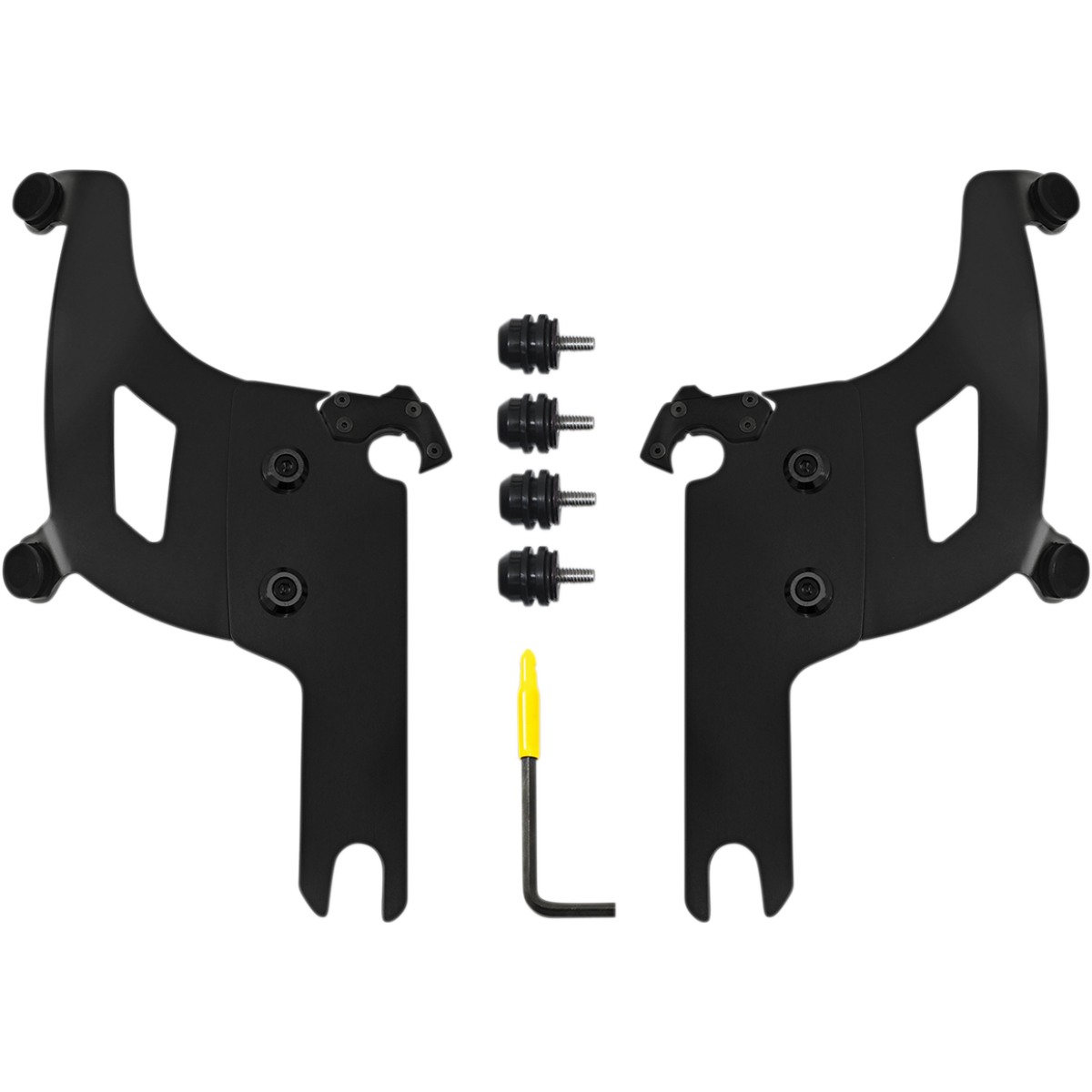

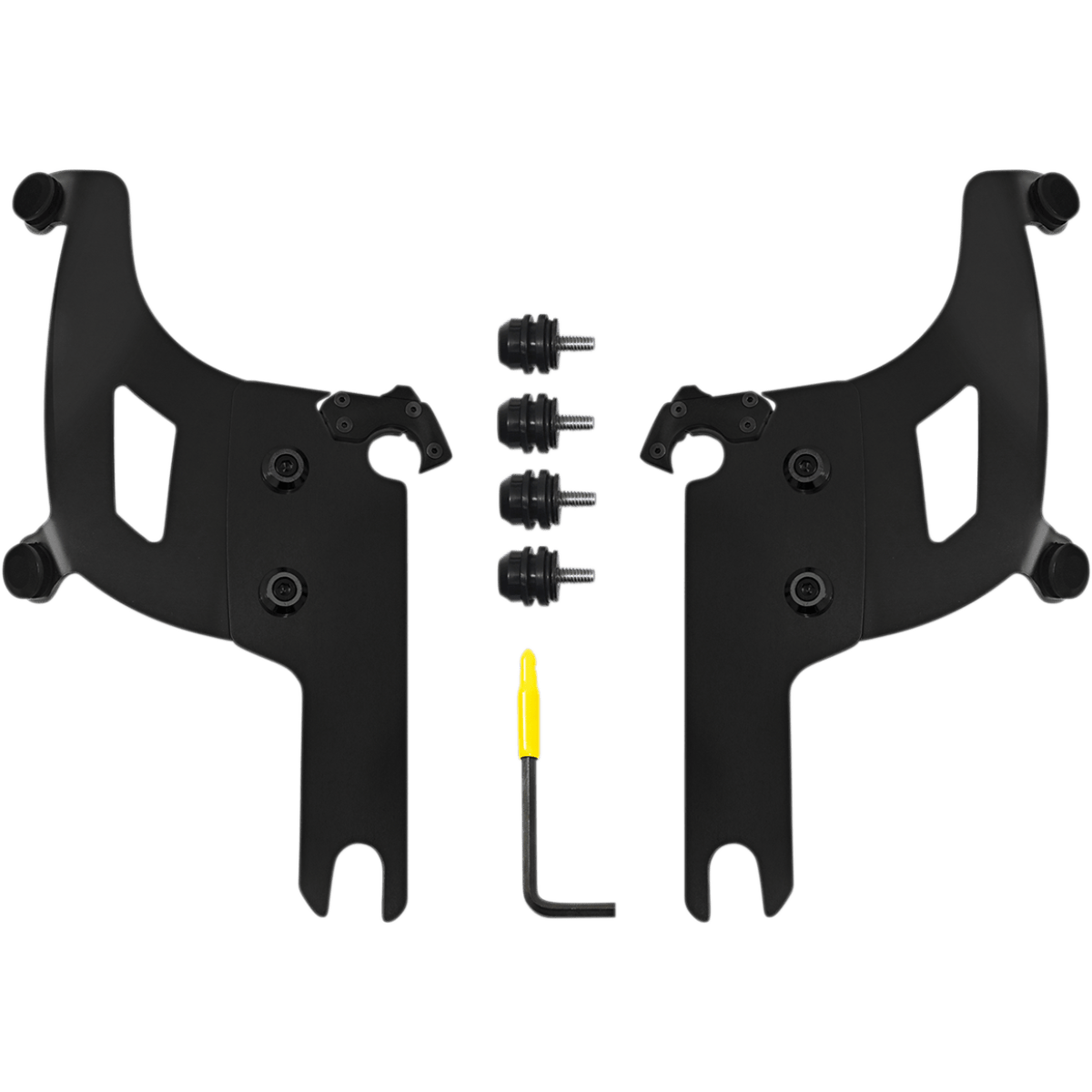

| '18-'23 FLHRXS and '04-'07 FLHRS/FLHRI | 2320-0242 | 2320-0243 |

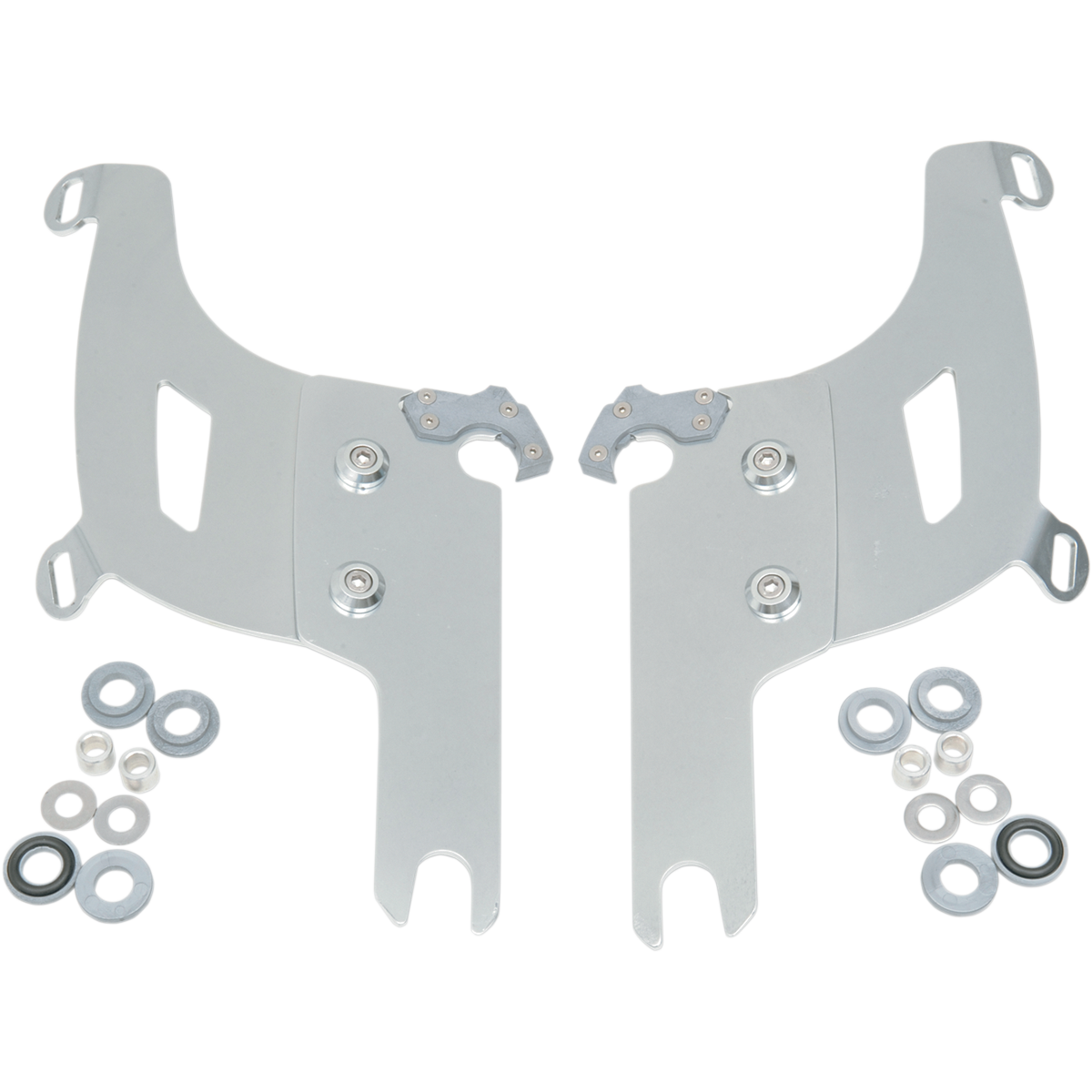

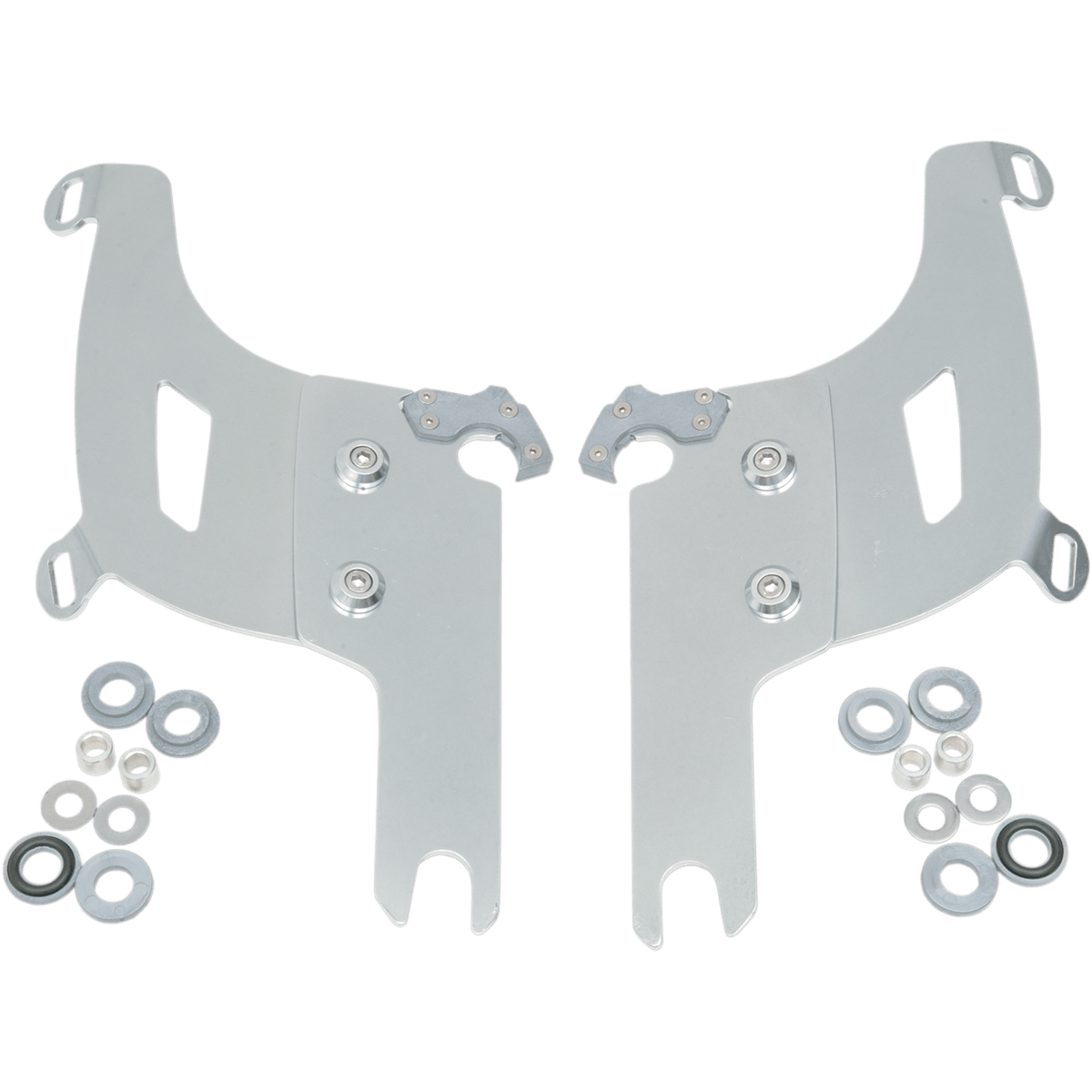

| '94-'22 FLHR/FLHRI/FLHRCI/FLHRS | 2320-0085 | Not available |

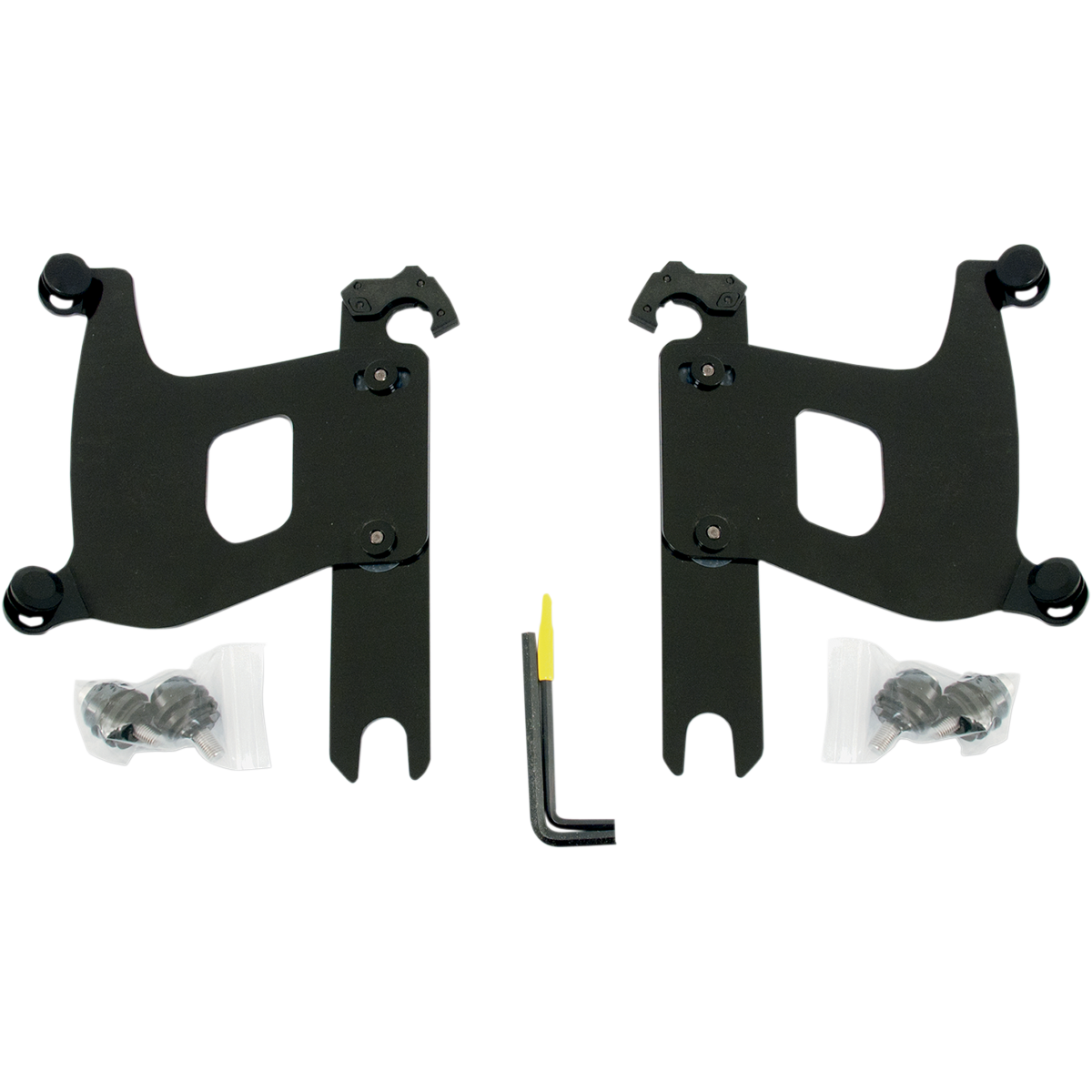

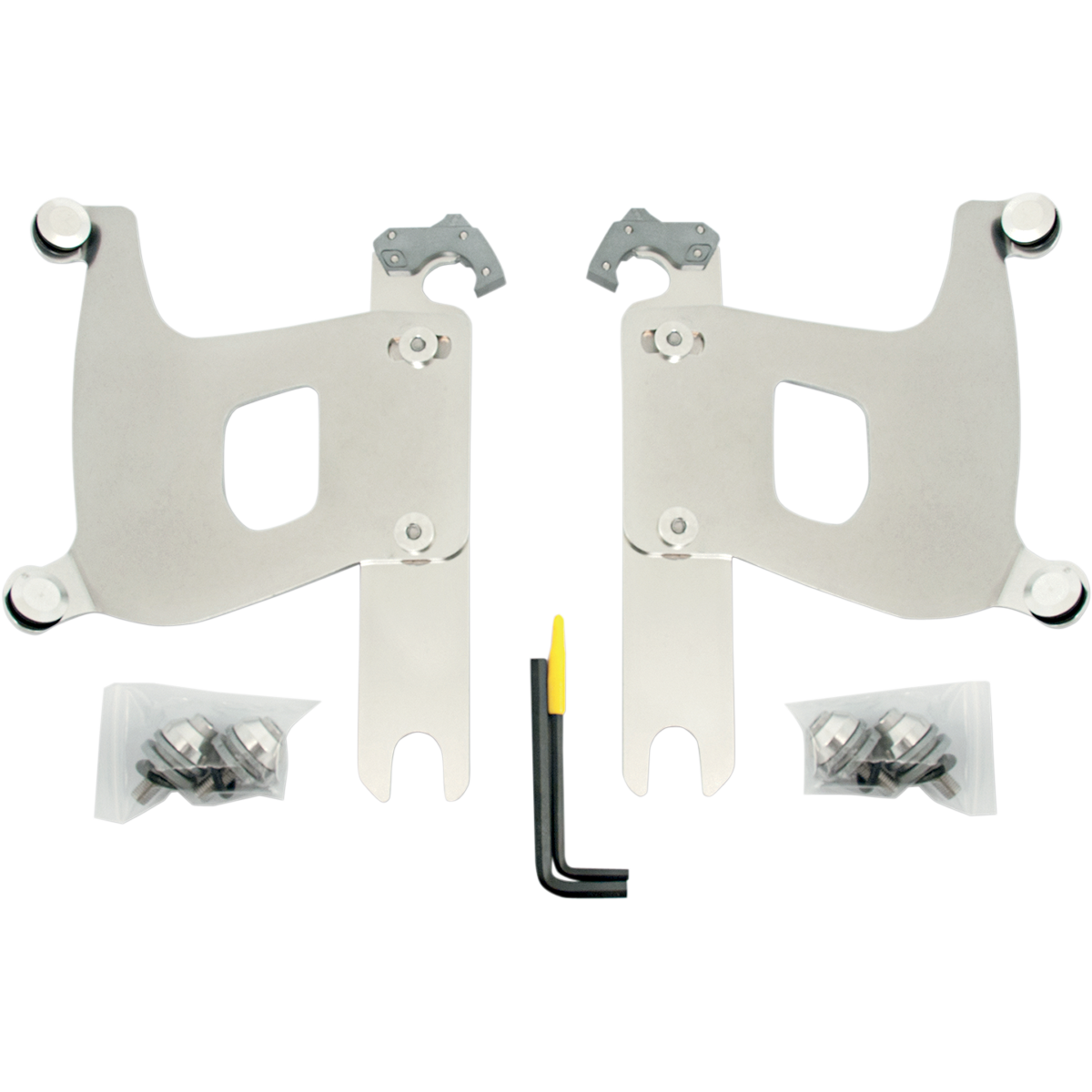

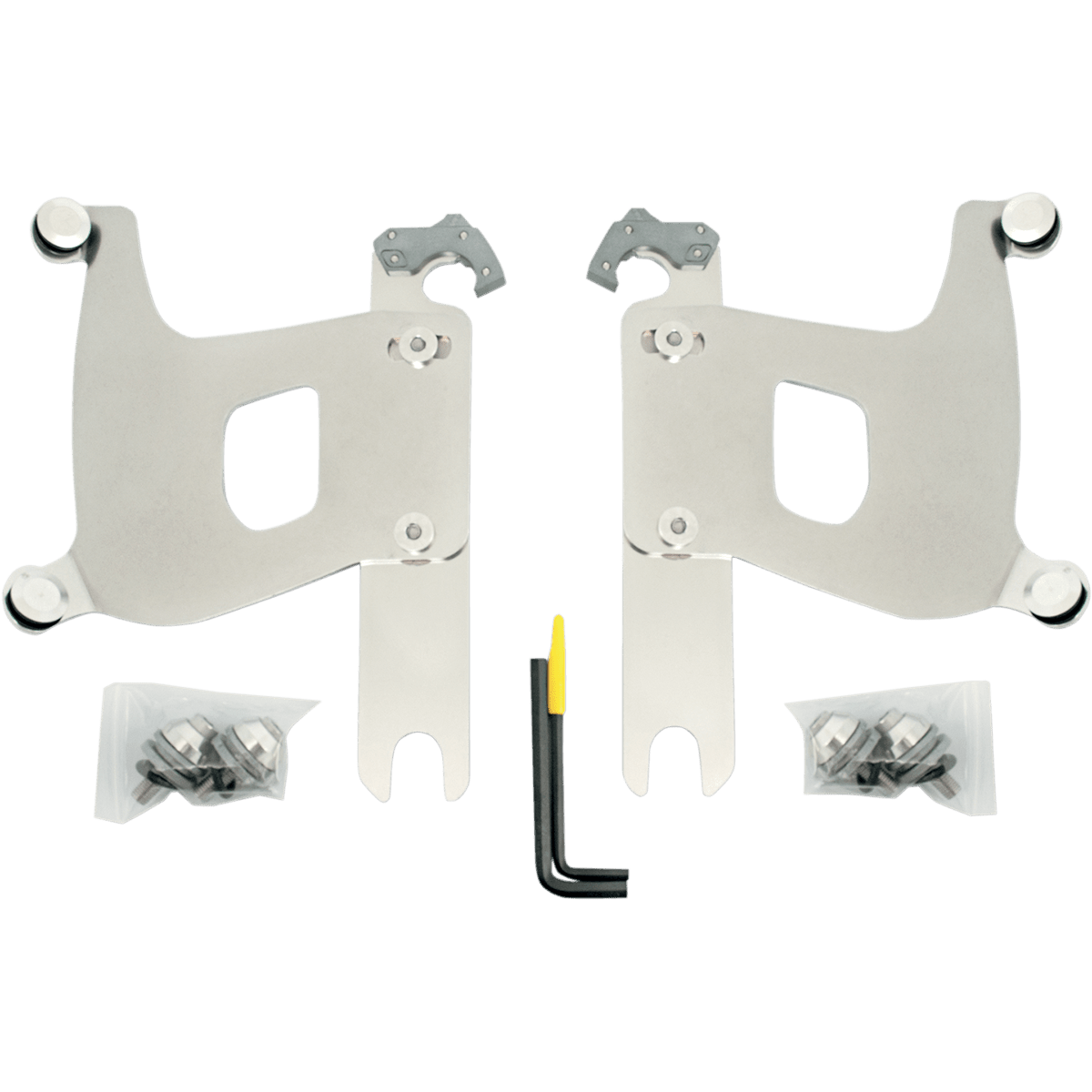

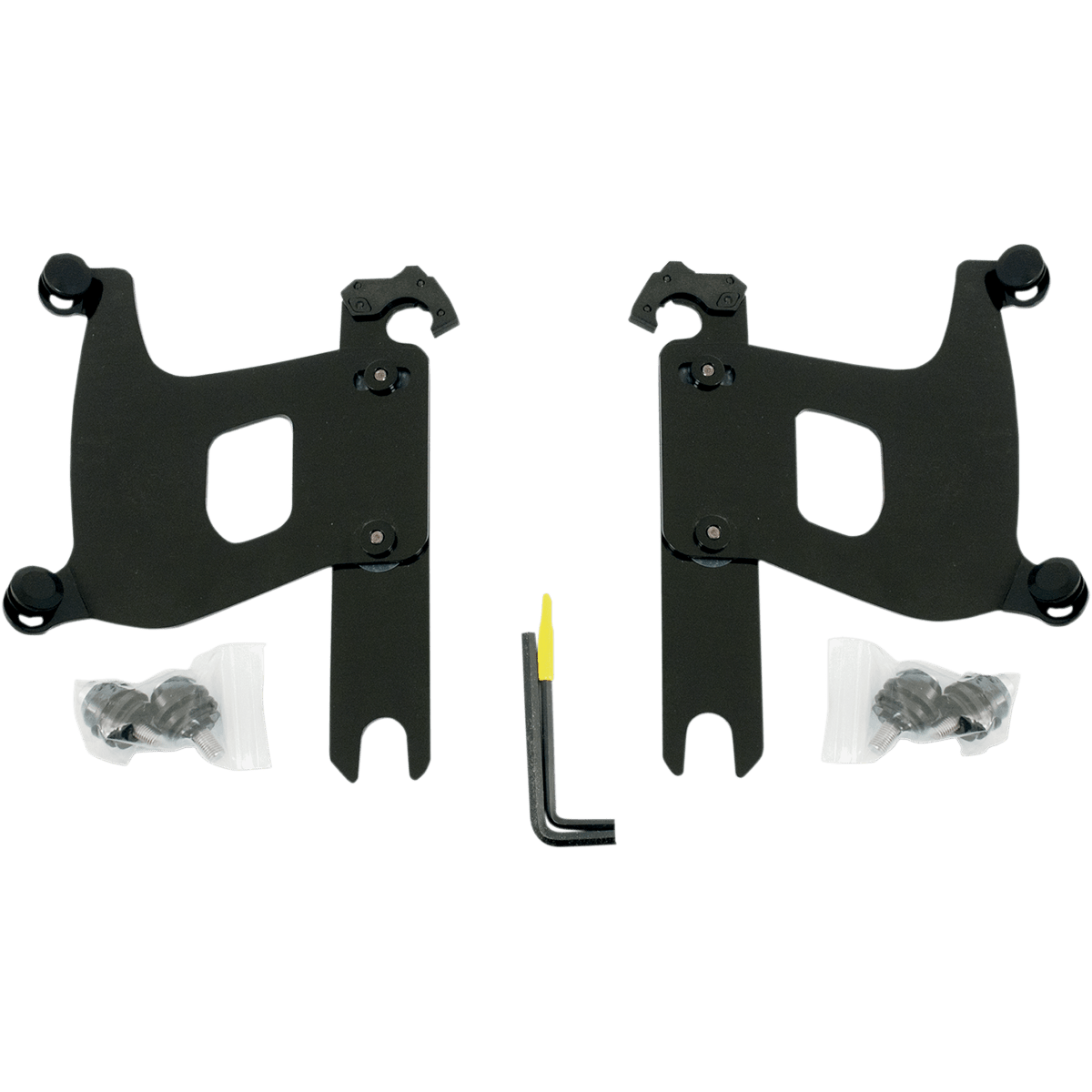

| '86-'17 FLST/FLSTC, '90-'17 FLSTF/FLS, '93-'96 and '05-'17 FLSTN - w/o lightbar | 2320-0098 | 2320-0100 |

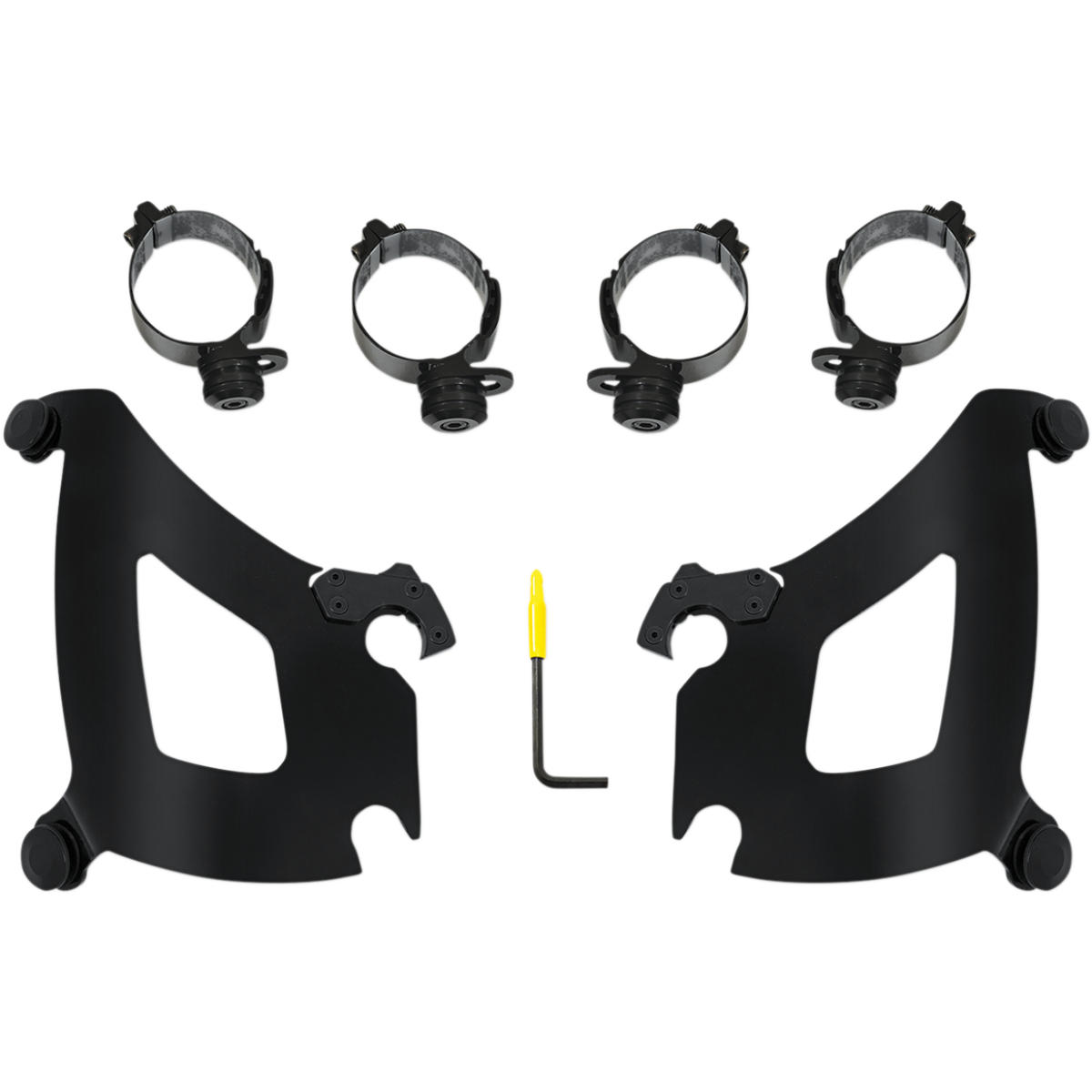

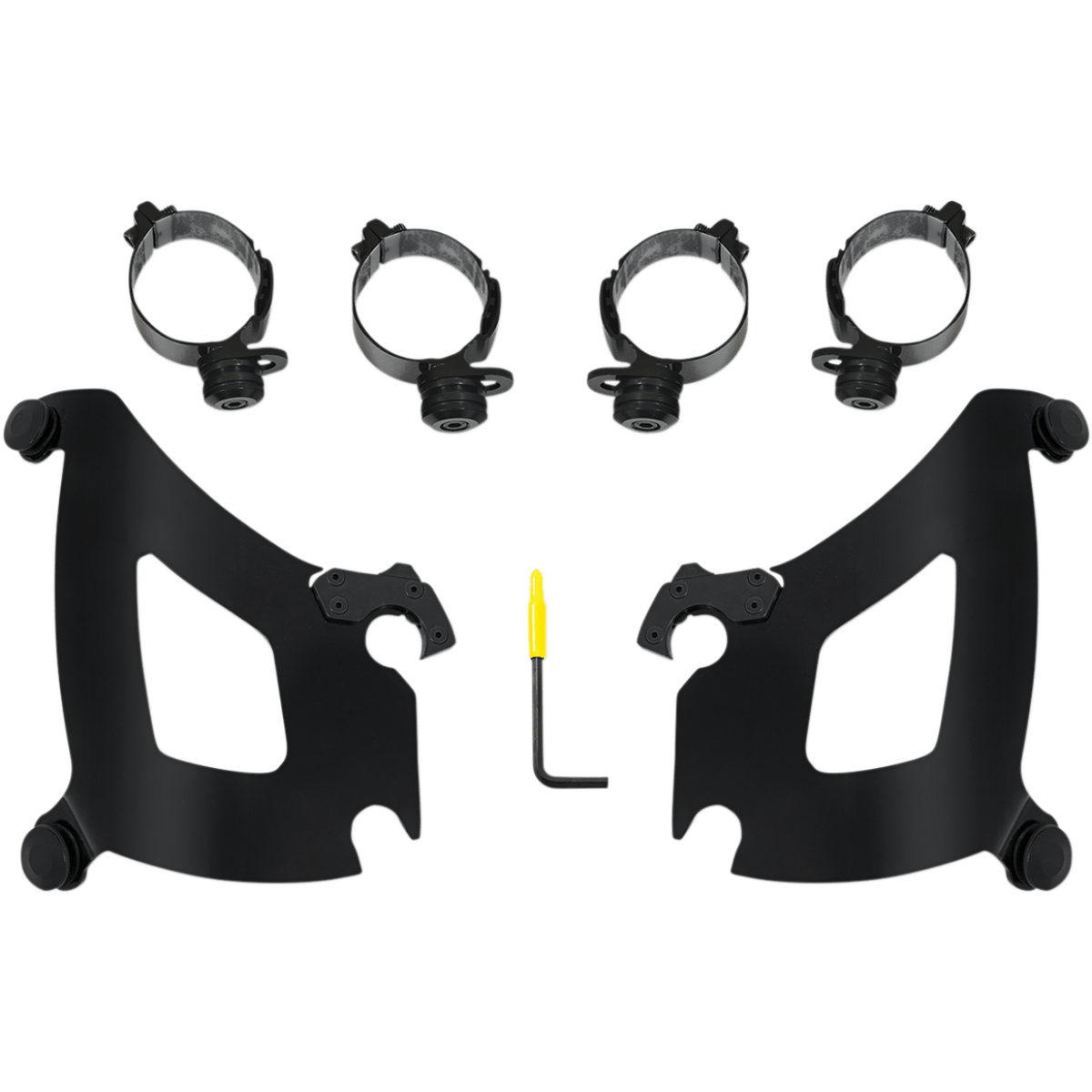

| '18-'21 FLSB | Not available | 2320-0226 |

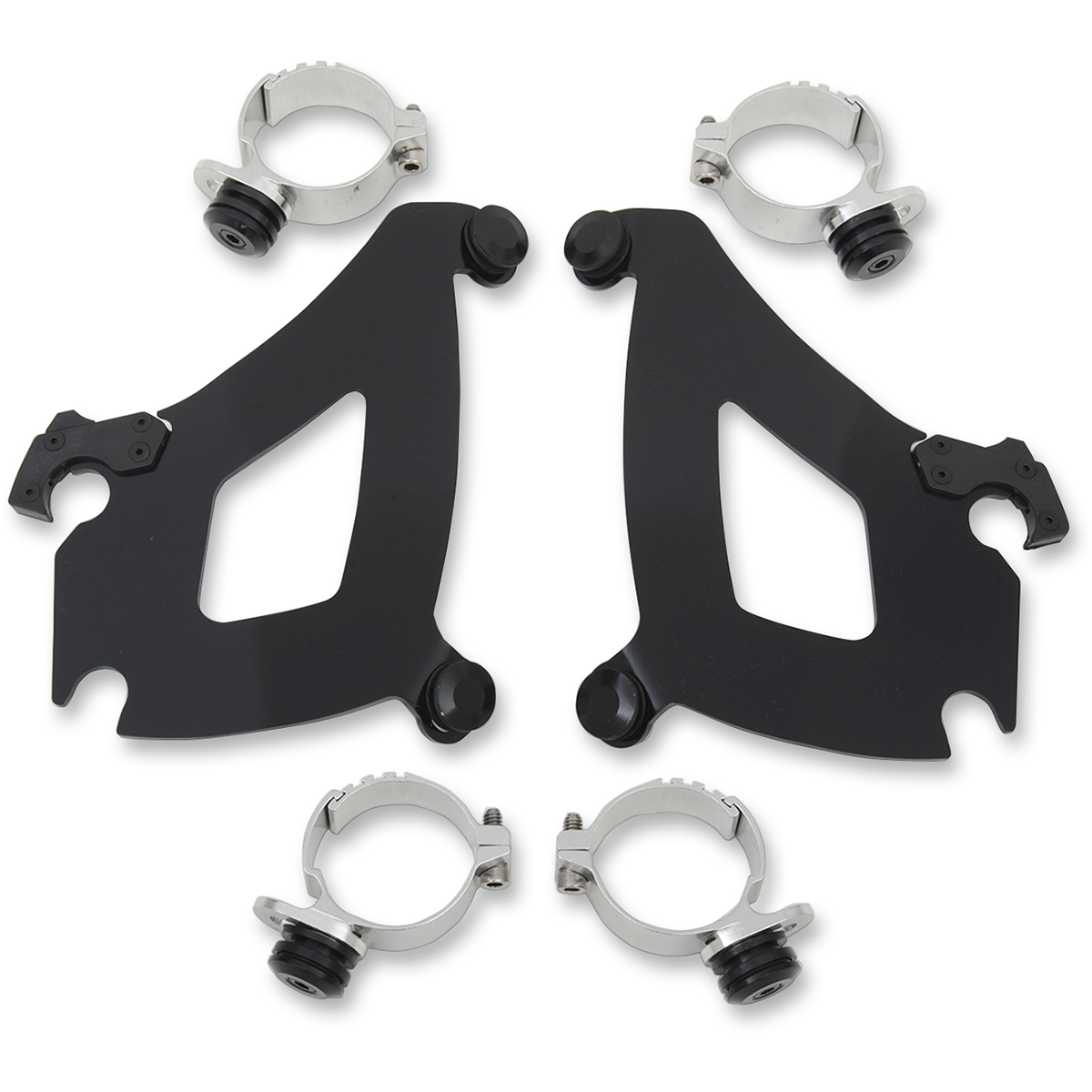

| '13-'17 FXSB (except FXSB-CVO) | Not available | 2320-0139 |
| '07-'11 VRSCDX | Not available | 2320-0107 |
Note: The '94-'22 FLHR Road King application requires OEM FLHR windshield docking hardware on FLHRS and FLHRSI.
Note: Softail applications listed are for models without a lightbar.
